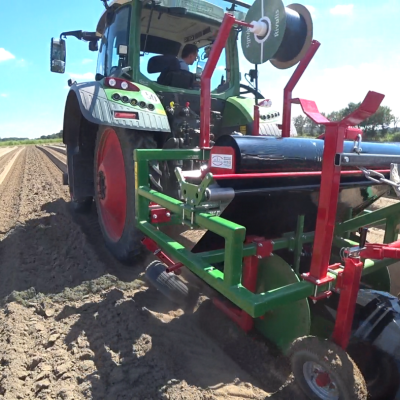

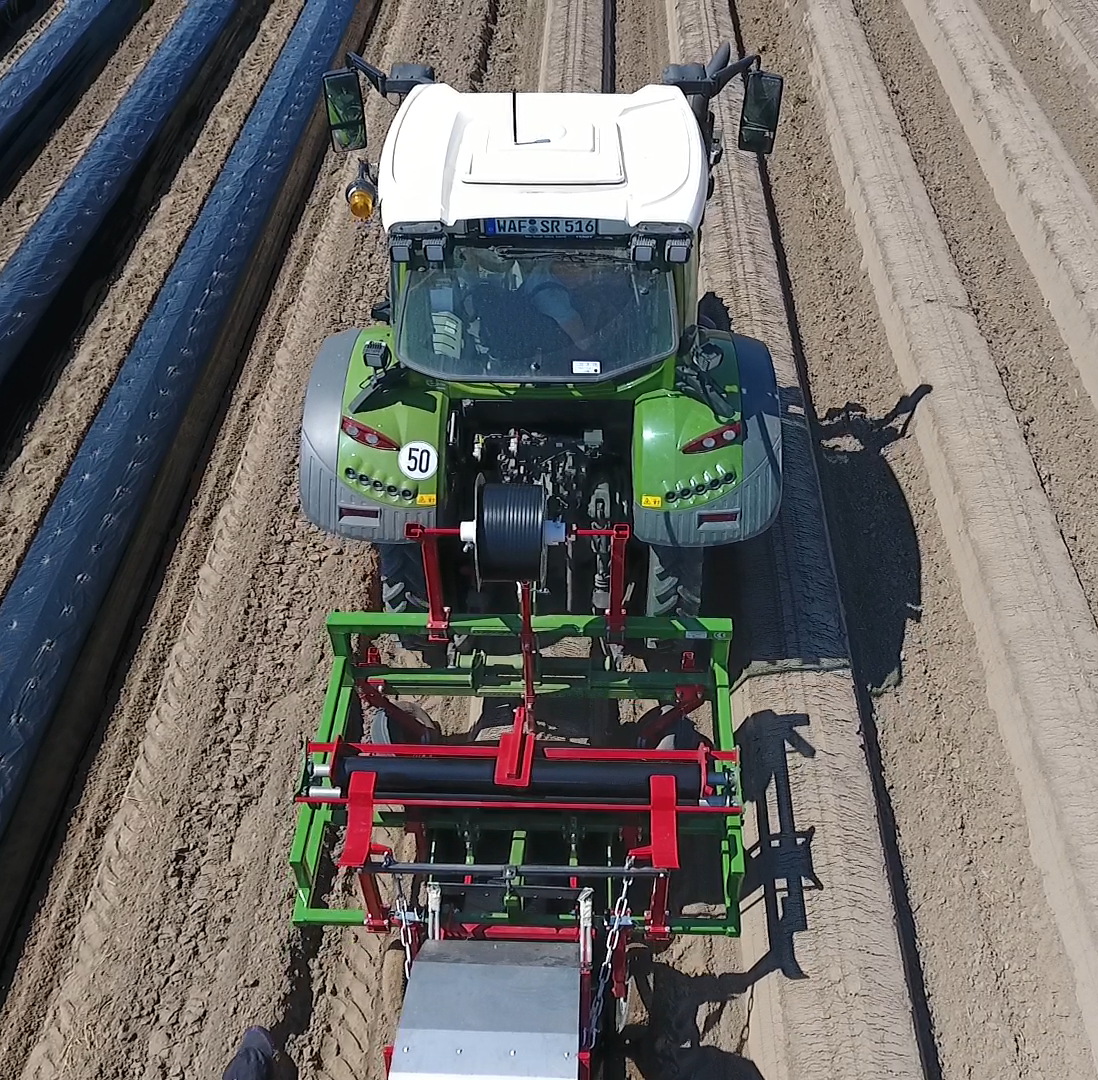

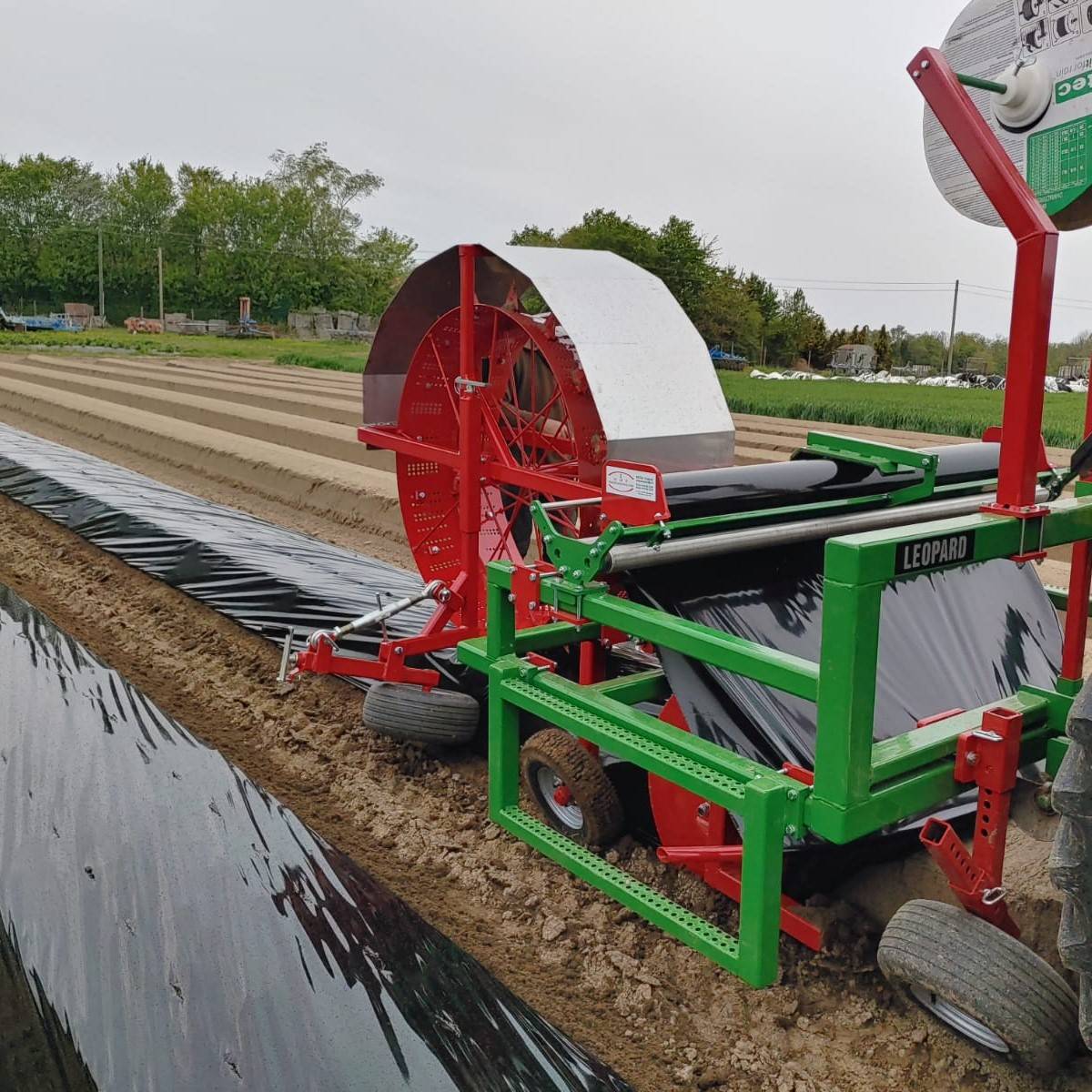

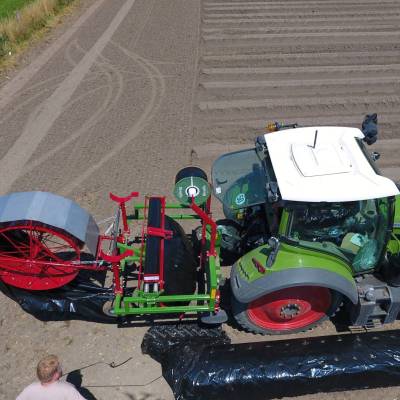

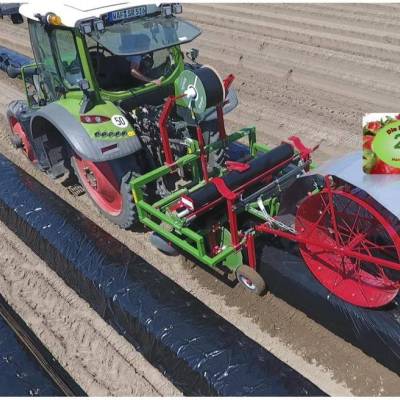

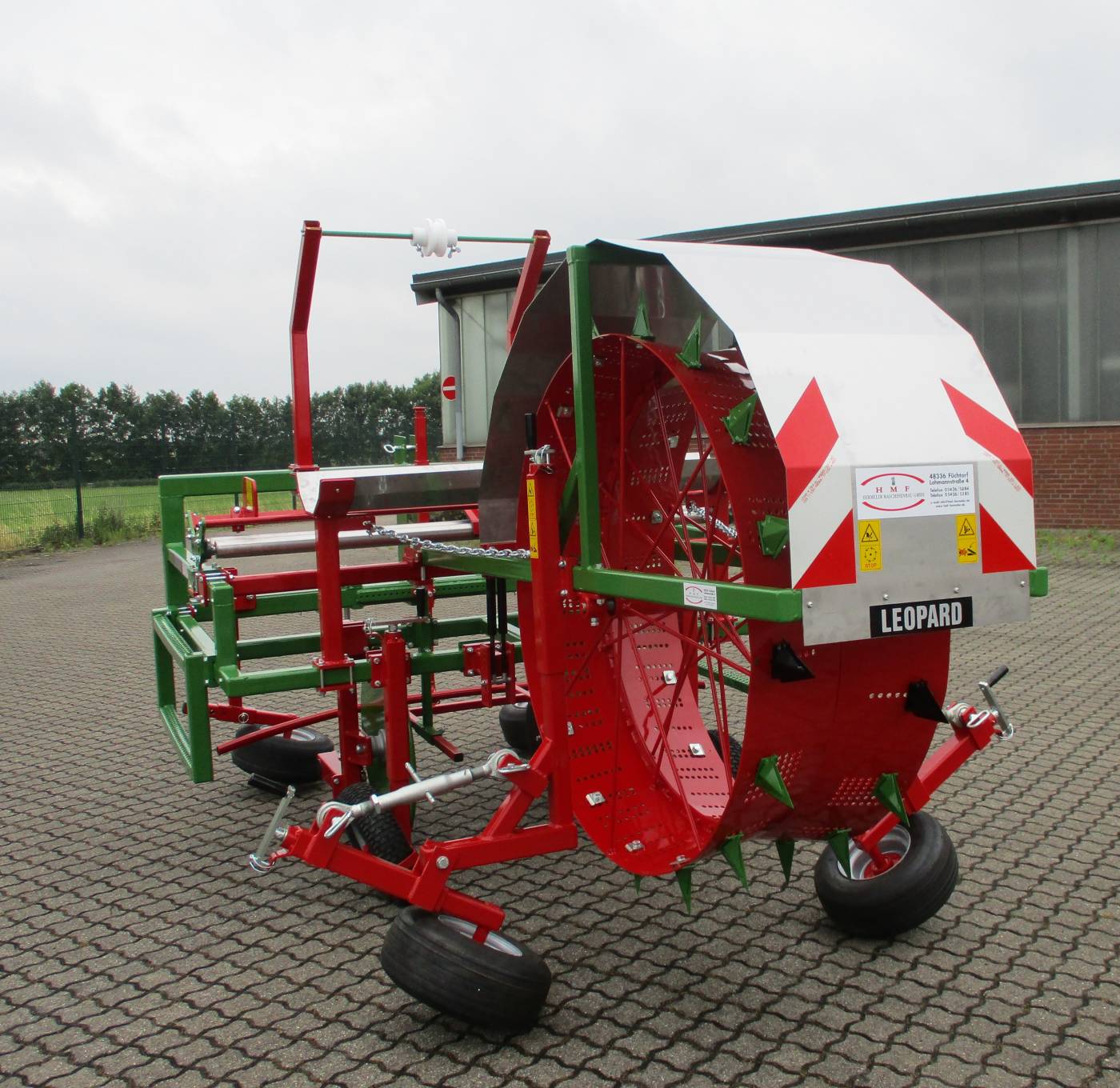

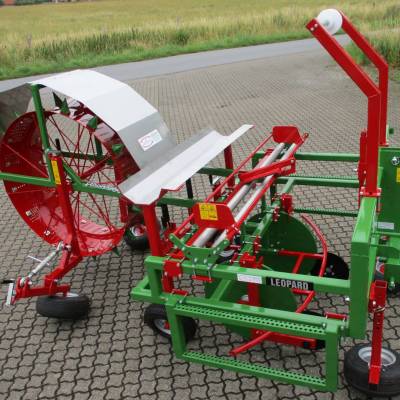

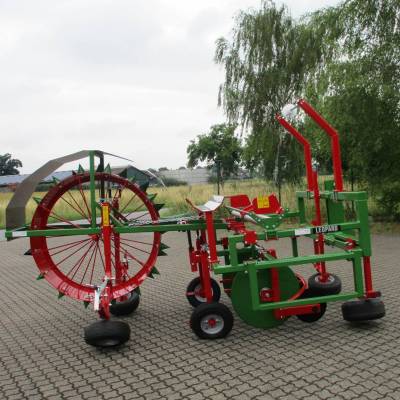

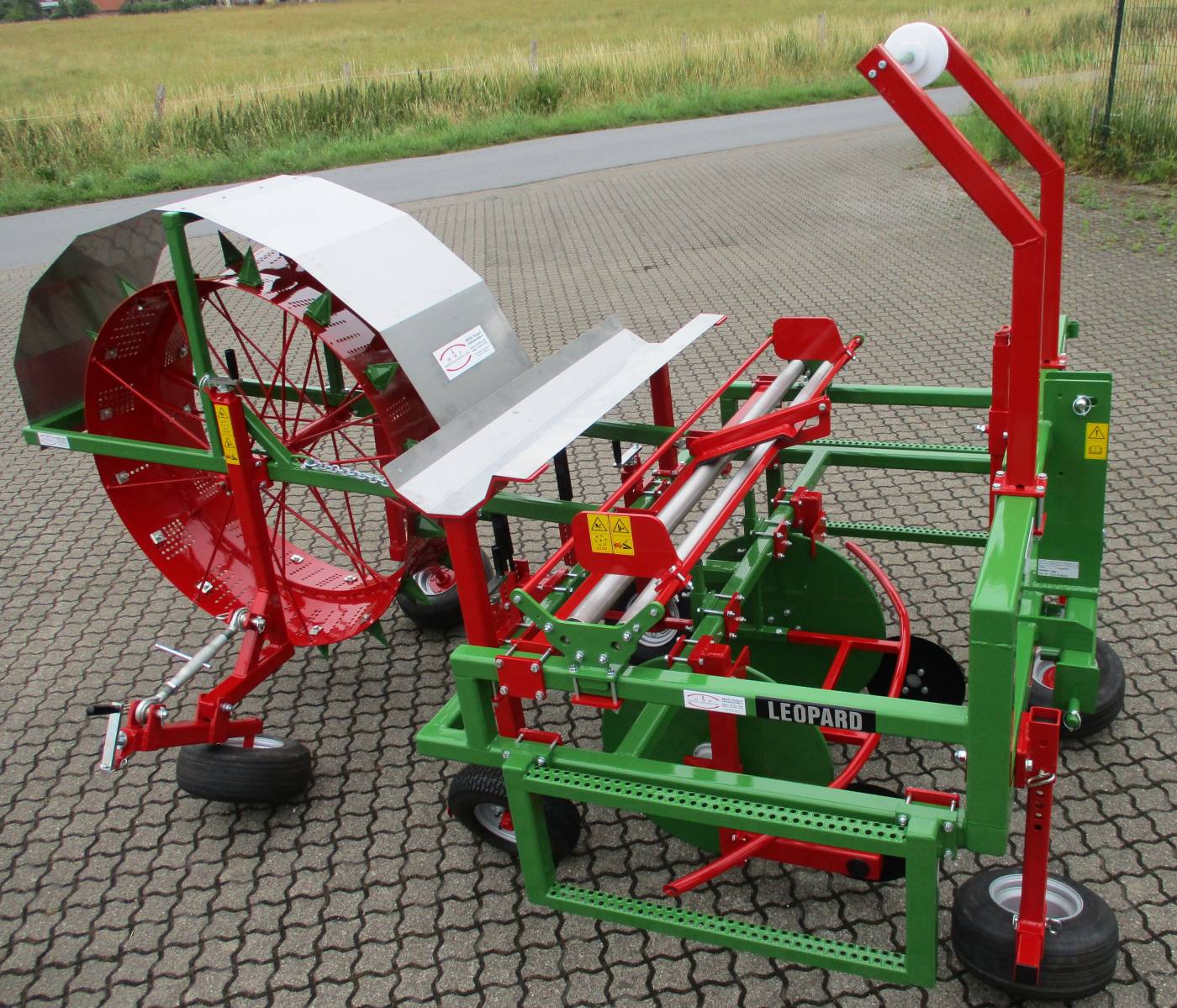

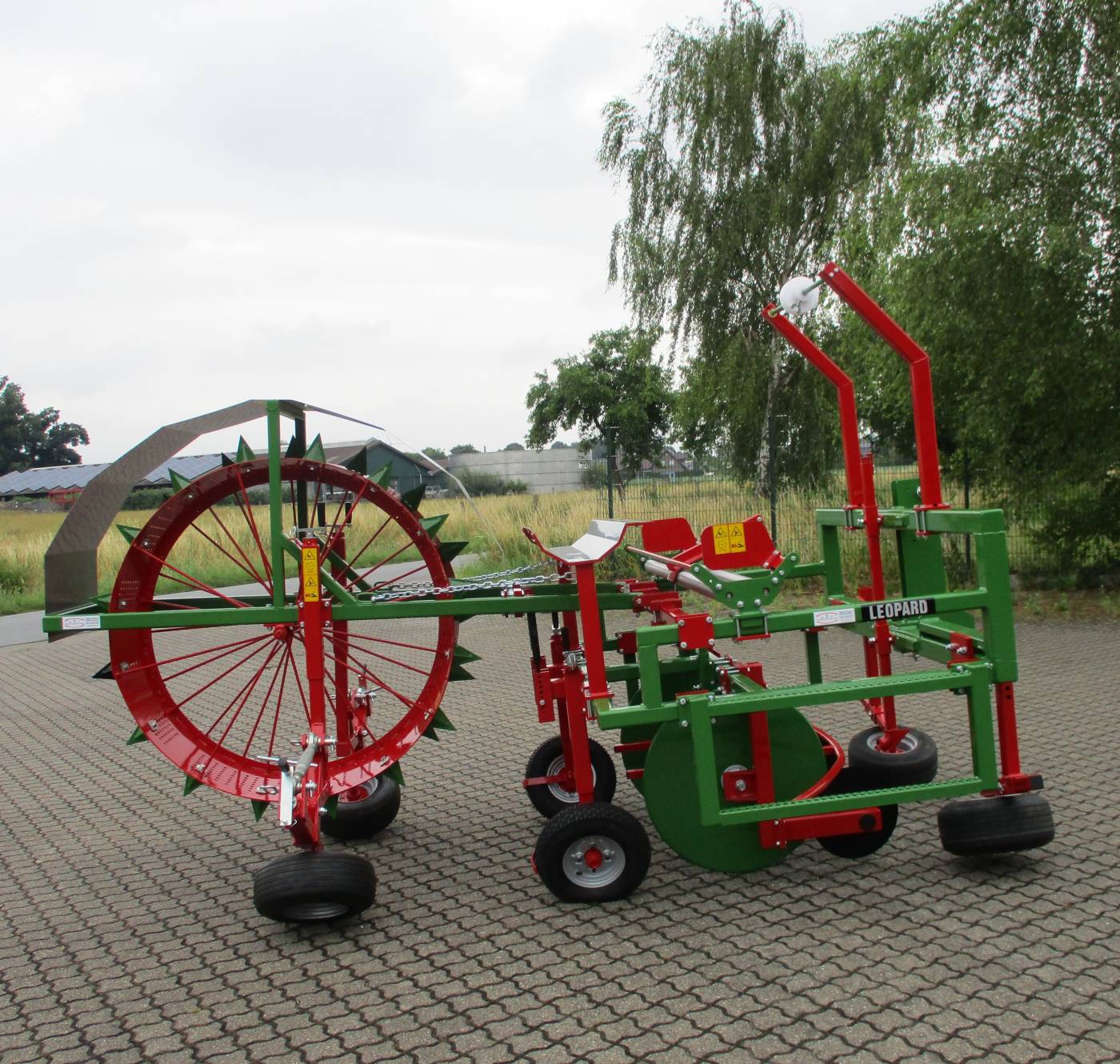

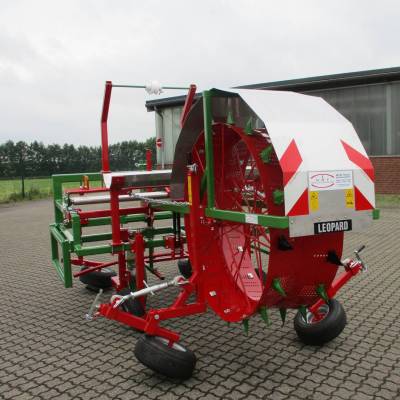

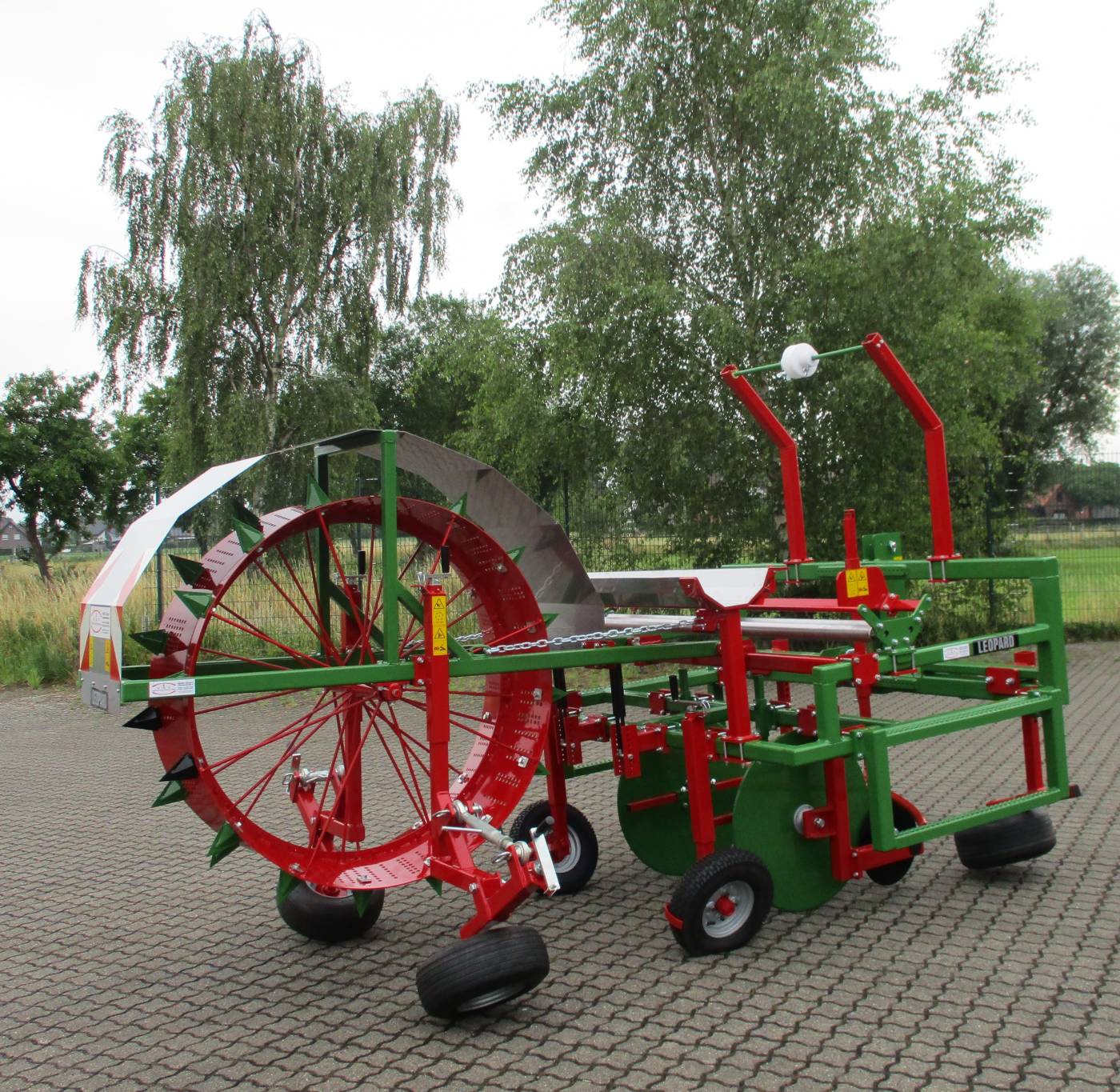

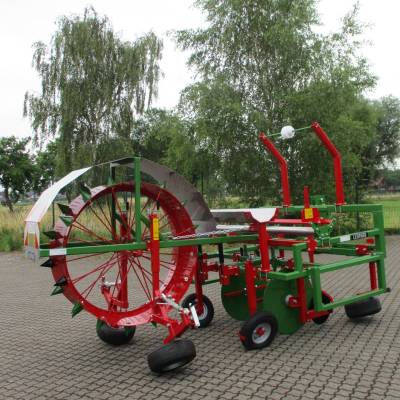

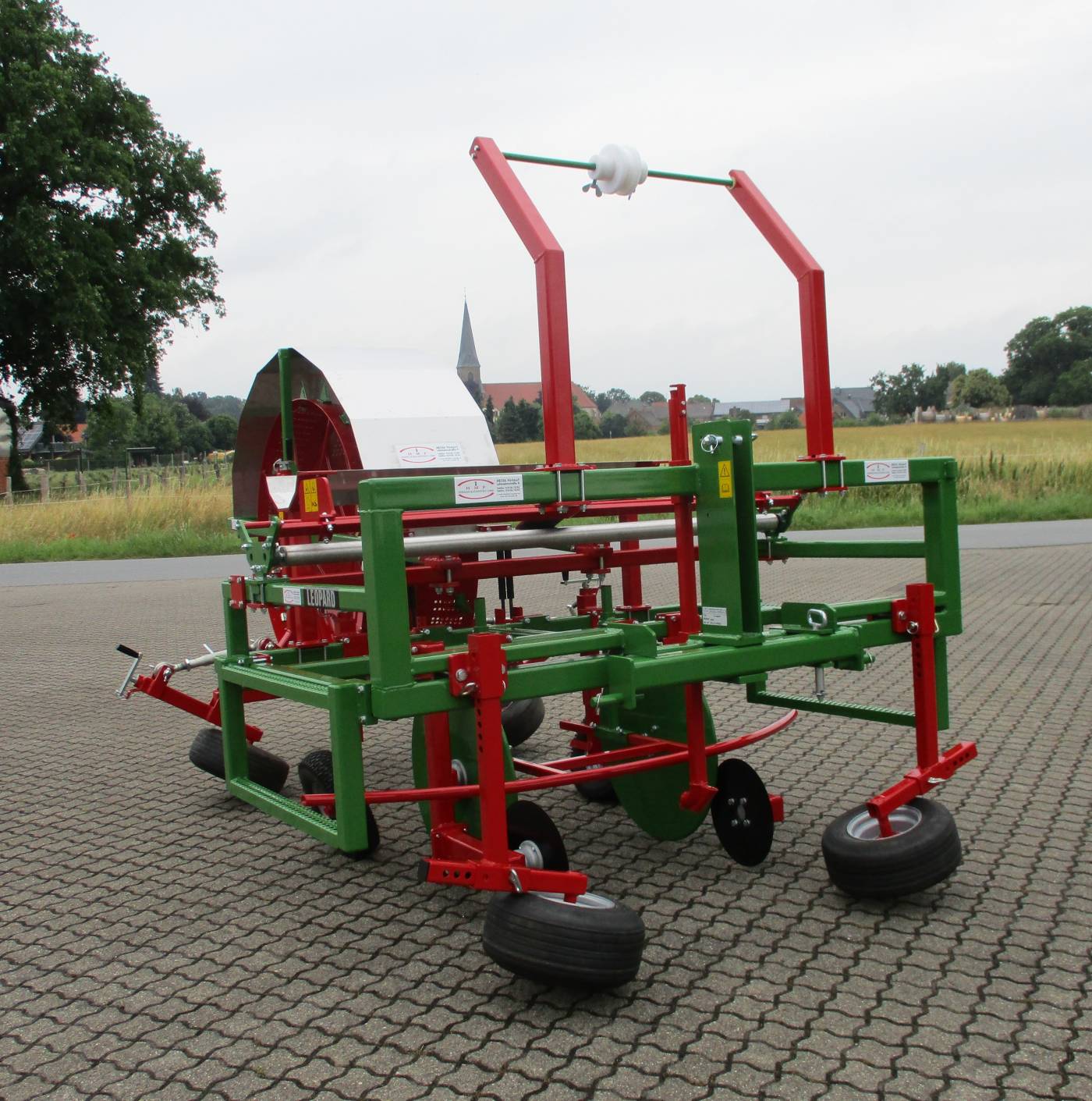

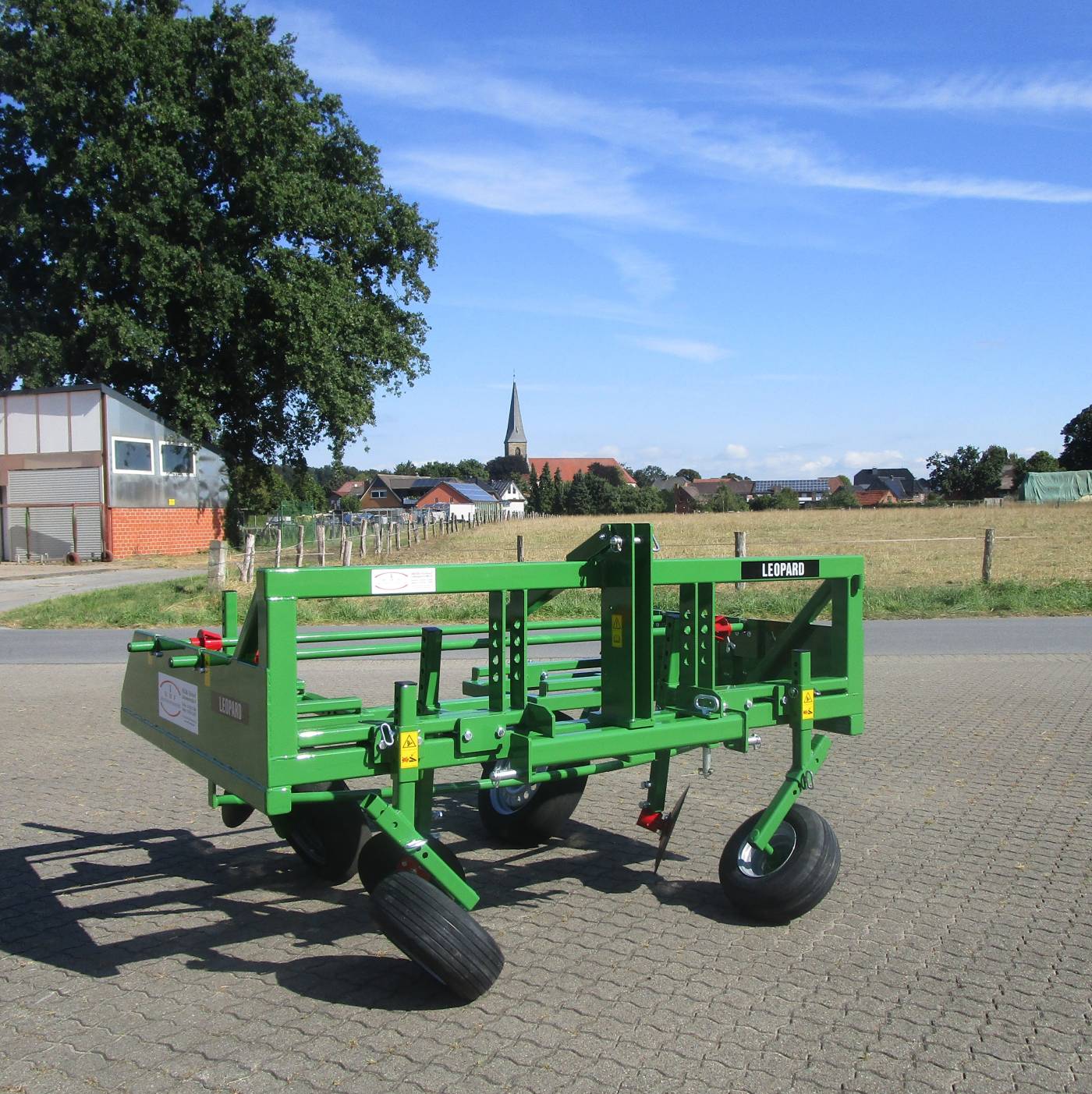

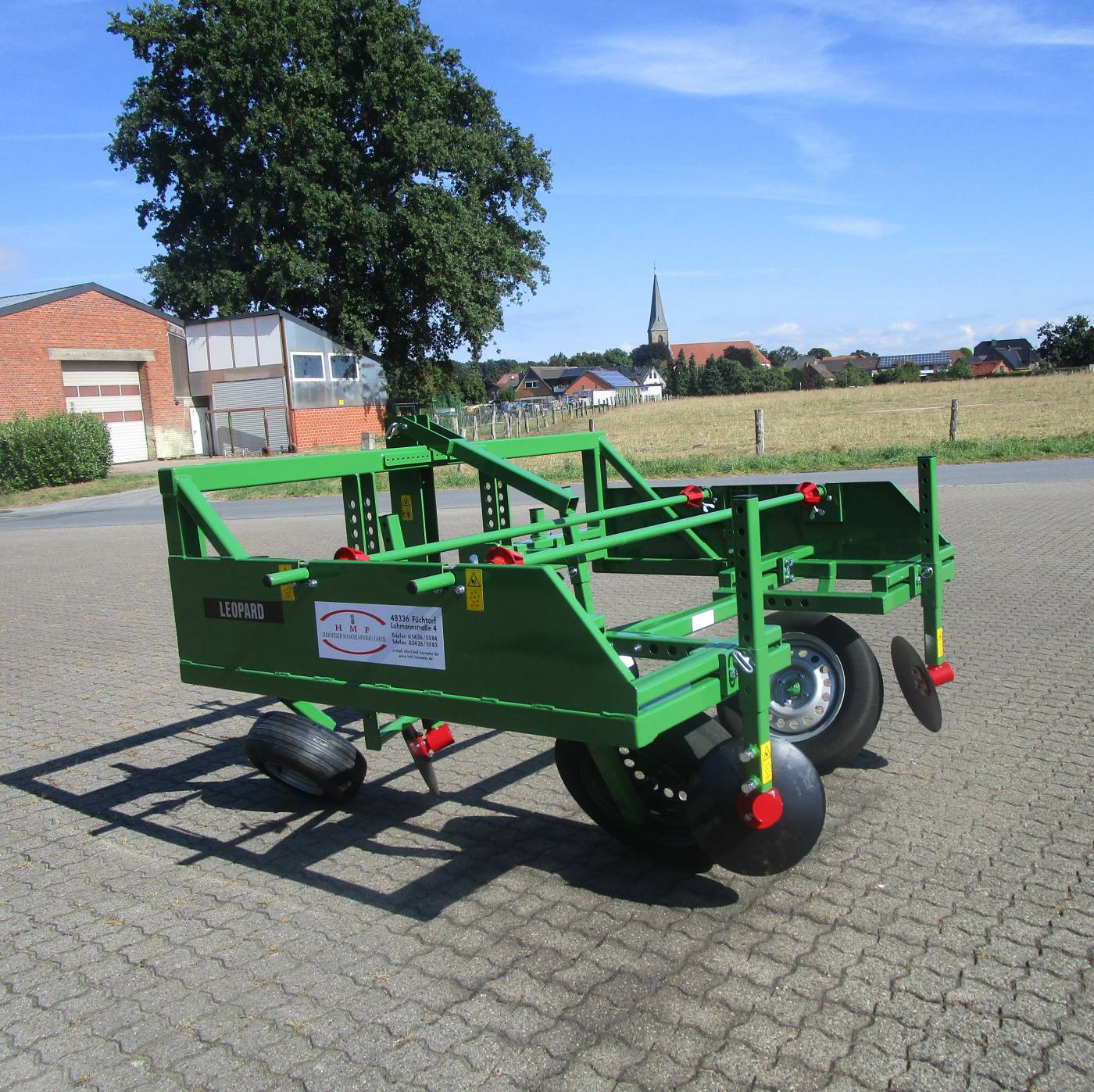

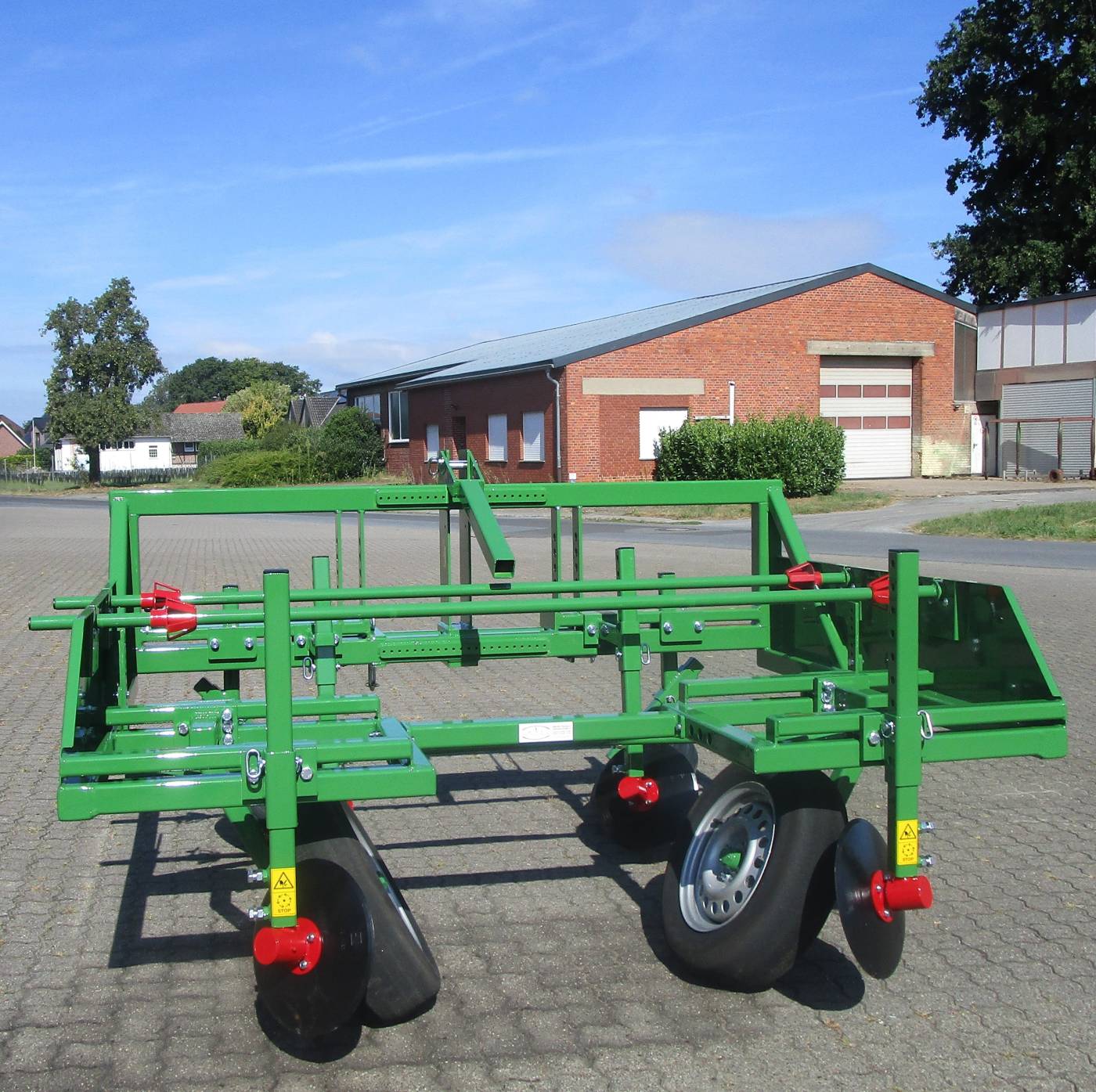

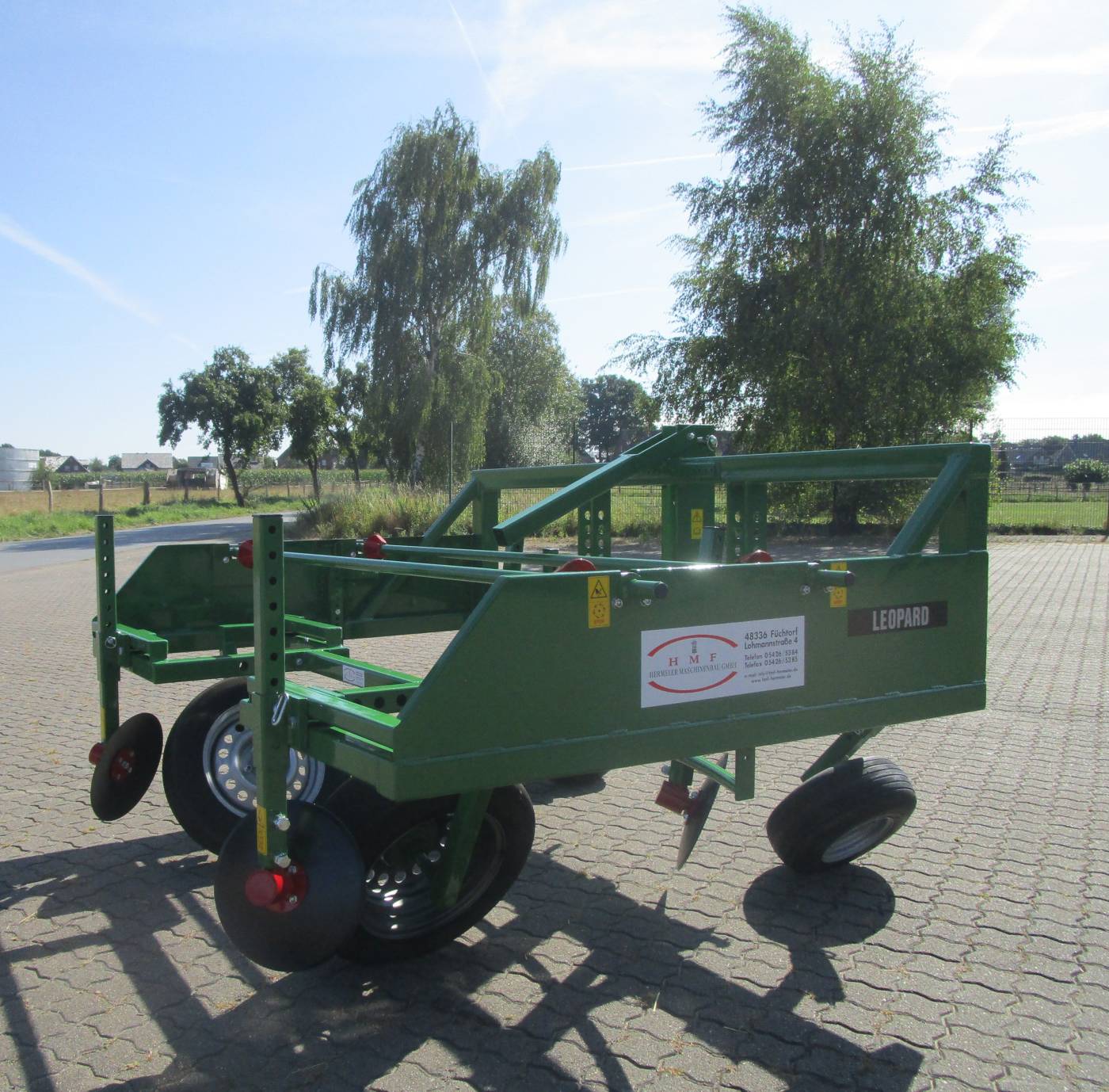

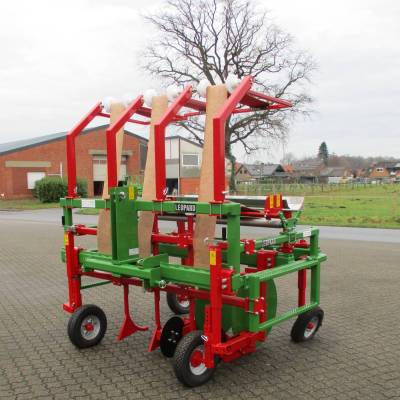

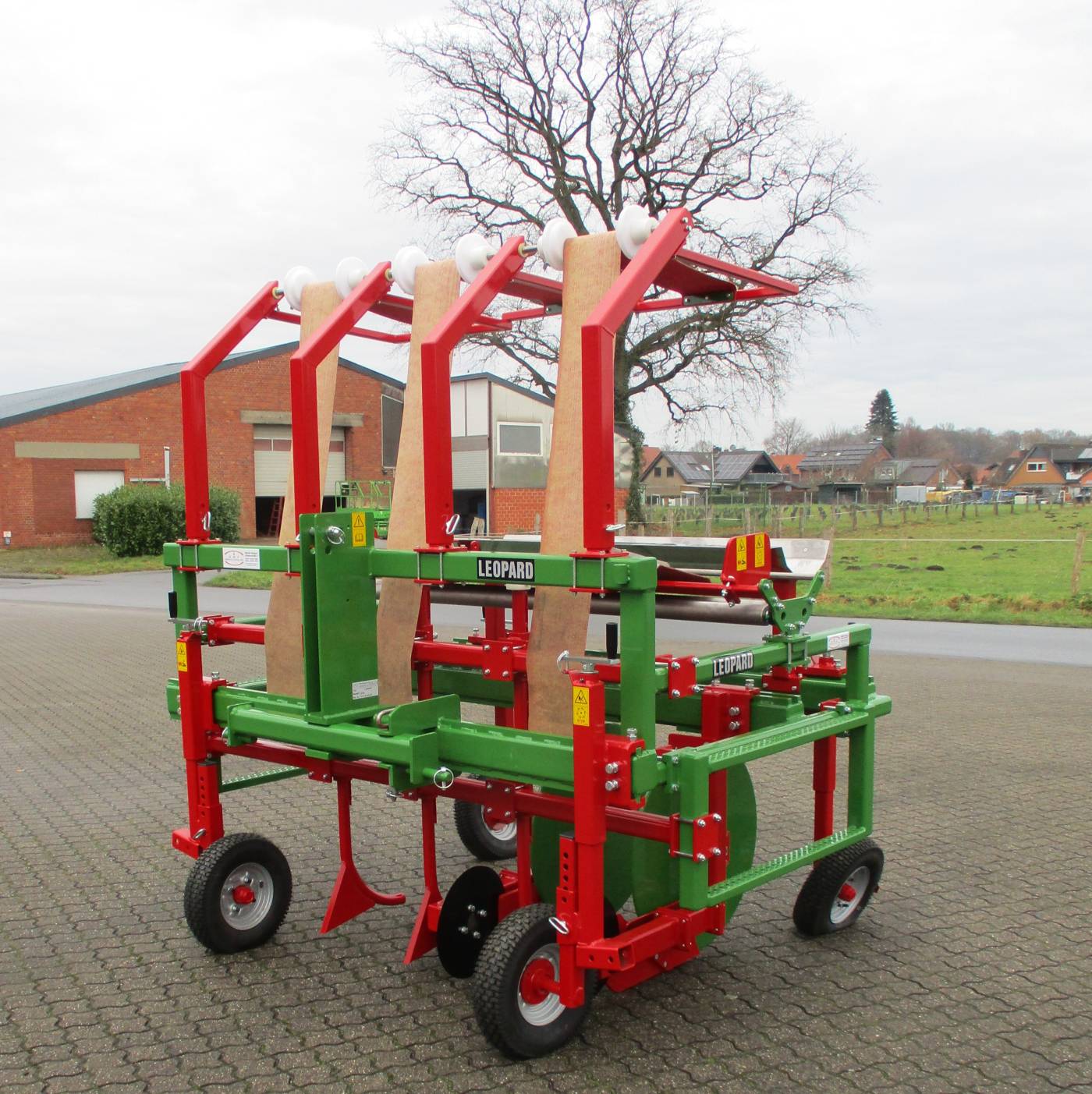

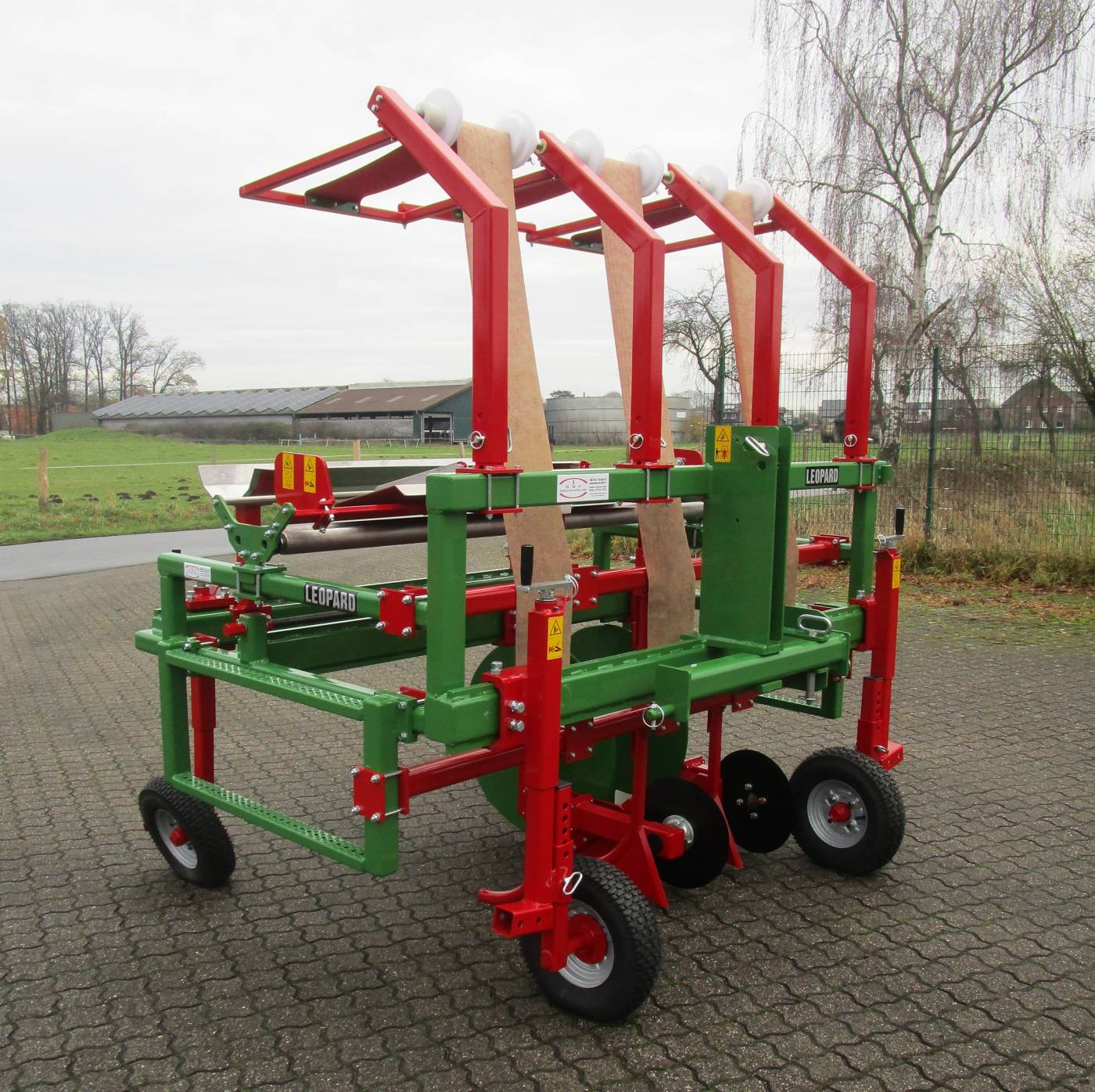

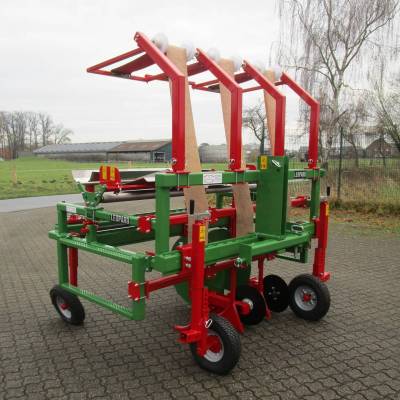

Poly film layer Leopard with accessories: hole puncher and drip hose feeder
Poly film layer Leopard with accessories: hole puncher and drip hose feeder
Poly film layer Leopard with accessories: hole puncher and drip hose feeder
Poly film layer Leopard with accessories: hole puncher and drip hose feeder
Poly film layer Leopard with accessories: hole puncher and drip hose feeder

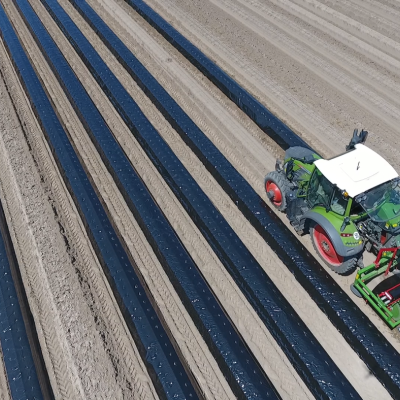

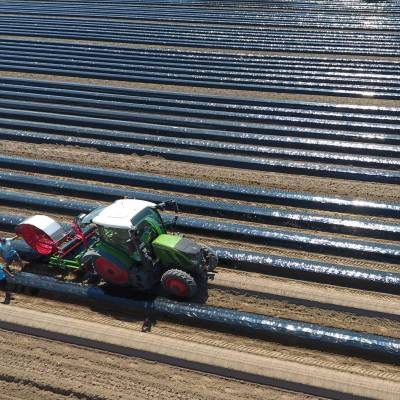

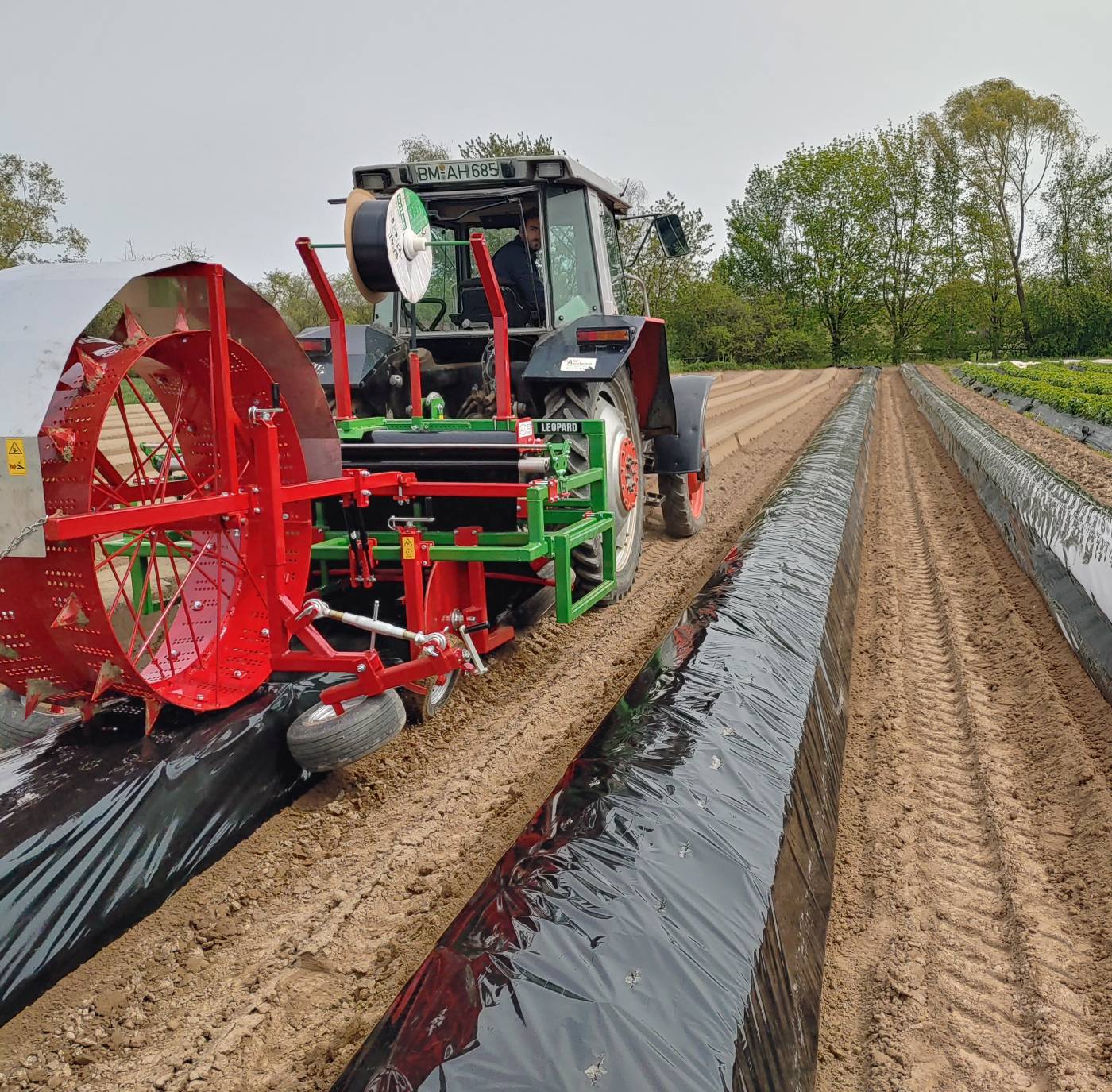

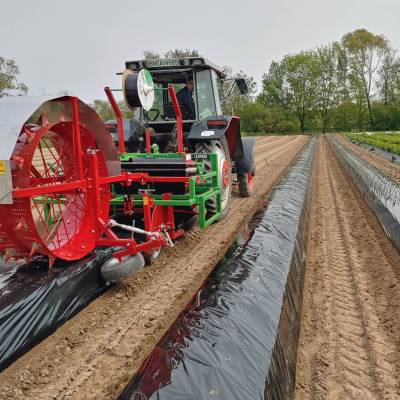

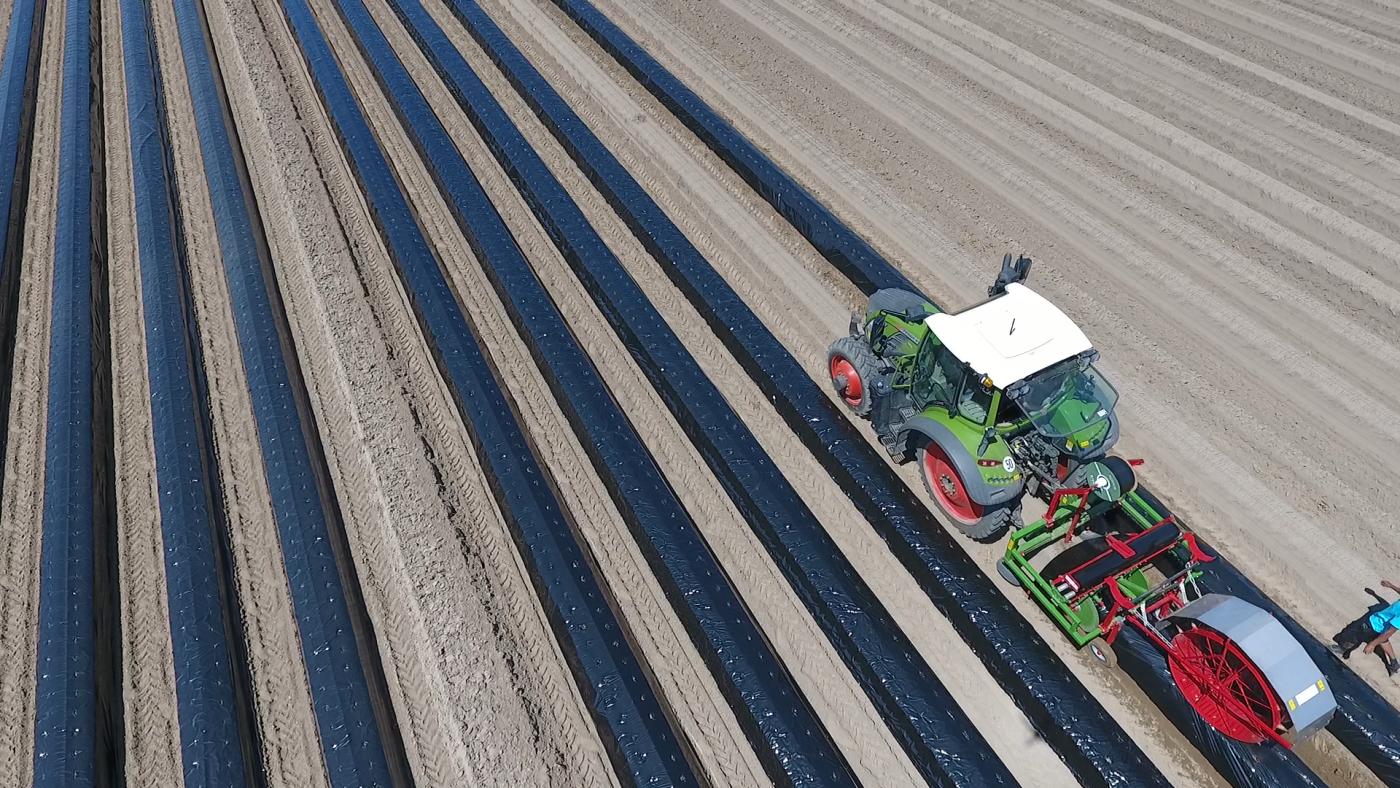

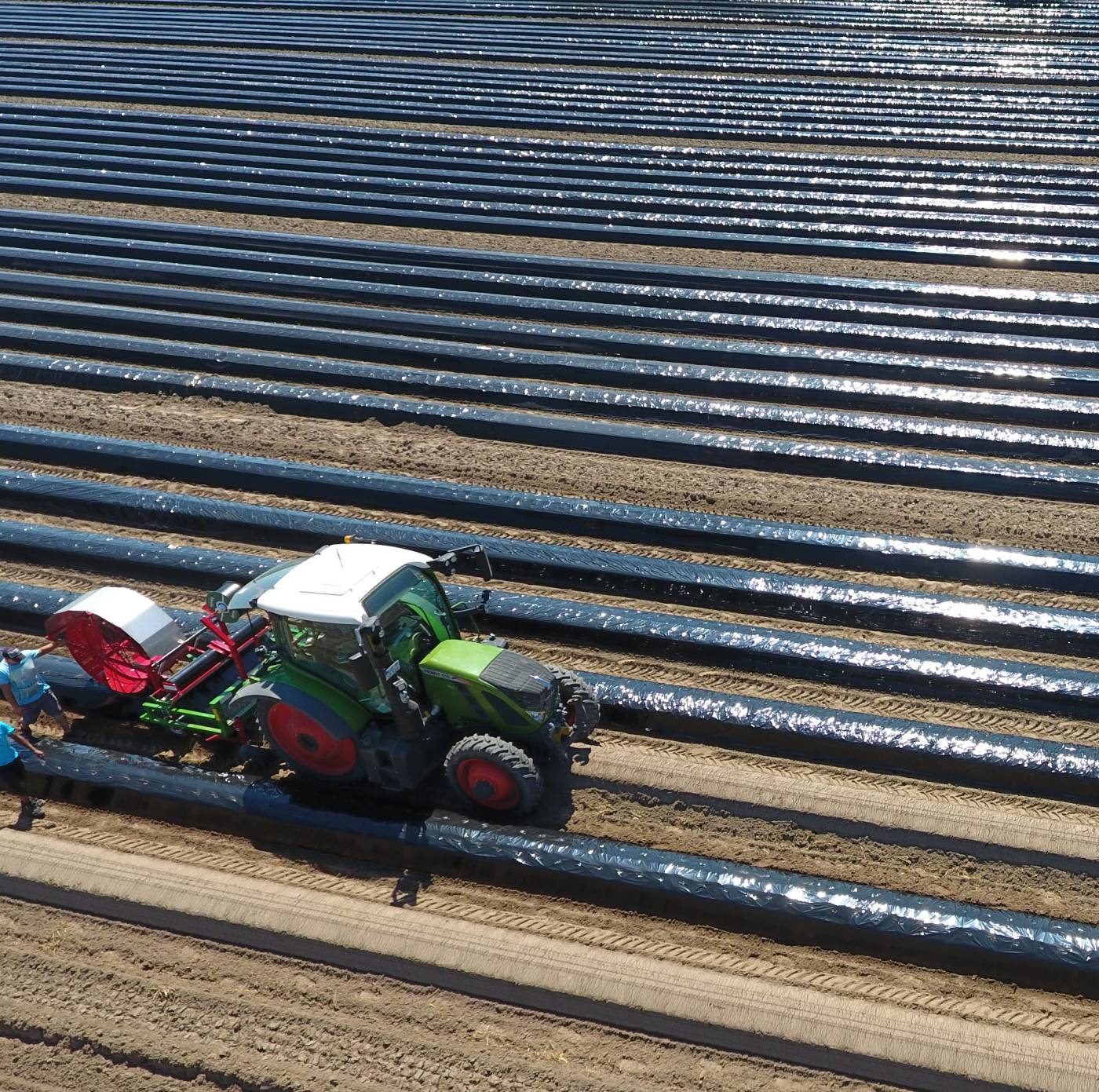

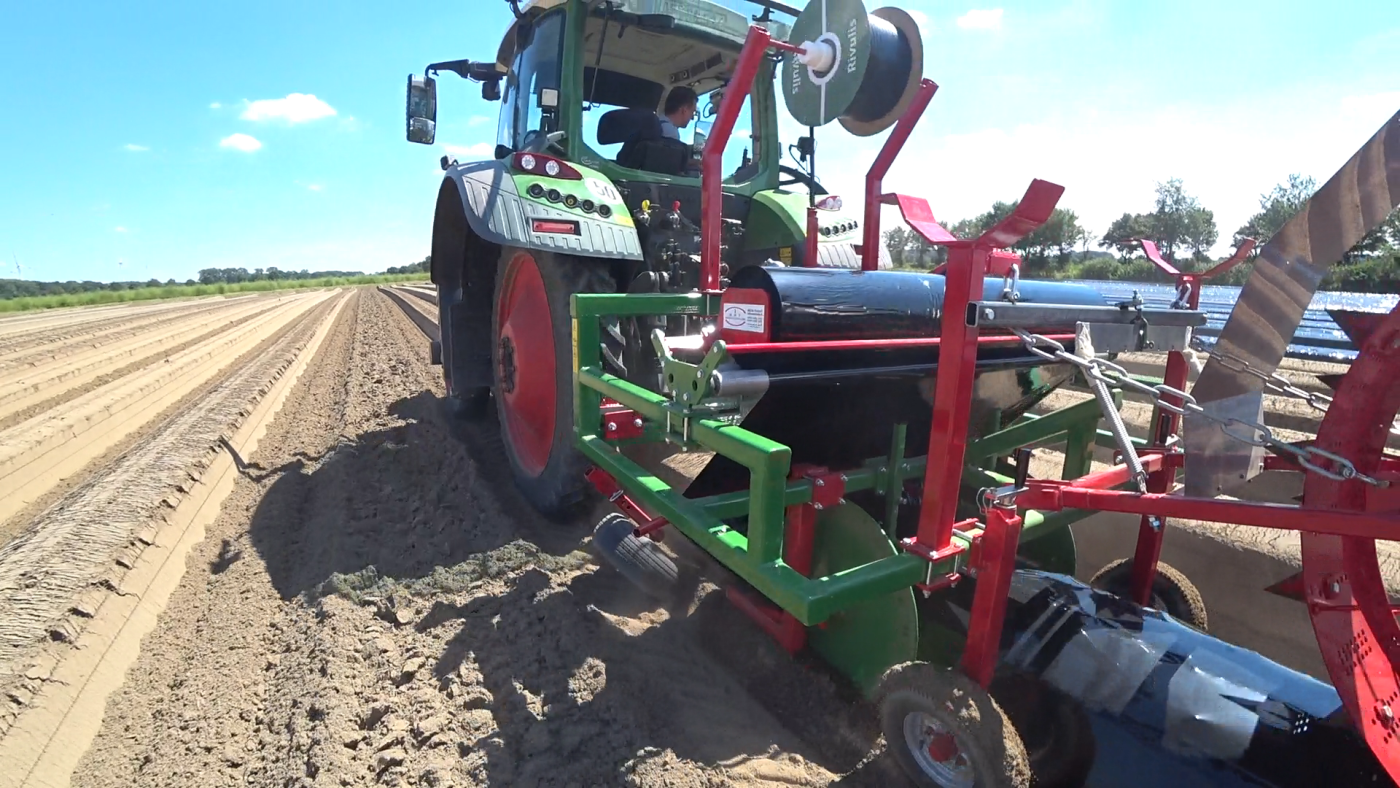

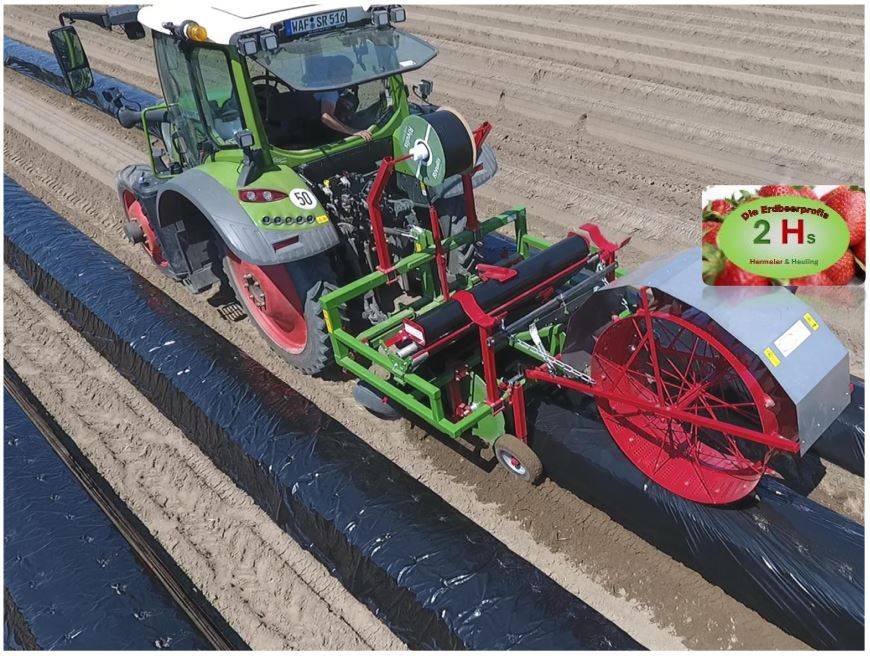

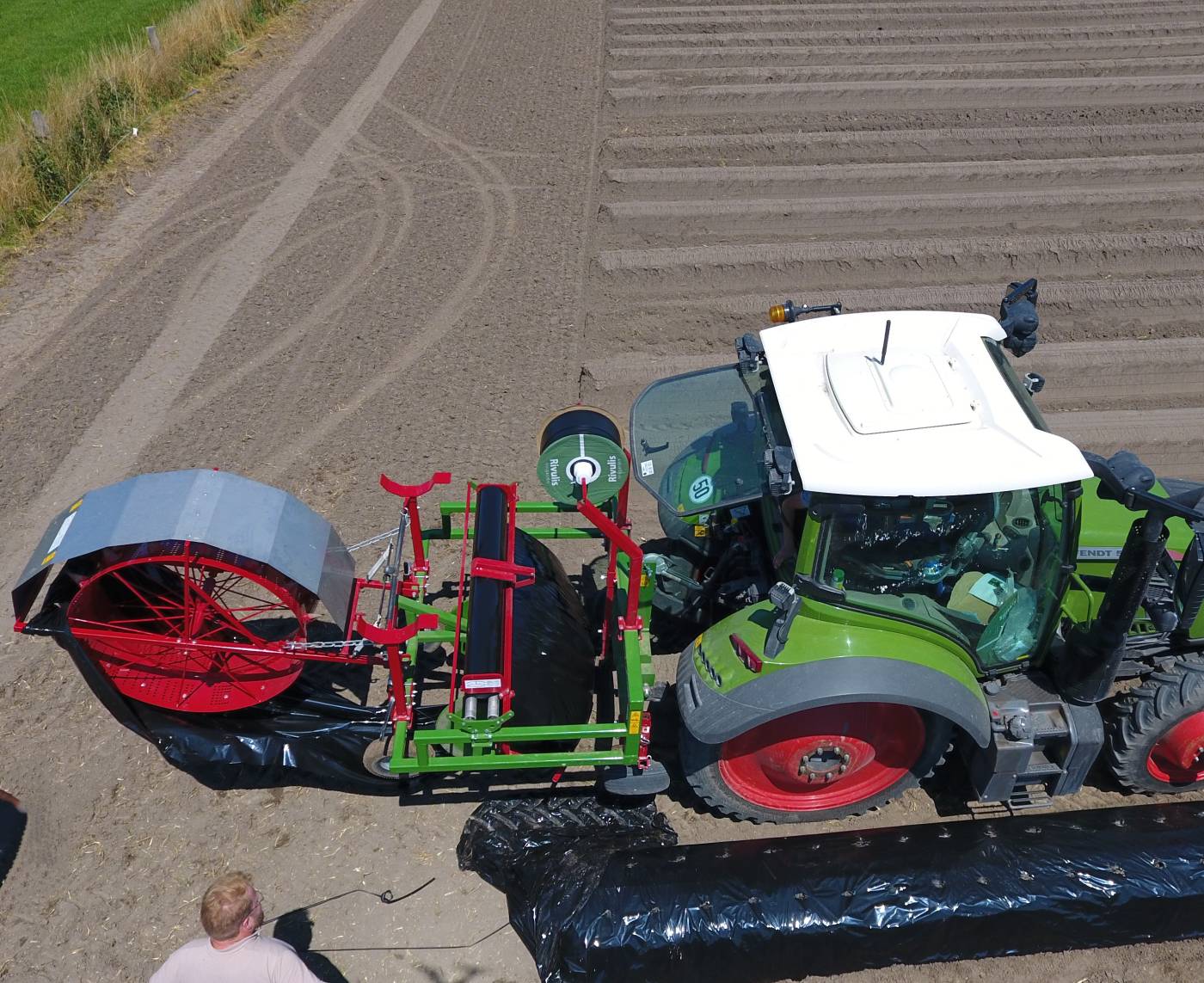

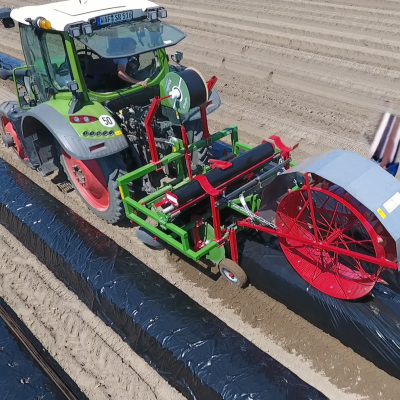

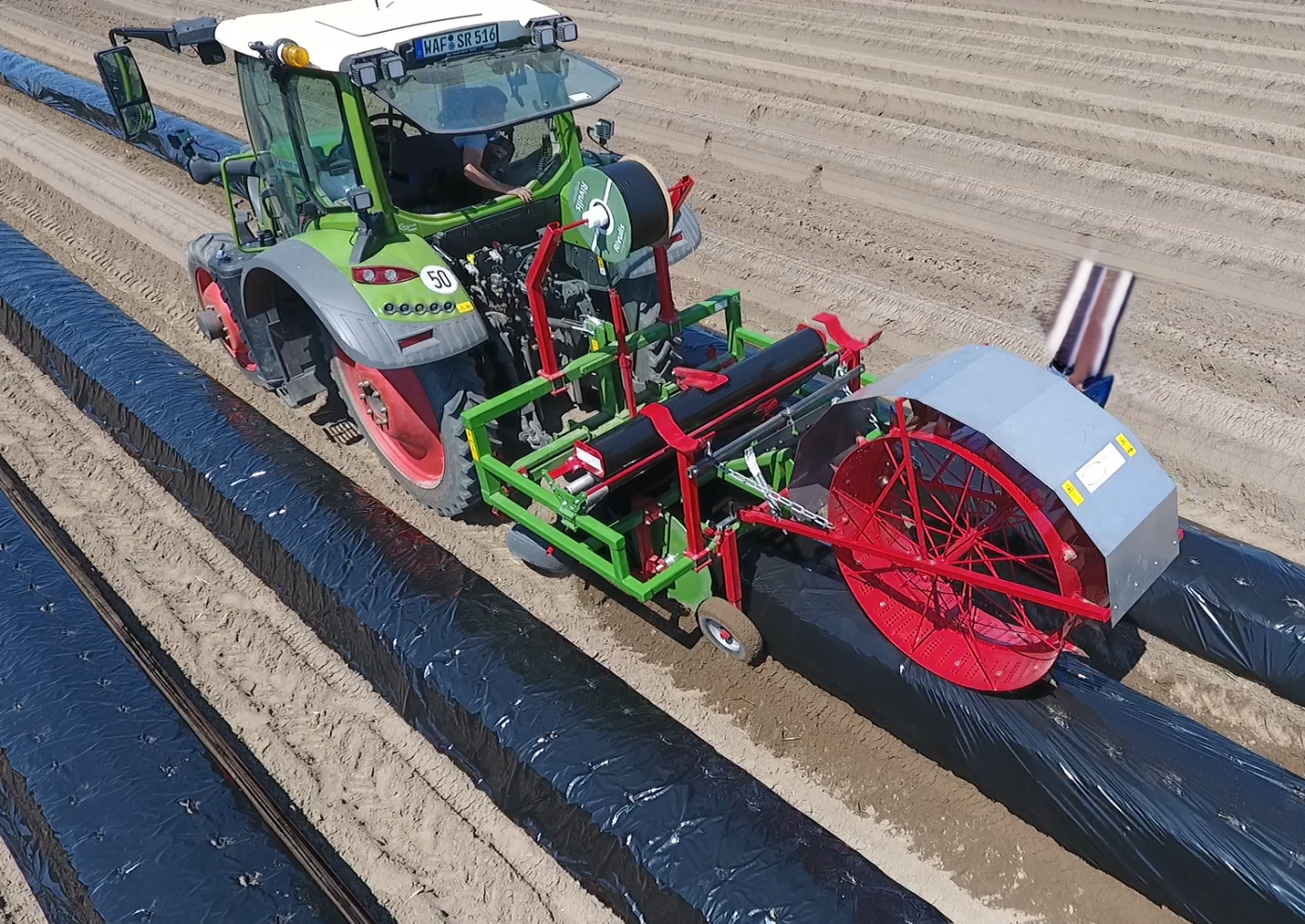

Poly film layer Leopard with accessories: hole puncher and drip hose feeder in the field
Poly film layer Leopard with accessories: hole puncher and drip hose feeder in the field
Poly film layer Leopard with accessories: hole puncher and drip hose feeder in the field
Poly film layer Leopard with accessories: hole puncher and drip hose feeder in the field

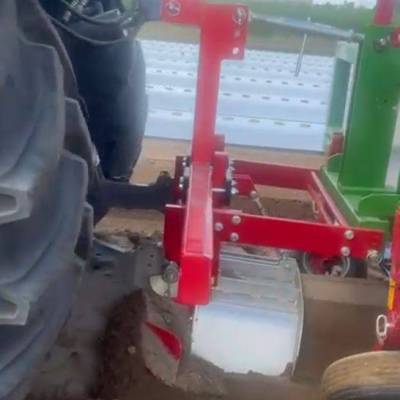

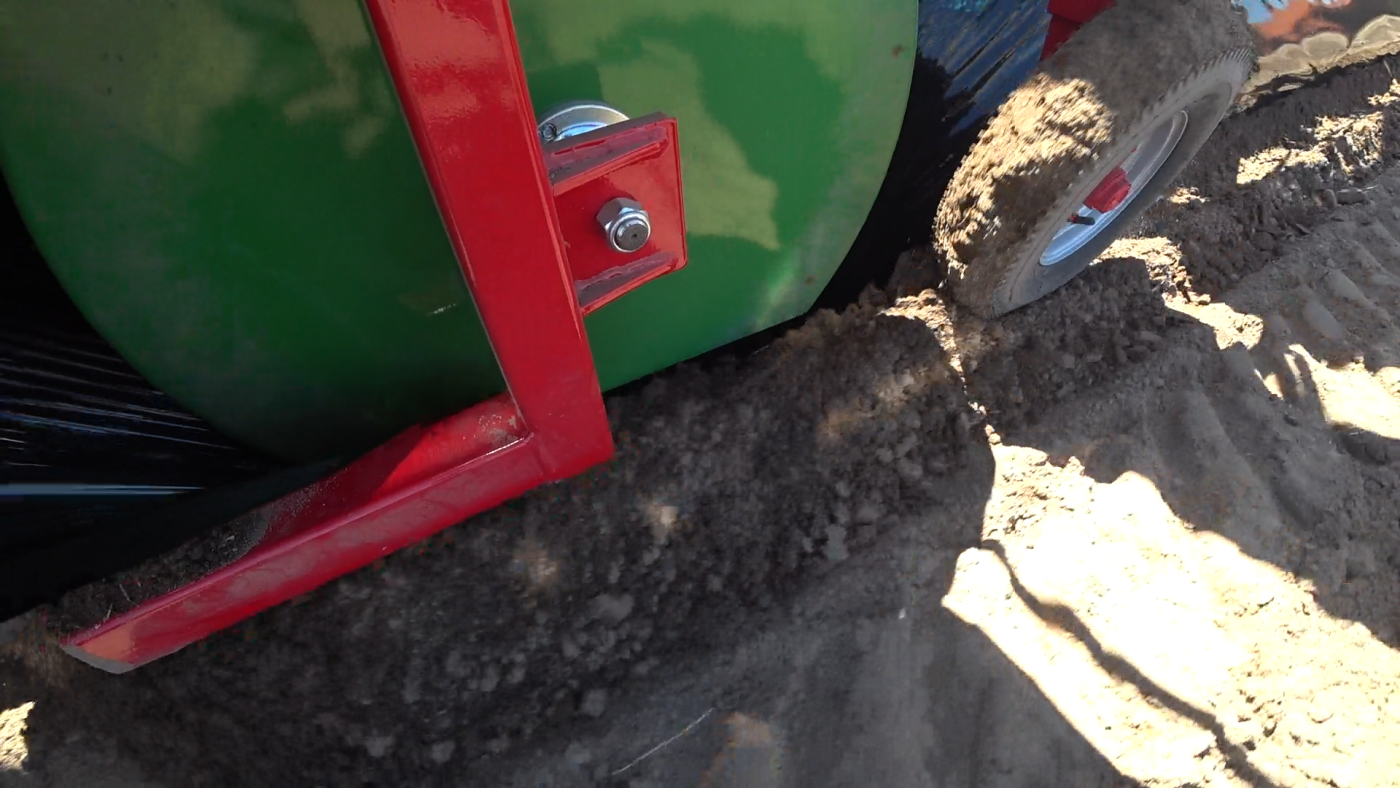

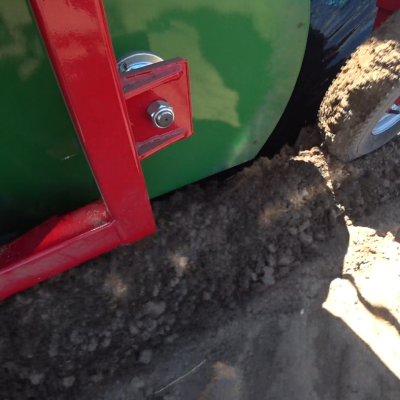

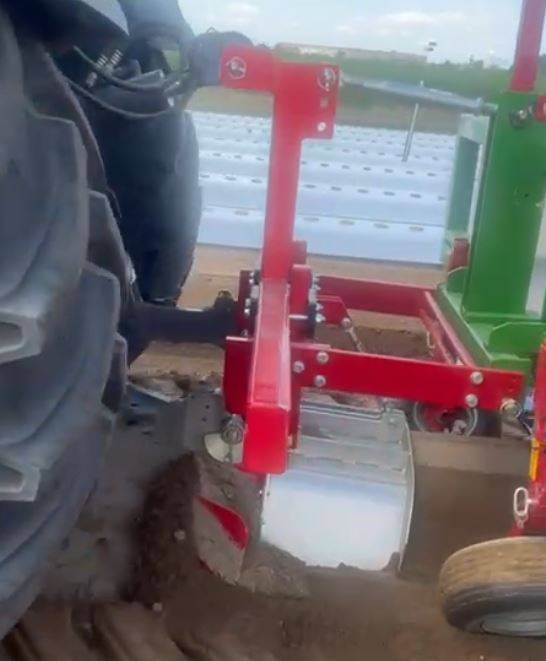

Accessory: Metal dam former
for a uniform shaping of the created dam for optimum film installation

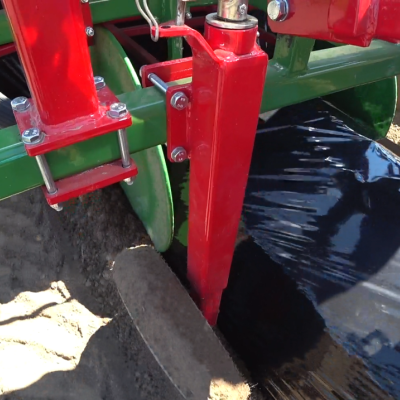

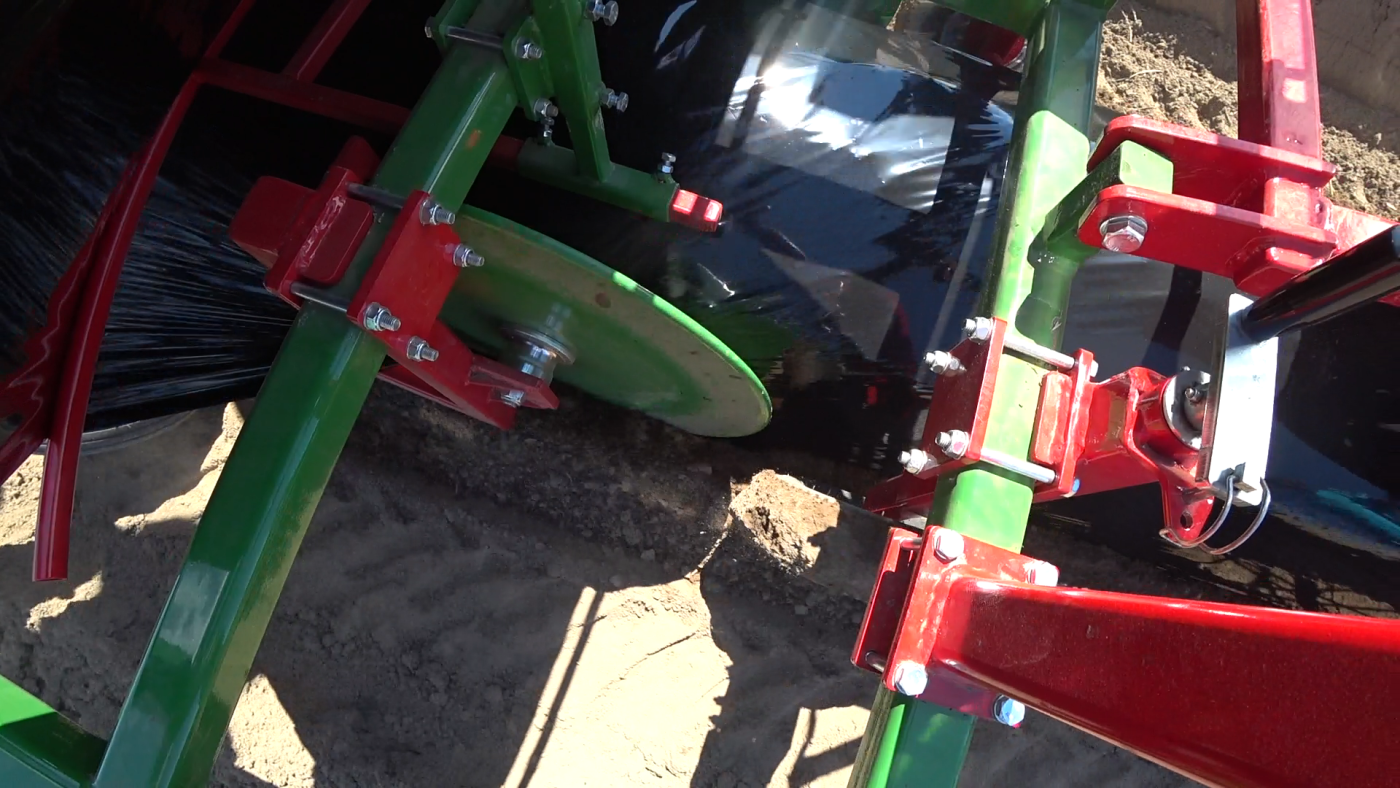

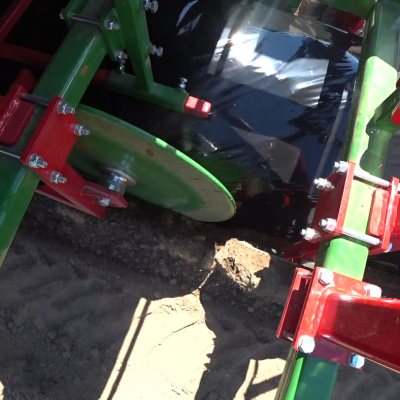

Pressing disc

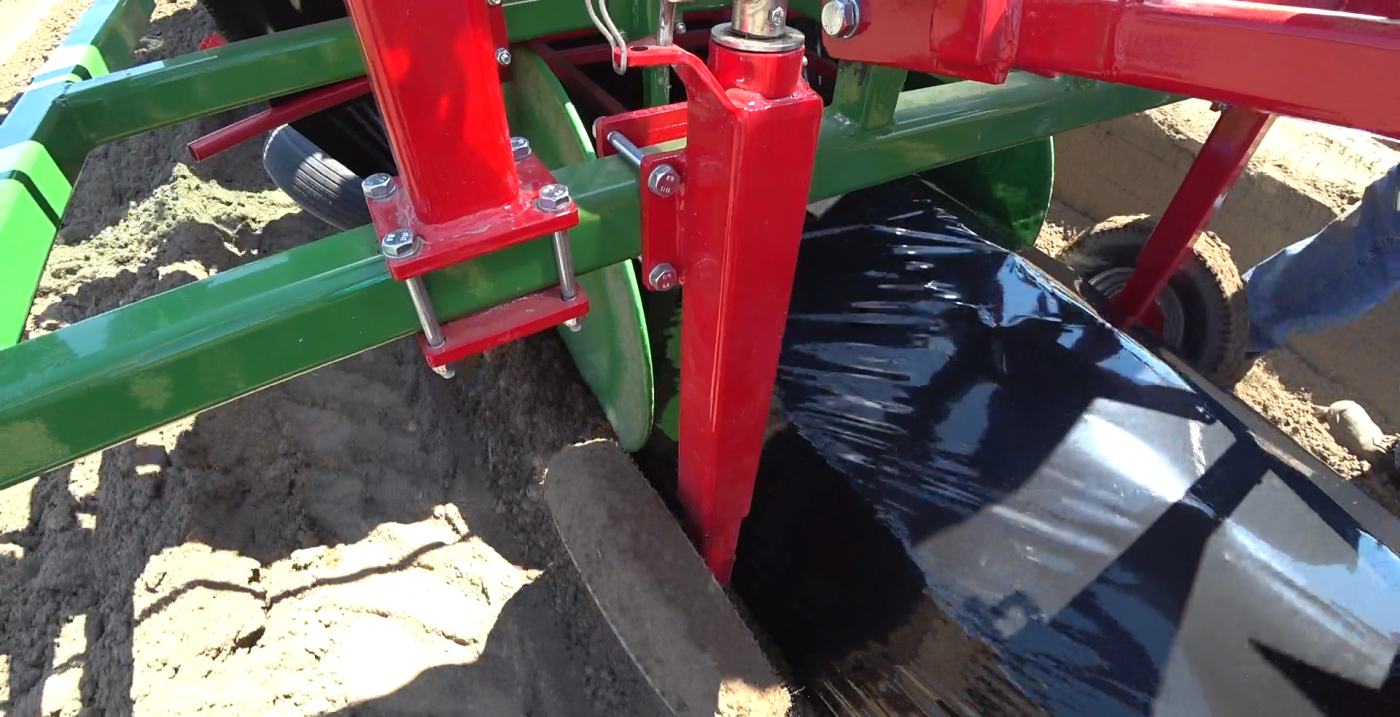

Pressing disc
-
Function / Application:
- For laying mulch or black and white film on dams
- Especially for strawberries and special crops
- Frame construction for the rear
- Three-point linkage
- Central tension point
= Self-steering - Unwinder for the film
- 2 x angled, height-adjustable front guide wheel
- 2 x angled, height-adjustable rear support wheel
- 2 x slotted disc
Ø approx. 450 mm
= For slotting the soil - 2 x pressing disc
Ø approx. 800 mm
= Film is pressed through the discs into the slotted soil
- Driving speed: approx. 8 km/h
- The unwinding speed of the film is controlled via the driving speed.
- Suitable for film widths up to approx. 1800 mm
- Suitable for film thicknesses from approx. 40 μ
- Dimensions LxWxH: approx. 2740 x 2000 x 1420 mm
- Weight : 880 kg

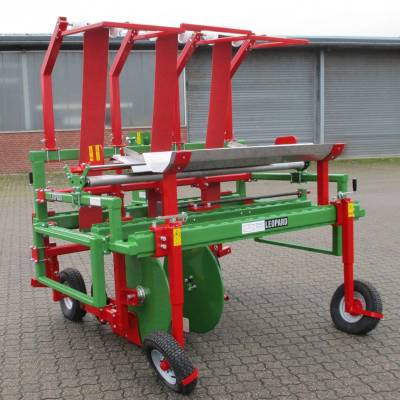

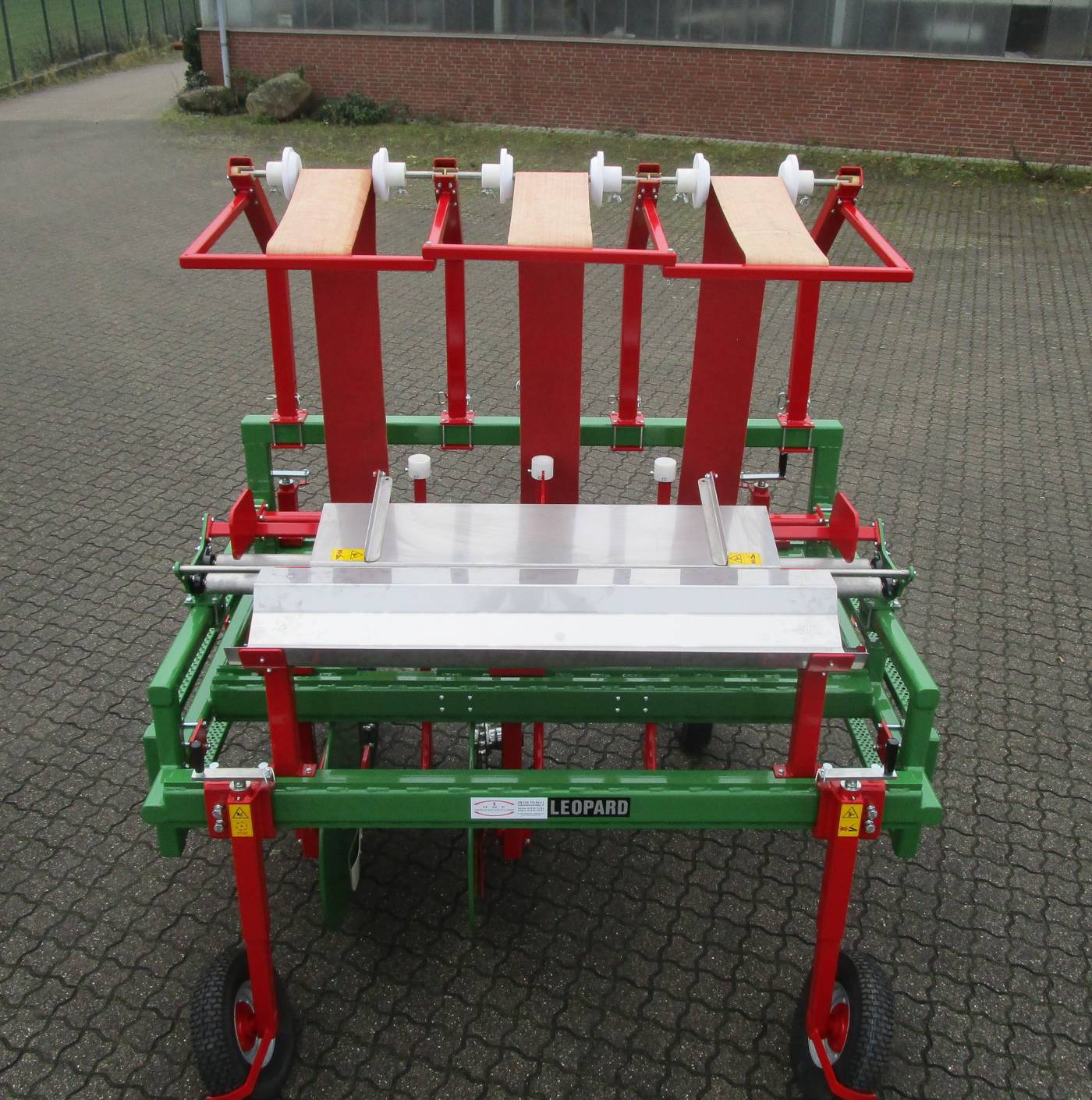

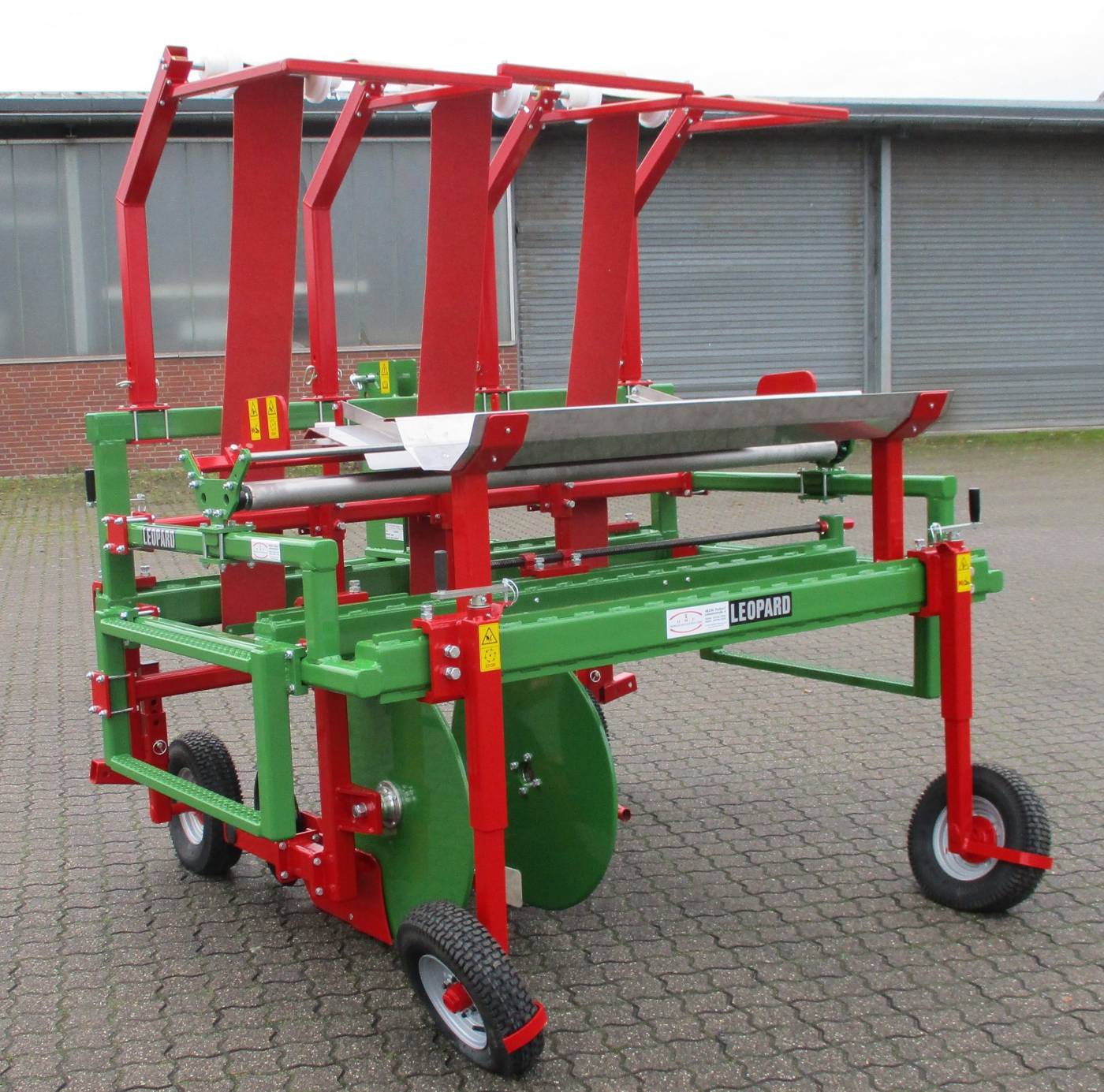

- Device for laying a drip hose feeder on the dam
= For optimal irrigation of the plantation - Single-row or double-row film punchers
= For uniform and fast planting - Metal dam former
= Uniform shaping of the created dam for optimum film installation - Also available for film widths up to approx. 2000 mm
Individual modifications regarding equipment, dimensions, etc. on request are possible
