Image gallery:
-
SWA 450 SWA 530 SWA 600 SWA 600 DD SWA 770 DD Total length approx. 4500 mm 5320 mm 6270 mm 6020 mm 7720 mm Lay-on length approx. 1135 mm 1385 mm 1635 mm 1380 mm 1630 mm Sorting length approx. 2230 mm 2555 mm 3430 mm 2555 mm 4180 mm Cleaning nozzle 6 6 6 6 9 Washing brush 1 1 1 2 2 Speed infinitley varaible - + + + + Weight approx. 230 kg 250 kg 266 kg 280 kg 320 kg Electrical connection (neutral conductor required) 0.8 kW at 400 V 0.8 kW at 400 V 0.8 kW at 400 V 0.8 kW at 400 V 0.8 kW at 400 V -
Function / Application:

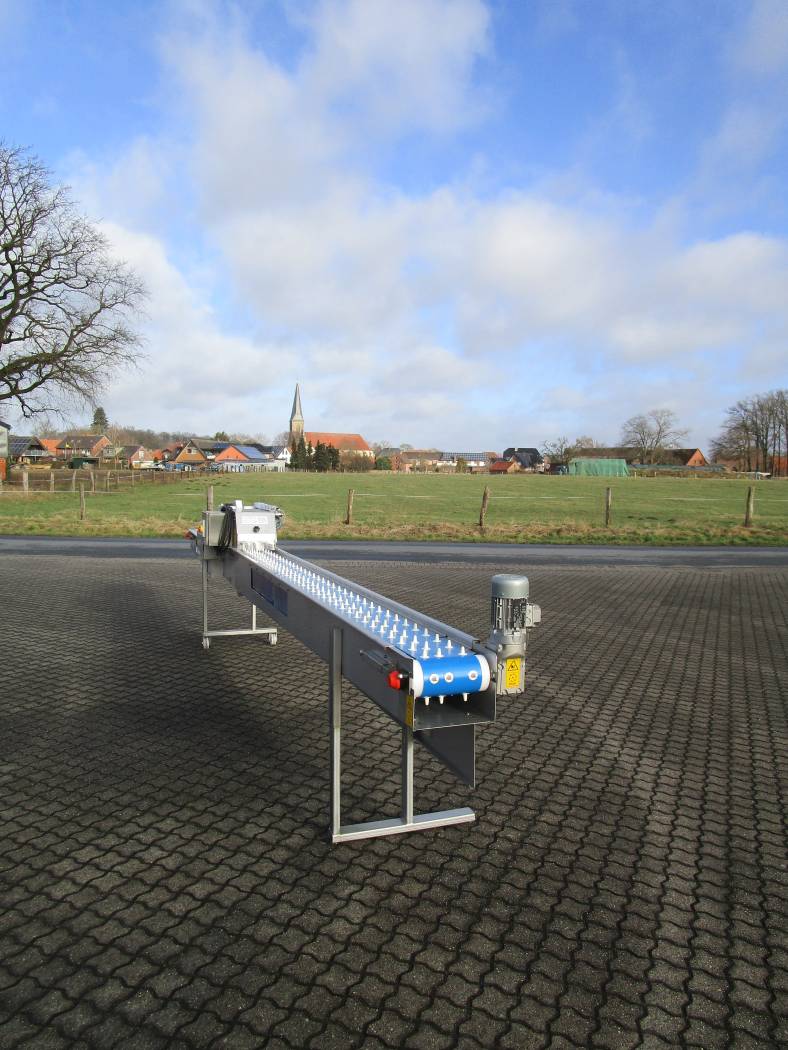

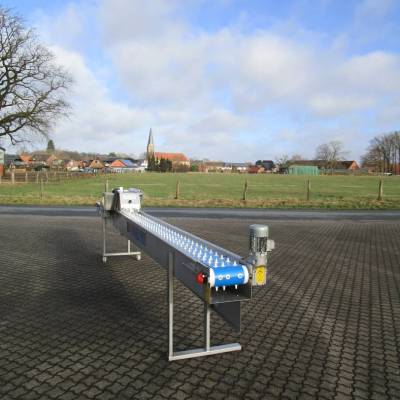

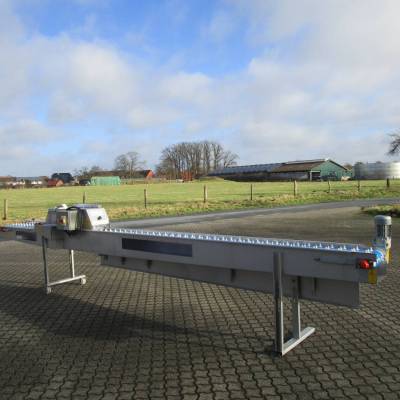

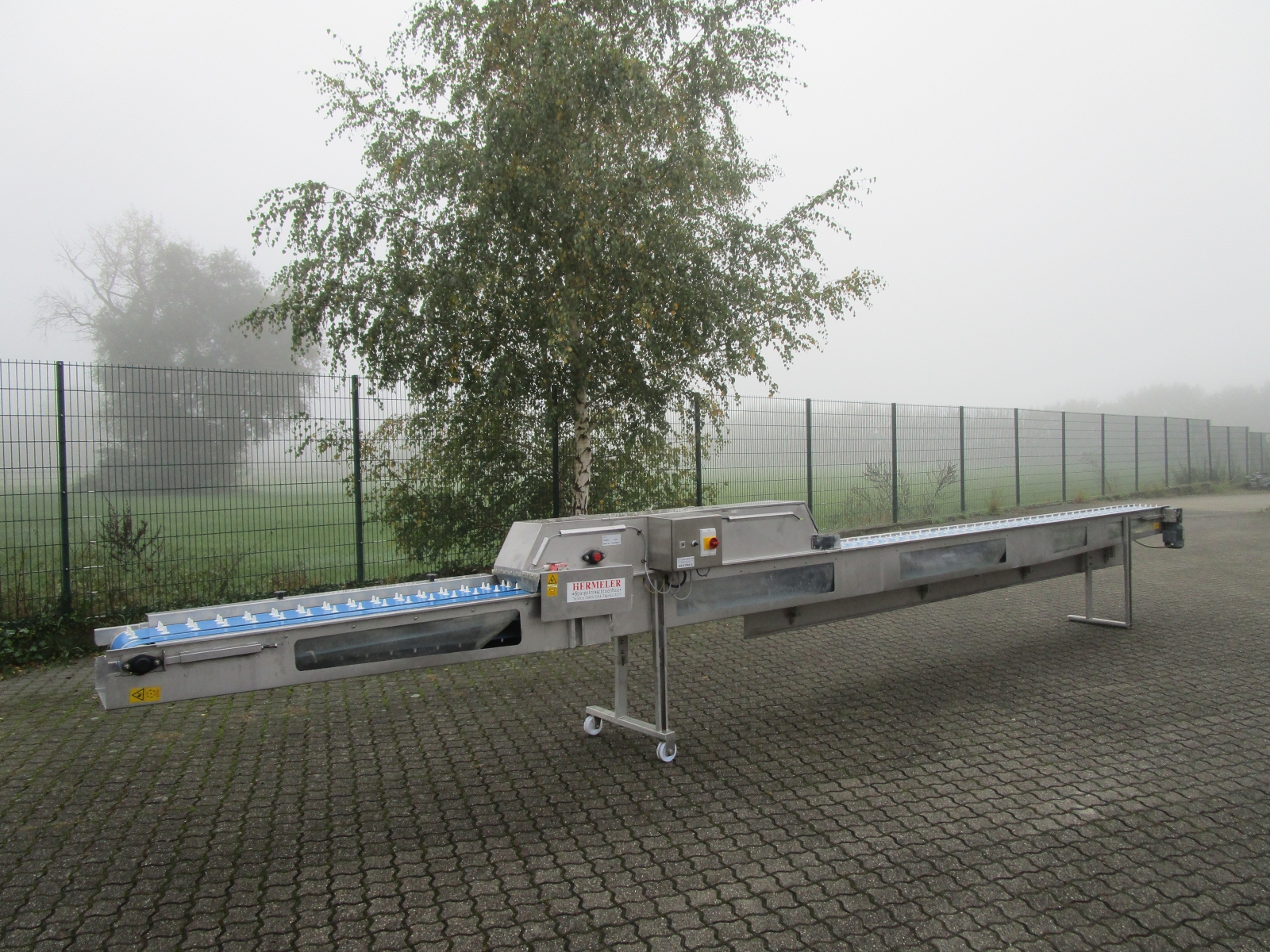

- for cleaning the asparagus spears and cutting them to the desired length
- Stainless steel version
- Running direction from left to right as standard
- Base body not riveted or screwed
- Height-adjustable support feet

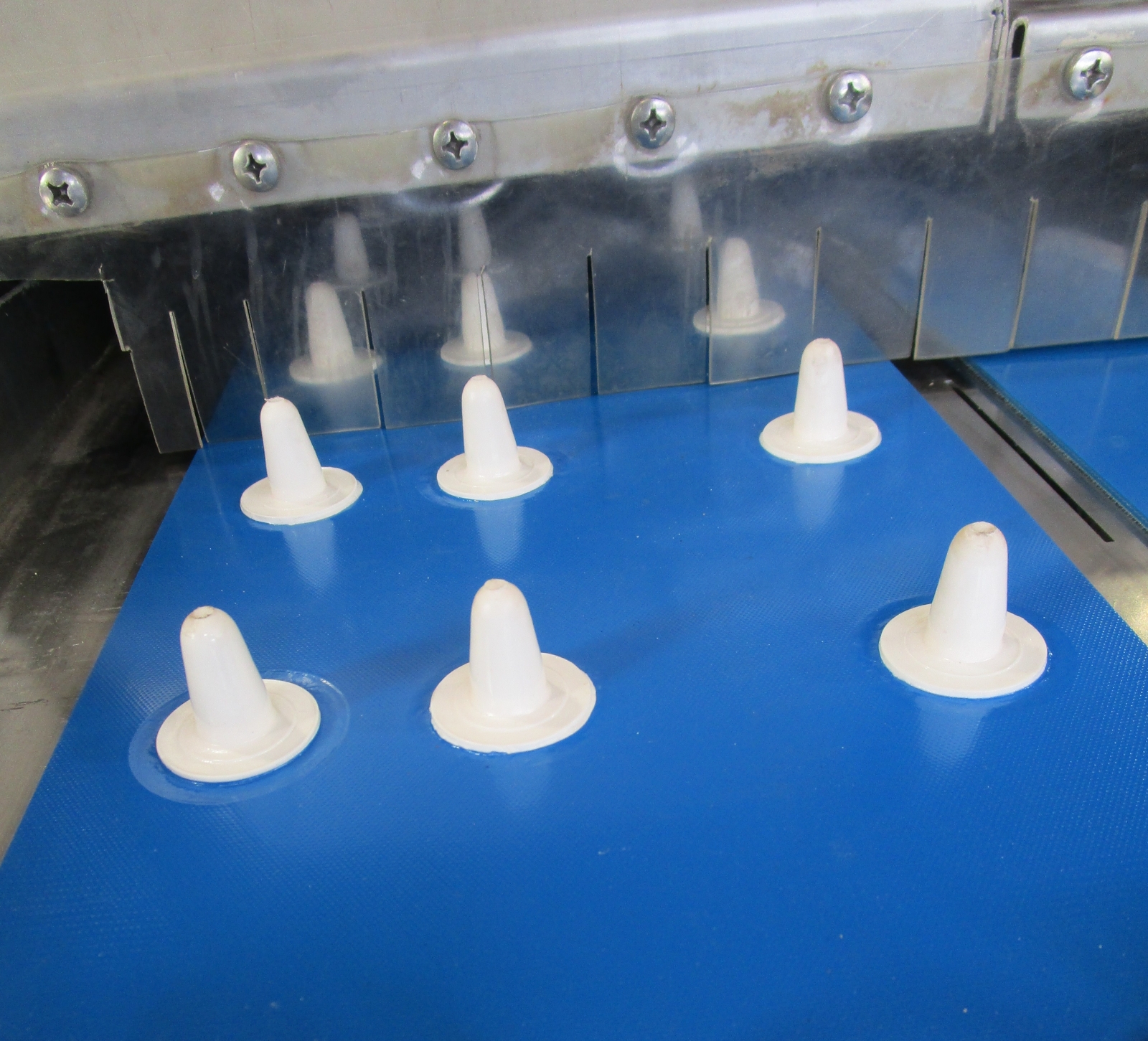

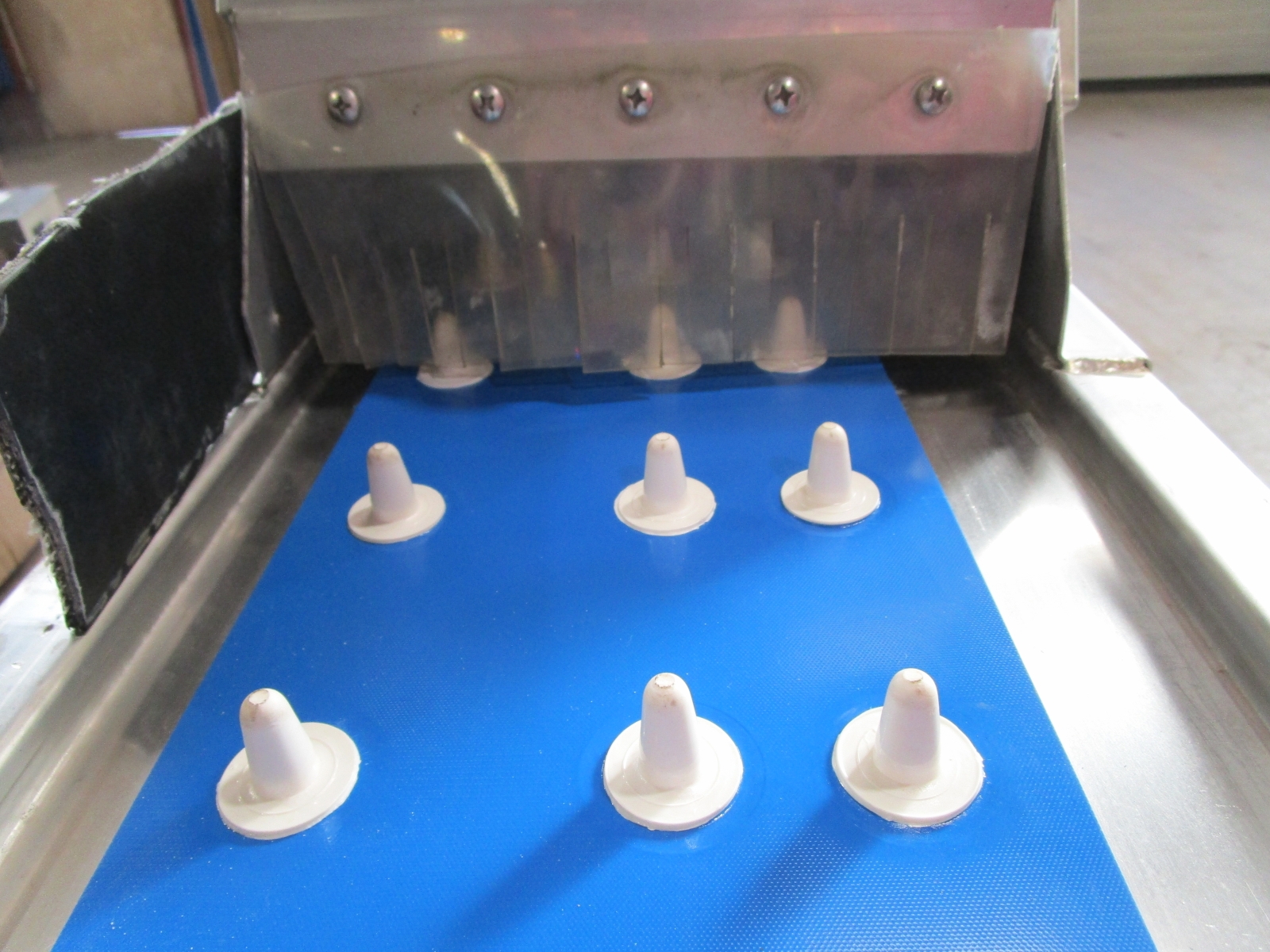

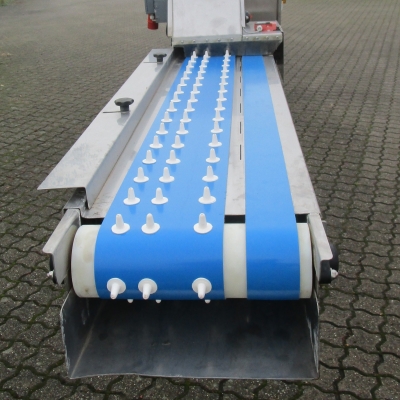

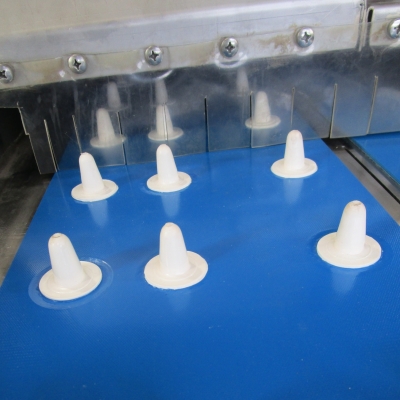

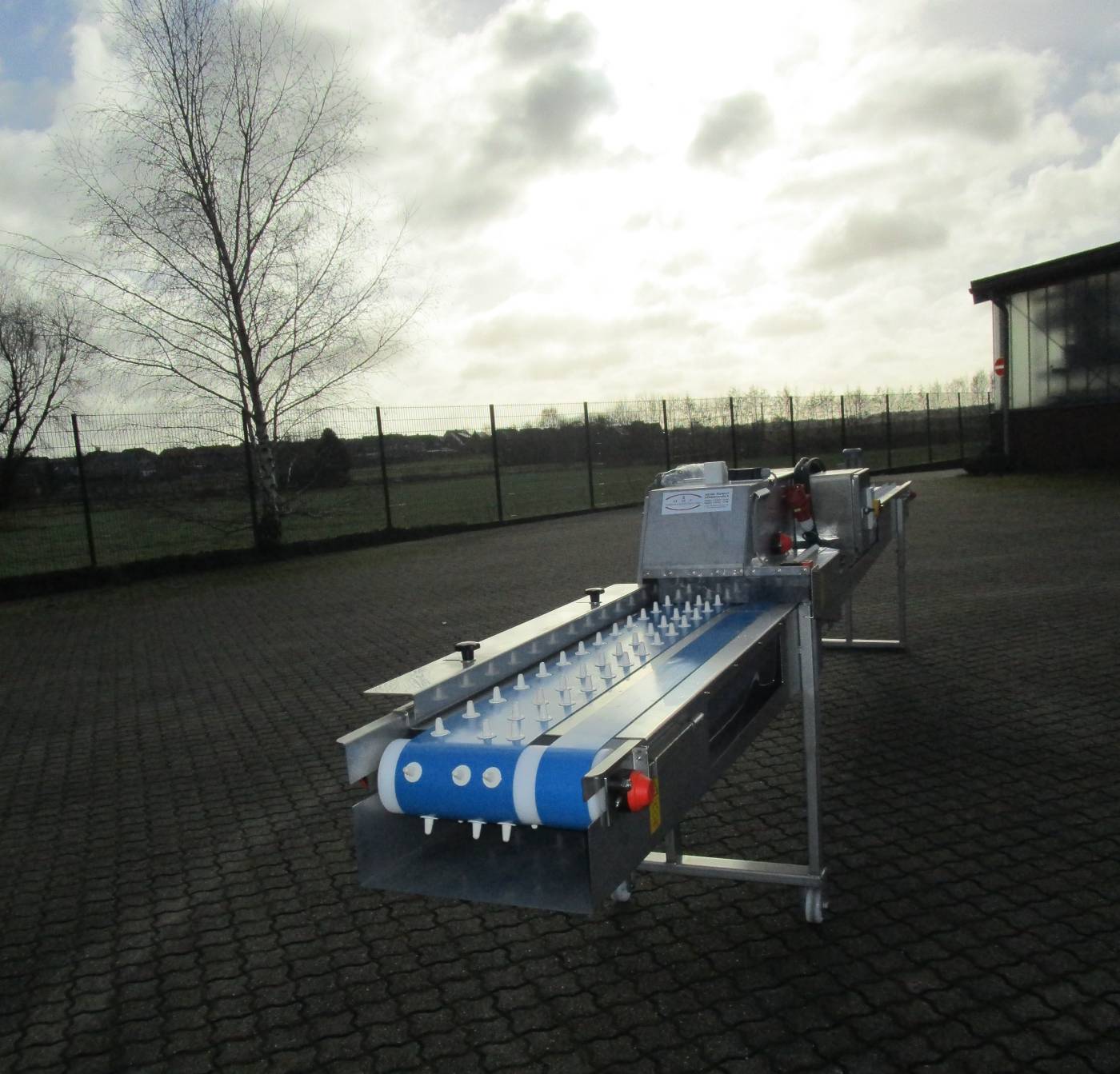

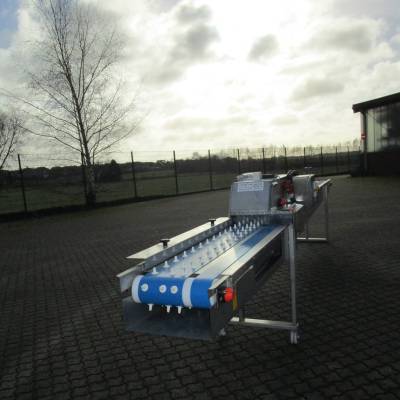

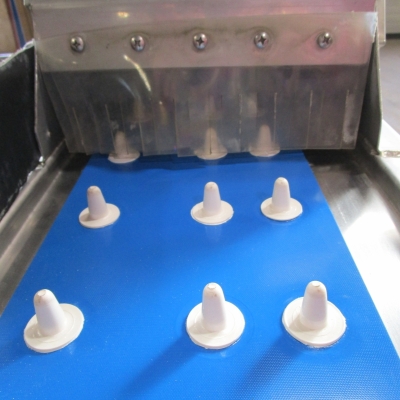

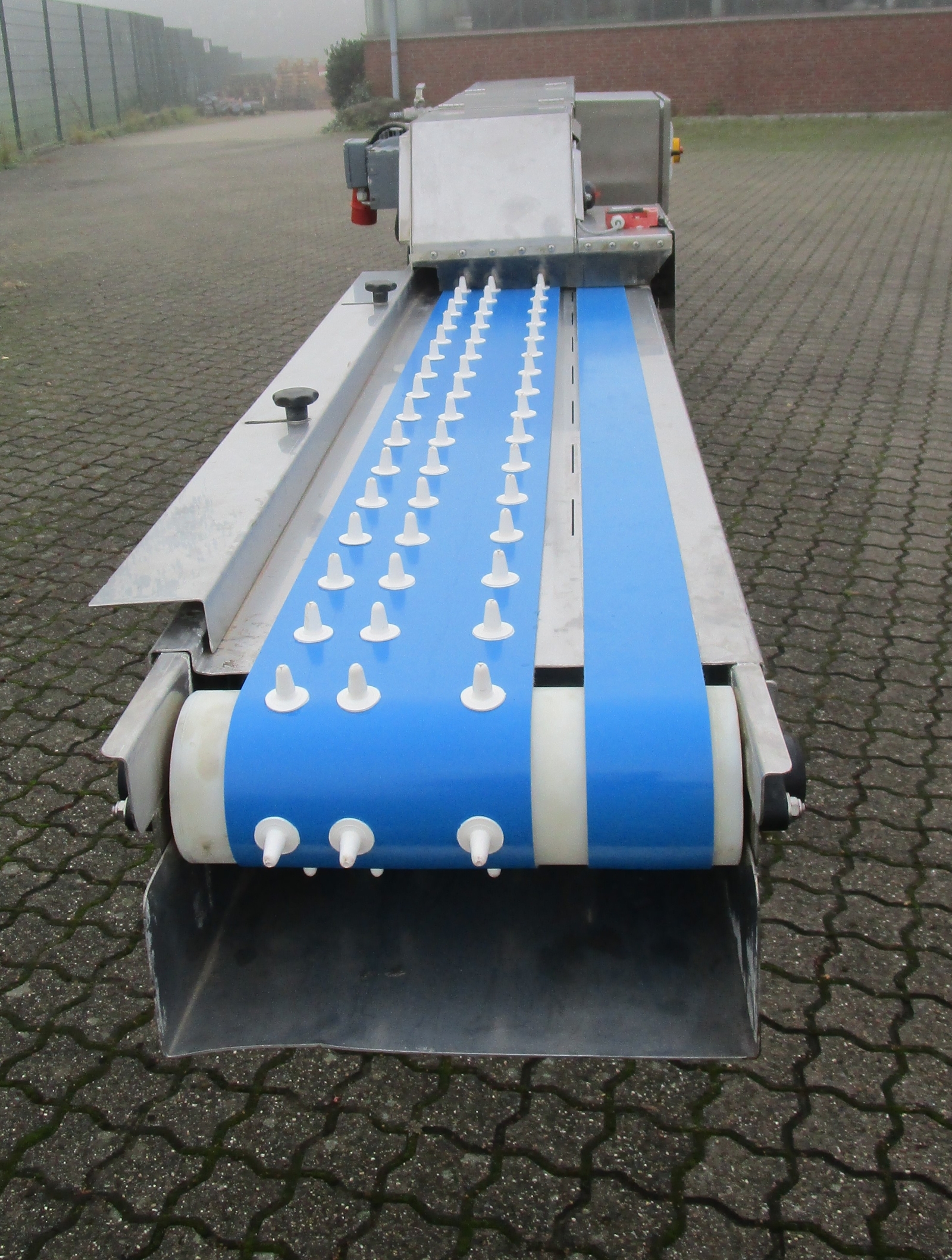

- Blue lay-on belt with 3 nubs at a distance of 100 mm
= suitable for white and green asparagus at the same time - Blue sorting belt
= suitable for white and green asparagus at the same time - 2 x drive motor
- Infinitely variable speed control (except for the type SWA 450)
- Limit switches at all important safety points
- Lubricatable bearings in plastic housing
- Stainless steel circular blade with special toothing
- Stainless steel counter blade
- Driven flat washing brush
- At least 6 cleaning nozzles
- Galvanised and powder-coated switch cabinet (IP66)
- Ready to plug in (400 V) – neutral conductor required
- Booster pump
- Distance between nubs: approx 50 mm
- Round brush
Possibility of
- extended lay-on lengths
- extended sorting lengths
- various total lengths
Individual modifications regarding equipment, dimensions, etc. are possible on request.
