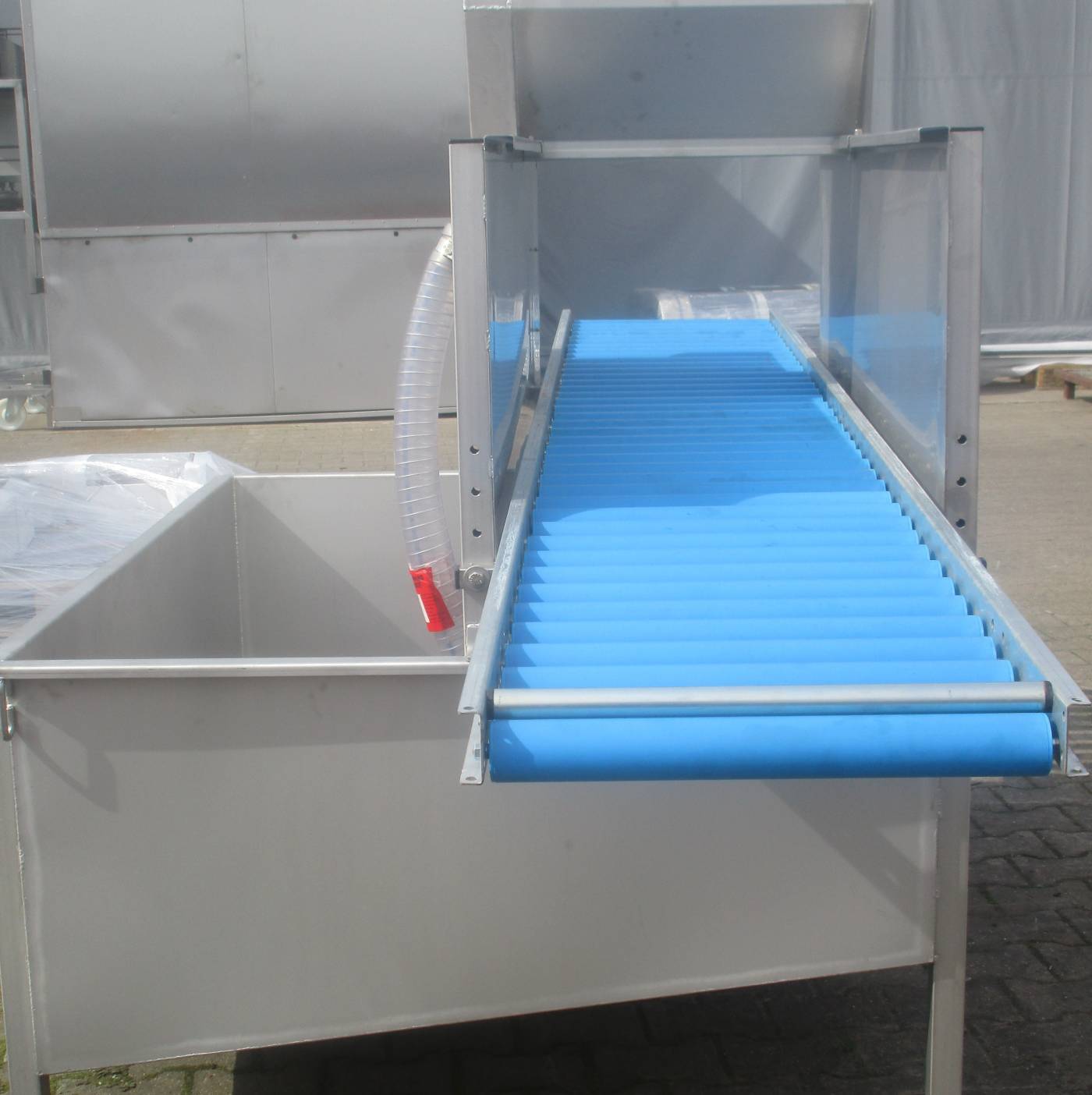

SVW 111 MAN
Manual 1-lane prewash with 1 pump and 1 water tank
SVW 111 MAN
Manual 1-lane prewasher with 1 pump and 1 water tank

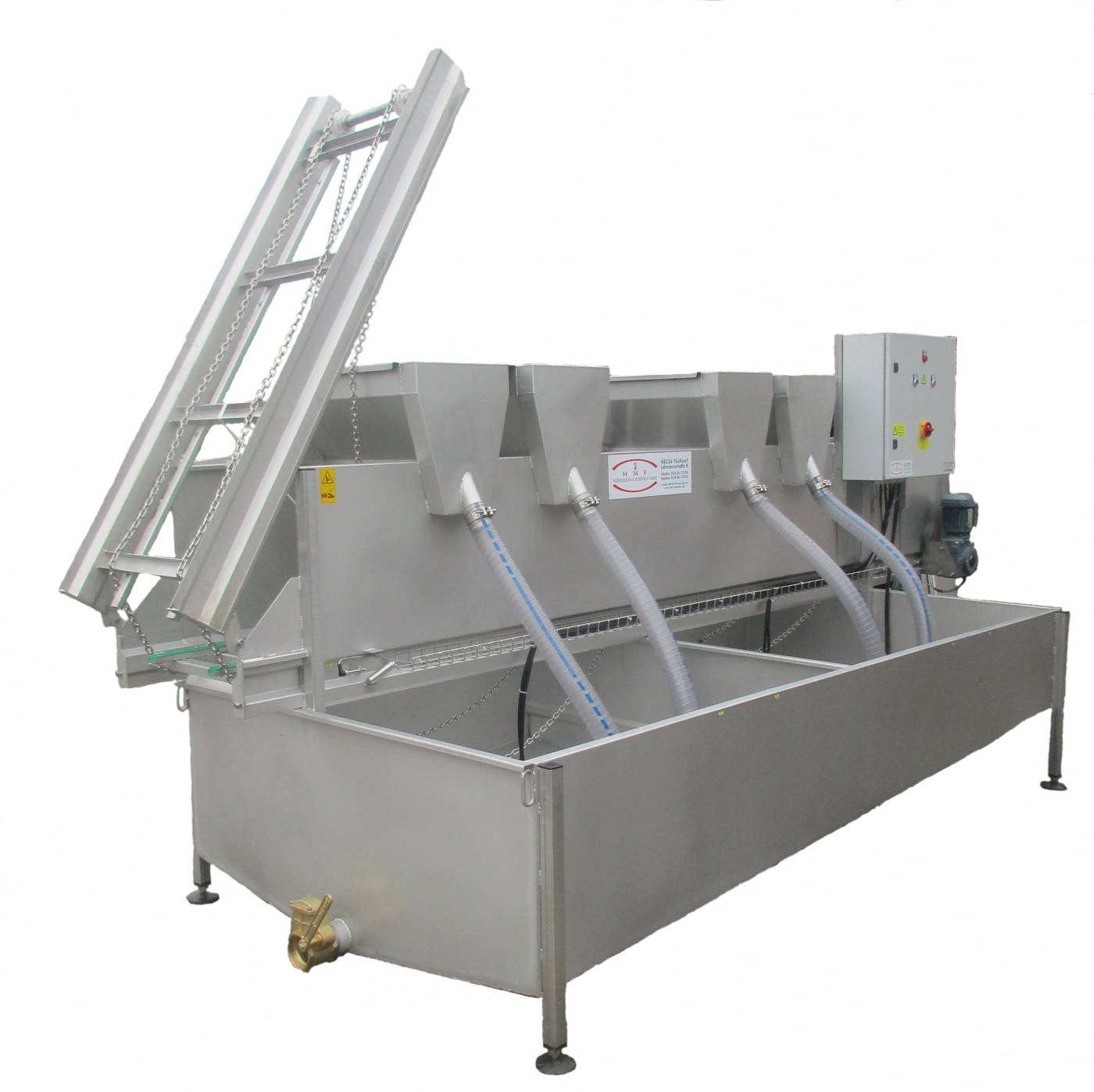

SVW 144
1-lane prewasher with 4 pumps and 4 water tanks

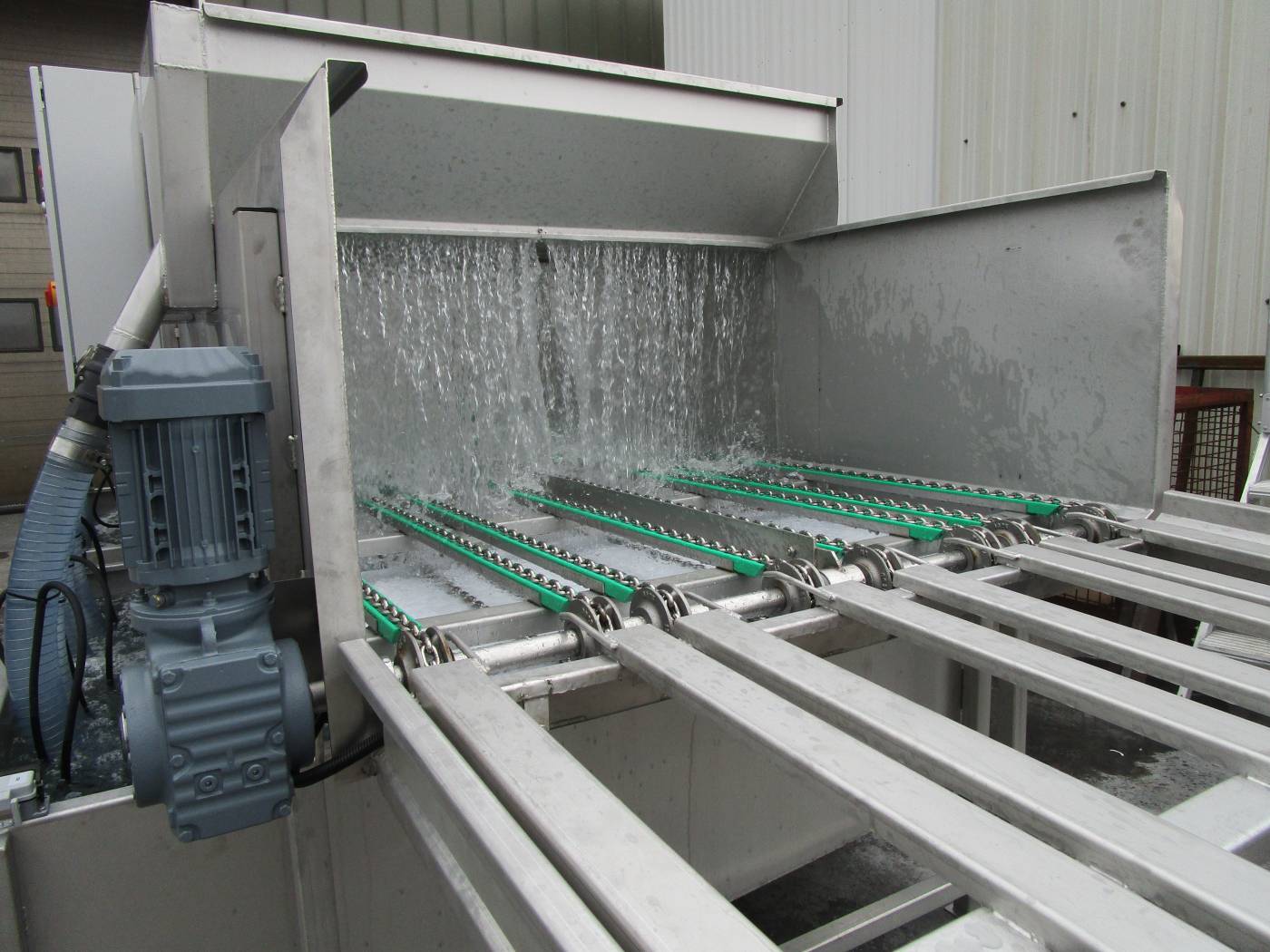

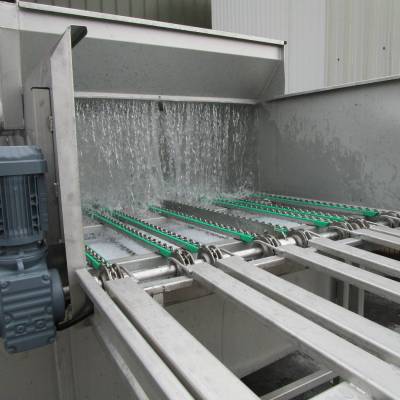

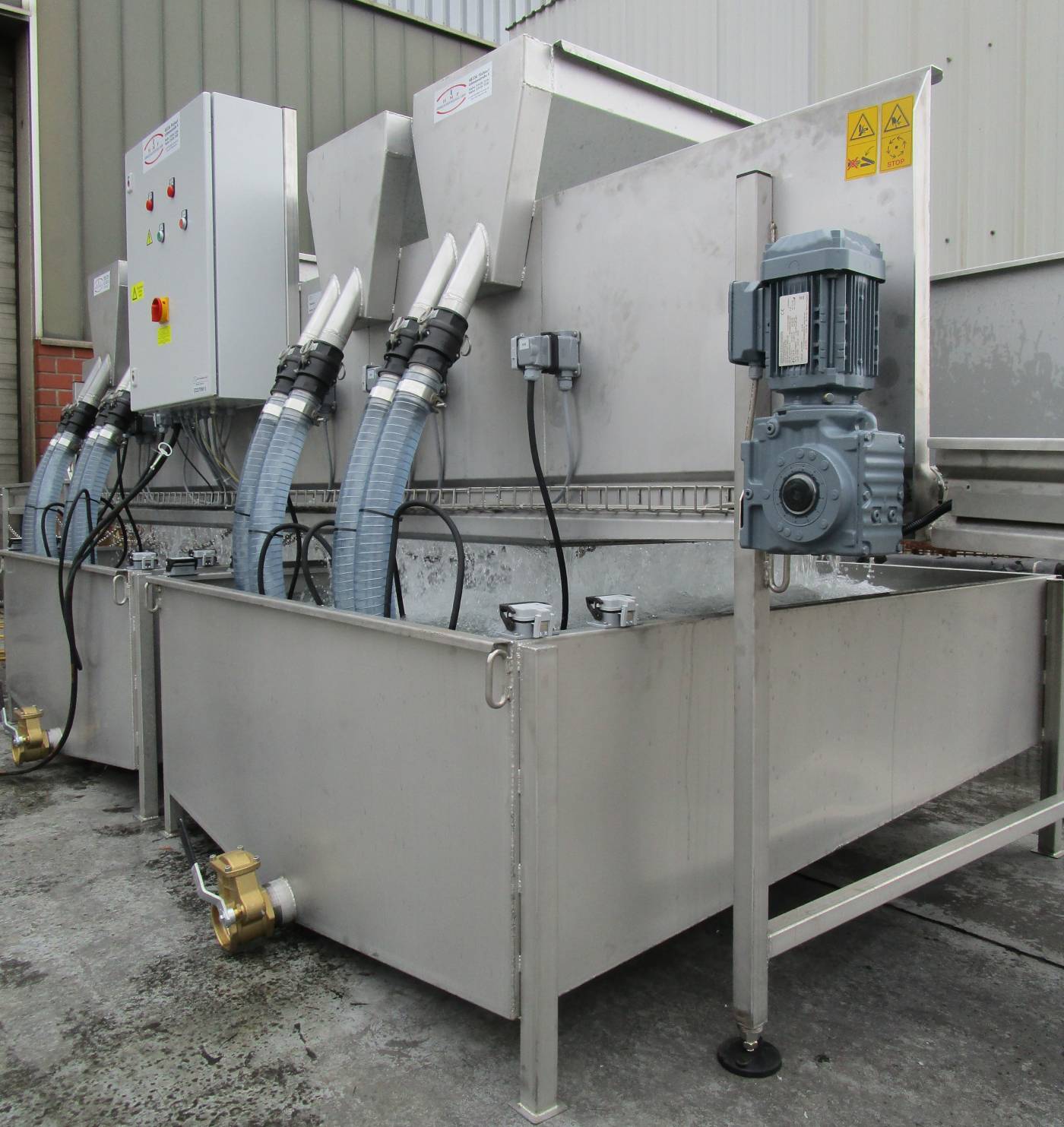

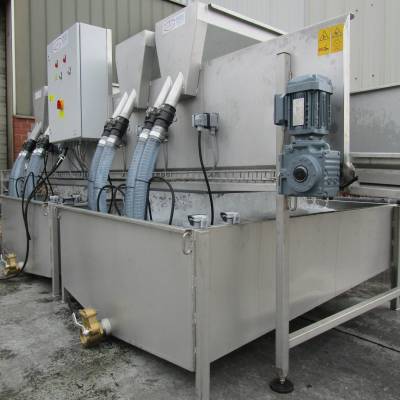

SVW 284 SEP
2-lane prewasher with 8 pumps and 4 water tanks
SVW 284 SEP
2-lane prewasher with 8 pumps and 4 water tanks
Entry

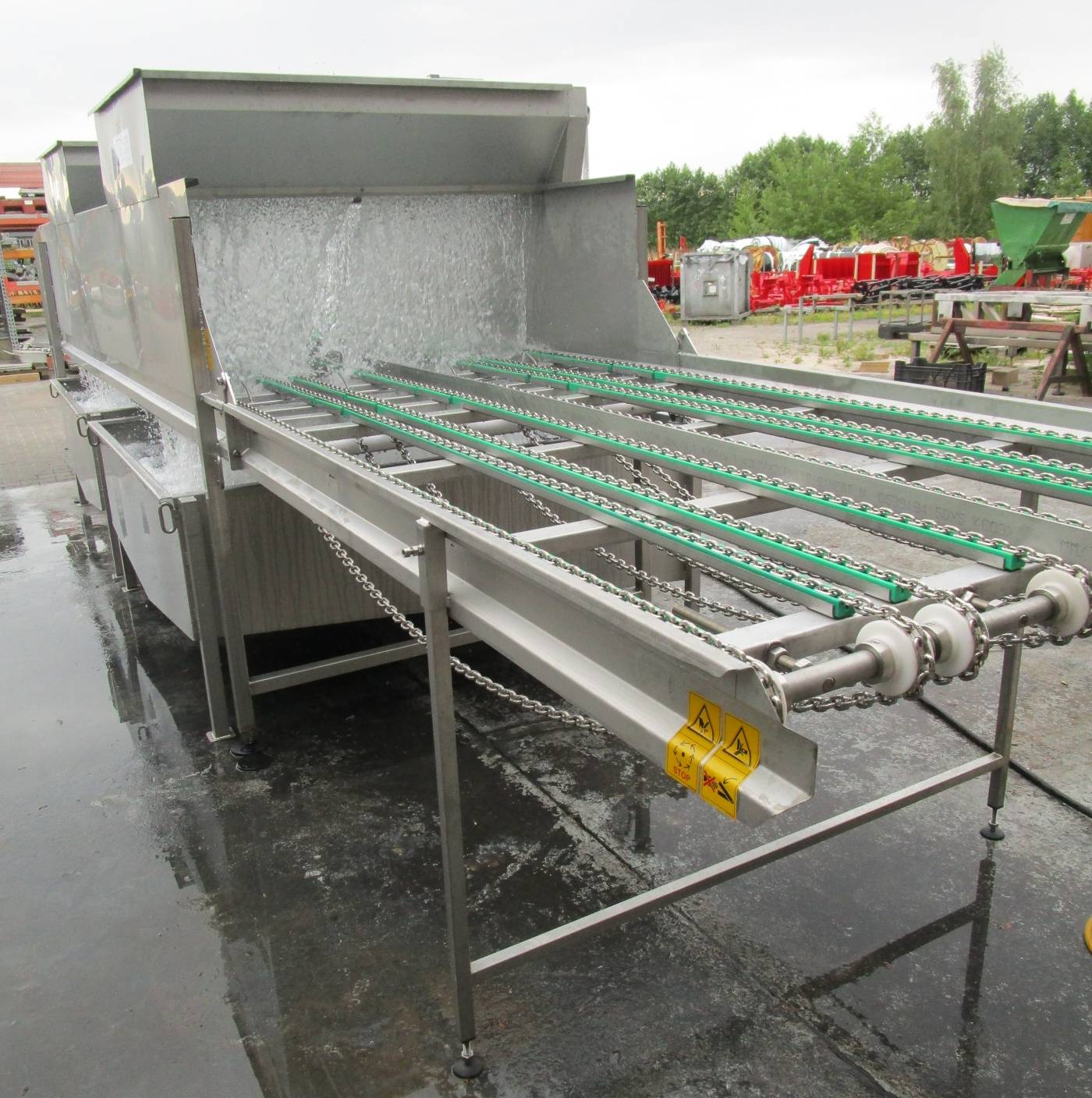

SVW 284 SEP
2-lane prewasher with 8 pumps and 4 water tanks
Entry

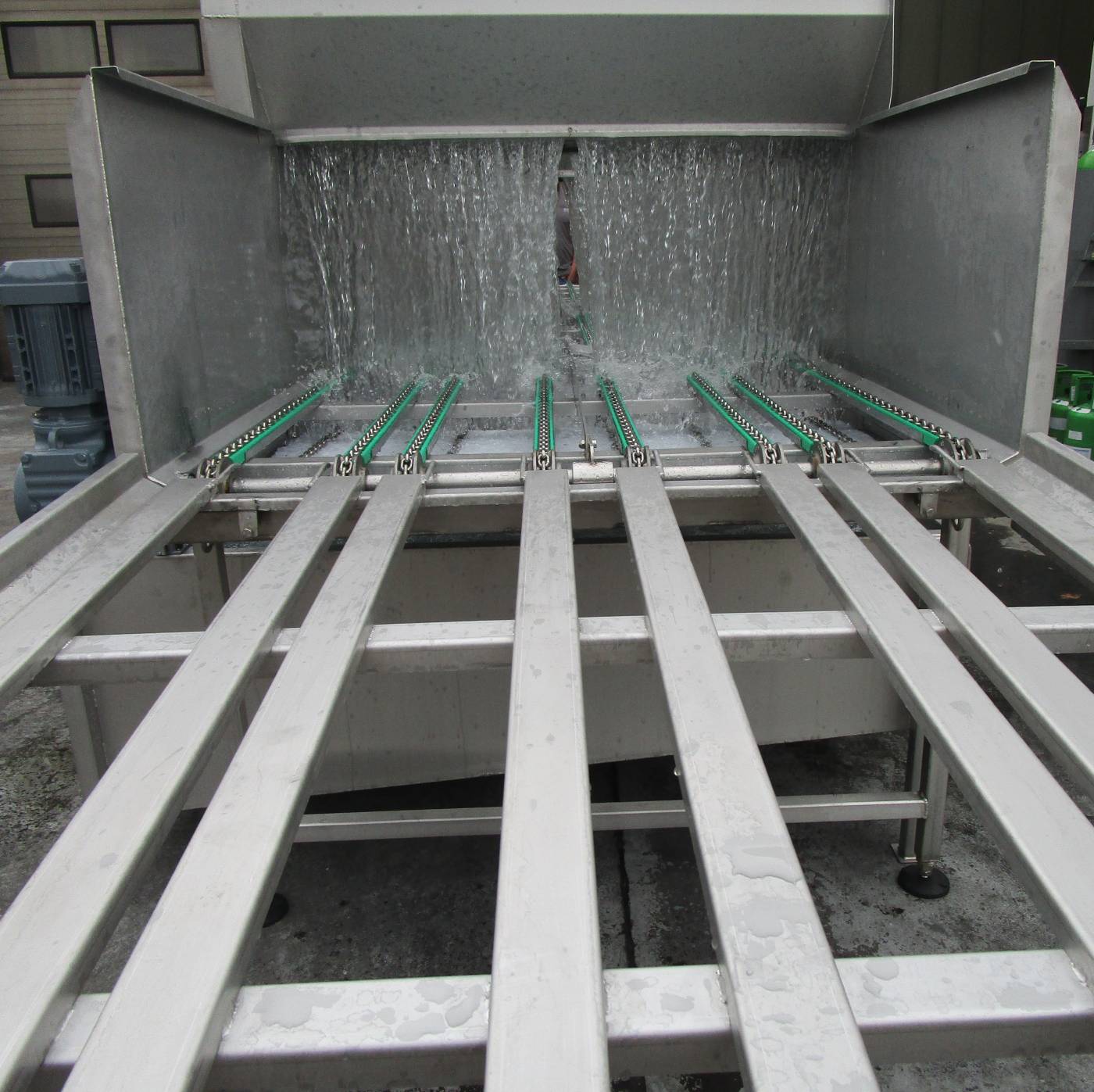

SVW 284 SEP
2-lane prewasher with 8 pumps and 4 water tanks
Exit

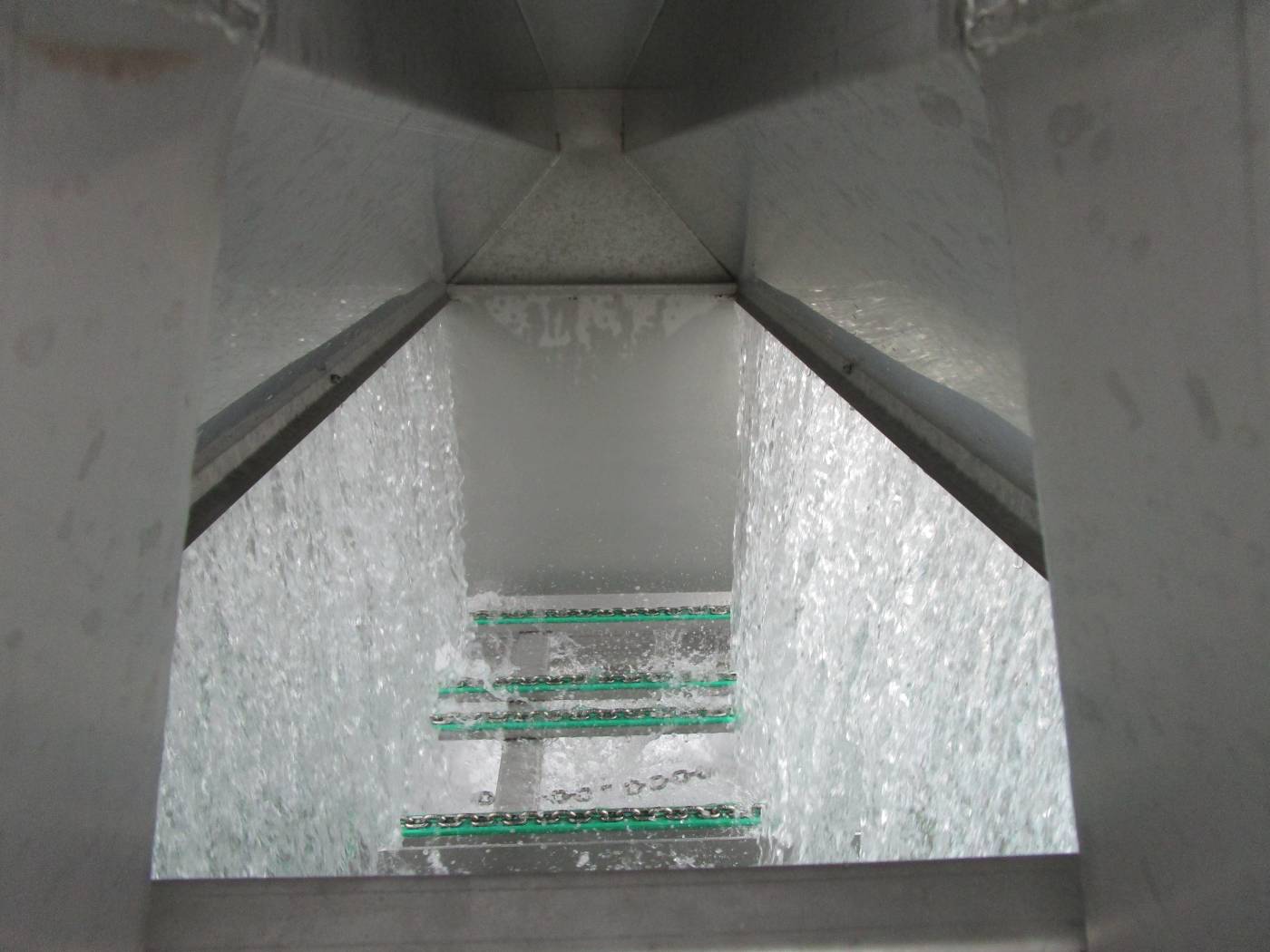

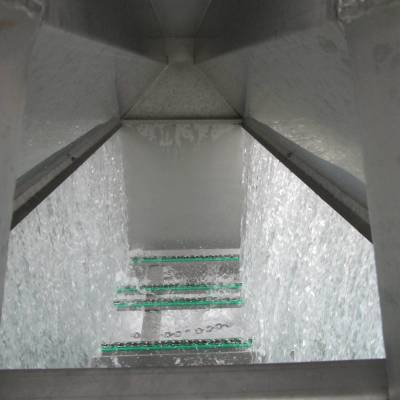

SVW 284 SEP
2-lane prewasher with 8 pumps and 4 water tanks
in the washing tunnel
SVW 284 SEP
2-lane prewasher with 8 pumps and 4 water tanks

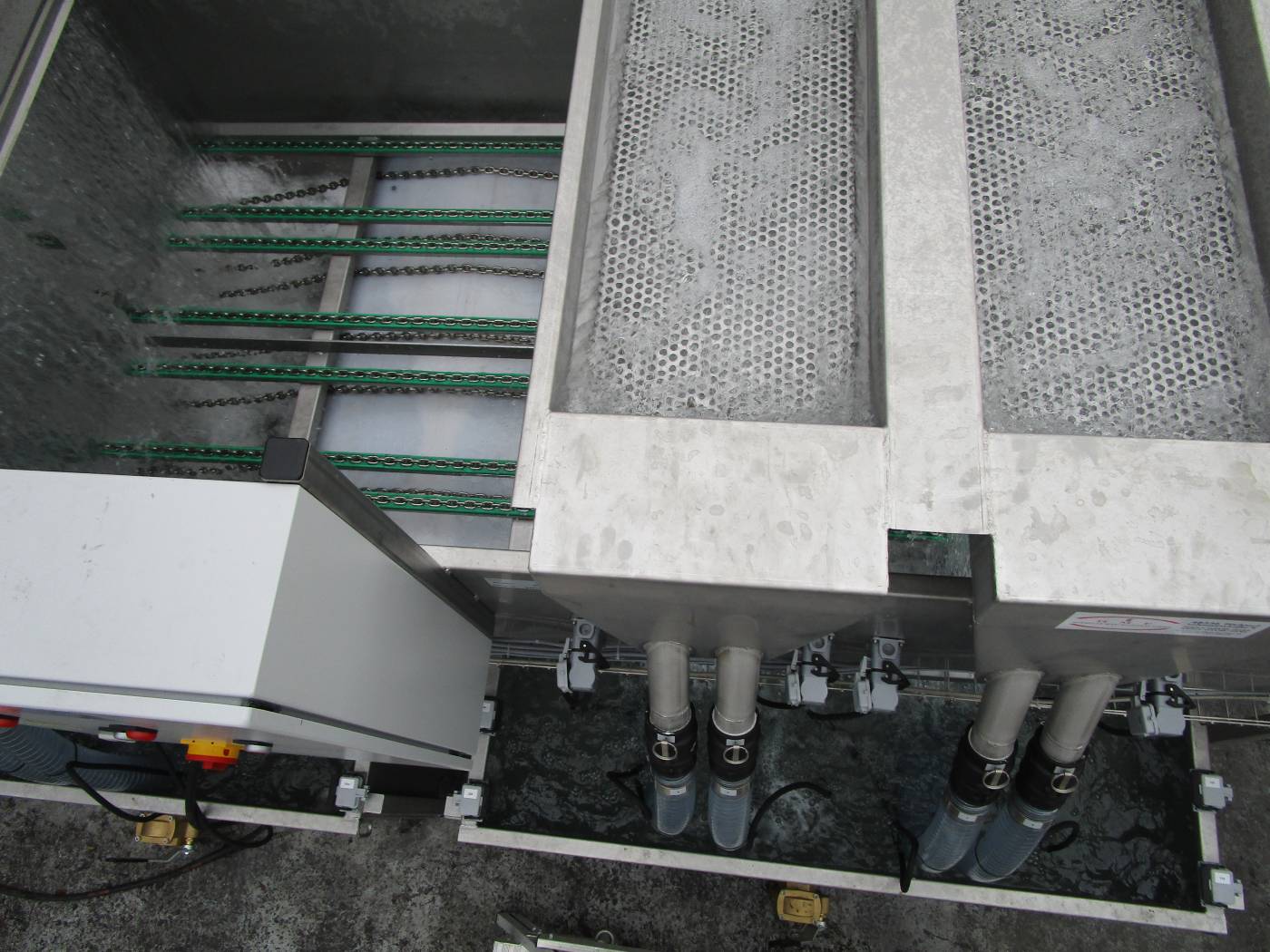

SVW 284 SEP
2-lane prewasher with 8 pumps and 4 water tanks

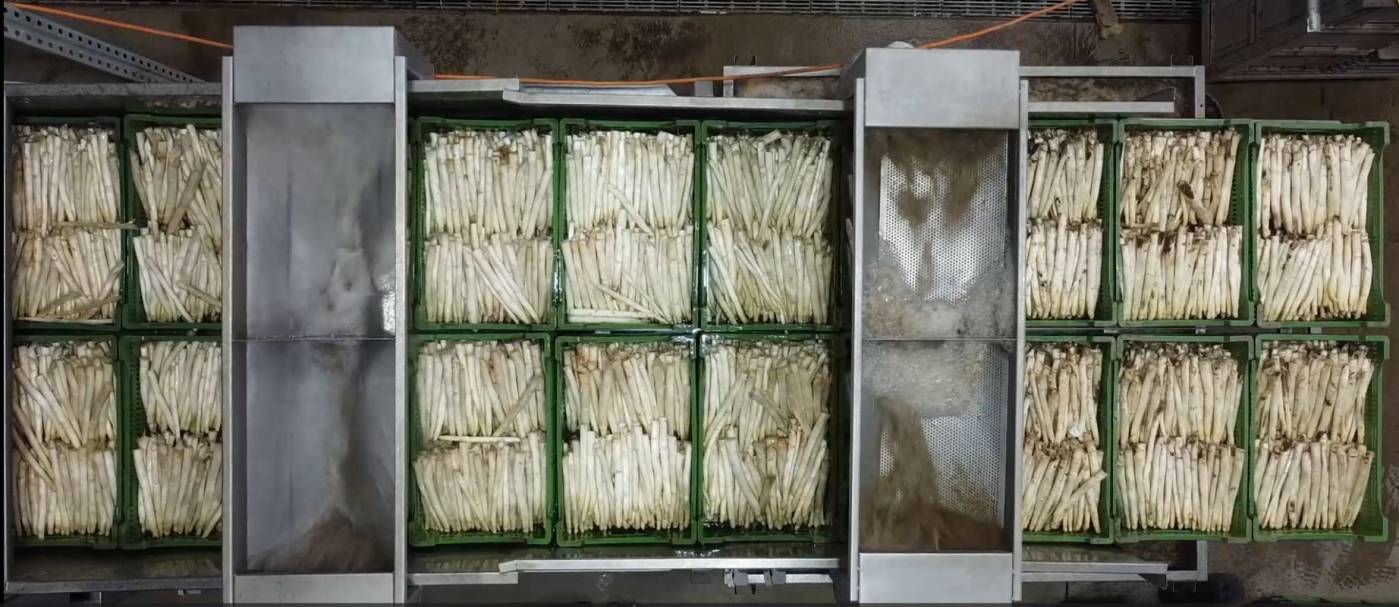

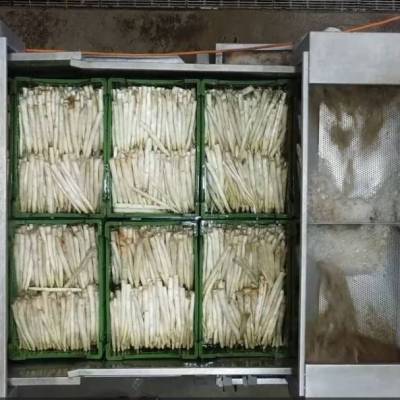

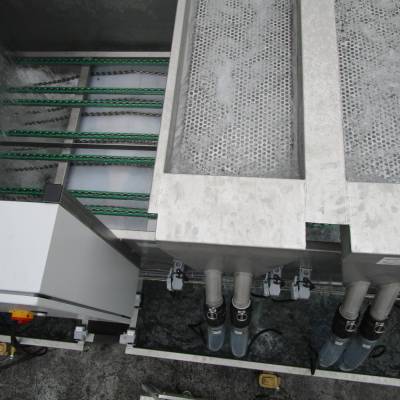

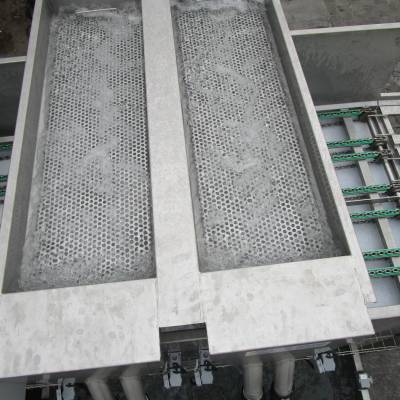

Top view

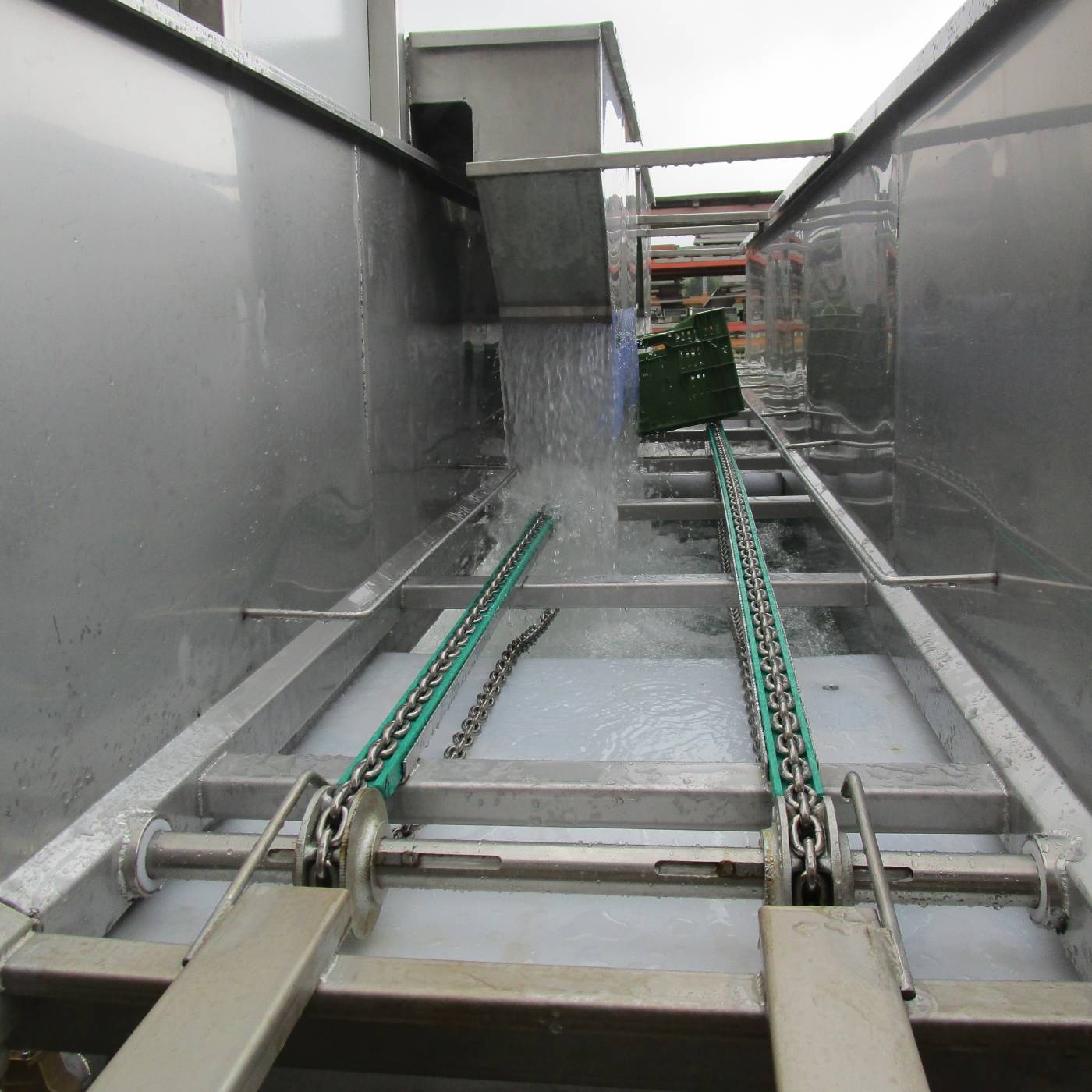

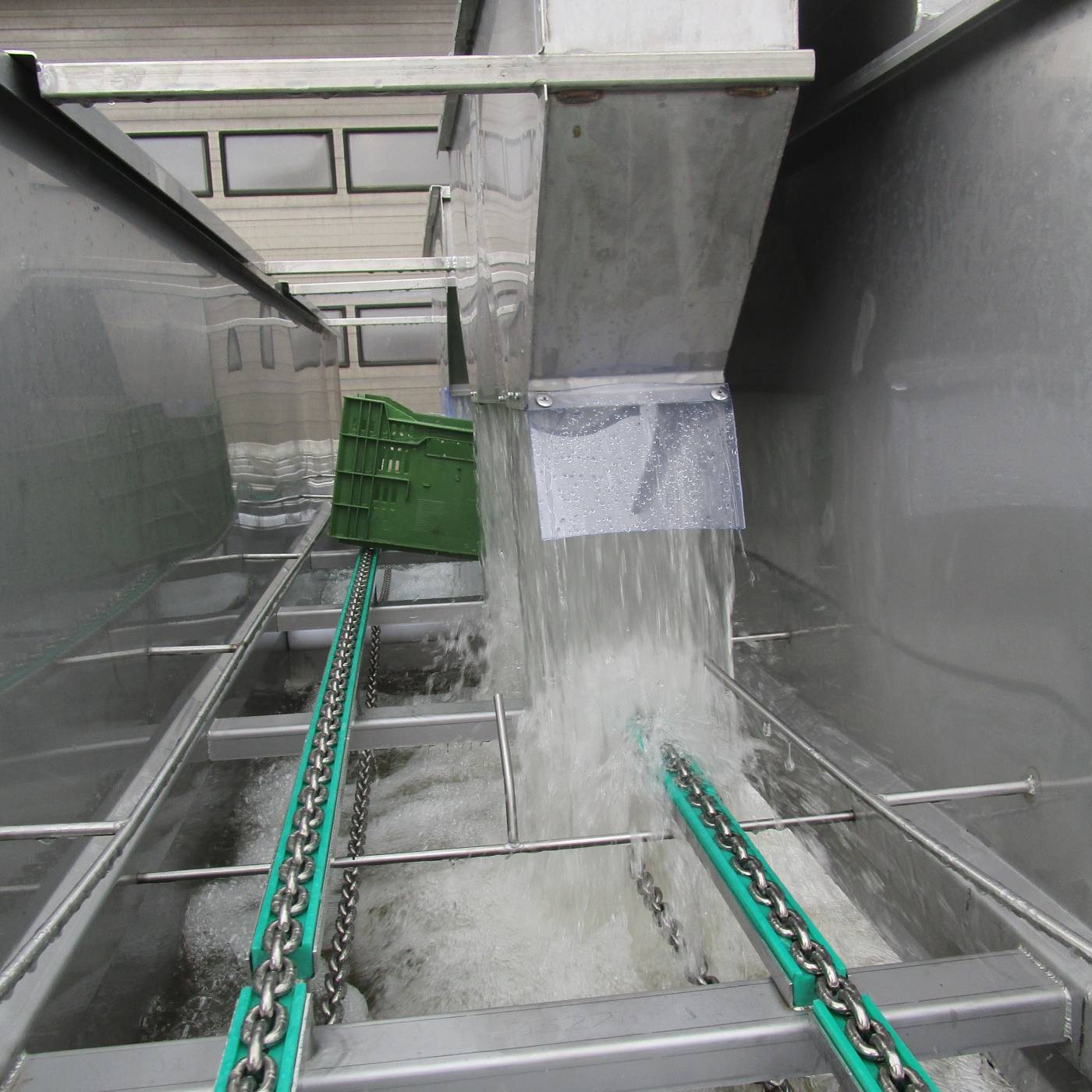

SVW 144
1-lane prewasher with 4 pumps and 4 water tanks
especially for green asparagus
SVW 144
1-lane prewasher with 4 pumps and 4 water tanks
especially for green asparagus

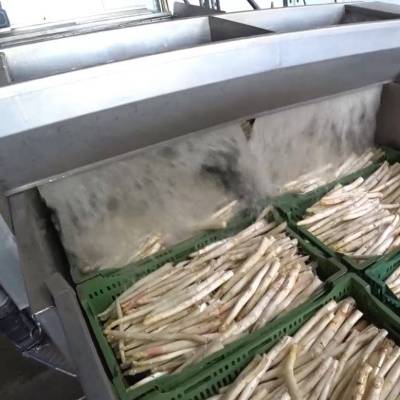

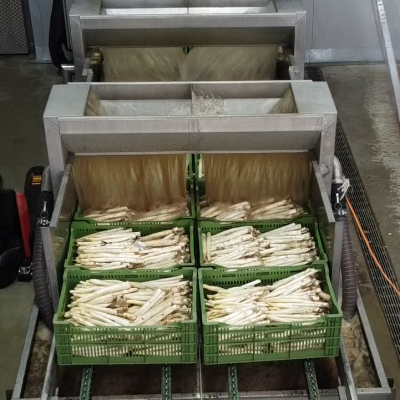

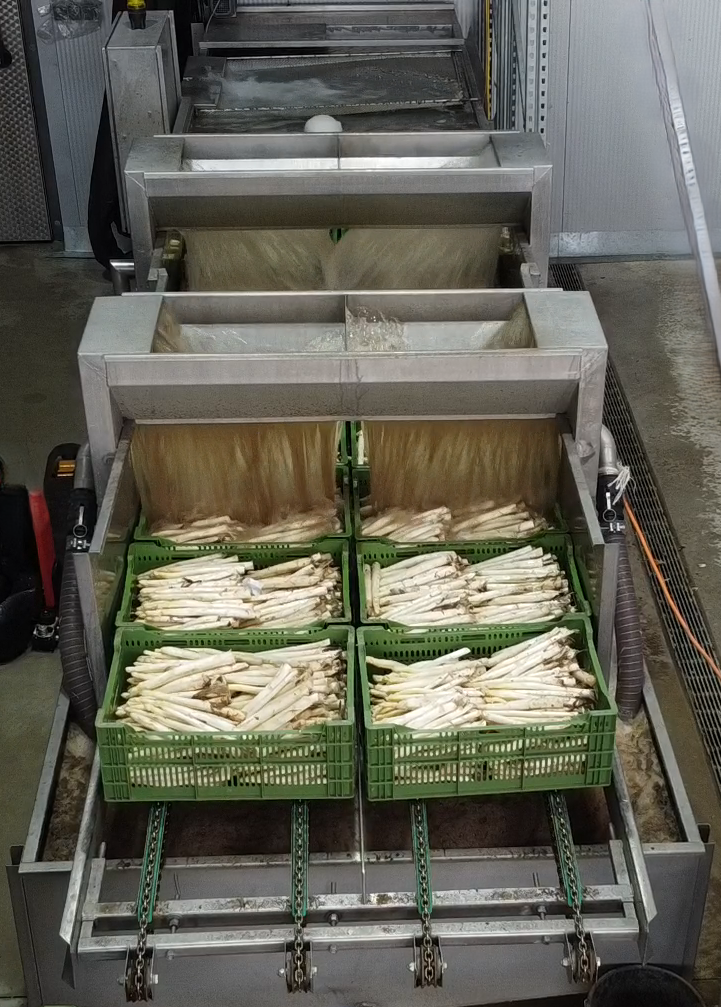

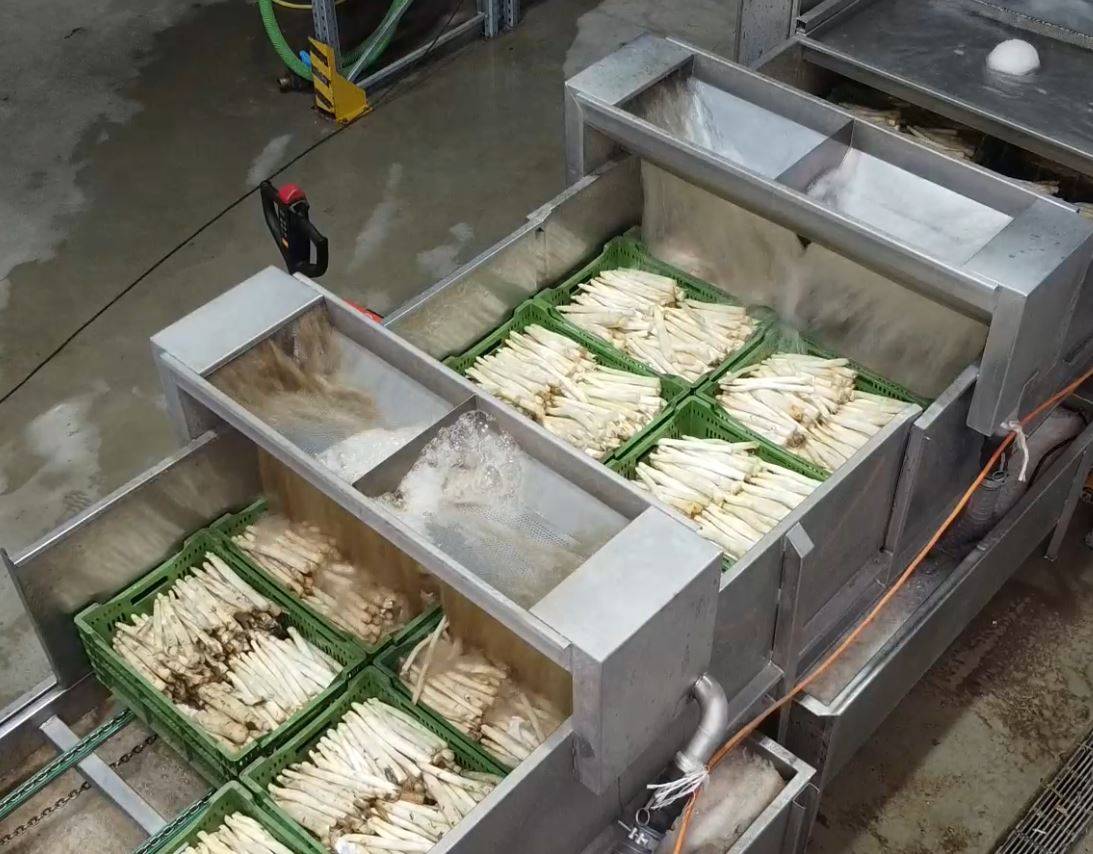

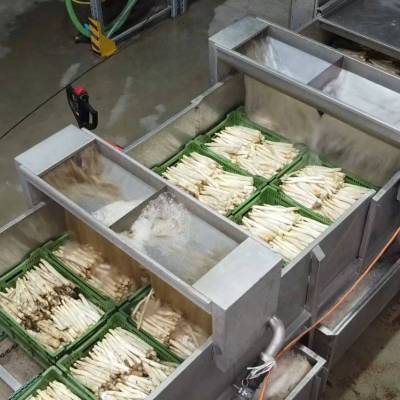

Double-lane pre-wascher (converted continuous shocker)
Double-lane pre-wascher (converted continuous shocker)
Double-lane pre-wascher (converted continuous shocker)
Double-lane pre-wascher (converted continuous shocker)

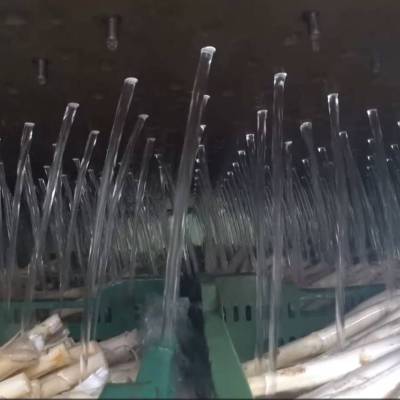

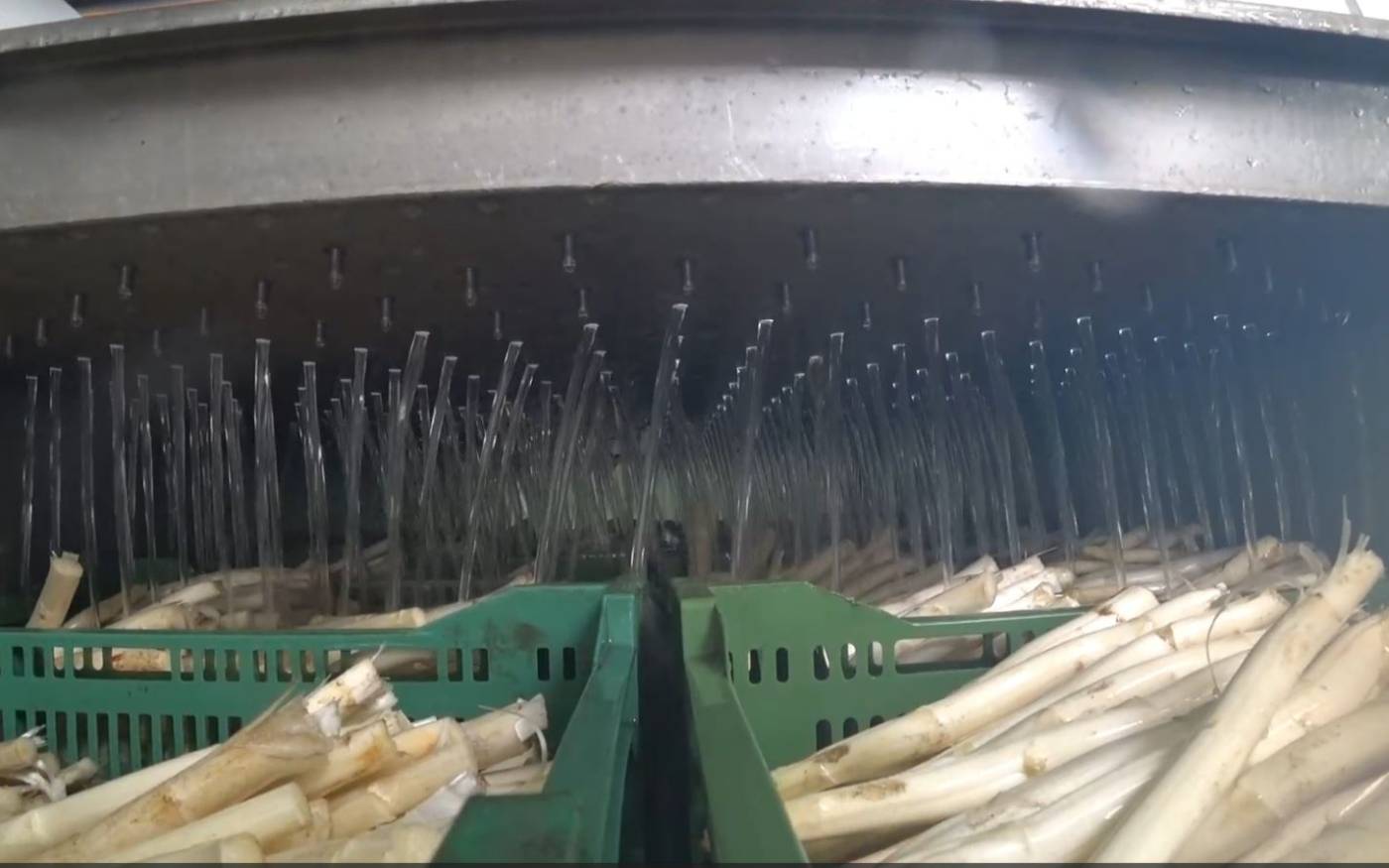

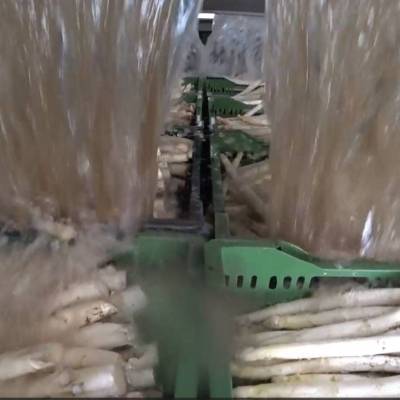

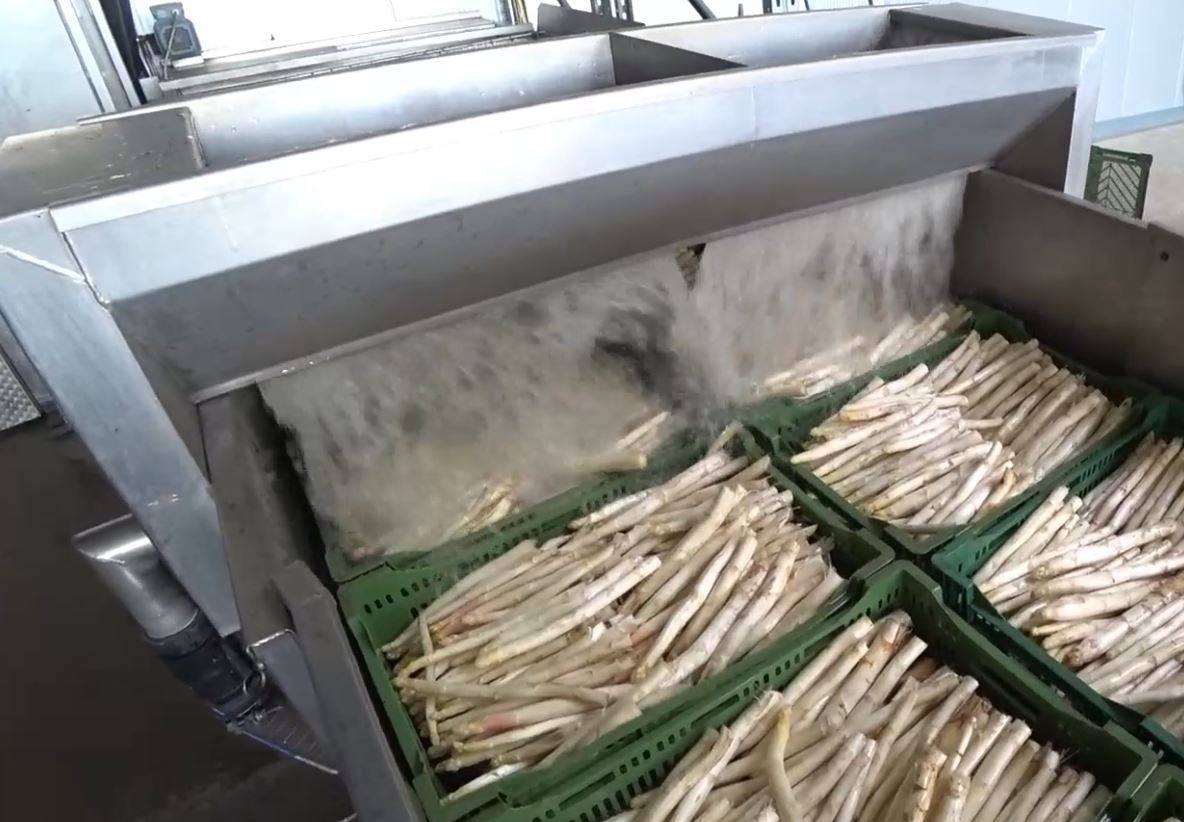

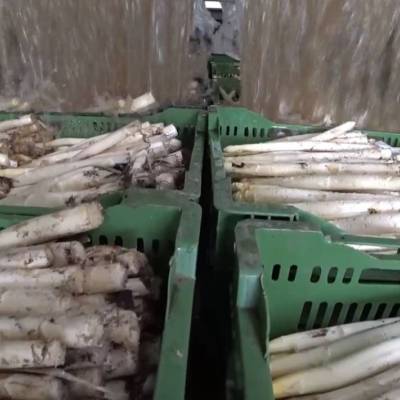

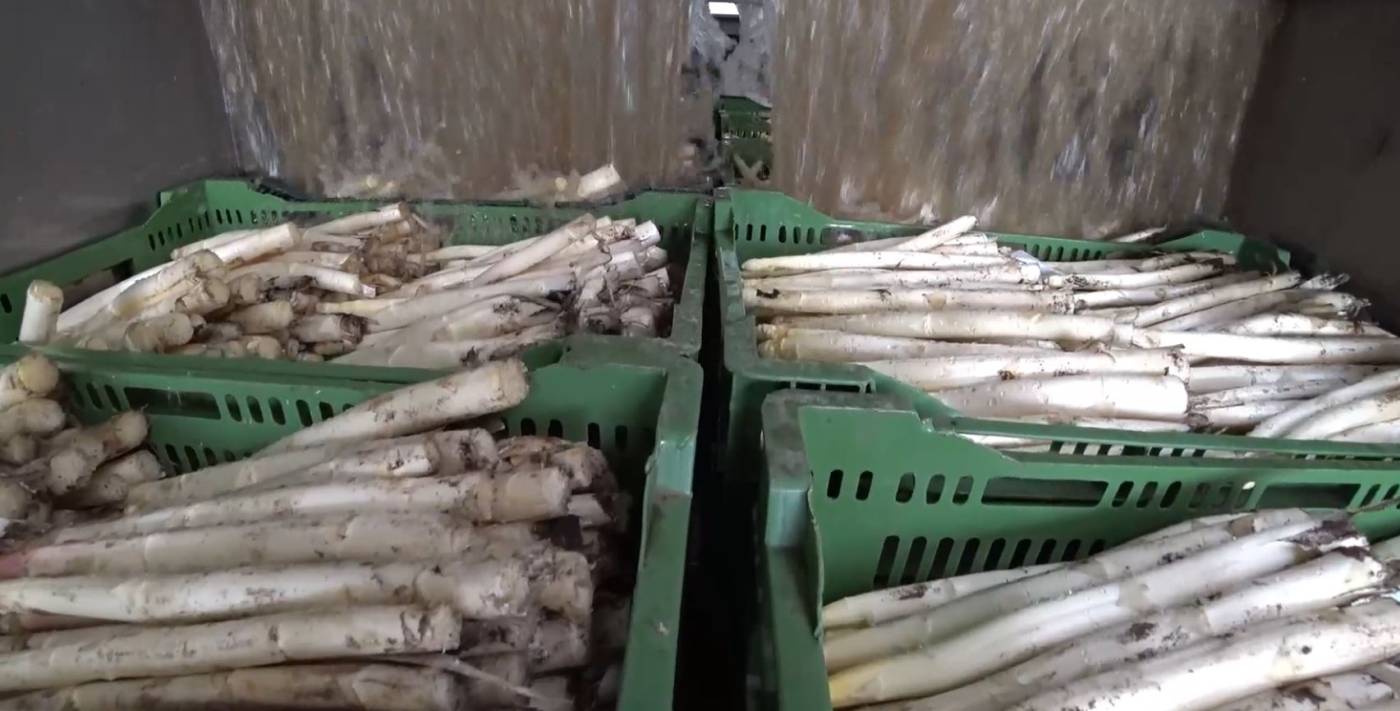

Two-lane pre-wash (converted continuous shocker) Interior view
Two-lane pre-wash (converted continuous shocker) Interior view
Two-lane pre-wash (converted continuous shocker) Interior view
Two-lane pre-wash (converted continuous shocker) Interior view
-
SVW 111 MAN SVW 111 SVW 122 SVW 122 SEP Lane 1 1 1 1 Chain 2 2 2 2 Water tank 1 1 2 2 Water bassin
Dimensions
approx.
fixed mounted
1500x1500 mm
fixed mounted
1500x1500 mm
fixed mounted
1500x1500 mm
on rollers
1500x1500 mm
Water pump 1 1 2 2 Capacity per hour approx. 20 crates 400 kg 800 kg 800 kg Crate dimensions approx. 600x400x300 mm 600x400x300 mm 600x400x300 mm 600x400x300 mm Drive motor
Infinitely variable
-
-
+
+
+
+
+
+
Roller conveyor + - - - SVW 142 SVW 144 SVW 144 SEP SVW 164 Lane 1 1 1 1 Chain 2 2 2 2 Water tank 2 4 4 4 Water bassin
Dimensions
approx.
fixed mounted
1500x3000 mm
fixed mounted
1500x3000 mm
on rollers
1500x3000 mm
fixed mounted
1500x3000 mm
Pump 4 4 4 6 Capacity per hour approx. 1600 kg 1600 kg 1600 kg 2400 kg Crate dimensions approx. 600x400x300 mm 600x400x300 mm 600x400x300 mm 600x400x300 mm Drive motor
Infinitely variable
+
+
+
+
+
+
+
+
+
+
Roller conveyor - - - - - SVW 166 SEP SVW 184 SEP SVW 242 SVW 242 SEP Lane 1 1 2 2 Chain 2 2 4 4 Water tank 6 4 2 2 Water bassin on rollers on rollers fixed mounted on rollers Pump 6 8 4 4 Capacity per hour approx. 2400 kg 3200 kg 3200 kg 3200 kg Crate dimensions approx. 600x400x300 mm 600x400x300 mm 600x400x300 mm 600x400x300 mm Drive motor
Infinitely varaible
+
+
+
+
+
+
+
+
Roller conveyor - - - - SVW 264 SVW 284 SVW 284 SEP SVW 2126 Lane 2 2 2 2 Chain 4 4 4 4 Water tank 4 4 4 6 Water bassin
fixed mounted
fixed mounted
on rollers
fixed mounted
Pump 6 8 8 12 Capacity per hour approx. 4800 kg 6400 kg 6400 kg 9600 kg Crate dimensions approx. 600x400x300 mm 600x400x300 mm 600x400x300 mm 600x400x300 mm Drive motor
Infinitely variable
+
+
+
+
+
+
+
+
+
+
Roller conveyor - - - - - -
Function / Application:
- For pre-cleaning fruit and vegetables before further processing
= Possibility of unsorted storage, as already pre-cleaned
- Stainless steel version
- Stainless steel waste water pumps
- Water tank
- Water bassin with sleeve gate valve
- Conveyor belt made of stainless steel chains
- Galvanised and power-coated switch cabinet (IP 66)
- Automatic start/stop for pumps and conveyor belt
- Drive motor with infinitely variable speed control
- Ready to plug in (400 V)
- Variable waste water pump quantities (2-12)
- Variable water tank quantities
- Fresh water nozzles
- More powerful pumps
- More conveyor belts
- Cleaning flap
- Special solution for green asparagus (no contact with water to the sensitive heads)
- Also available as manual pre-wash
- Sand does not get into the further processing sequence
- Easy access to the water basins and pumps
- High water circulation due to powerful wastewater pumps
- Inclined bottom of the water basin for easy cleaning
Individual modifications regarding equipment, dimensions, etc. are possible on request.
