Basic equipment
IGEL ILTIS DACHS Row distance from approx. 1600 mm 1600 mm 1800 - 2500 mm Power requirement from approx. 90 hp 90 hp 140 hp Dimensions LxWxH approx. 2885x2490x1460 mm 3100x2470x1970 mm 2940x2960x1640 mm Weight approx. 860 kg 1090 kg 1240 kg Middle chopping frame + + + Hydraulic height-adjustable middle frame - + - Tube bar roller 2 x 1 2 x 1 + 1 x 1 - Ring roof roller - - 2 x 2 Height and lateral adjustable coulter disc 2 x 1 - 1 x 2 Cultivator tine - - 1 x 8 Tine with heart coulter 2 x 3 2 x 3 - Height adjustable cultural harrow tine 2 x 4 2 x 4 + 1 x 8 1 x 5 Height adjustable levelling tine - - 1 x 8 Height adjustable harrow tine - - 1 x 16 Soil conditions Mainly light to medium-heavy soil Mainly light to medium-heavy soil Suitable for all soil types Accessories / Variations
IGEL ILTIS DACHS Wedge-shaped distribution body + + - Adapter for the MAULWURF depth spade + + + Different roller types + + + Double-row-design - - + Three-row-design - + - Intermediate frame with discs - + - -
Function / Application:

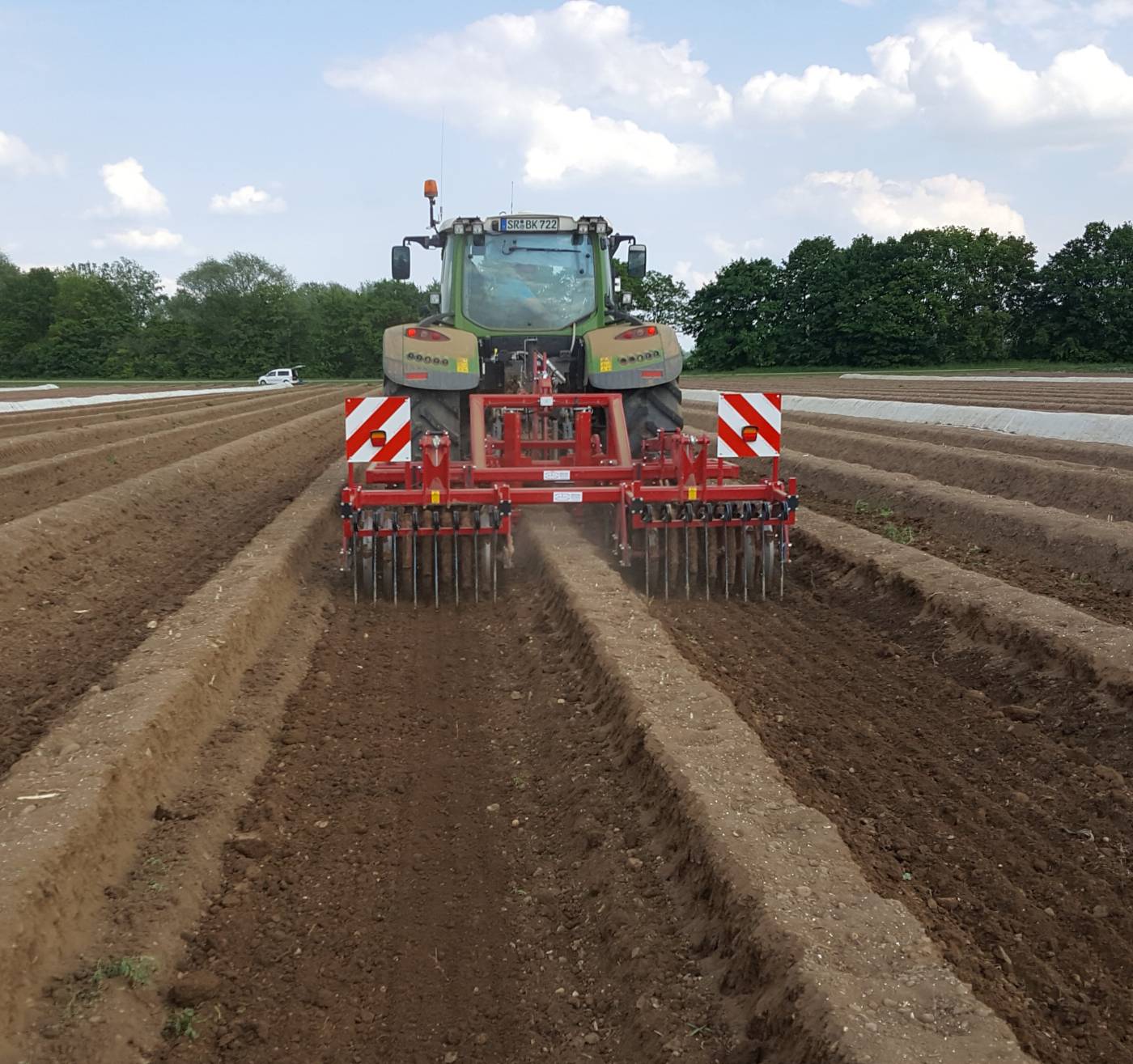

- for dam removal and mechanical treatment in the asparagus fields after the harvest
- for loosing and aerating the soil in late autumn in order
= rapid drying of the soil (Fusarium)
= minimisation of waterlogging - weed control in the young plant nursery
- suitable for all soil types, especially heavier soils
- 2 x Warning sign
- Front frame, consisting of:
- 1 x Cultivator frame with 8 deep cultivator tines
- 2 x Height and lateral adjustable coulter disc
- Middle hoe, consisting of:
- 5 x Cultural harrow tines
- Adjustable in height
- Trailing hoe, consisting of:
- 2 x Double roof ring roller segment
- 8 x Height-adjustable levelling tine
- 16 x Height-adjustable harrow tine
Accessories / Variations:Row distance: from approx. 1800 to 2500 mm Working width: approx. 3000 mm Tractor performance: from approx. 140 hp Dimensions (LxWxH): approx. 2940 x 2960 x 1640 mm Weight: approx. 1240 kg - Different types of rollers depending on soil conditions

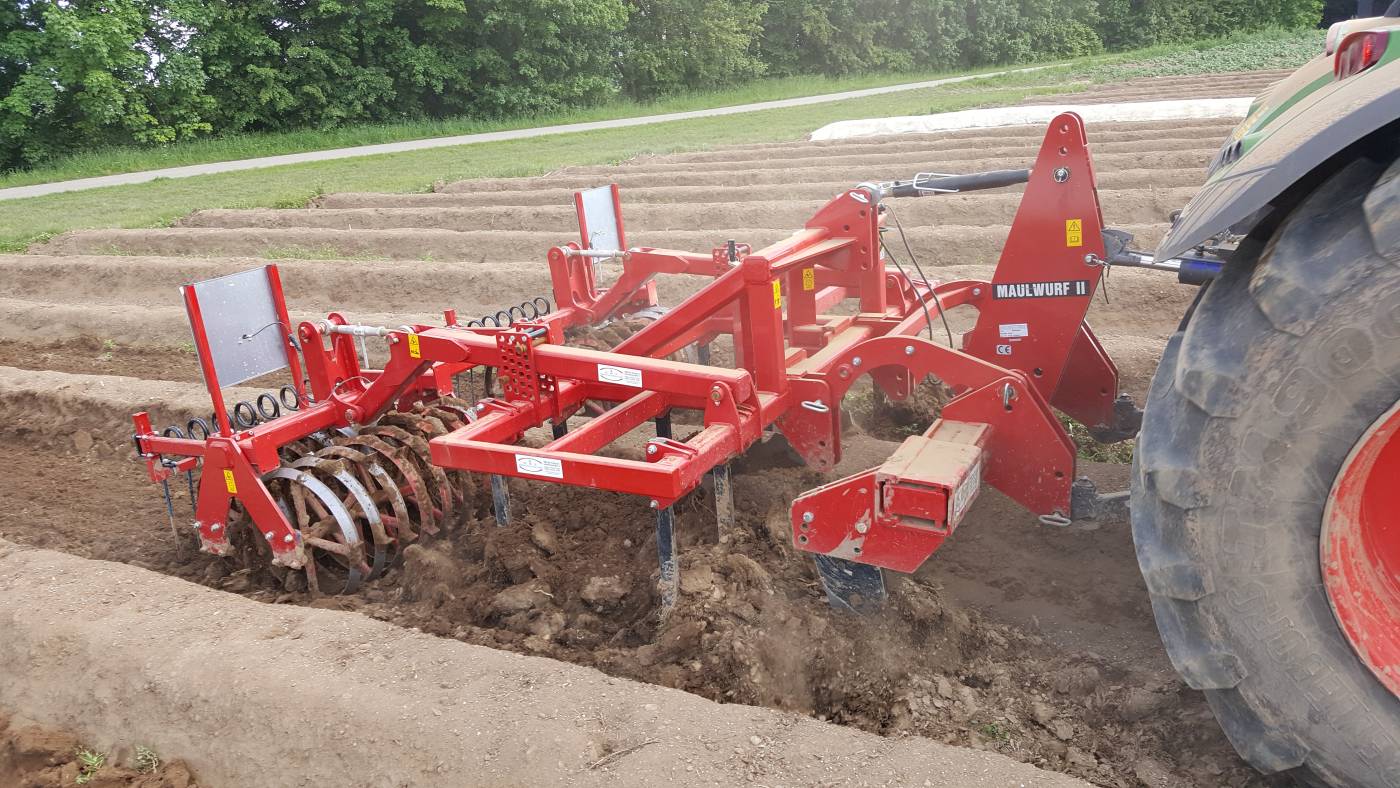

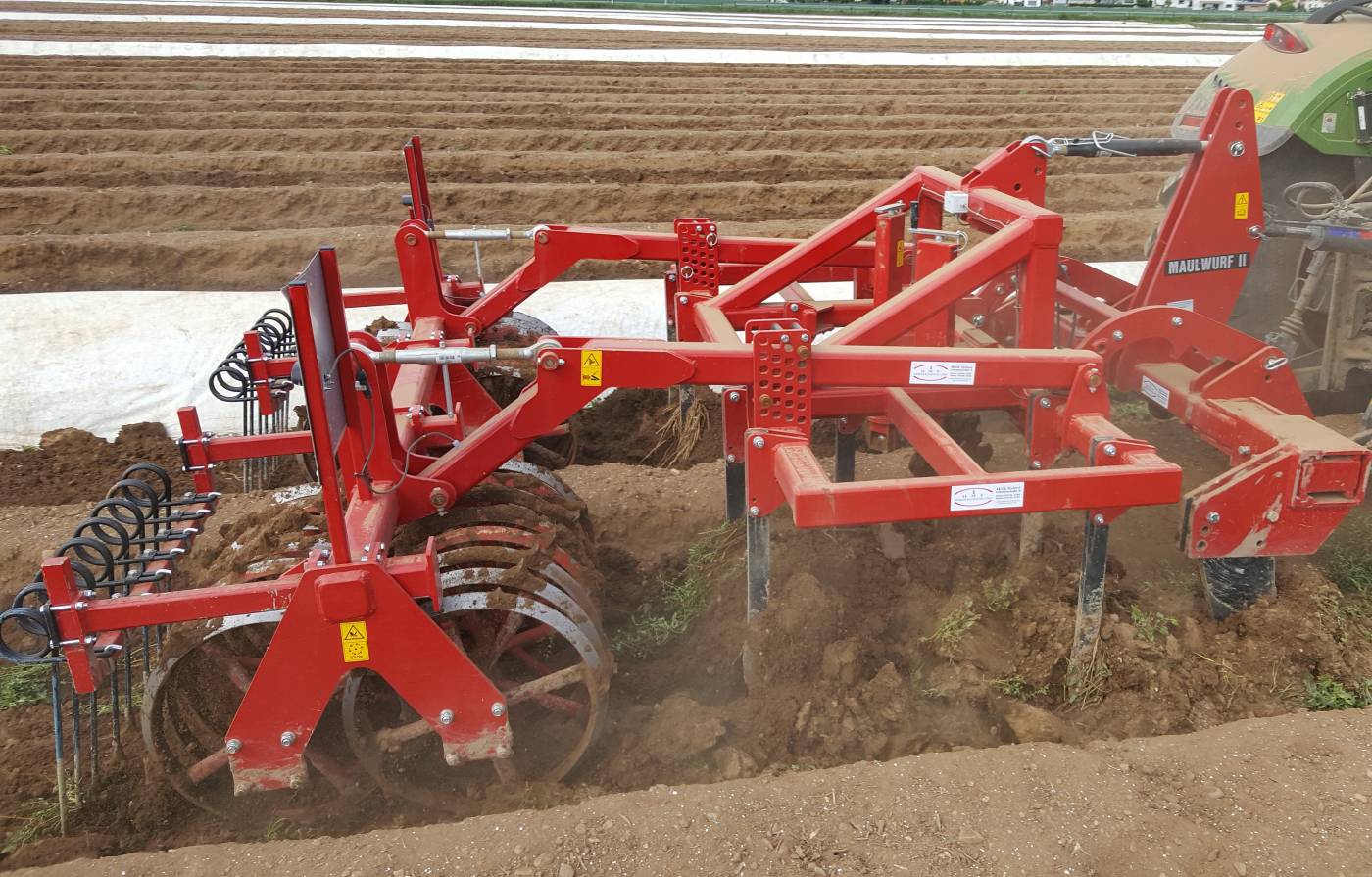

Adapter for combination with MAULWURF deep spade
= increased loosening of the soil in the tramlines - Double-row badger with a working width of approx. 4000 mm
= for cultivating one complete and 2 half rows in one pass
Individual modifications regarding equipment, dimensions, etc. possible on request.
