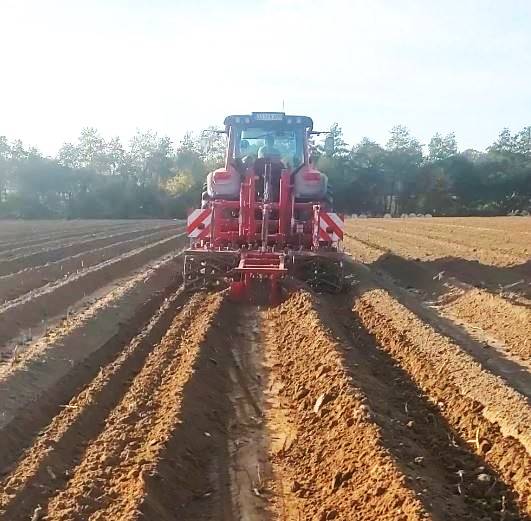

ILTIS with wedge-shaped distribution body combinated with depth spade MAULWURF
ILTIS with wedge-shaped distribution body combinated with depth spade MAULWURF

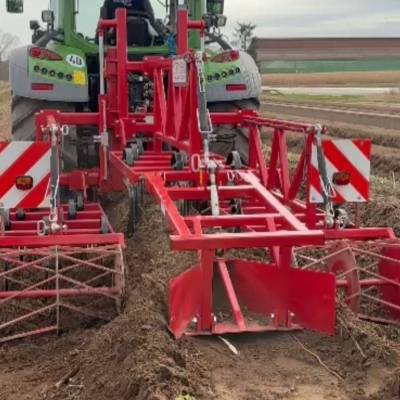

ILTIS with wedge-shaped distribution body
ILTIS with wedge-shaped distribution body

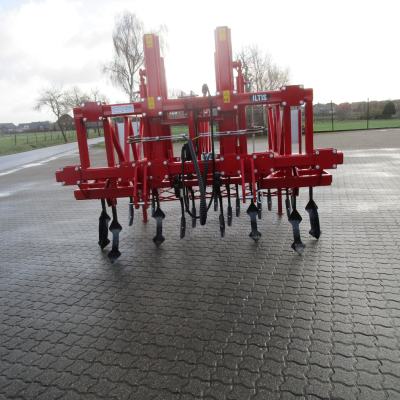

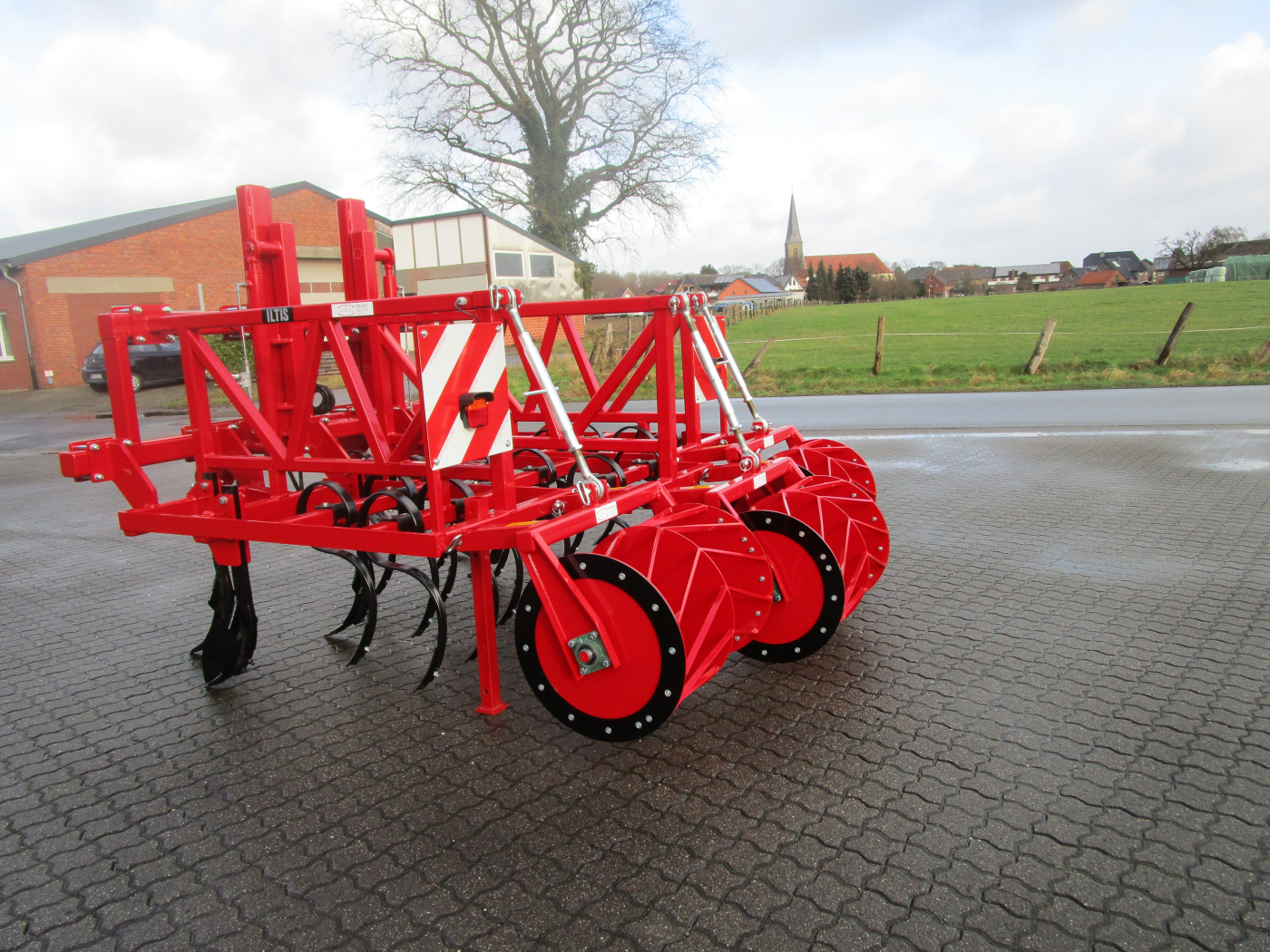

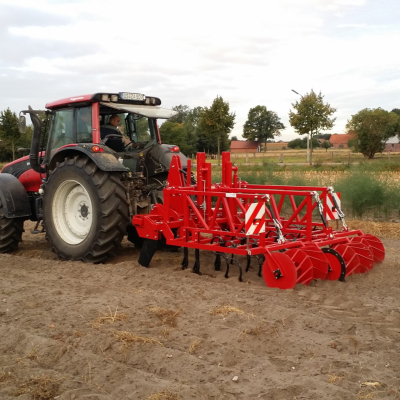

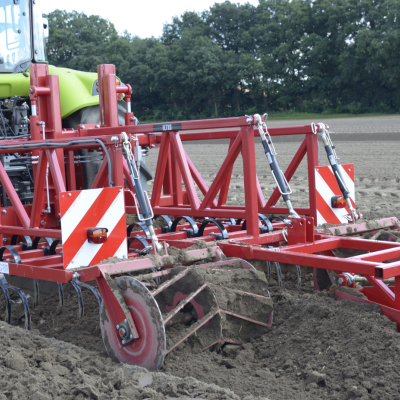

ILTIS with 3 rolls
ILTIS with 3 rolls
ILTIS with 3 rolls
ILTIS with 3 rolls

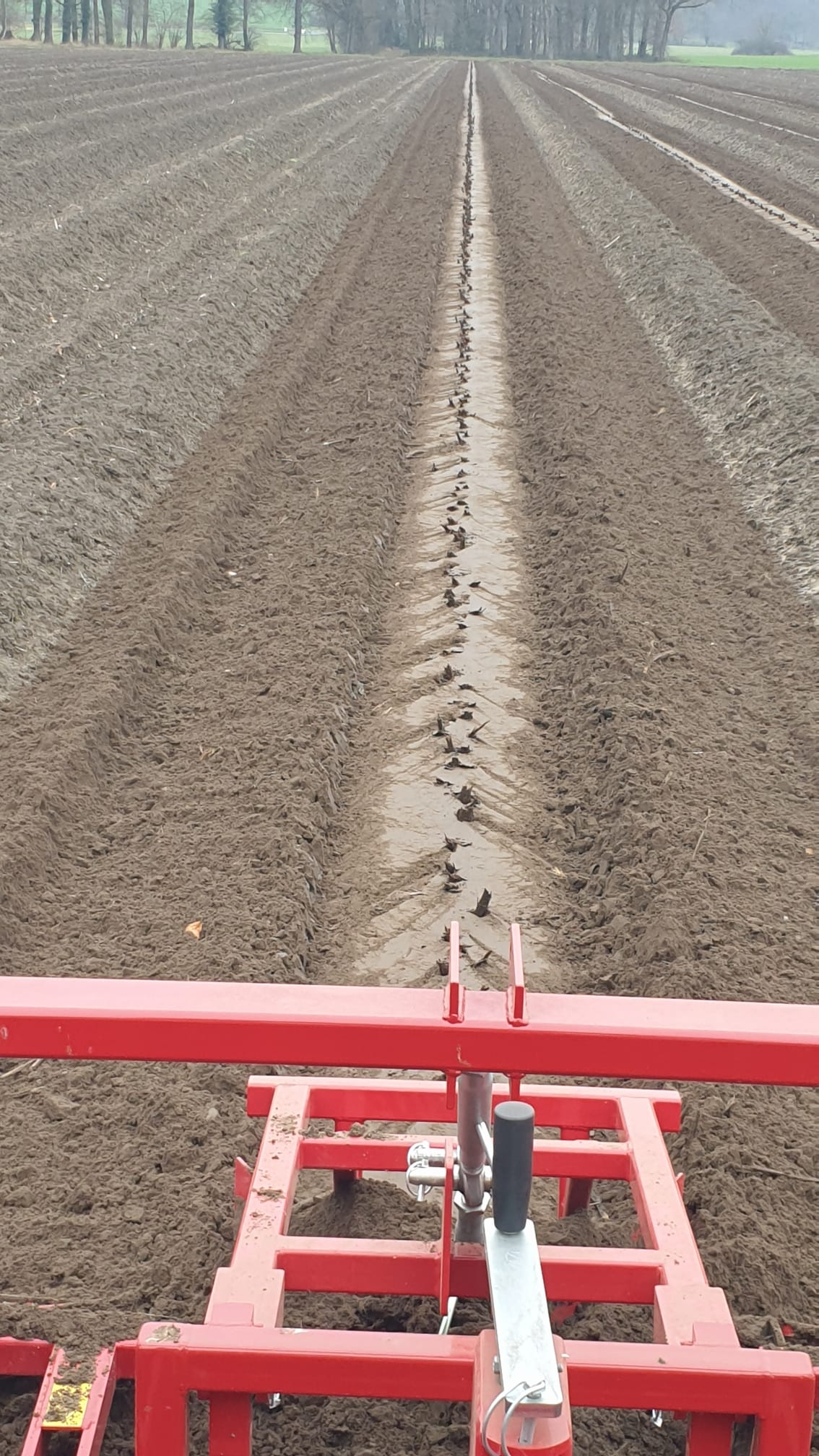

ILTIS with wedge-shaped distribution body

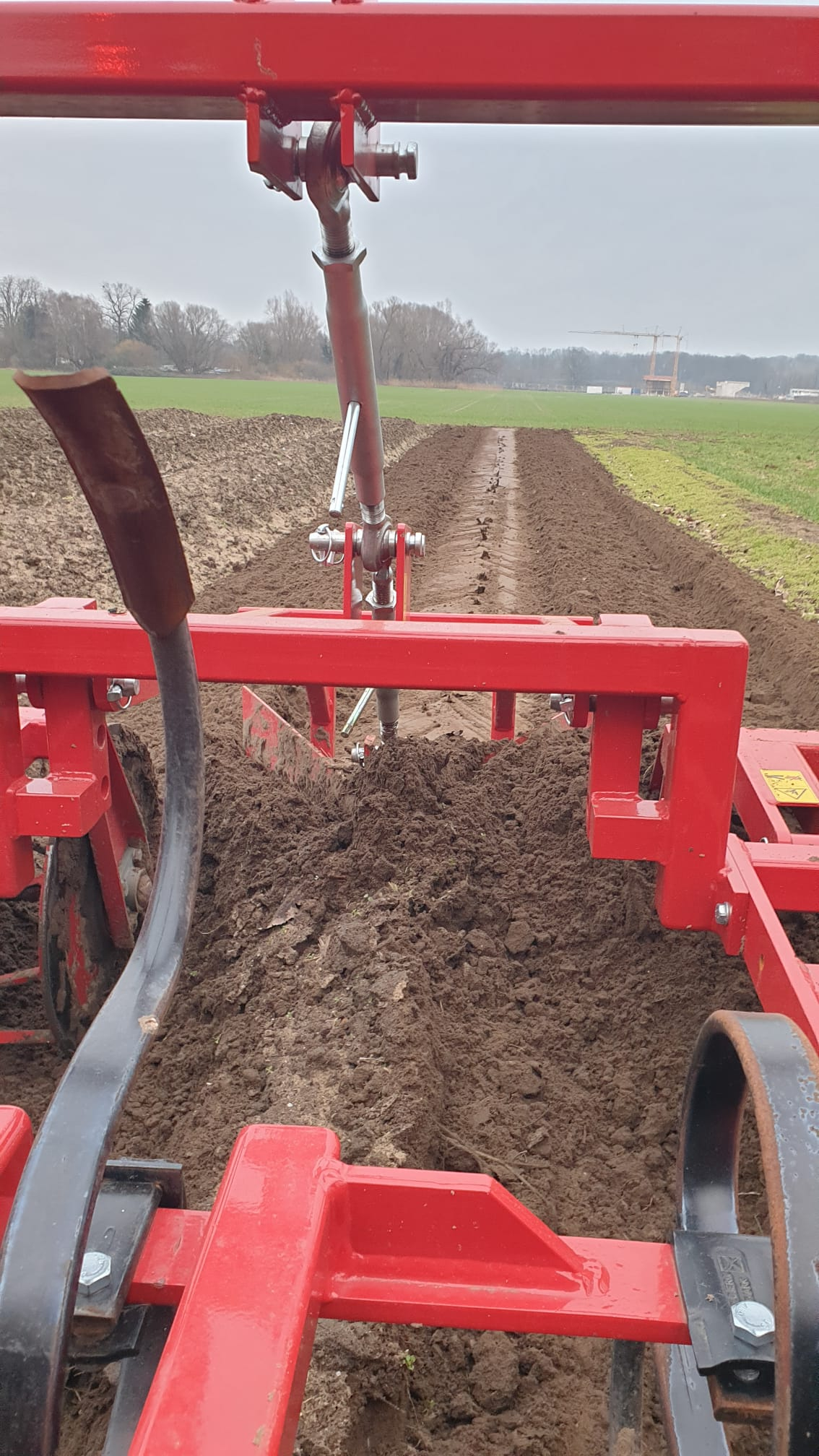

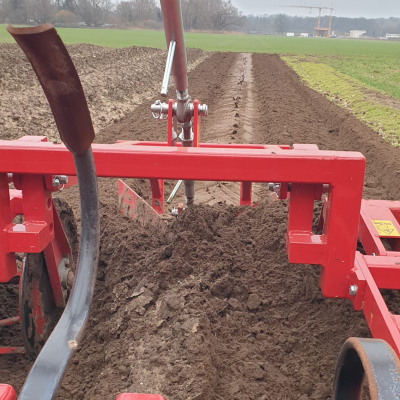

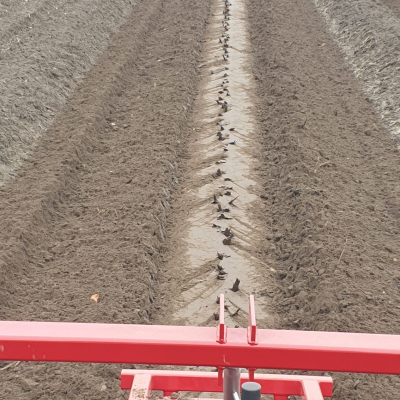

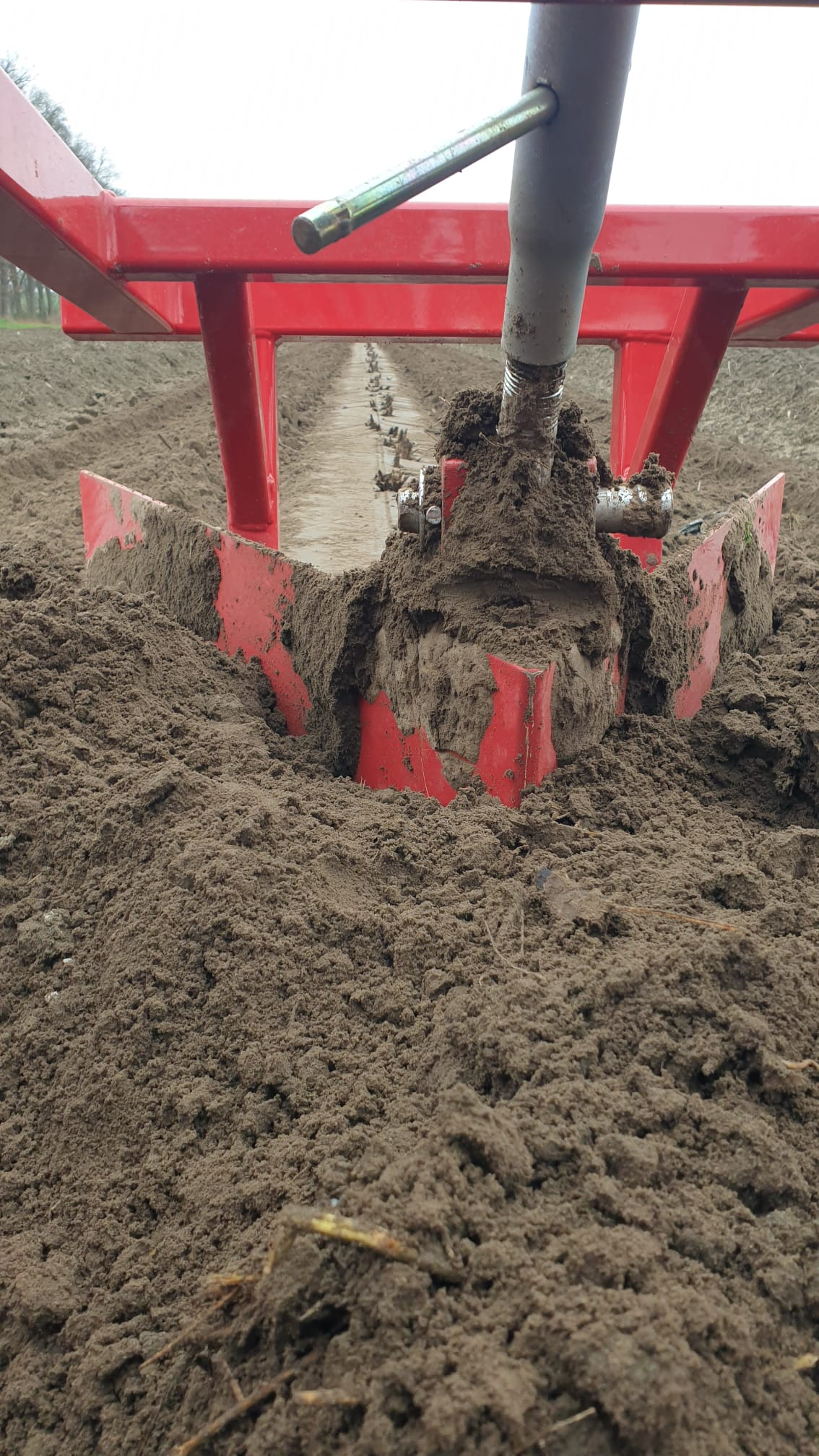

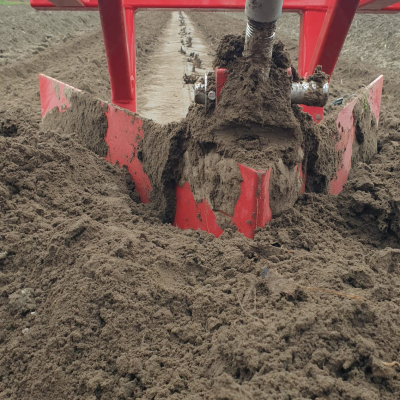

Accessory: wedge-shaped distribution body
Accessory: wedge-shaped distribution body
Accessory: wedge-shaped distribution body
-
Basic equipment
IGEL ILTIS DACHS Row distance from approx. 1600 mm 1600 mm 1800 - 2500 mm Power requirement from approx. 90 hp 90 hp 140 hp Dimensions LxWxH approx. 2885x2490x1460 mm 3100x2470x1970 mm 2940x2960x1640 mm Weight approx. 860 kg 1090 kg 1240 kg Middle chopping frame + + + Hydraulic heigth-adjustable middel frame - + - Tubebar roller 2 x 1 2 x 1 + 1 x 1 - Ring roof roller - - 2 x 2 Height and lateral adustable coulter disc 2 x 1 - 1 x 2 Cultivator tine - - 1 x 8 Tine with heart coulter 2 x 3 2 x 3 - Height adjustable cultural harrow tine 2 x 4 2 x 4 + 1 x 8 1 x 5 Height adjustable levelling tine - - 1 x 8 Height adjustable harrow tine - - 1 x 16 Soil conditions Mainly light to medium-heavy soil Mainly light to medium-heavy soil suitable for all soil types Accessories / Variations
IGEL ILTIS DACHS Wedge-shaped distribution body + + - Adapter for MAULWURF depth spade + + + Different roller types + + + Double-row-design - - + Three-row-design - + - Intermediate frame with discs - + - -
Function / Application:
- for mechanical weed control
- for dam removal and hoeing in asparagus and young plant fields
- for loosening and aerating the soil
- for creating winter dams
- suitable for predominantly light to medium soils
- 2 x Lateral chopping frame each consisting of
1 x Tube bar roller
3 x Tine with heart coulter
4 x Cultivator tine - Hydraulically height-adjustable middle chopping frame consisting of
1 x Tube bar roller
8 x Cultivator tine - 2 x Warning sign
Accessories / Variations:Row distance: from approx. 1600 mm Tractor perfomance: from approx. 90 hp Dimensions (LxWxH): approx. 3100 x 2470 x 1970 mm Weight: approx. 1090 kg - Different types of rollers depending on soil conditions
- Wedge-shaped distribution body
= for clearing the asparagus dam - Adapter for combination with MAULWURF deep spade
= increased loosening of the soil in the tramlines - Three-row cultivator ILTIS with a working width of approx. 5000 mm
= also applicable in standard arable farming - Retrofit kit for cultivator ILTIS : intermediate frame with serrated discs
= for damming up or down
⌀ Disc: approx. 510 mm; rotable, side and height adjustable
Individual modifications regarding equipment, dimensions, etc. possible on request
