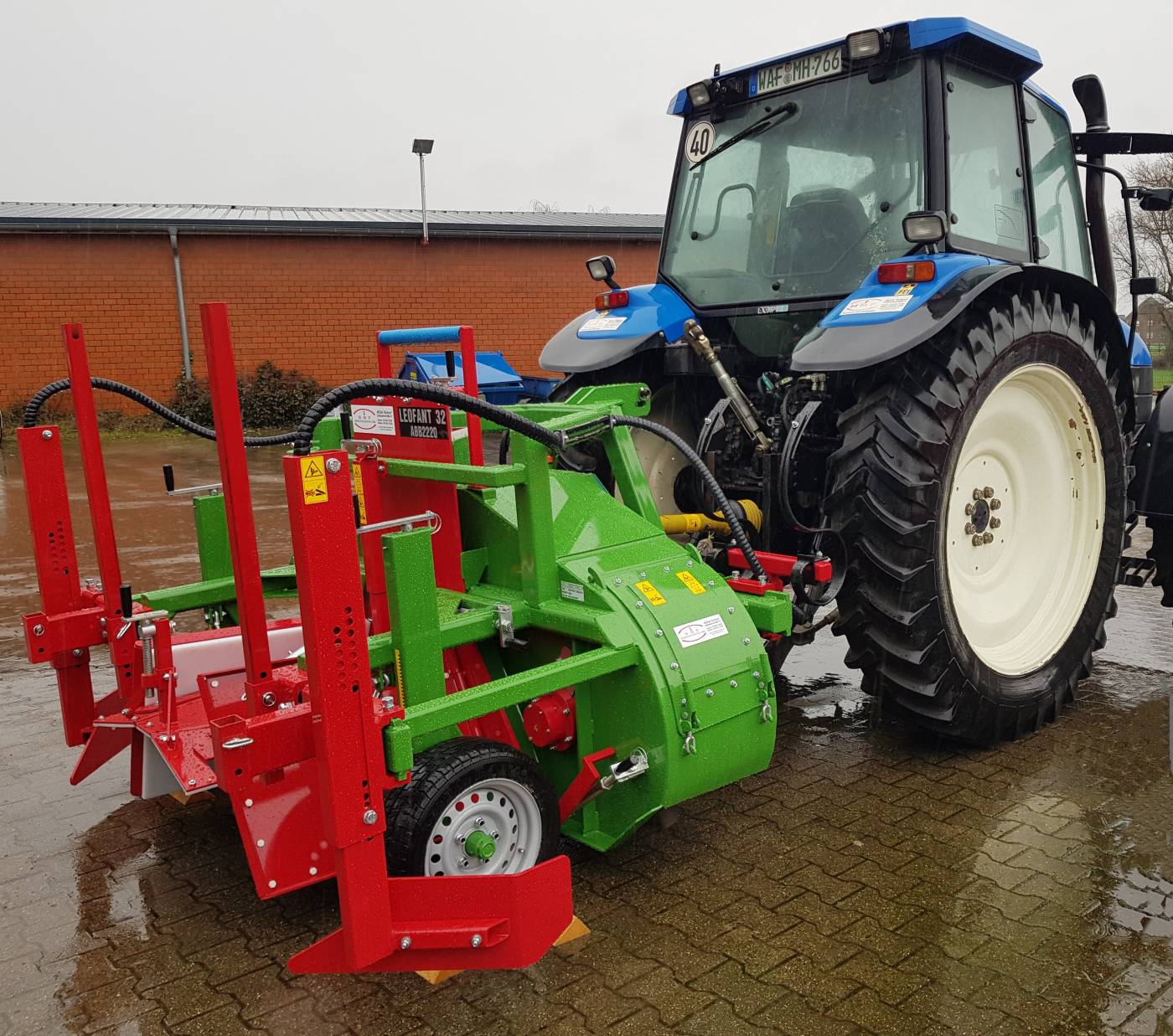

Leofant 24 ABB2221
Leofant 24 ABB2221

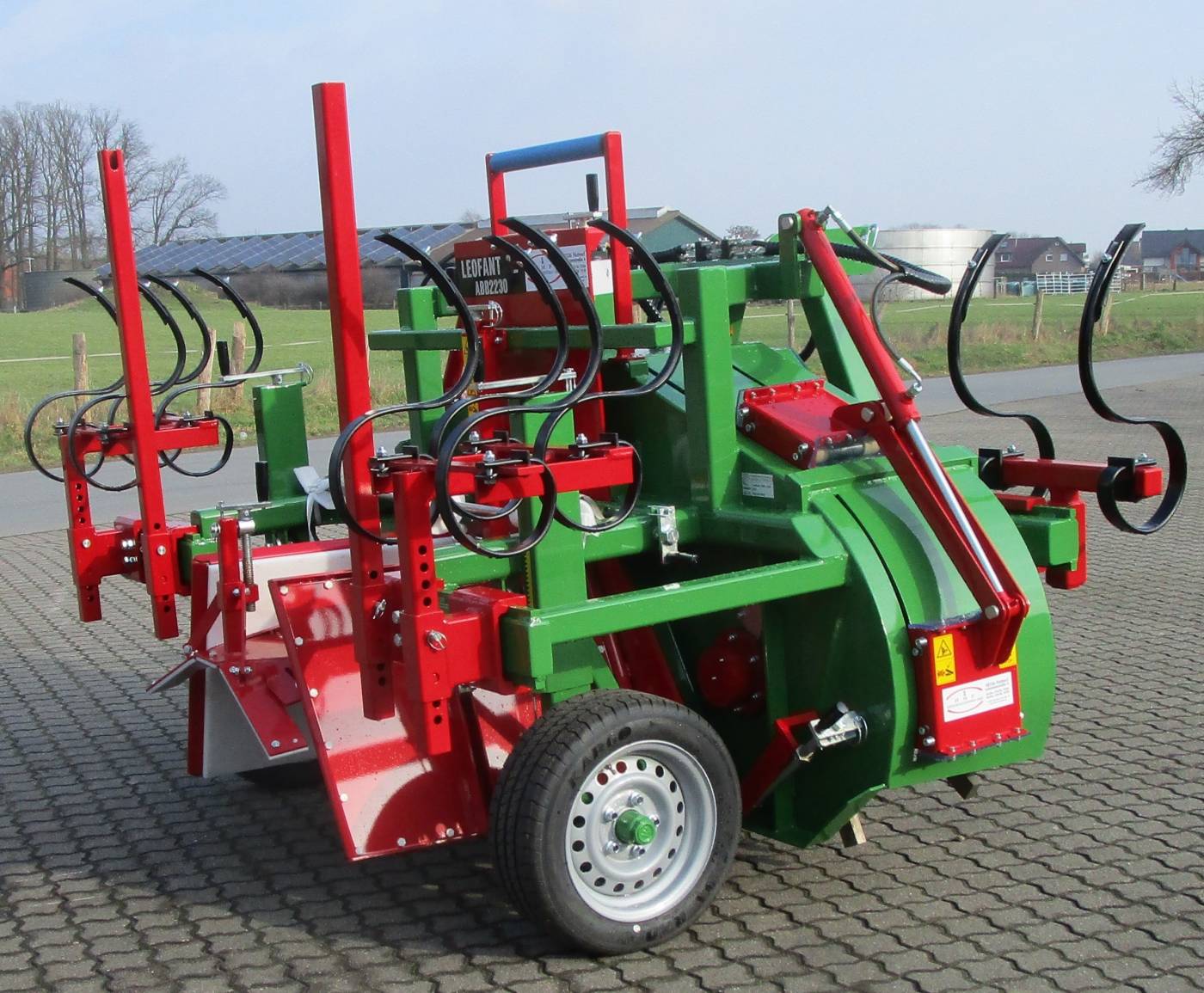

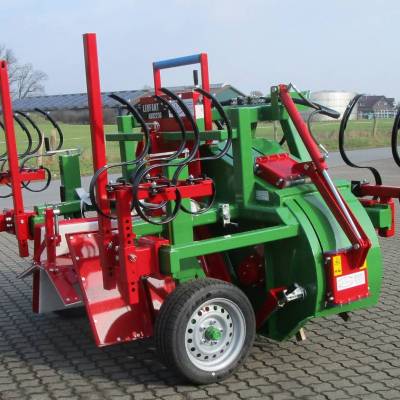

Leofant 24 ABB2230 with accessories:
unwinder for film
Leofant 24 ABB2230 with accessories:
unwinder for film

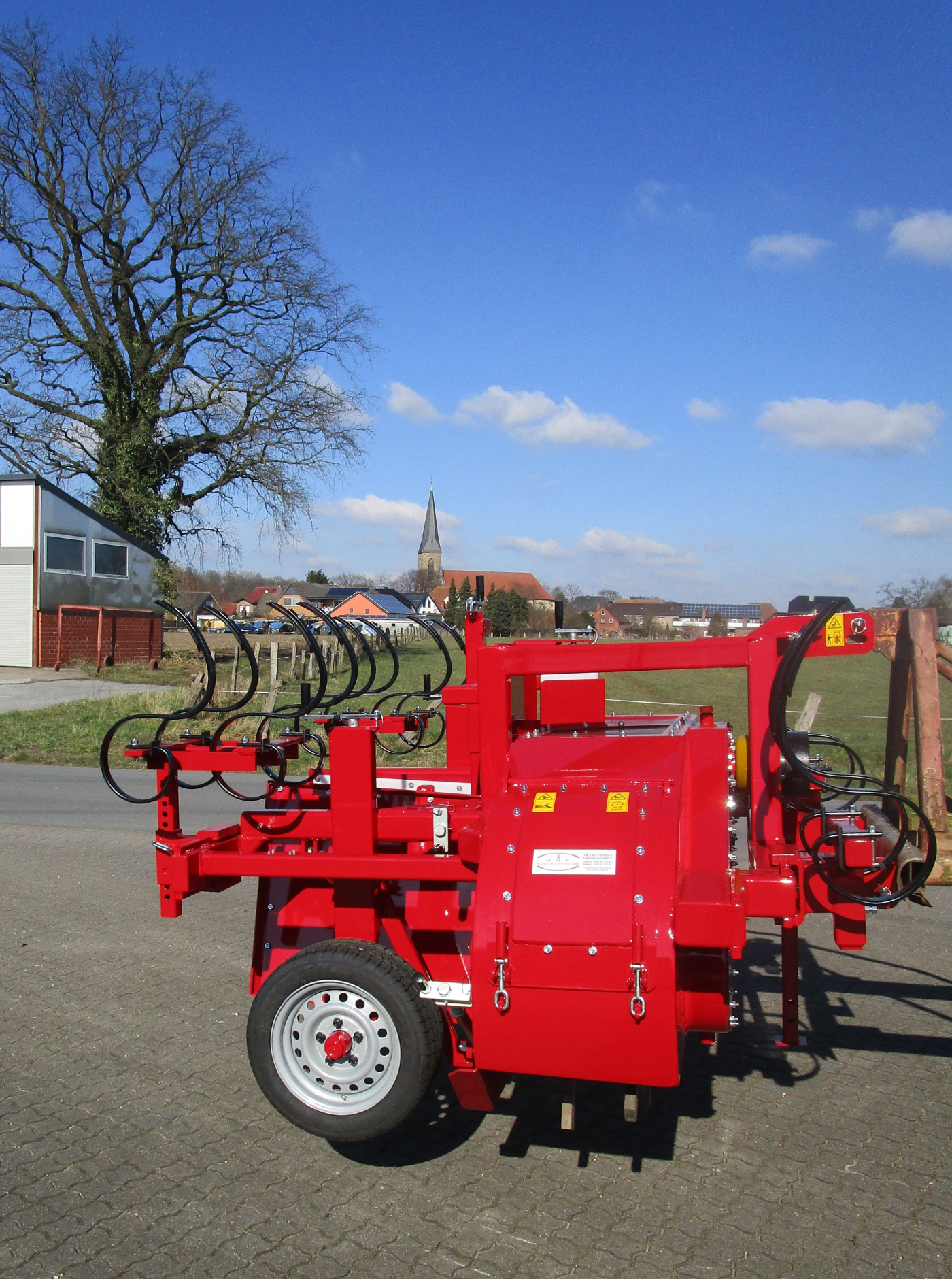

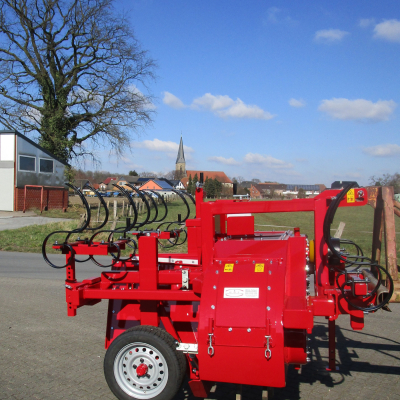

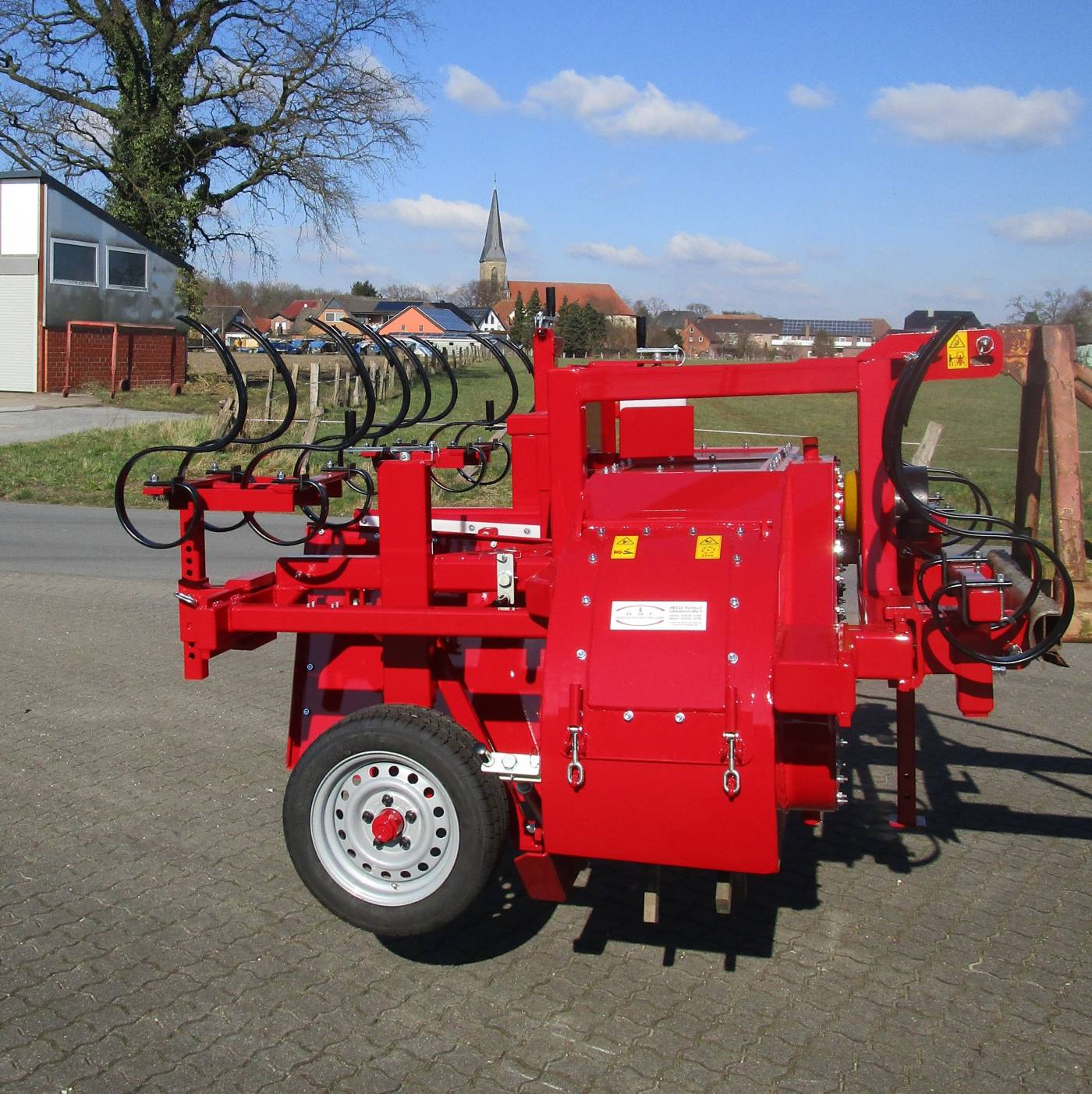

Leofant 24 ABB2471

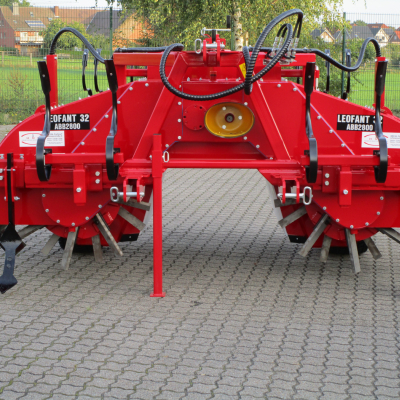

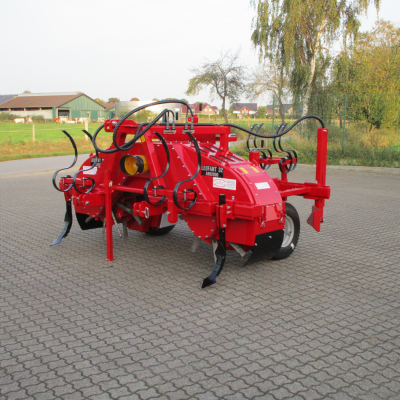

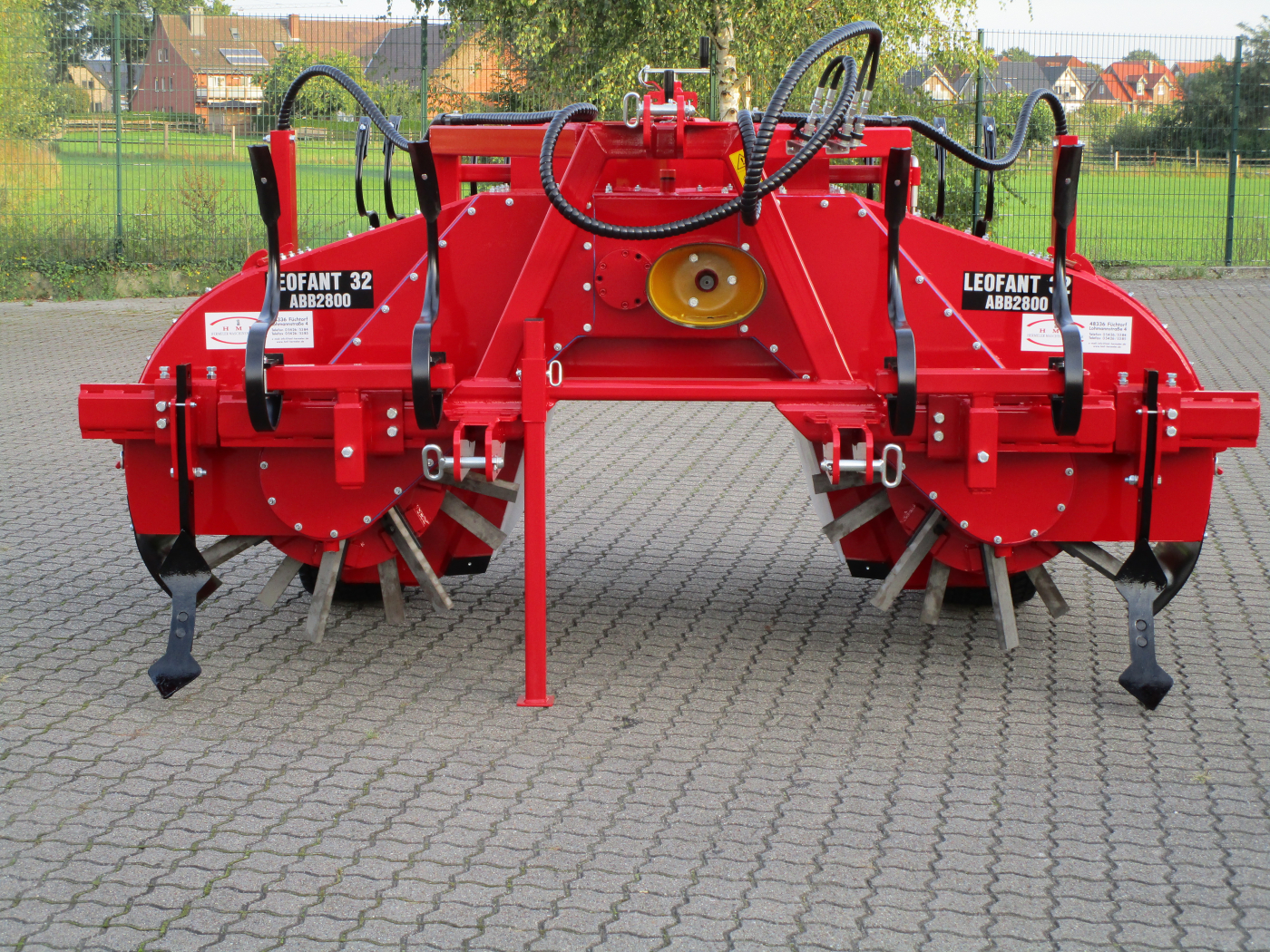

Leofant 32 ABB2800 with accessory:

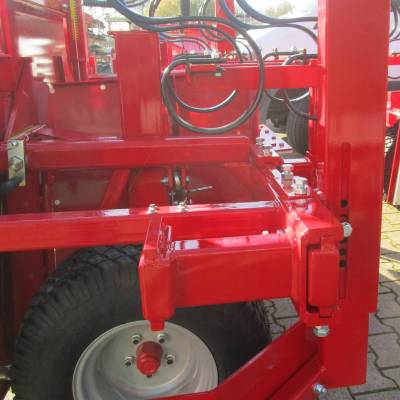

hydraulical sand scraper at the rear
Leofant 32 ABB2800 with accessory:
front right and left double heart coulter (instead of culture harrow tines)

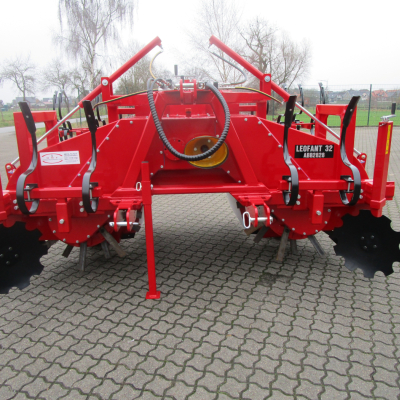

Leofant 32 ABB2828 with accessory: front right and left serrated disc
Leofant 32 ABB2828 with accessory: front right and left serrated disc

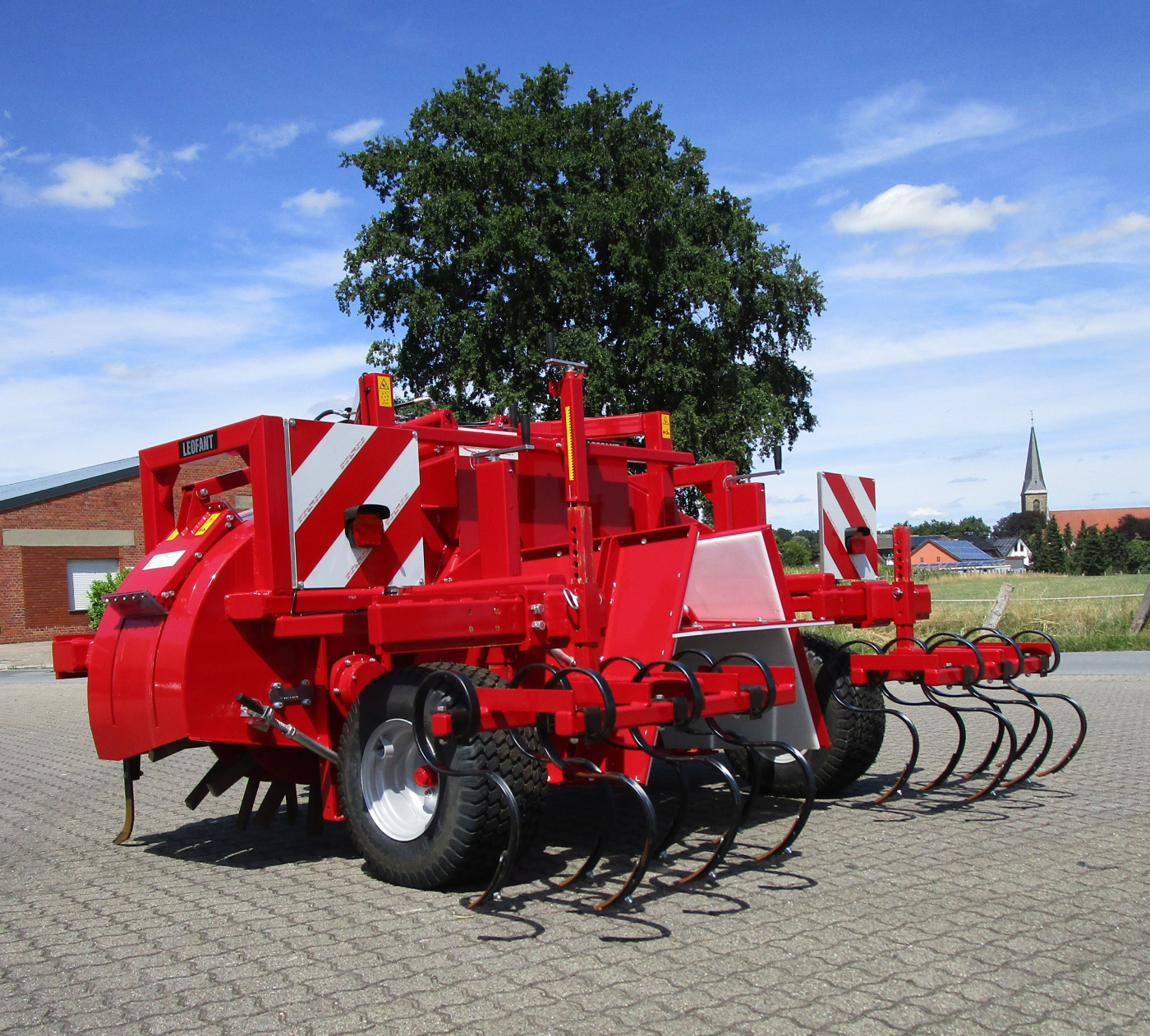

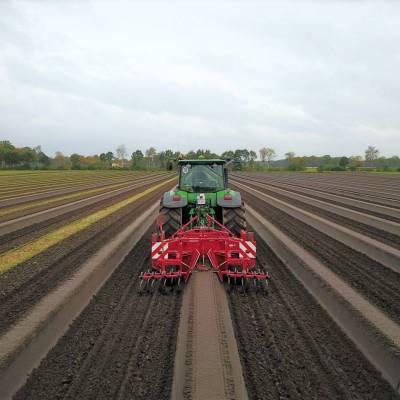

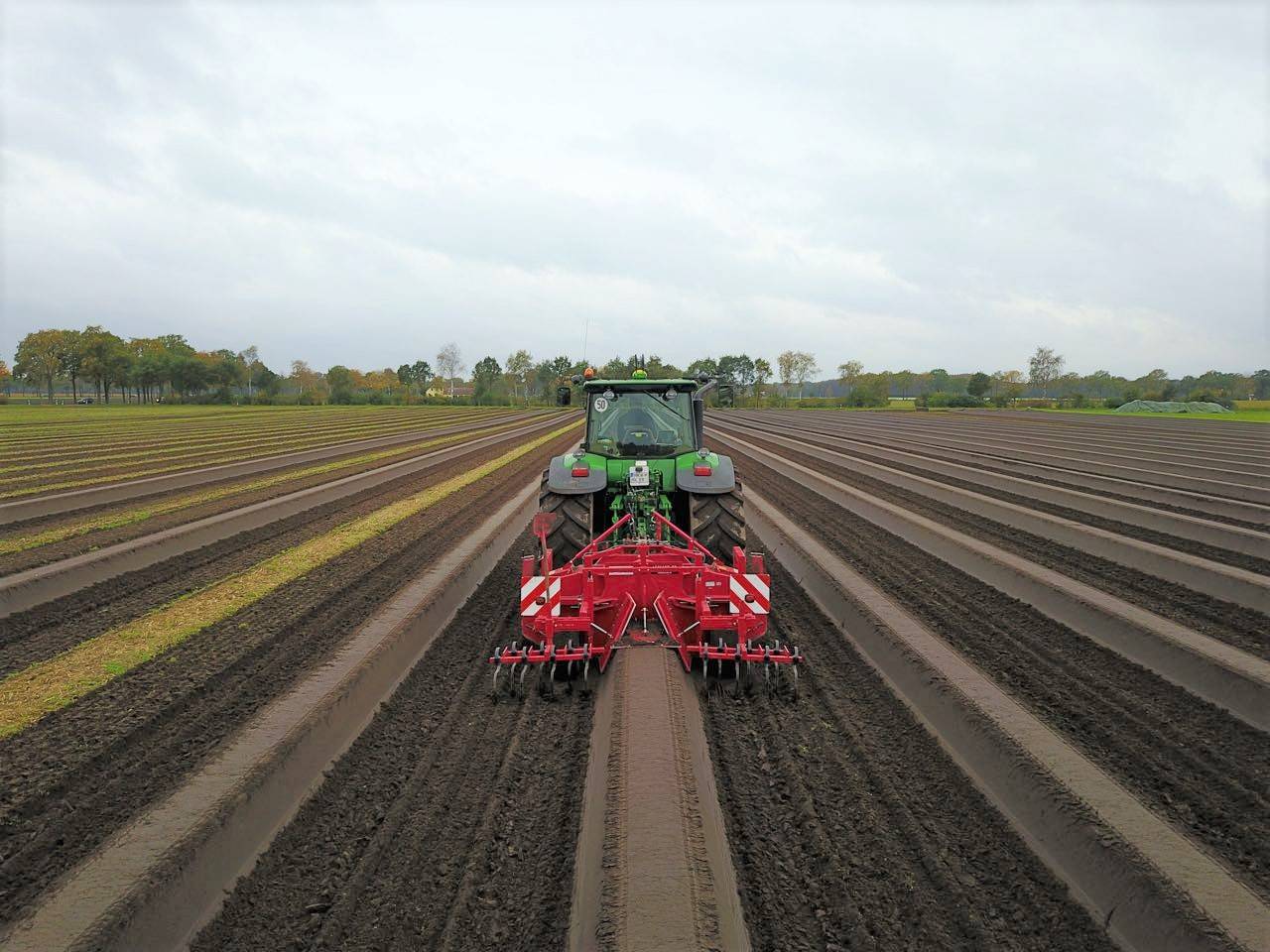

Leofant 56 ABB2828X

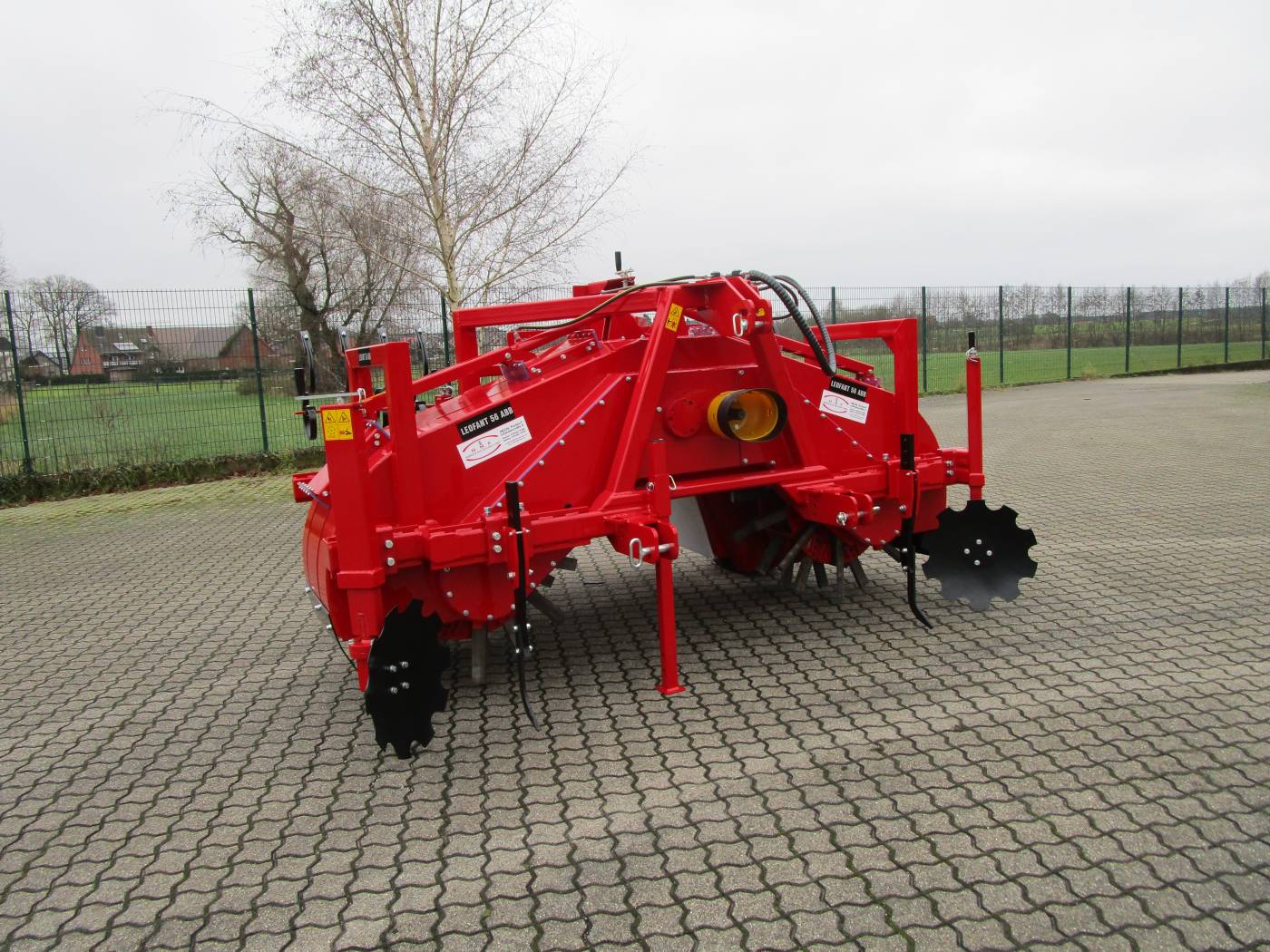

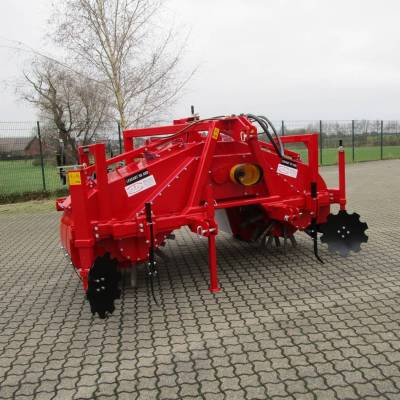

Leofant 56 ABB2929DR
Special machine for double row planting
with accessories:

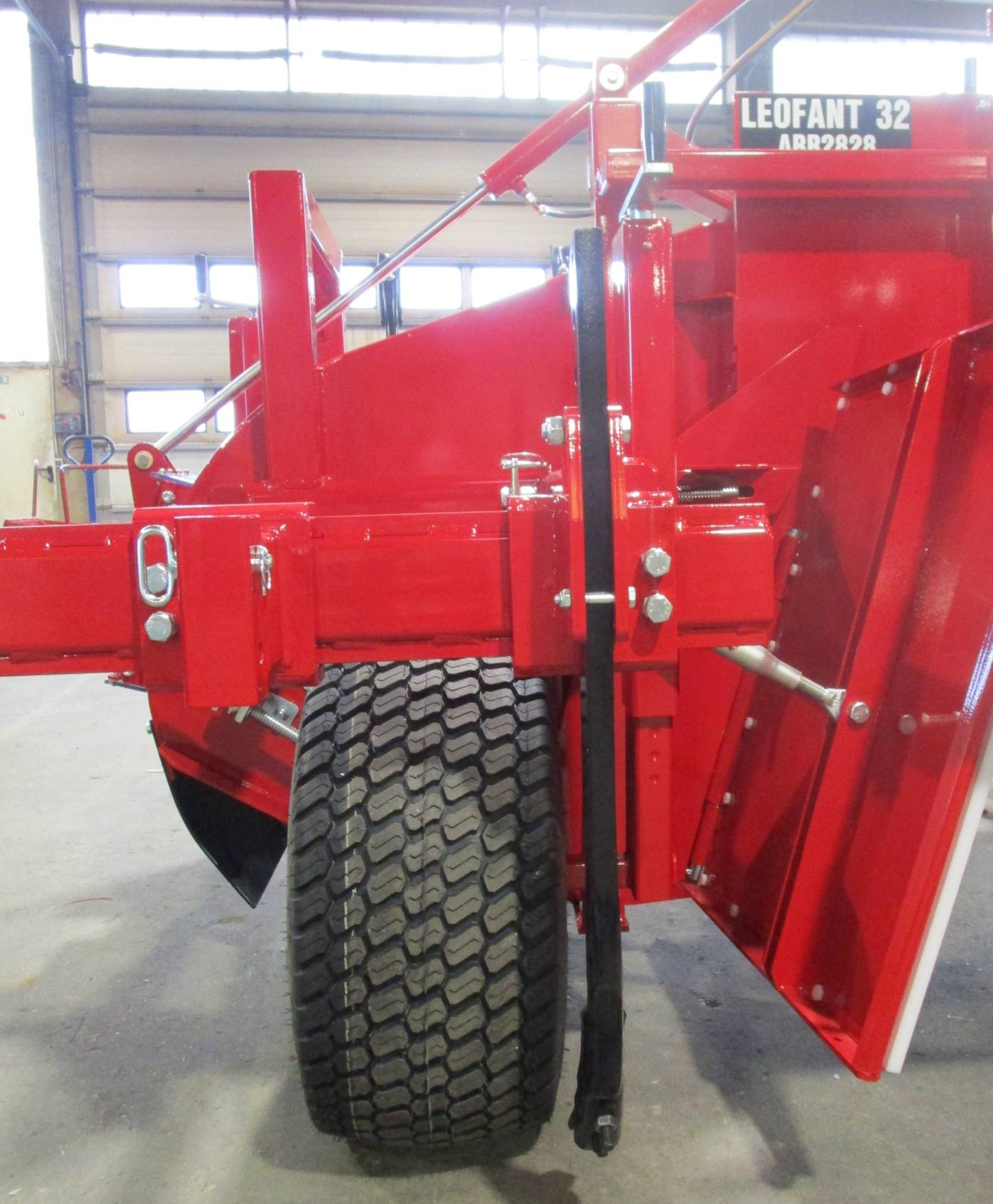

Slotted coulter
serrated discs
Leofant 56 ABB2929DR
Special machine for double row planting

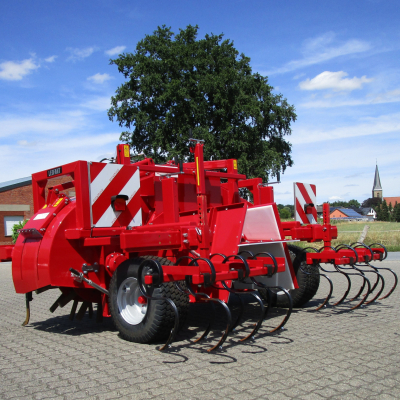

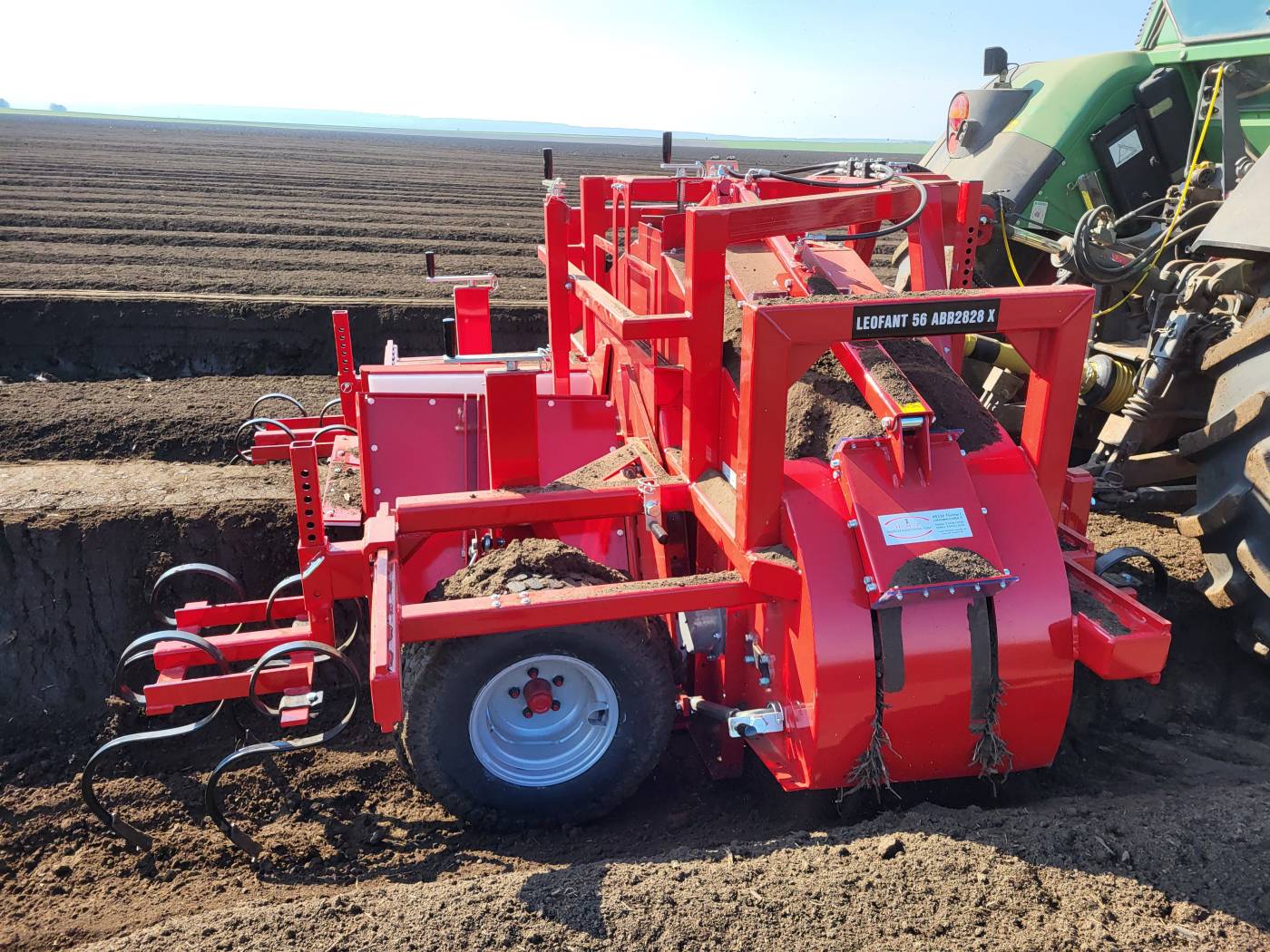

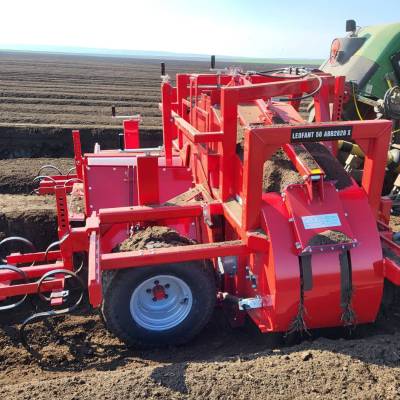

Leofant 56 ABB2828X
Leofant 32 ABB2670 + Leofant 32 ABB2730
Leofant 32 ABB2828 with accessory: plough body

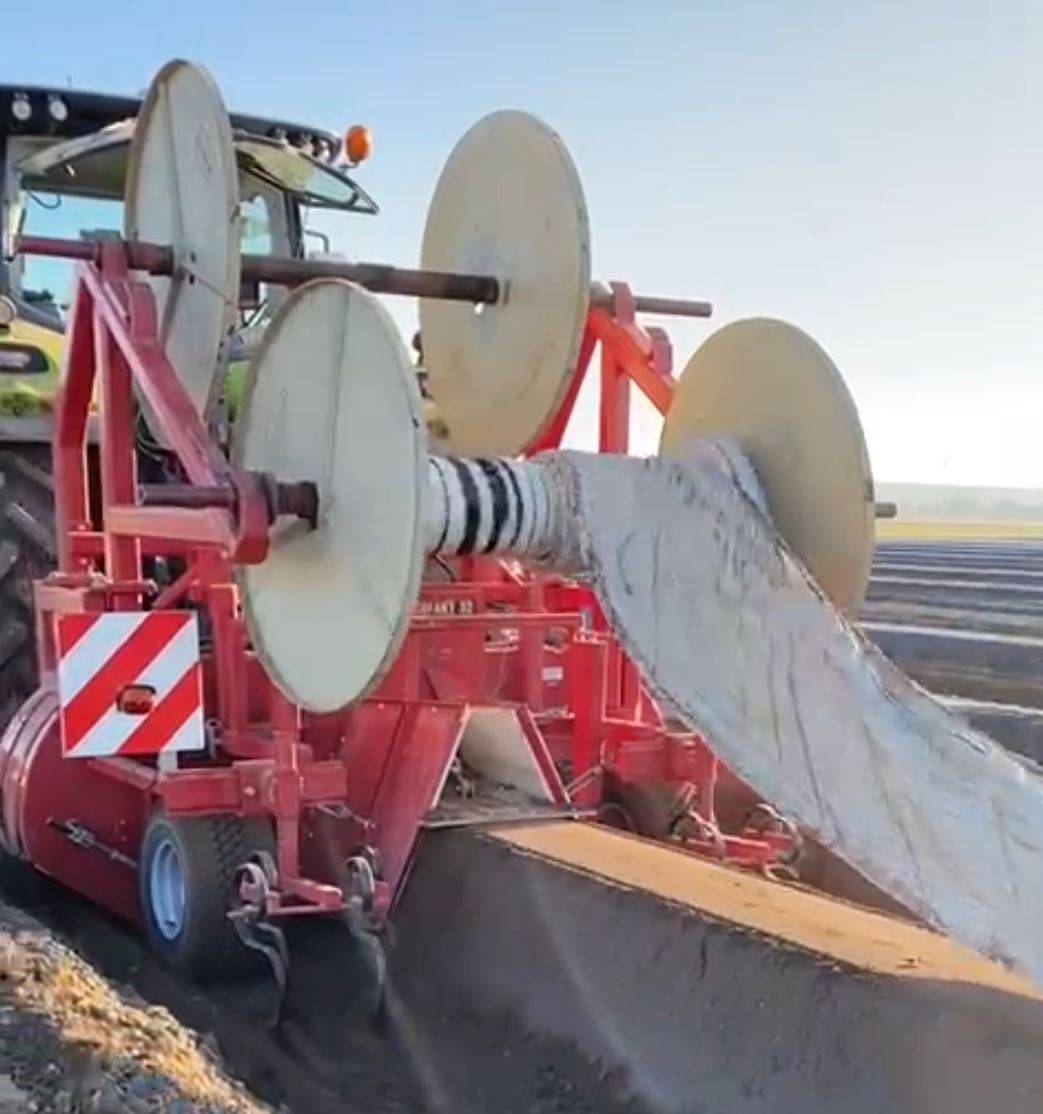

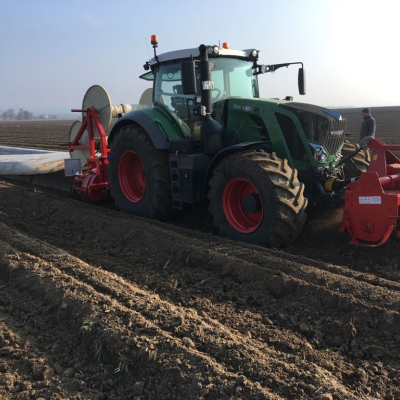

Accessory: unwinder for agricultural film
Accessory: double heart coulter
Accessory: edge coulter
Accessory: turned coulter

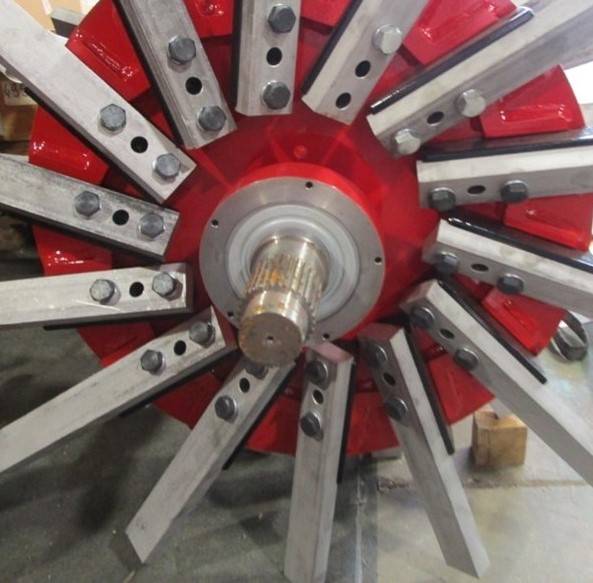

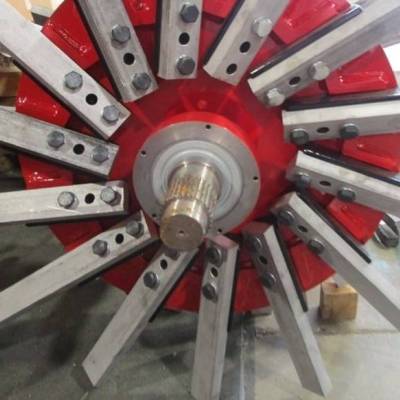

Retrofit kit: blade bloc
-
Strawberry Bed former
LEOFANT 24
ABB2221LEOFANT 24
ABB2230Row distance from approx. 1500 mm 1500 mm Power requirement from 80 hp 80 hp Blade made of carbide steel 24 24 Rotor distance approx. 1304 mm 1304 mm Ø Rotor approx. 900 mm 900 mm Ø Rotor shaft approx. 65 mm 65 mm Hydraulic cleaning slide unit - + Side enclosure flaps + - Wide base tyres - - Reinforced bearing design - - Max. dam height approx. 500 mm 500 mm Double rows planting - - Weight approx. 1350 kg 1350 kg Asparagus Bed former
LEOFANT 24
ABB2471LEOFANT 32
ABB2570LEOFANT 32
ABB2670LEOFANT 32
ABB2700LEOFANT 32
ABB2730Row distance from approx. 1600 mm 1700 mm 1800 mm 1800 mm 1800 mm Power requirement from 80 hp 100 hp 100 hp 100 hp 100 hp Blade made of carbide steel 24 32 32 32 32 Rotor distance approx. 1554 mm 1552 mm 1652 mm 1652 mm 1652 mm Ø Rotor approx. 900 mm 900 mm 1000 mm 1000 mm 1000 mm Ø Rotor shaft approx. 65 mm 65 mm 65 mm 75 mm 75 mm Hydraulic cleaning slide unit - - - - + Side enclosure flaps + + + + - Wide base tyres - - - + + Reinforced bearing design - - - + + Max. dam height approx. 650 mm 700 mm 850 mm 850 mm 850 mm Double rows planting - - - - - Weight approx. 1330 kg 1370 kg 1560 kg 1680 kg 1680 kg LEOFANT 32
ABB2800LEOFANT 32
ABB2828LEOFANT 56
ABB2700XLEOFANT 56
ABB2730XLEOFANT 56
ABB2800XRow distance from approx. 1900 mm 1900 mm 1800 mm 1800 mm 1900 mm Power requirement from 100 hp 100 hp 115 hp 115 hp 115 hp Blade made of carbide steel 32 32 56 56 56 Rotor distance approx. 1732 mm 1732 mm 1652 mm 1652 mm 1732 mm Ø Rotor approx. 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm Ø Rotor shaft approx. 75 mm 75 mm 75 mm 75 mm 75 mm Hydraulic cleaning slide unit - + - + - Side enclosure flaps + - + - + Wide base tyres + + + + + Reinforced bearing design + + + + + Max. dam height approx. 900 mm 900 mm 850 mm 850 mm 900 mm Double rows planting + + - - + Weight approx. 1800 kg 1800 kg 1.830 kg 1.830 kg 2.000 kg LEOFANT 56
ABB2828XLEOFANT 56
ABB2929DRRow distance from approx. 1900 mm 1900 mm Power requirement from 15 hp 115 hp Blade made of carbide steel 32 56 Rotor distance approx. 1732 mm 1874 mm Ø Rotor approx. 1000 mm 1000 mm Ø Rotor shaft approx. 75 mm 75 mm Hydraulic cleaning slide unit + + Side enclosure flaps - - Wide base tyres + + Reinforced bearing design +* +* Max. dam height approx. 900 mm 700 mm Max dam width at top approx. 640 mm Max. dam width at bottom approx. 1235 mm Double rows planting + specially developed Weight approx. 2200 kg 2200 kg Total width approx. 2980 mm *massively reinforced bearing design
-
Function / Application:
Asparagus Bed former LEOFANT
Machine for creating trapezoidal dams especially for asparagus cultivationStrawberry Bed former LEOFANT
Basic equipment:
Machine for creating trapezoidal or rounded dams especially for strawberry cultivation- Blade made of carbide steel
- Blade block for inclination of the front blades
= less wear
= less power requirement - PTO shaft
- Gear transmission
- Non-stick mat
= less soil sticking (self-cleaning effect) - 2 x Rear chopping frame with 4 cultivation tines
including sliding piece for positioning
= adaptation to tramlines - 2 x T-piece at the front with 2 cultivation tines
including sliding piece for positioning
= for clearing out e.g. small stones - Dam former adjustable in 3 dimensions
Centimetre scale for easy adjustment
= easier adjustment - Dam former equipped with plastic sheets
= less soil sticking - Wedge equipped with plastic sheets for better soil distribution
= less soil sticking
= less power requirement
= higher driving speed - Wedge and upper dam former synchronously adjustable
- 2 x Height-adjustable support wheel for depth control
Centimetre scale for easy adjustment
= easier adjustment
- Hydraulic cleaning slide unit including plug holders for the hydraulic hoses
= interior cleaning
= soil is continuously transported out of the interior during the work process.
= no build-up of earth on the enclosure walls - Service flaps on both sides of the models with cleaning sliders
= improved accessibility of the sliders for cleaning/repair - Enclosure flap on both sides with quick release lock of the models without sliders
= easier access to the interior for e.g. cleaning, repair. etc. - Wide base tyres
- Reinforced bearing design
- Disc in the front*
= generates additional earth for dam construction- smooth
- serrated
= self-propelled by the prongs
= better entry into the soil
- Coulters in varios designs*

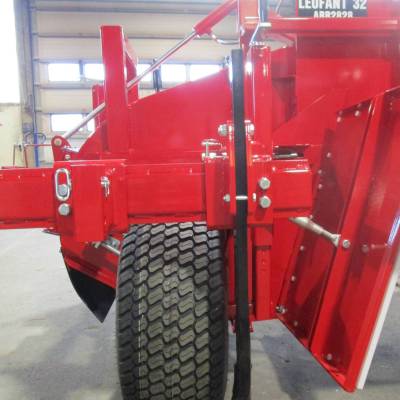

- Slotted coulter
= in the front area for ripping up, in particular, heavier soils
= in the rear area for drainage of the soil - Coulter tip
- Double-hearted coulter
= for ripping up von leichten bis mittelschweren Böden - Edge coulter
= generates additional earth for dam construction - Goose foot coulter
- Slotted coulter
- Plough body
= generates additional earth for dam construction
= facilitates the construction of high and wide dams
= particularly suitable for larger row spacings from approx. 2000 mm and heavier soils
= better guidance of the bed former - Additional rear chopping frame with 4 culture harrow tines*

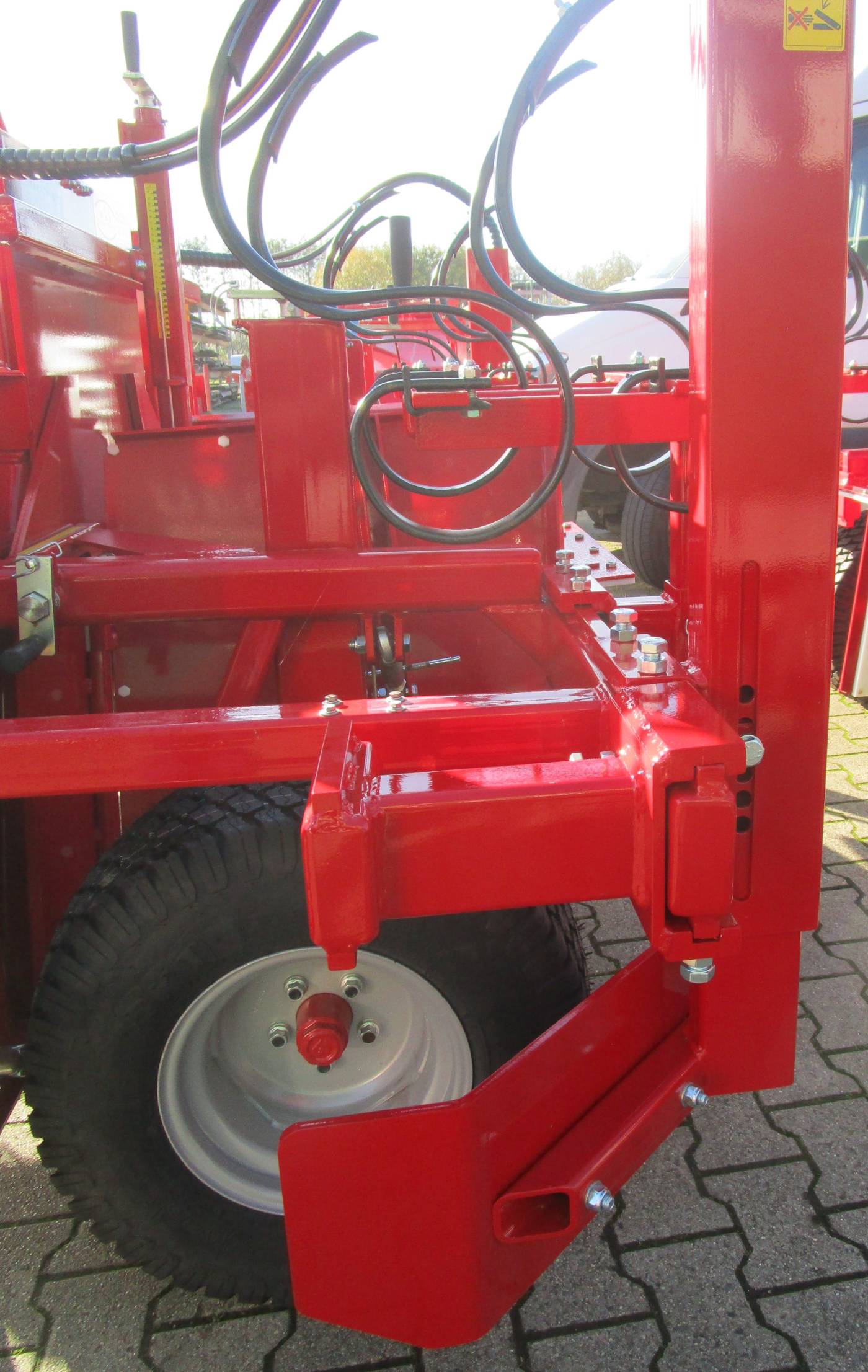

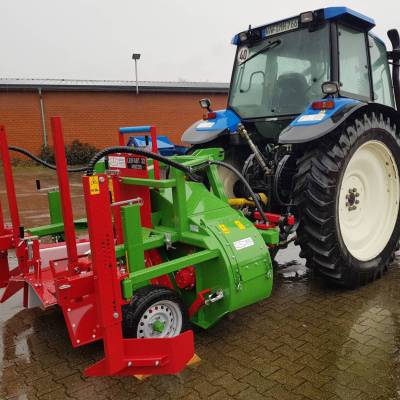

- Hydraulic or manual sand scraper*
= for smoothing the lower edge of the dam
= improved utilisation of the tramline - Dam smoother extension for deeper adjustment of the guide plate
- Blade bloc for inclination of the front blades as retrofit kit
- Stone protection plate for larger stones in the soil
= prevents the stones from being ejected upwards out of the - Interior of the housing

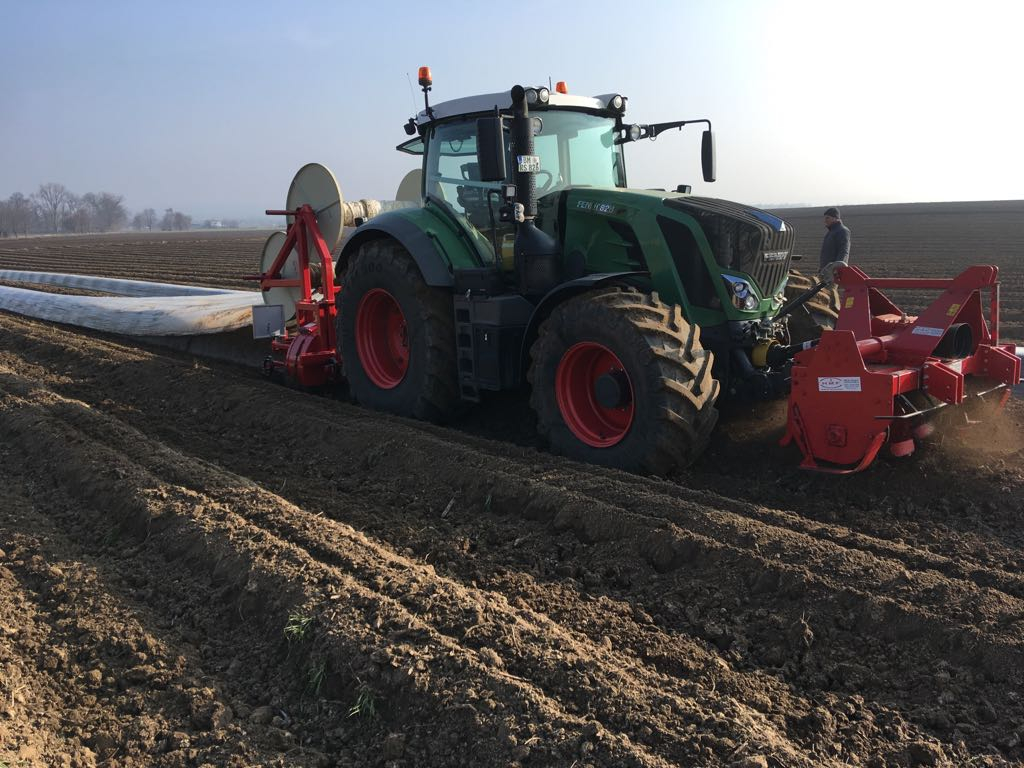

- Support for foil rolls
for laying all common types of foil

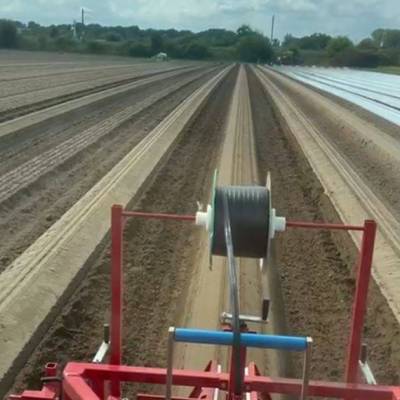

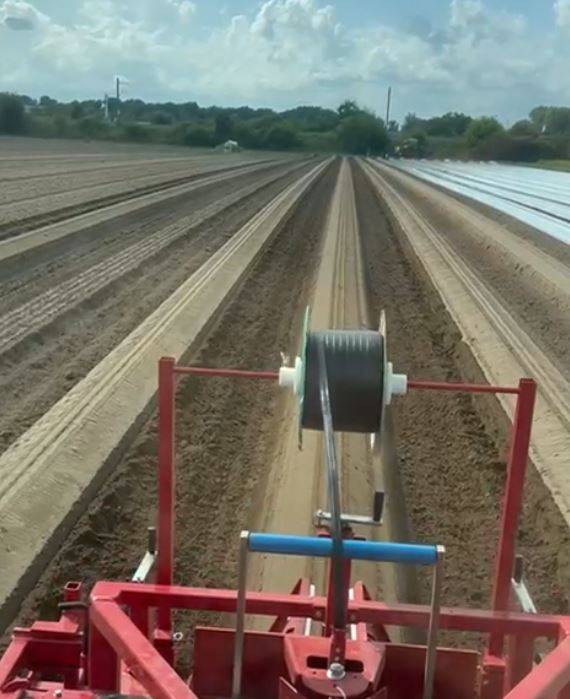

= dam construction and foil laying in one operation - Device for laying a drip hose
* including handle and sliding piece for positioning
Special features / Advantages:The front cultivation tines are always fitted as standard in all models. However, these can be replaced with the following accessories at no extra charge at the customer's request (see also Accessories/Variations):
- 1 pair of slotted coulters
- 1 pair of coulter tips
- 1 pair of double-hearted coulters
- 1 pair of edge coulters
- 1 pair of goose foot coulters
All other accessories not listed here can only be replaced with a corresponding surcharge.
In principle, all accessories can be fitted.to all models, in addition to the front cultivation tines.Individual modifications with regard to equipment, dimensions, etc. are possible on request.
