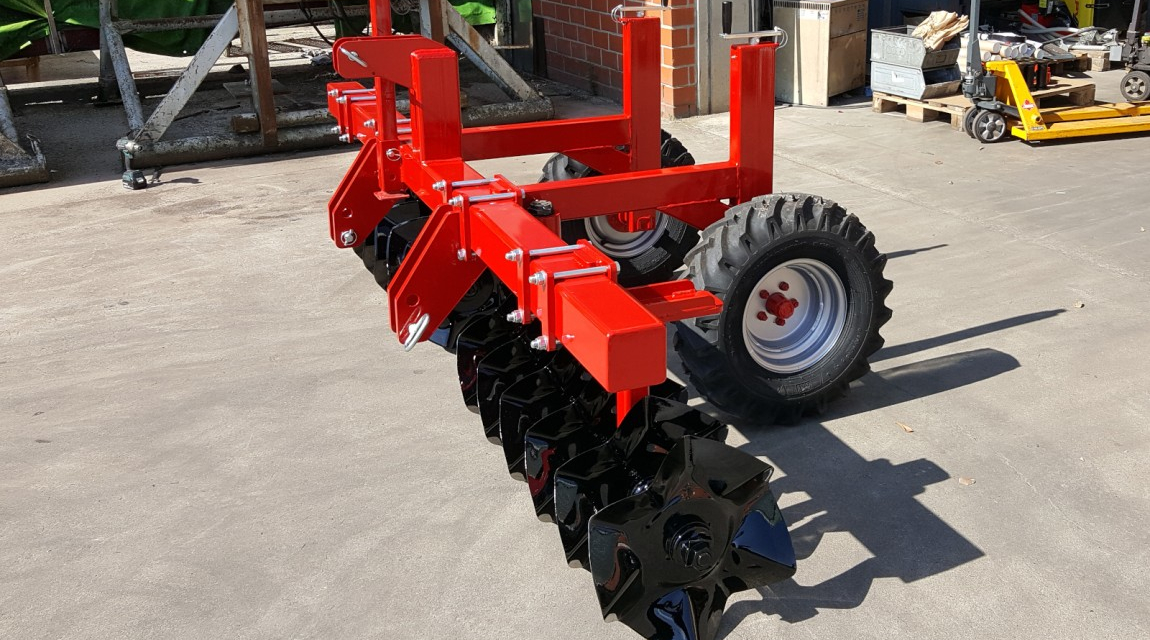

Function / Application:
- Cutting up plant residues and wild weeds in the tramlane
- Soil loosening in the tramline
- Particularly suitable for light soil
- Hitching frame for mounting on standard front-mounted tractors
- 1 x Support foot
- 2 x Support wheel
- 2 x 6 Crosscutter disc:
- Ø approx. 440 mm
= the tractor runs more smoothly due to the greater ground pressure of the disc shapes
= greater stability - Individual bearing
= flexible adaptation to the height of the existing floor - Cuts off wild weed roots the soil
= more difficult regrowth of wild weeds
- Ø approx. 440 mm
- Non-adjustable working width
Individual modifications regarding equipment, dimensions, etc. on request.
-
Disc harrows
Front disc harrow Tukan 110 Tukan 150 Milan Marder 1,8 Marder 2,0 Tractor Standard tractor Narrow-track tractor Narrow-track tractor Narrow-track tractor Standard tractor Standard tractor Tractor attachment Front attachment Rear attachment Rear attachment Rear attachment Rear attachment Rear attachment Cutting wild herbs + + + + - - Incorporating wild weeds - - - - + + Soil loosening in the tramline + + + + + + Soil conditions Lighter soils Lighter soils Lighter soils Also heavier soils Also heavier soils Also heavier soils Disc type Crosscutter disc Crosscutter disc Crosscutter disc Crosscutter disc Serrated hollow disc Serrated hollow disc Disc quantity 2 x 6 2 x 4 2 x 5 10 4 x 5 4 x 6 Ø Disc approx. 440 mm 440 mm 440 mm 440 mm 510 mm 510 mm Individual disc bearing + - - + - - Roller type - Tube bar roller Tube bar roller Ring roof roller Tube bar roller Tube bar roller Number of rollers - 1 1 1 2 2 Roller width approx. - 1000 mm 1000 mm 1300 mm 1000 mm 1150 mm Height-adjustable support wheel 2 - - 2 - - Deep cultivator handle with chisel coulter - - - 5 - - Levelling disc - - - 4 - - Harrow tine - - - 10 - - Warning sign - - - - 2 2 Hydraulically adjustable working width - + + - + + Working width
Row distance
approx.
approx.
1900 mm
1100 - 1300 mm
1300 - 1500 mm
1300 mm
1000 - 1300 mm per frame
1800 mm
1150 - 1500 mm per frame
2000 mm
Dimensions LxWxH approx. 1500 x 2950 x
1100 mm
2370 x 985 x
1060 mm
2370 x 985 x
1060 mm
4940 x 1430 x
1250 mm
2500 x 2900 x
1400 mm
2500 x 3000 x
1400 mm
Weight approx. 538 kg 580 kg 612 kg 1300 kg 665 kg 690 kg
