Disc harrow
Front disc harrow Tukan 110 Tukan 150 Milan Marder 1,8 Marder 2,0 Tractor Standard tractor Narrow-track tractor Narrow-track tractor Narrow-track tractor Standard tractor Standard tractor Tractor attachment Front attachment Rear attachment Rear attachment Rear attachment Rear attachment Rear attachment Cutting wild herbs + + + + - - Incorporating wild weeds - - - - + + Soil loosening in the tramline + + + + + + Soil conditions Lighter soils Lighter soils Lighter soils Also heavier soils Also heavier soils Also heavier soils Disc type Crosscutter disc Smooth concave disc Smooth concave disc Crosscutter disc Serrated concave disc Serrated concave disc Disc quantity 2 x 6 2 x 4 2 x 5 10 4 x 5 4 x 6 Ø Disc approx. 440 mm 510 mm 510 mm 440 mm 510 mm 510 mm Individual disc bearing + - - + - - Roller type Tube bar roller Tube bar roller Tube bar roller Ring roof roller Tube bar roller Tube bar roller Number of rollers - 1 1 1 2 2 Roller width approx. - 1000 mm 1000 mm 1300 mm 1000 mm 1150 mm Height-adjustable support wheel 2 - - 2 - - Deep cultivator handle with chisel coulter - - - 5 - - Levelling disc - - - 4 - - Harrow tine - - - 10 - - Warning sign - - - - 2 2 Hydraulically adjustable working width - + + - + + Working width
Row distance
approx.
approx.
1900 mm
1100 - 1300 mm
1300 - 1500 mm
1300 mm
1000 - 1300 mm per frame
1800 mm
1150 - 1500 per frame
2000 mm
Dimensions
L x W x H
approx.
1500 x 2950 x
1100 mm
2370 x 985 x
1060 mm
2370 x 985 x
1060 mm
4940 x 1430 x
1250 mm
2500 x 2900 x
1400 mm
2500 x 3000 x
1400 mm
Weight approx. 538 kg 580 kg 612 kg 1300 kg 665 kg 690 kg -

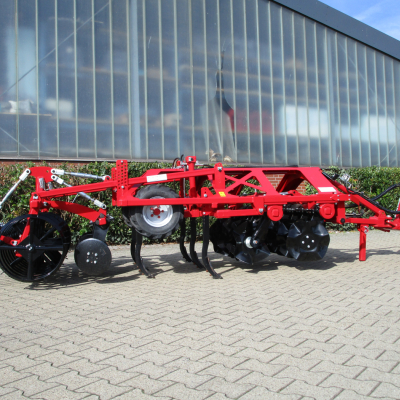

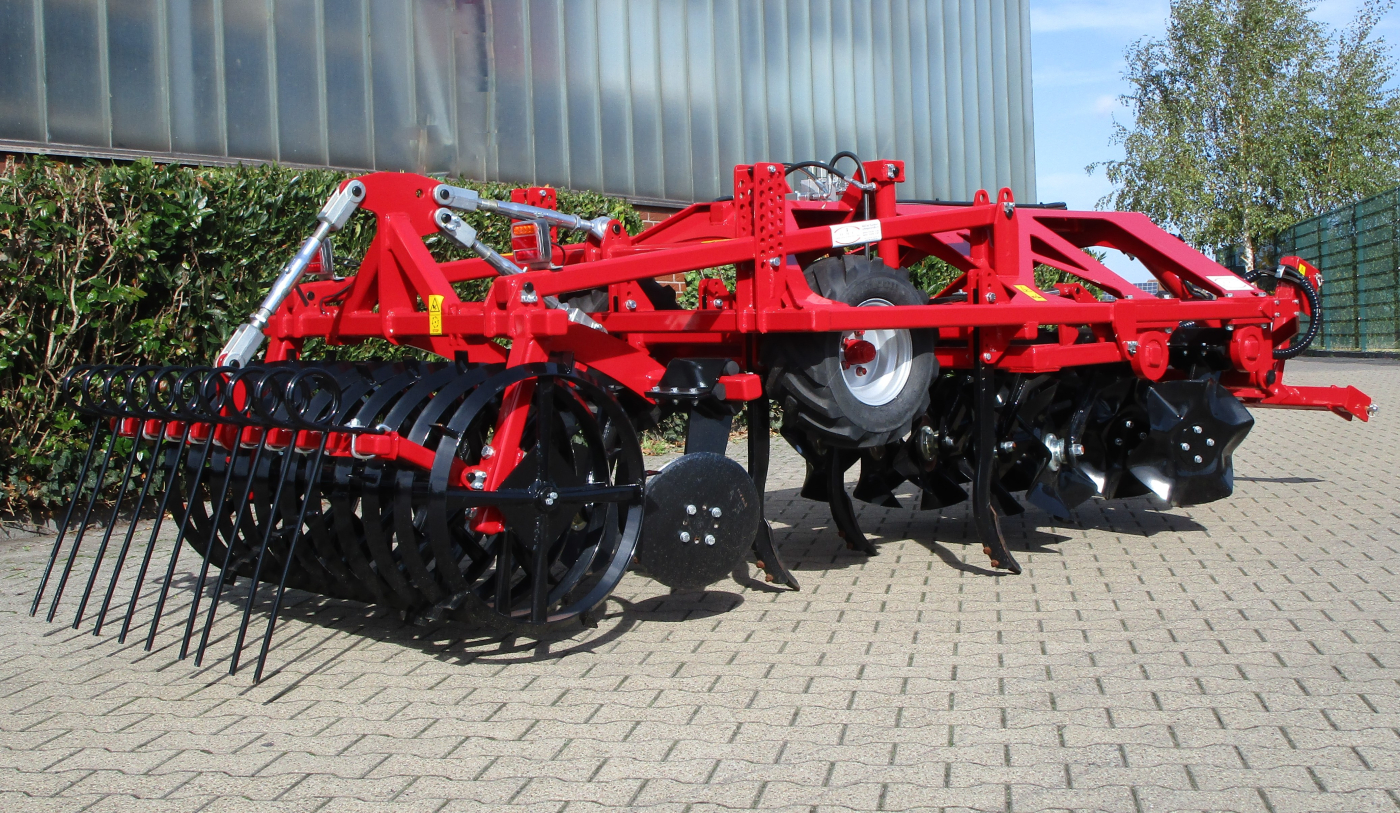

Function / Application:
- Cutting up plant residues and wild weeds
- Soil loosening in the tramline
- Also suitable for heavier soil
- 1 x Three-point hitch for mounting on narrow-track tractors
- 1 x Hydraulically operated ""lift axle"" with 2 support wheels
for stable turning of the machine + road transport
The entire combination is raised hydraulically. To do this, the lift axle is lowered and the top cylinder also extends. - 10 x Crosscutter disc
- Ø approx. 440 mm
= Tractor runs more smoothly due to more ground contact of the disc shape
= greater stability - With individual bearing
= flexible adaptation to the height of the existing floor - Cuts off wild weed roots in the soil
= more difficult regrowth of wild weeds
- Ø approx. 440 mm
- 5 x Deep cultivator handle with chisel coulter
- For tearing up the tramline
= Oxygen supply to the soil - ideal preparation for intercropping - Pushes the machine down
= tractor runs more smoothly
= greater stability
- For tearing up the tramline
- 4 x Leveling disc
Ø approx. 350 mm
with individual bearing
for leveling and smoothing the torn-up tramline - 1 x Roof ring roller
Roller width: approx. 1300 mm
for leveling and smoothing the torn-up tramline - 10 x Harrow tine
for leveling and smoothing the torn-up tramline
- Different roller types

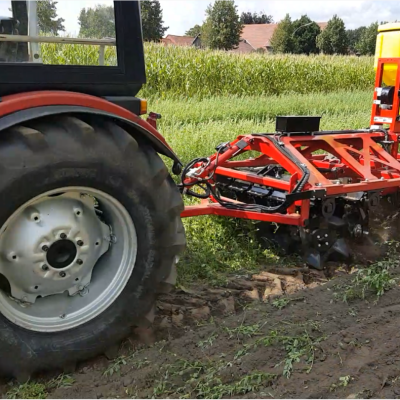

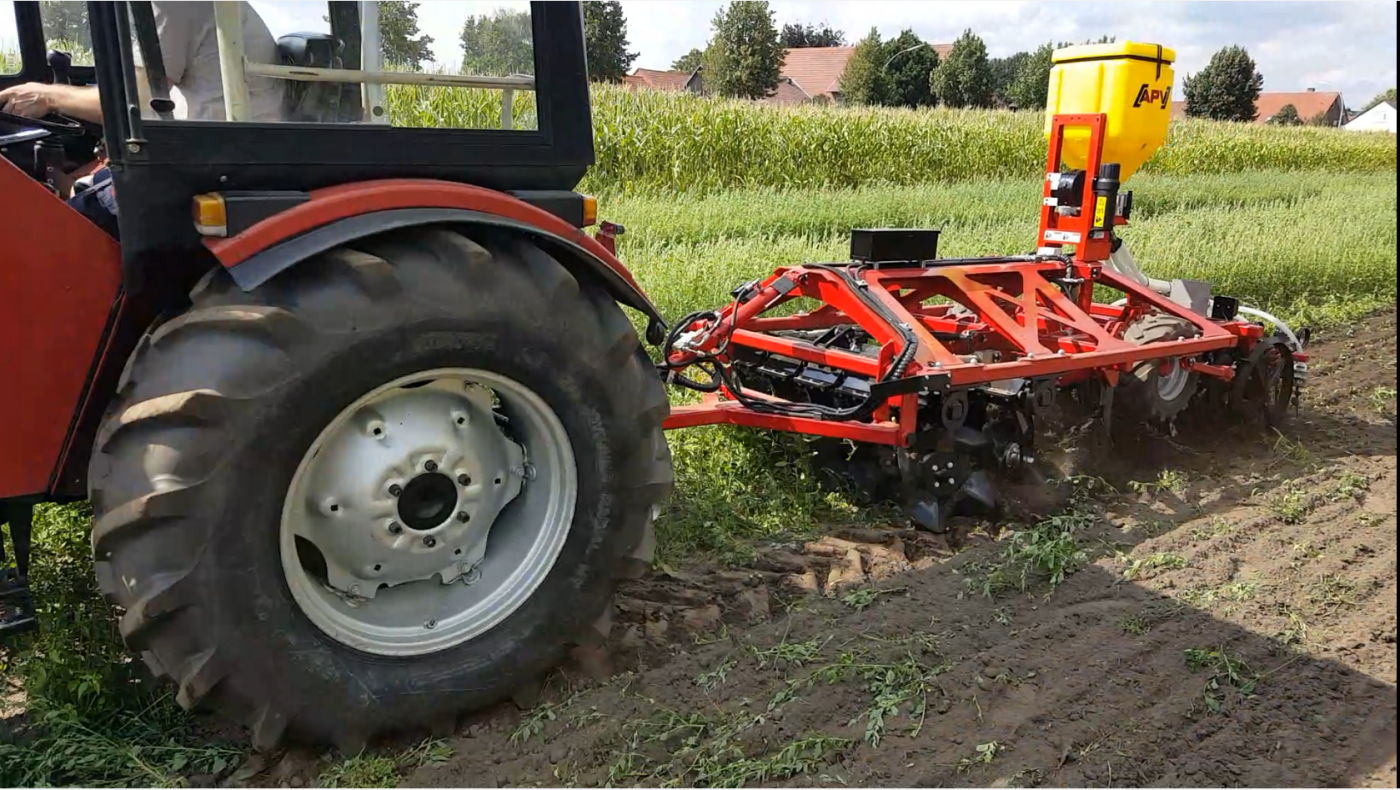

(according to soil condition) - Seed drill for intercroping
= more moisture in the soil
= fewer wild weeds
= nitrogen enrichment in the soil due to under-working of the intercropping
Individual modifications regarding equipment, dimensions, etc. on request.
