Function / Application:

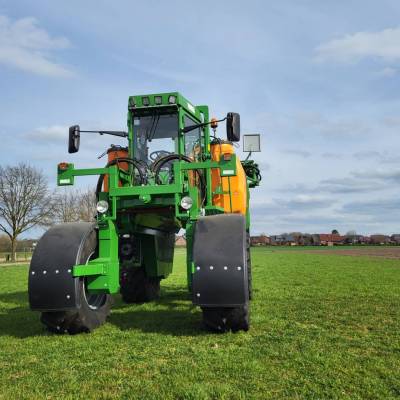

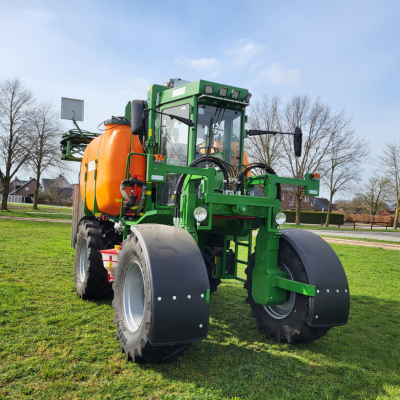

- for chemical weed control in the asparagus fields
- Perkins engine
- Engine control according to EUR VI standard
- Rear hydraulics
- Danfoss brand all-wheel drive

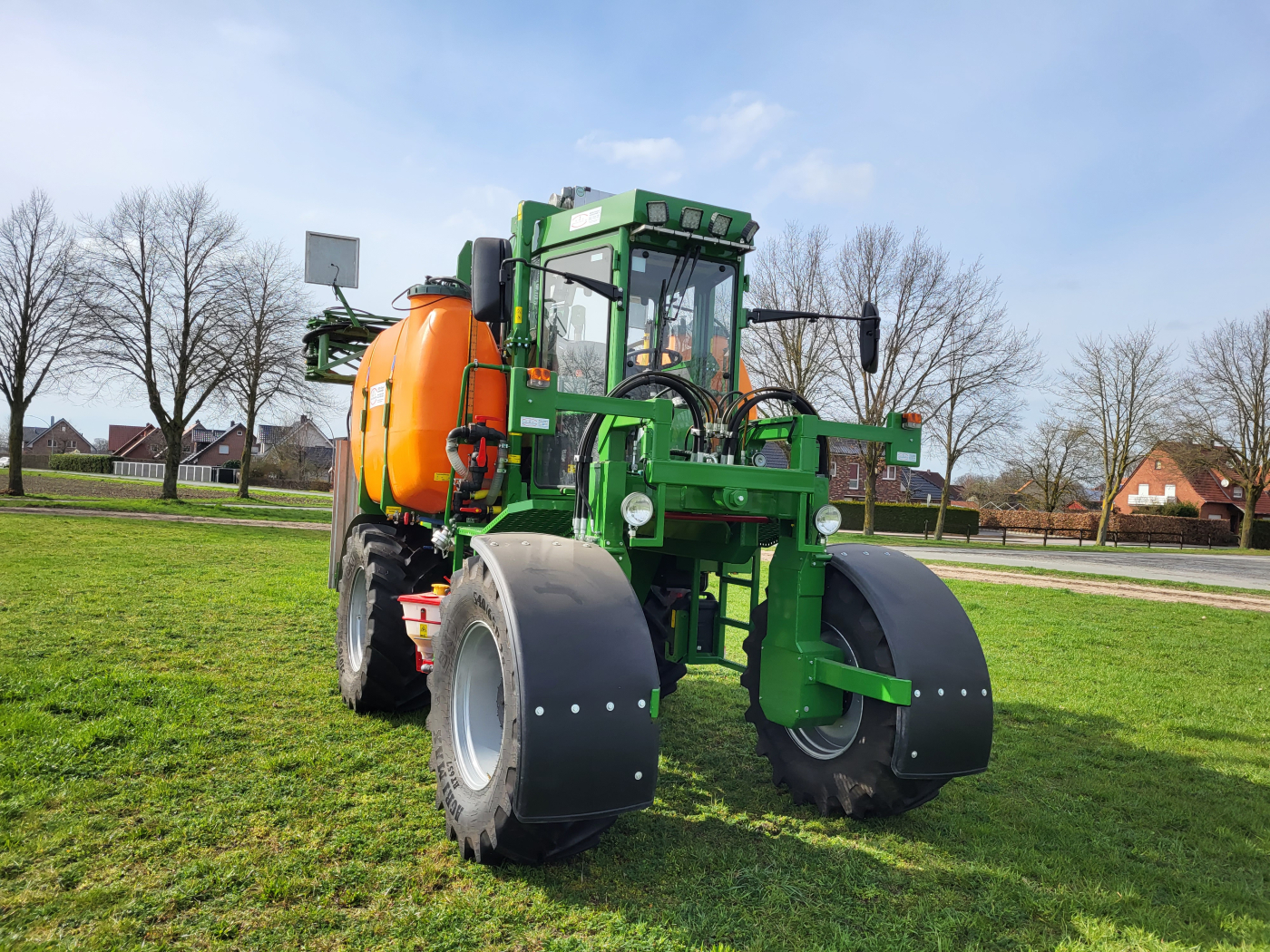

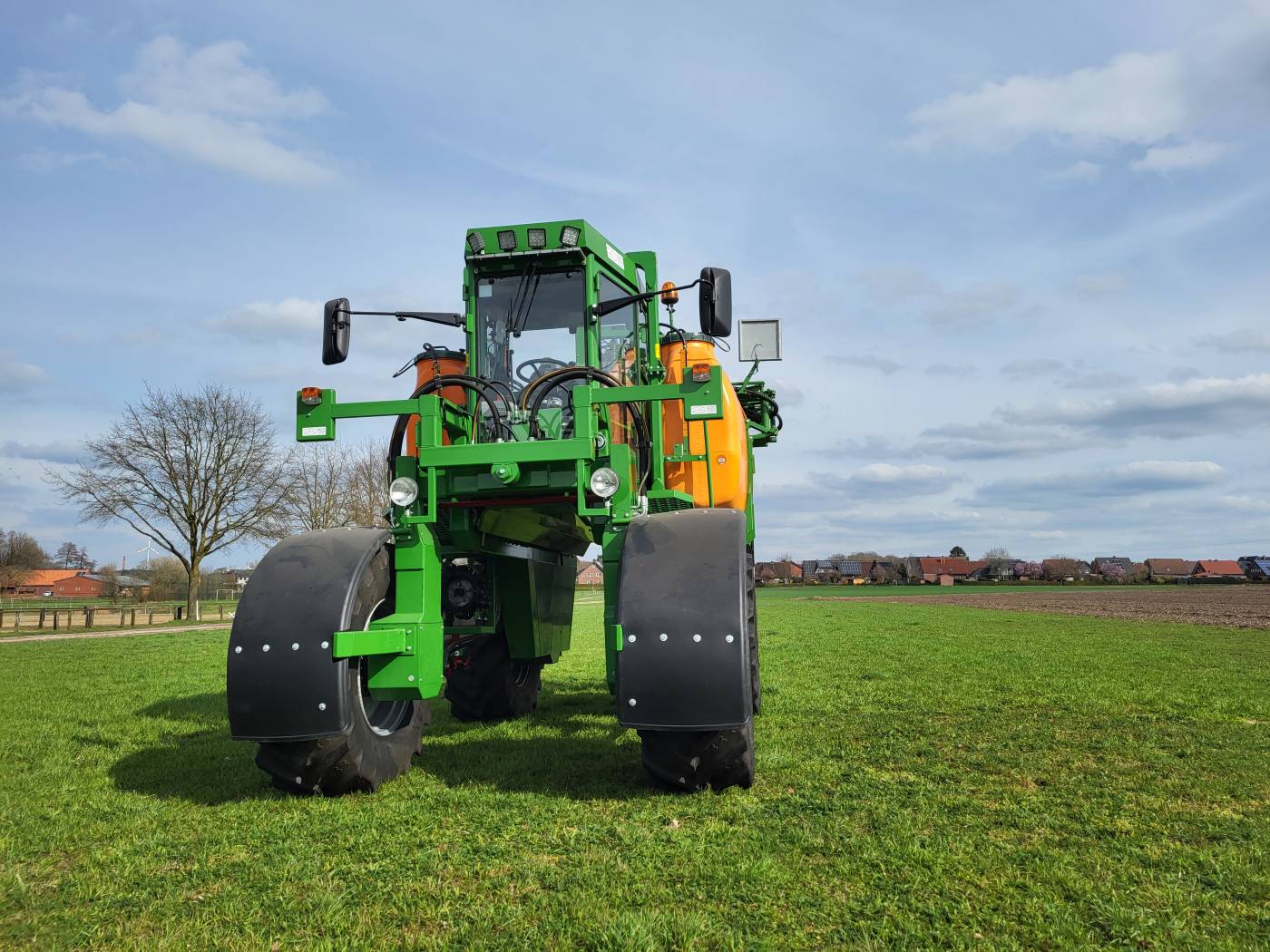

- Selectable tyre width (approx. 385, 420 or 520 mm)
- 5 separate hydraulic circuits for
a) Drive b) Spray pump c) Working hydraulics
d) Steering e) Cleaning pump - Oil and diesel tank integrated in the frame
- Pressurised cabin with filter
- Protective ventilation system SBT50 EN15695
- Hydraulic control via joystick
- Air conditioning without heating
- Radio with 2 loudspeakers
- Steering wheel tilt adjustment

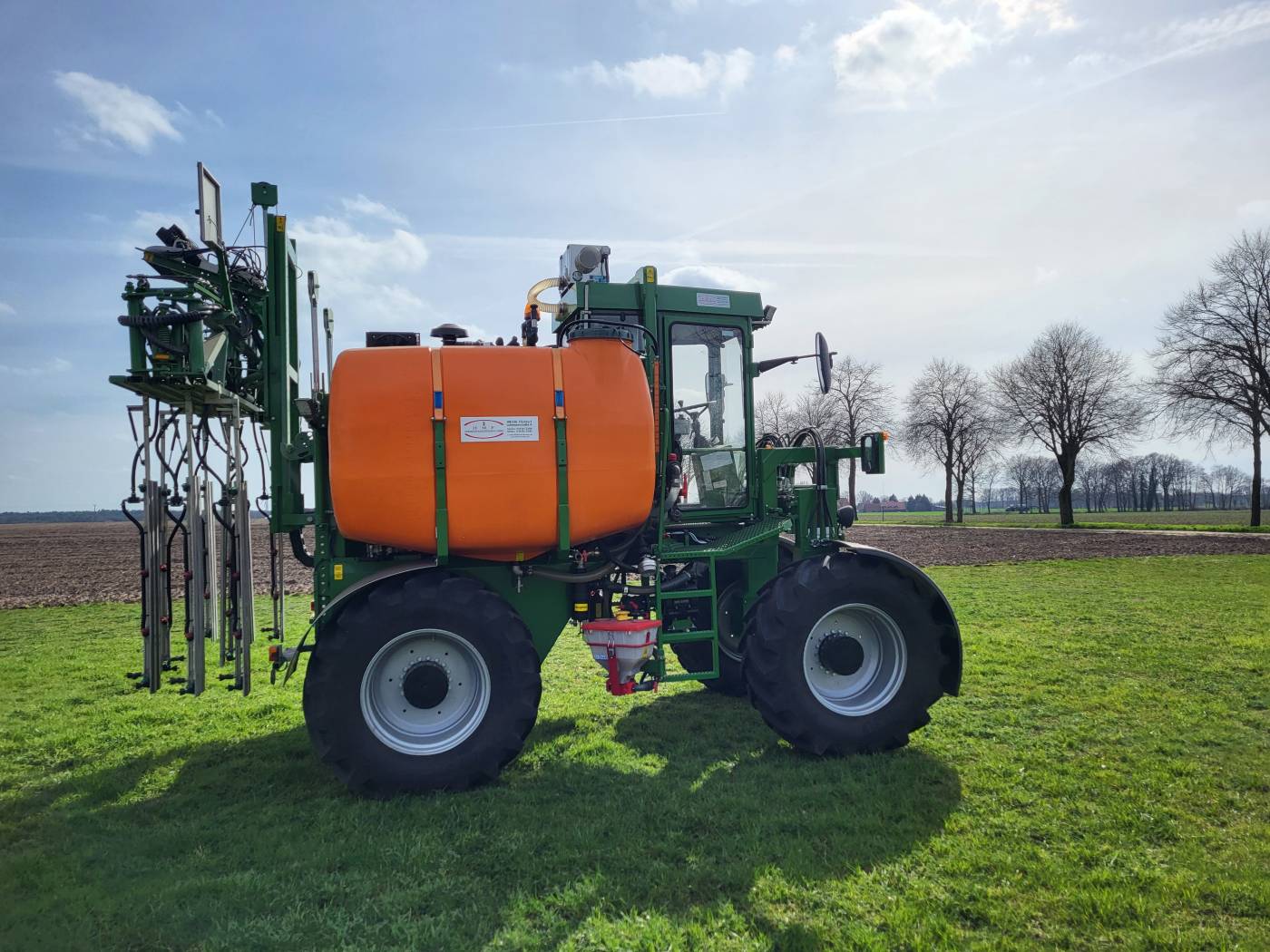

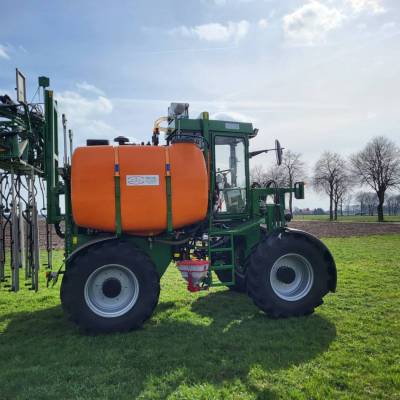

- 2 spray tanks with a nominal volume of 1200 litres each
and 240 litre actual volume clean water tank - Spray pump 210 l/min
- Spray armature with electric switching valves
- Overpressure protection
- Pressure gauge 100 mm 0-8/25 bar
- Central filling via C-coupling
- Central suction filter 3"
- Catch hook for attaching the spray boom
- 5-fold switch for the agitator
- Amaspray for underleaf and asparagus haulm spraying
with defined quantity changes in 10% increments - 2 driving modes: road up to max. approx. 20 km/h and field up to approx. 10 km/h
- Supplied with operating licence (BBA)

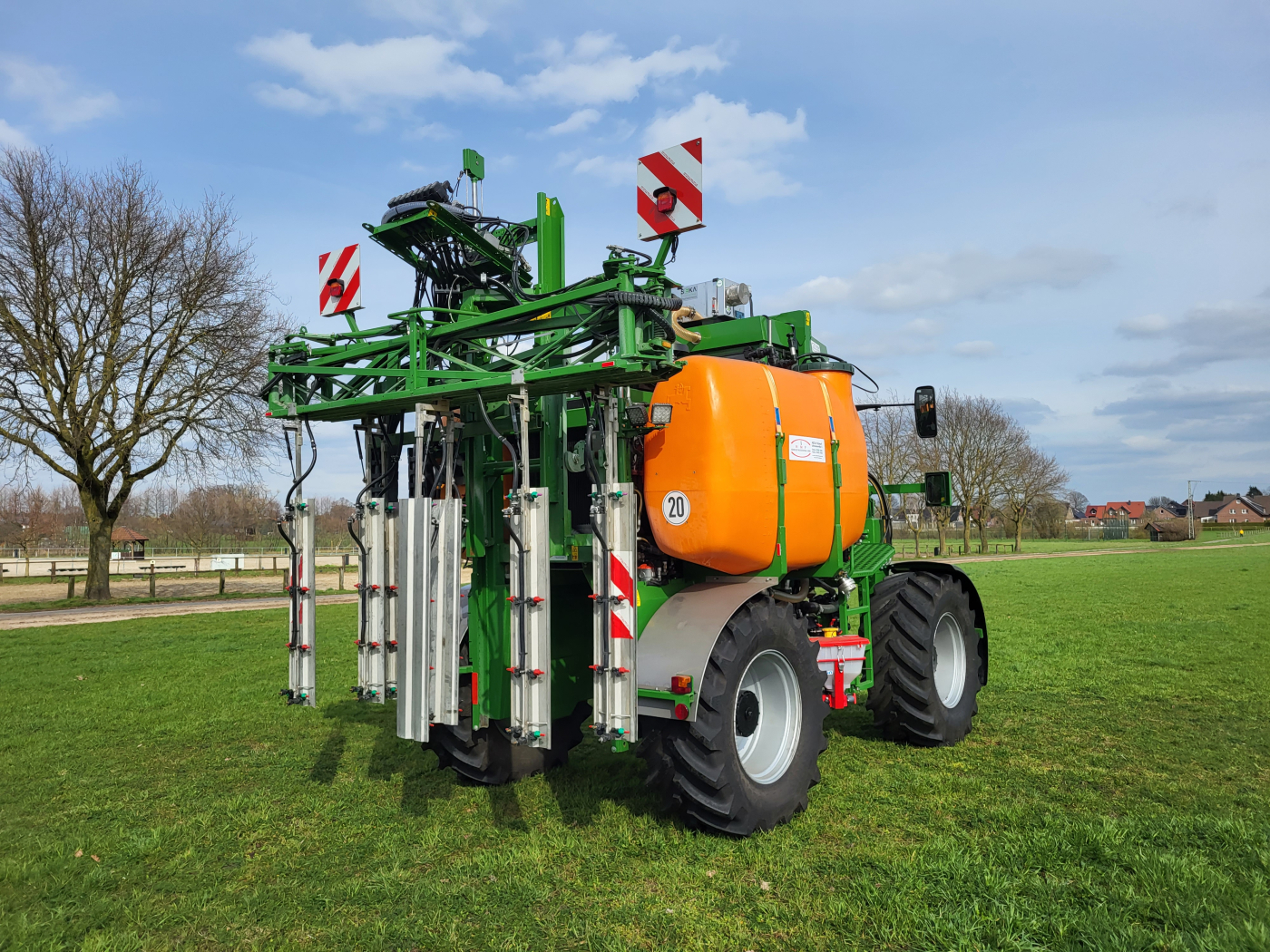

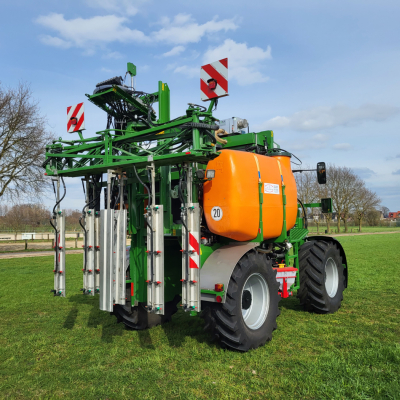

Accessories / Variations:Engine power: approx. 90 kW Clearance height: approx. 1,500 mm Track width: up to approx. 2,000 mm (depending on selected tyre width) Height: approx. 3,700 mm Total width: approx. 3,000 mm Unladen weight: approx. 5,600 kg Driving speed: max. approx. 20 h/km - Spray boom for fungicide and herbicide, hydraulically foldable and height-adjustable
- Switching from fungicide to herbicide via ball valve
- Electric folding on one side
- Hydraulic tilt adjustment of the spray boom
- Induction tank mounted on the right in the direction of travel
- Reversing camera
- Cruise control
- Hoe for rear-mounted high wheel tractor in two variants:
a) Equipment for mechanical weed control
- 2 x support wheel
- 4 x serrated concave disc
height-adjustable
Ø 520 mm
- 2 x 5 cultivation tines
- 2 x harrow
- 2 x warning sign
- Passage height: approx. 1550 mm
or
b) Equipment as a)
+ 2 spray lances for herbicide treatment
Individual modifications regarding equipment, dimensions, etc. on request possible.
