Multipurpose hoe CHAMÄLEON I at the rear
Multipurpose hoe CHAMÄLEON I in the front in combination with bedformer LEOFANT
Multipurpose hoe CHAMÄLEON I in the front in combination with bedformer LEOFANT
Multipurpose hoe CHAMÄLEON I with 2 discs at the rear
Multipurpose hoe CHAMÄLEON I with 2 discs at the rear
Multipurpose hoe CHAMÄLEON I and rotary tiller ASR at the rear
Multipurpose hoe CHAMÄLEON I with accessories: harrow tines at the rear
Multipurpose hoe CHAMÄLEON I with accessories: harrow tines at the rear

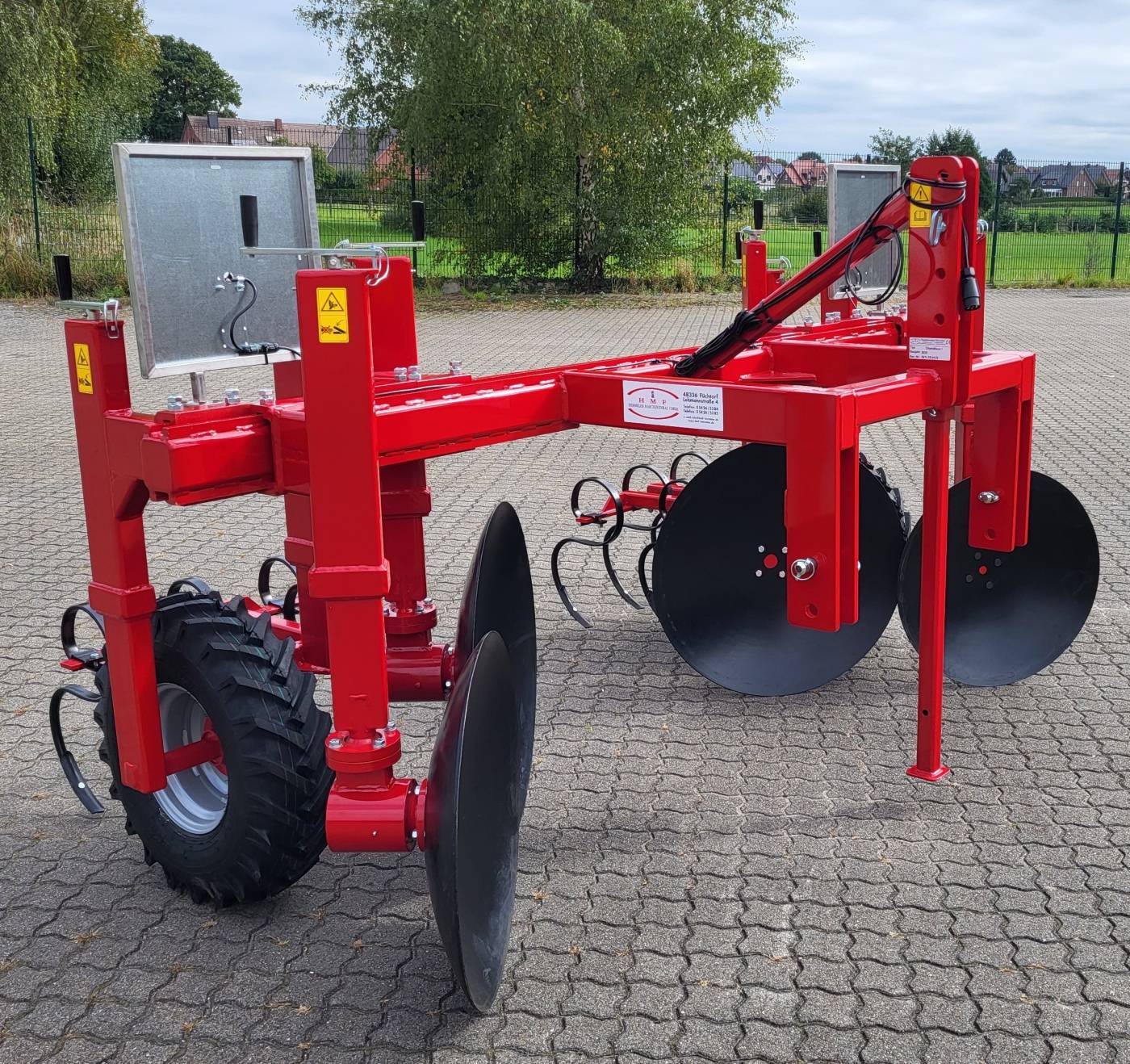

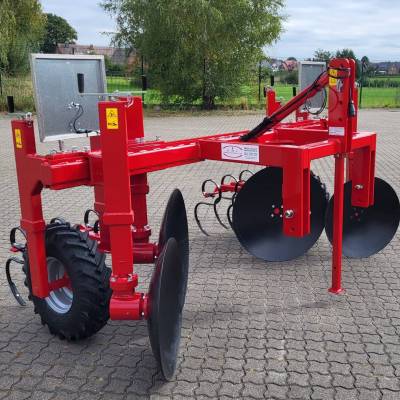

Multipurpose hoe CHAMÄLEON II
Multipurpose hoe CHAMÄLEON II

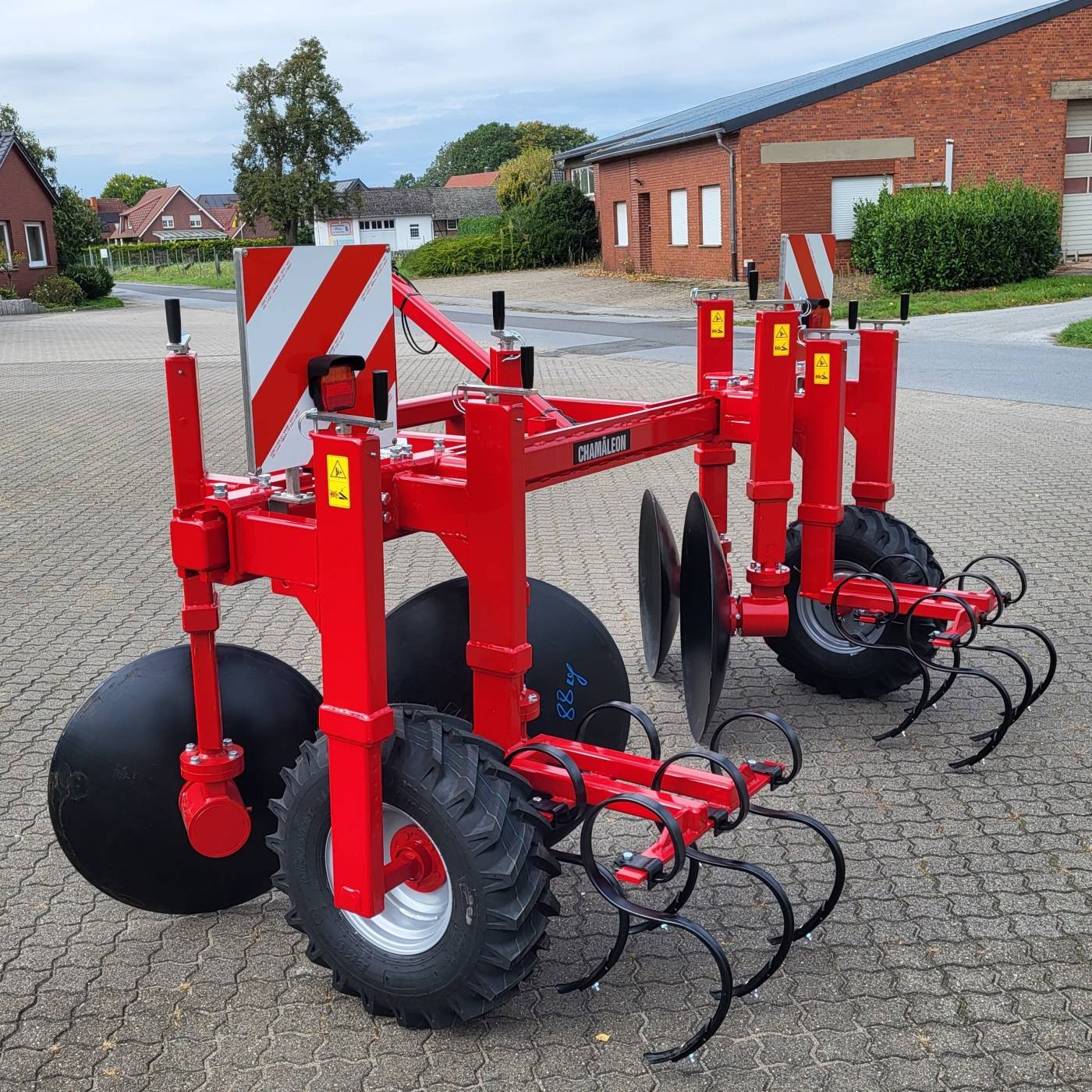

Multipurpose hoe CHAMÄLEON II with 4 discs at the rear
Multipurpose hoe CHAMÄLEON II with 4 discs at the rear
-
Function / Application:
- For removing the dams after the harvest
- For creating winter dams
- For loosening the soil in the tramlines
- For mechanical weed control
- For preparing the dams before the harvest
- 1 x sturdy support tube with
- 2 x smooth discs
• Sliding piece + bracket for positioning included
• Infinitely height-adjustable via spindle
• Rotatable - 2 x support wheels
• Infinitely height-adjustable via spindle - 2 x hoeing frames, each with 5 cultivator tines
• Sliding piece + bracket for positioning included
• Depth setting via support wheels
- 2 x smooth discs
- 1 x support foot
- Adjustable working width via positioning of the individual tools
- Front and rear attachment
Accessories / Variations:Disc diameter: approx. 610 mm Working width: from approx. 1600 bis 2800 mm Dimensions LxWxH: approx. 1570 x 2950 x 1600 mm Machine headroom: approx. 950 mm Weight: approx. 590 kg Power requirement: approx ca. 60 hp - Also available with 4 discs
- Different disc diameteres available
- Harrow tines in the rear
- Adapter for combination with depth spade MAULWURF
= For increased loosening the soil of the tramlines
= Minimising waterlogging - Adapter for combination with rotary tiller ARE / ASR
= For a better distribution of soil for the creation of winter dams
Individual modifications with regard to equipment, dimensions, etc. are possible on request.
