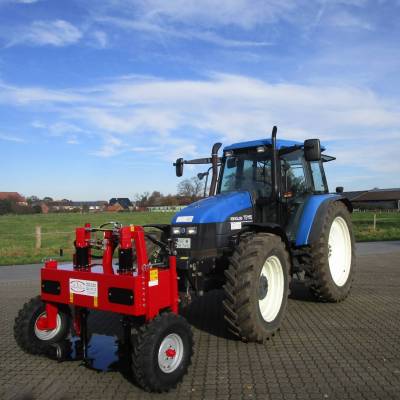

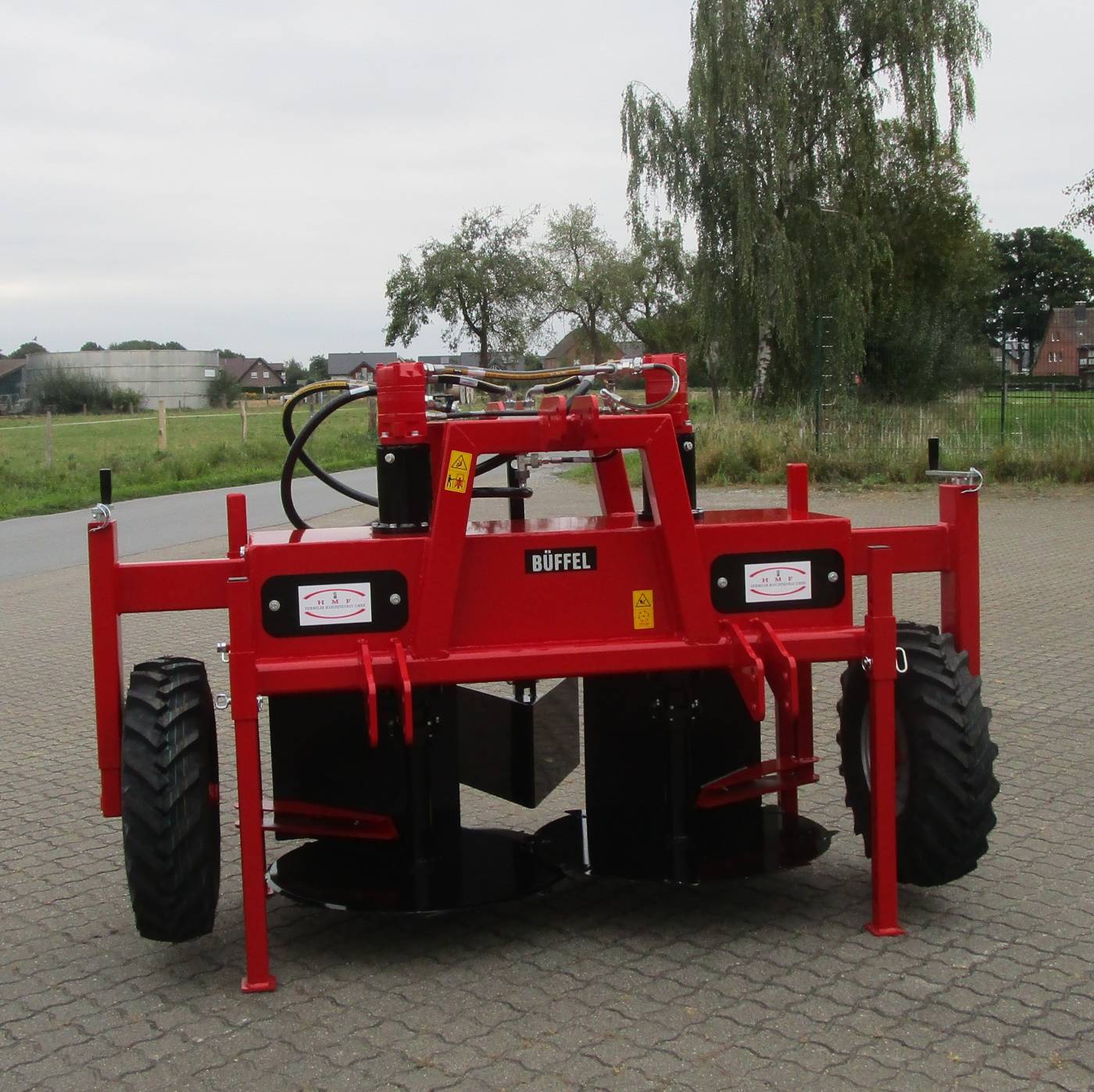

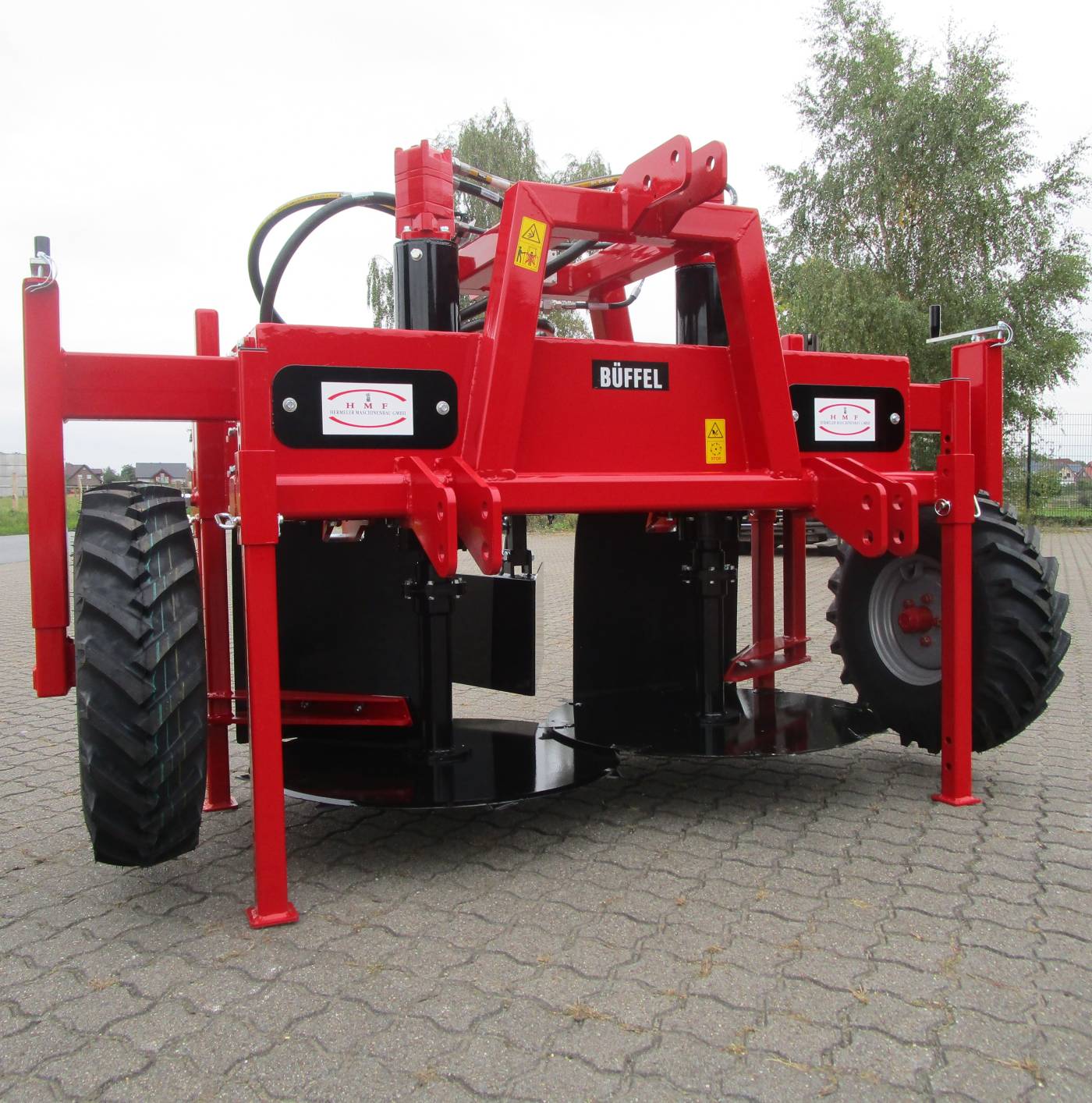

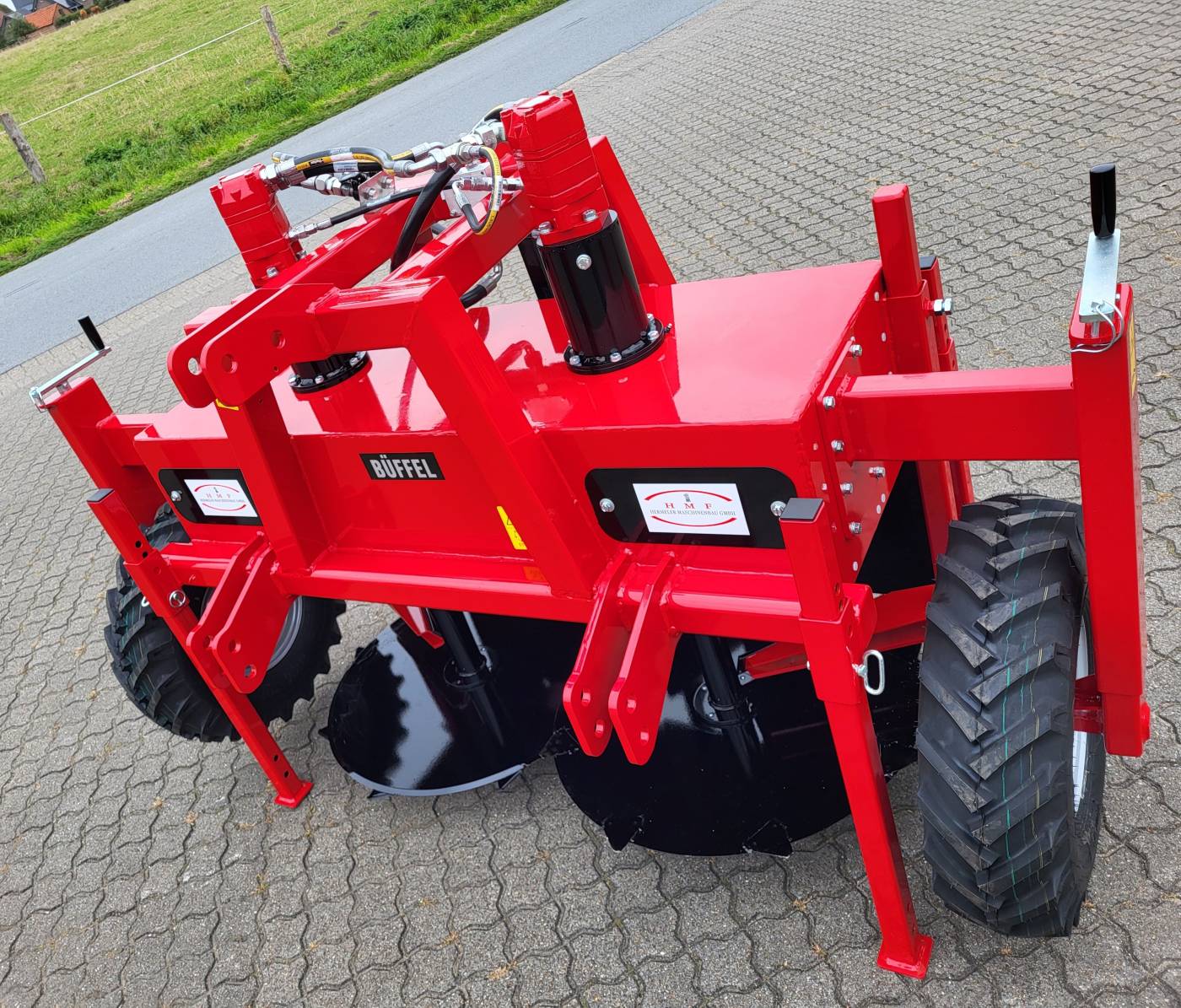

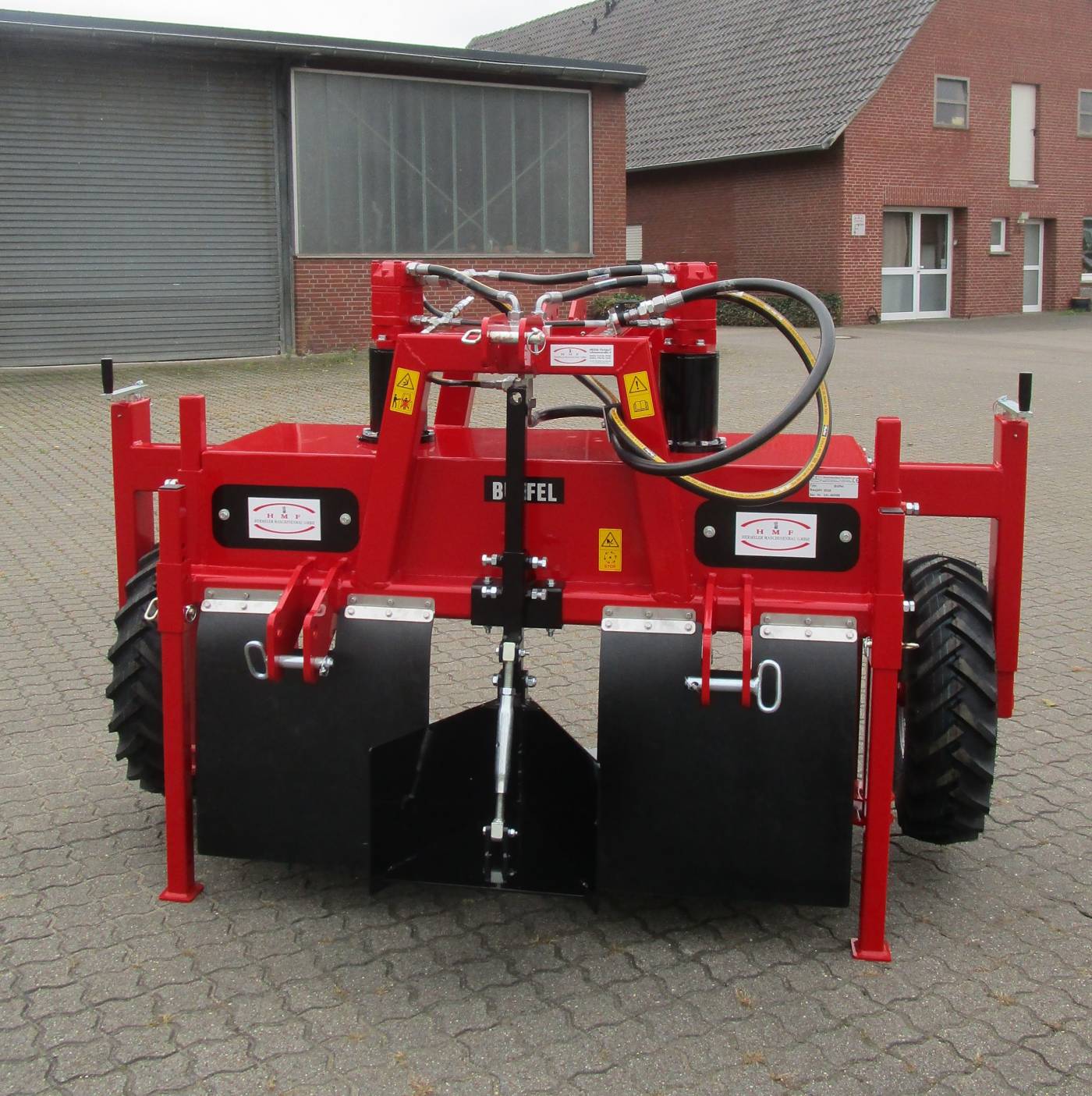

Haulm cutter BÜFFEL
Haulm cutter BÜFFEL
Haulm cutter BÜFFEL
Haulm cutter BÜFFEL
-
WISENT BÜFFEL BISON Working method Haulm cutting + chopping
above the damHaulm cutting
in the damHaulm cutting in the dam,
subsequent choppingTractor attachment Front attachment Front and rear attachment Front attachment Drive Gear drive Hydraulic system Hydraulic system PTO shaft + + + Cutting device 24 x hammer mallet 2 x blade disc 2 x blade disc + mulching
unit with 40 blades/counter-bladesSupport wheel for depth control 2 2 2 Support wheel heigth adjustment Hydraulic Manual via crank or hole pattern Hydraulic Side crop lifter 2 - 2 Camera - - 2 Hydraulic feed to the mulching unit - - + Ploughshare body for cleaning the blade disc - 2 - Dimensions in mm approx. 1350 x 220 x 1200 1500 x 2285 x 1520 2775 x 2500 x 2250 Max. speed in rpm approx. 3000 3000 3000 Power requirement in hp approx. ≥ 70 - 80 ≥ 70 - 80 ≥ 160 Weight in kg approx. 750 630 1800 -
Function / Application:

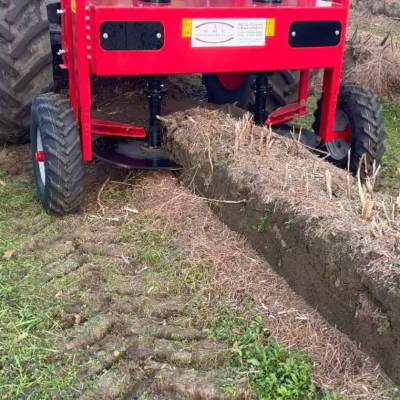

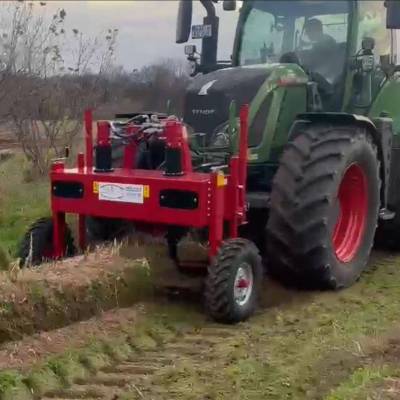

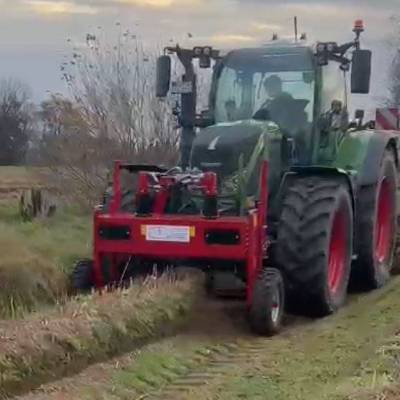

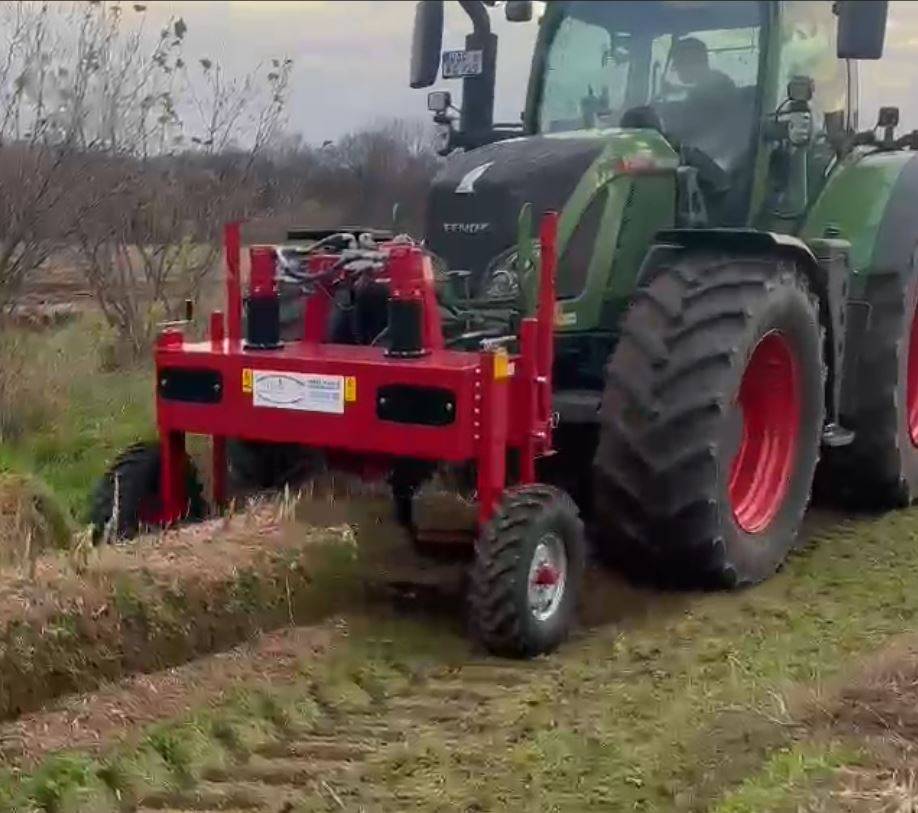

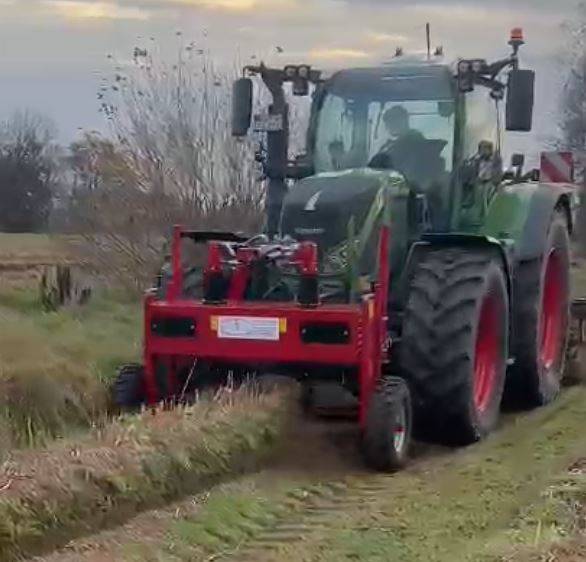

- for a clean haulm cutting in the dam
- for mechanical control of
a) aparagus fly
b) asparagus rost ( fungal infestation)

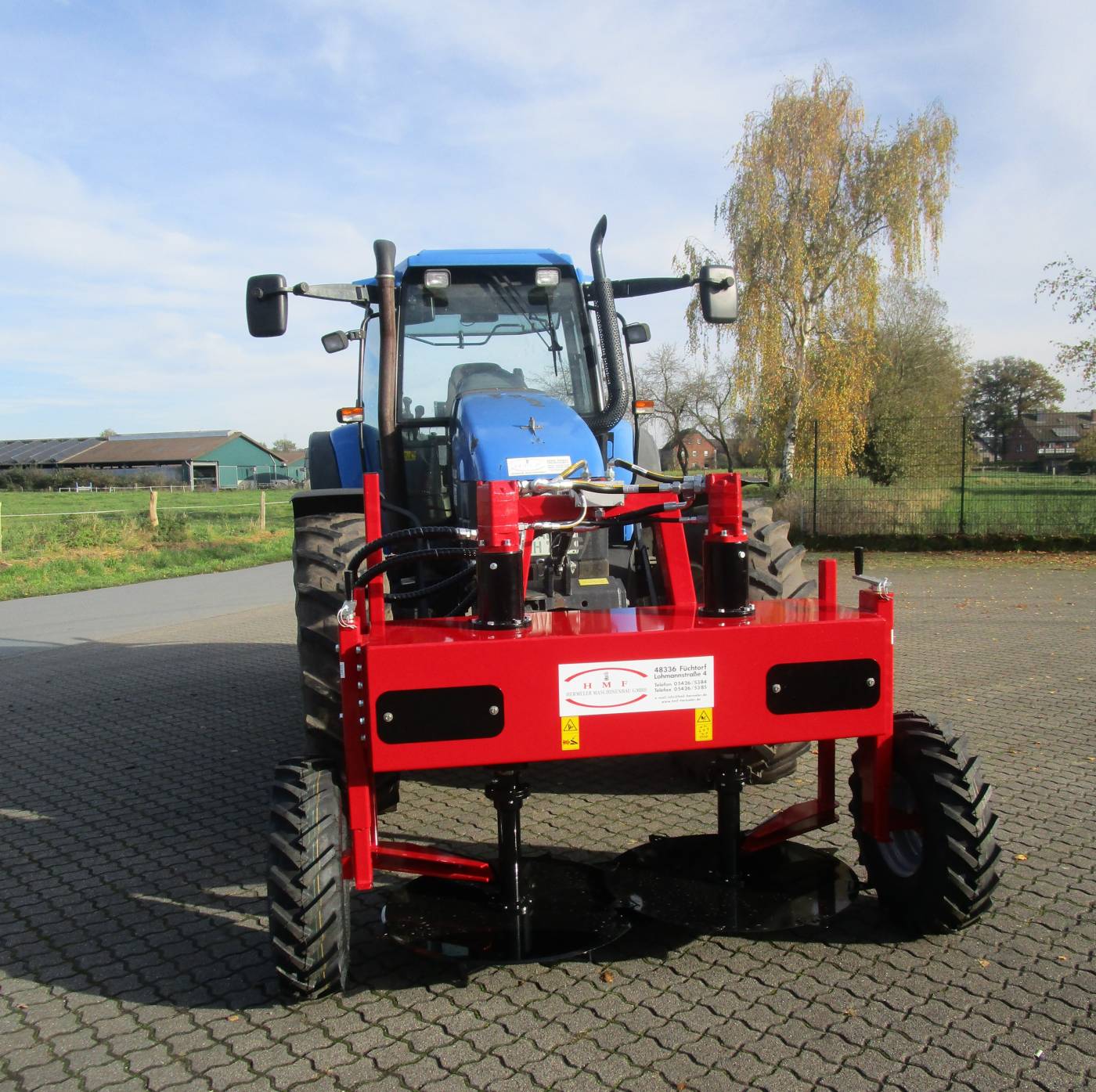

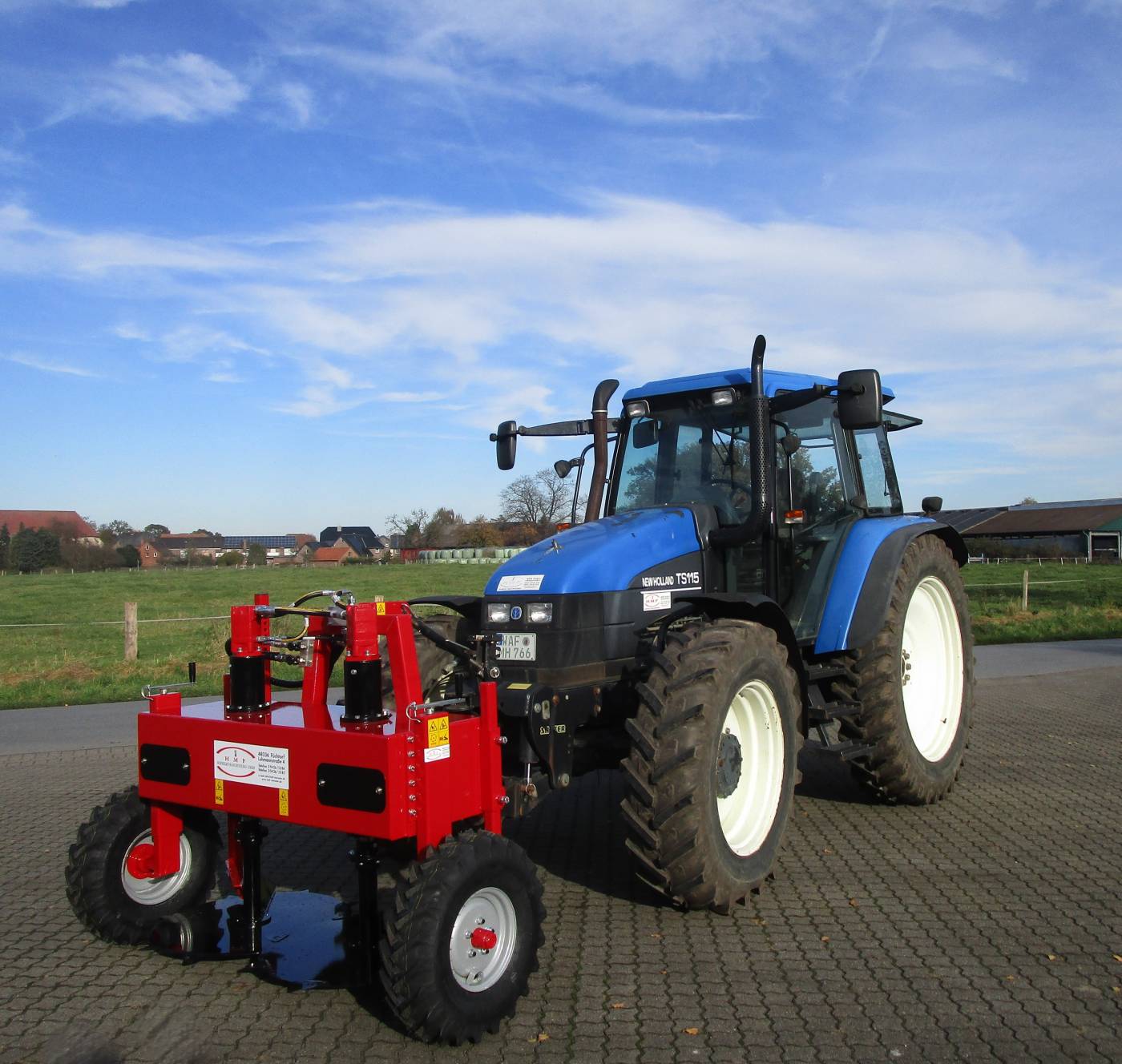

- Front and rear hydraulics
- PTO shaft
- Top link

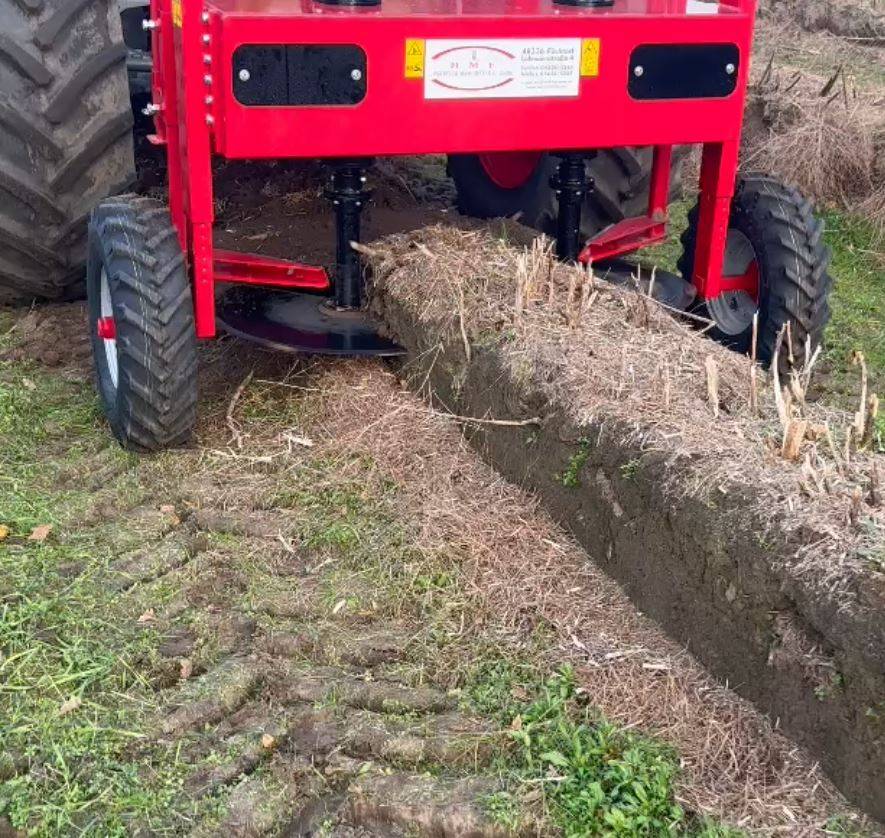

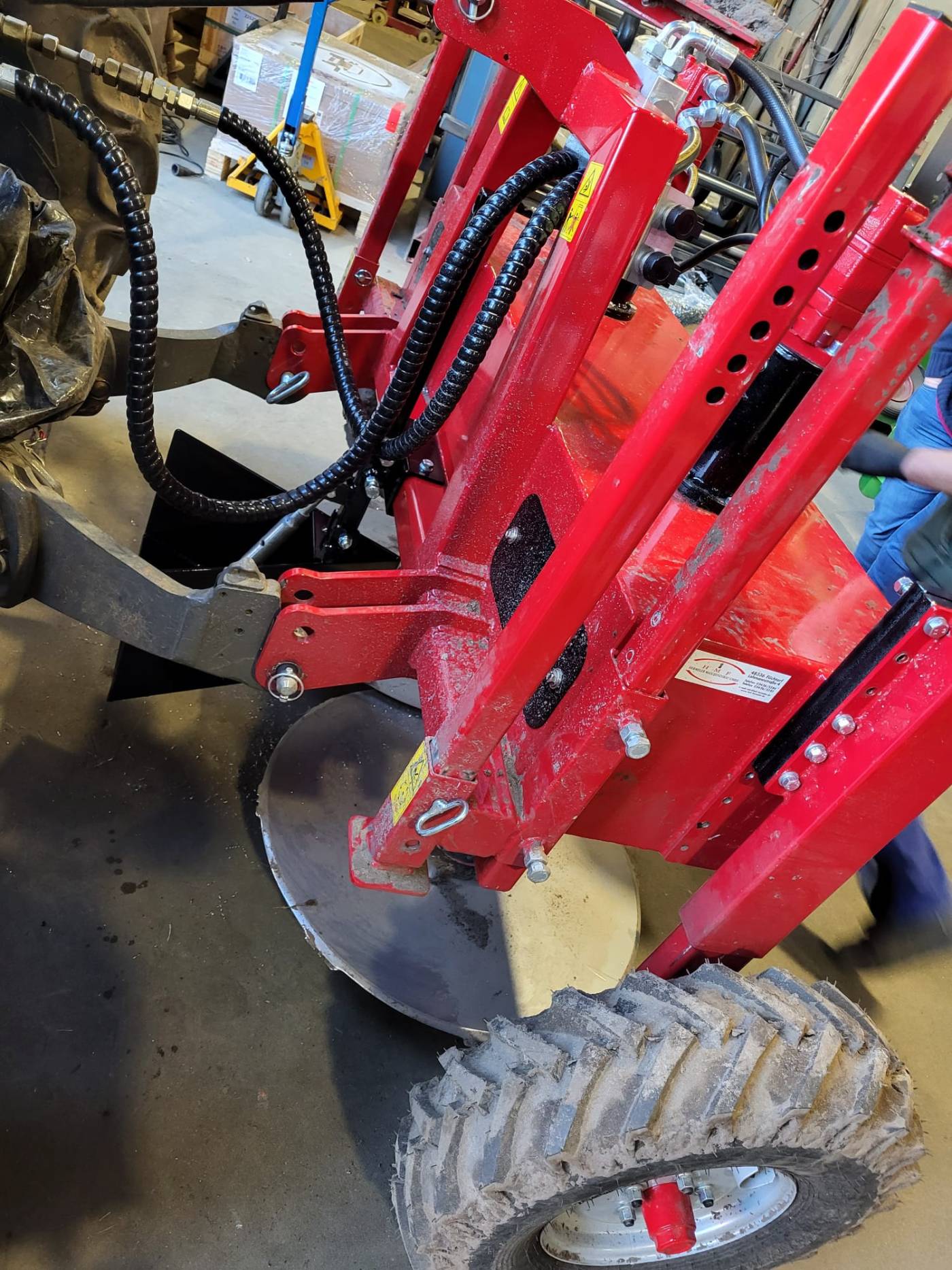

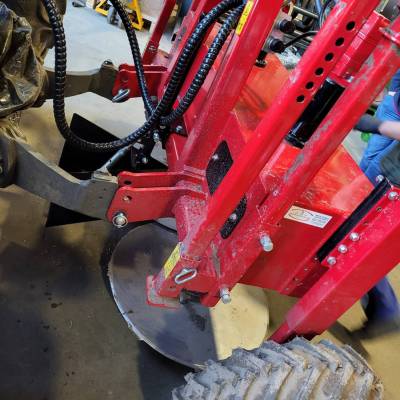

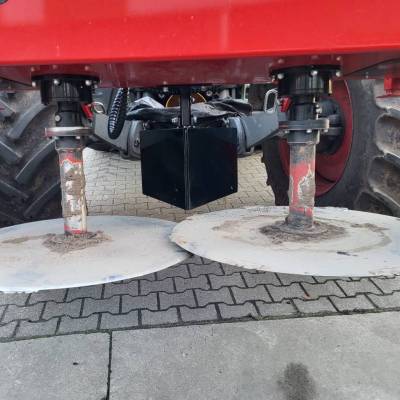

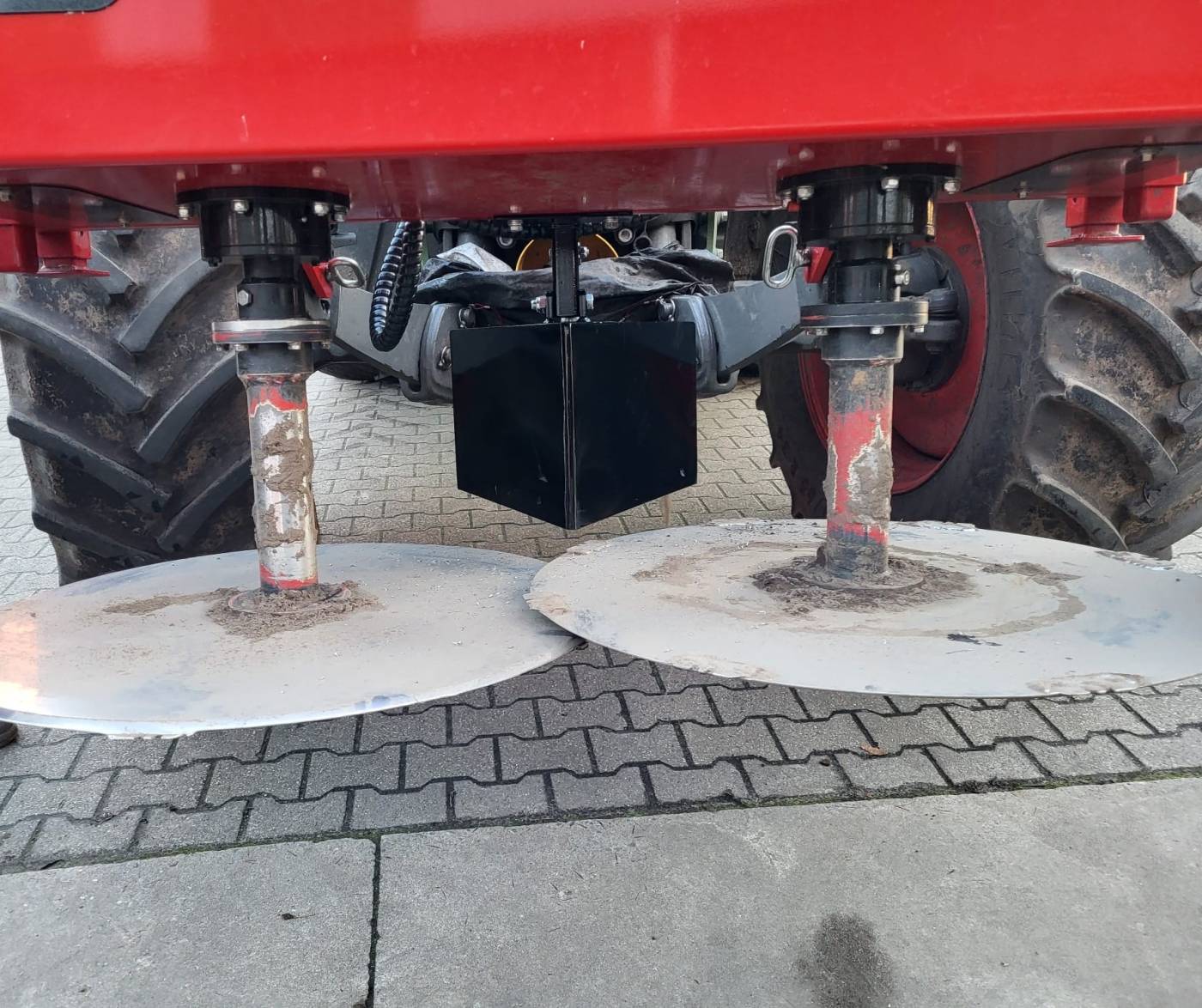

- 2 x hydraulically operated discs with welded-on knife blades
- Internal hydraulic system for operating the blade discs
- 2 x infinitely adjustable support wheel for depth control
- Height adjustment of the wheels via spindle or hole pattern
- Traction guide

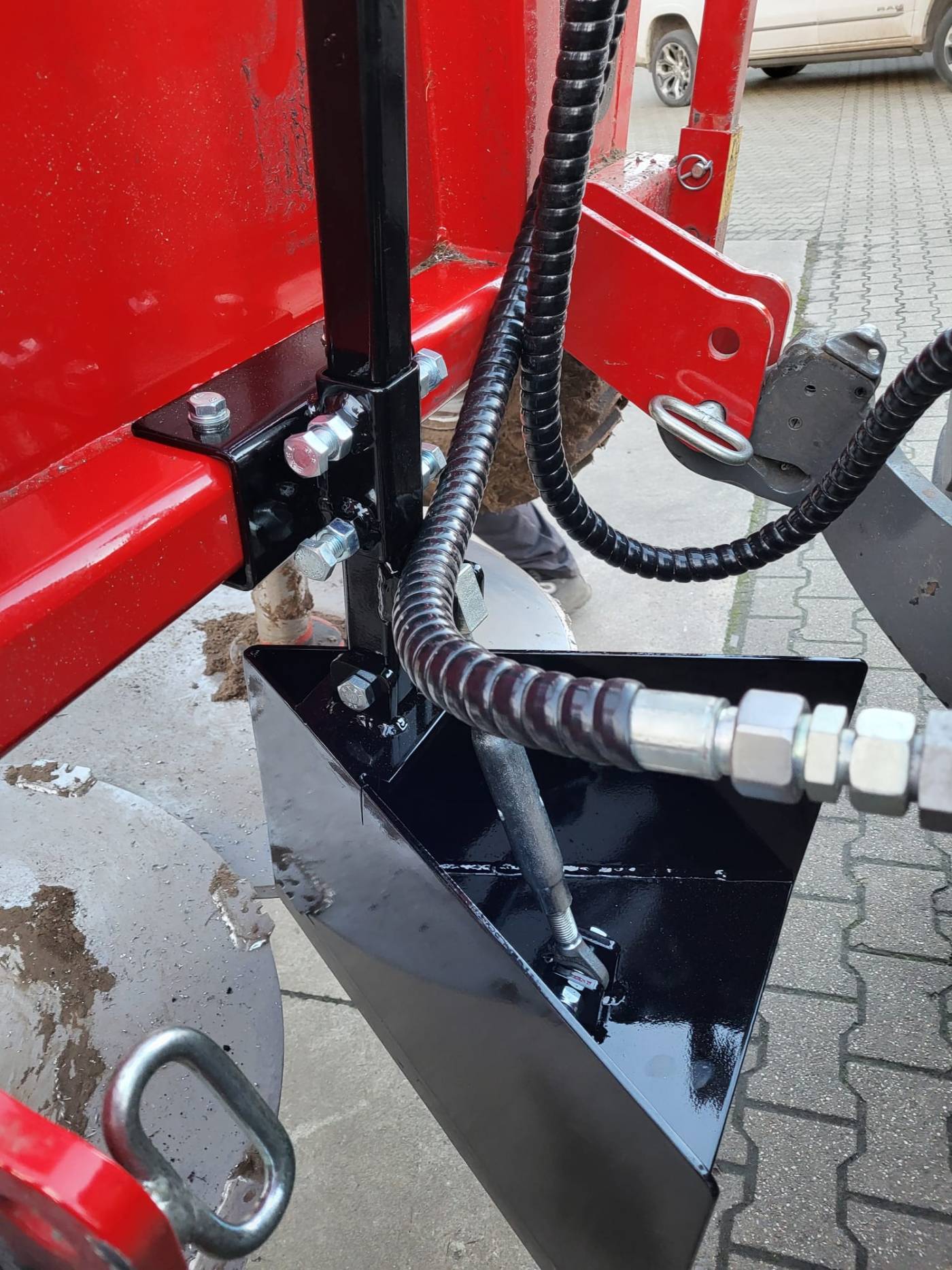

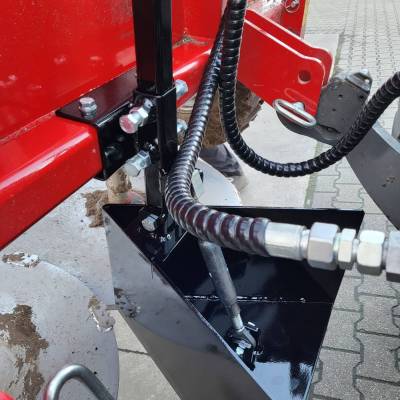

- 2 x ploughshare bodies for cleaning the blade discs
Max. speed : approx. 3000 rpm

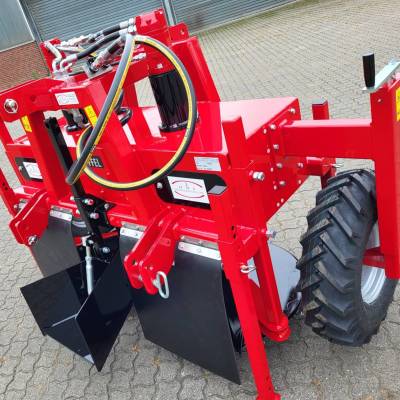

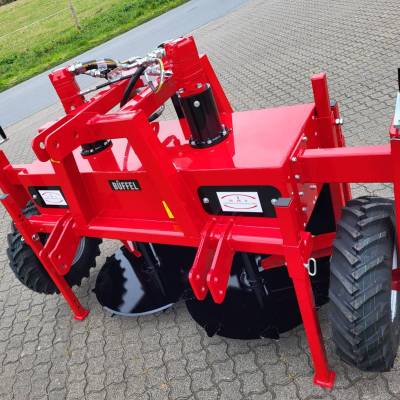

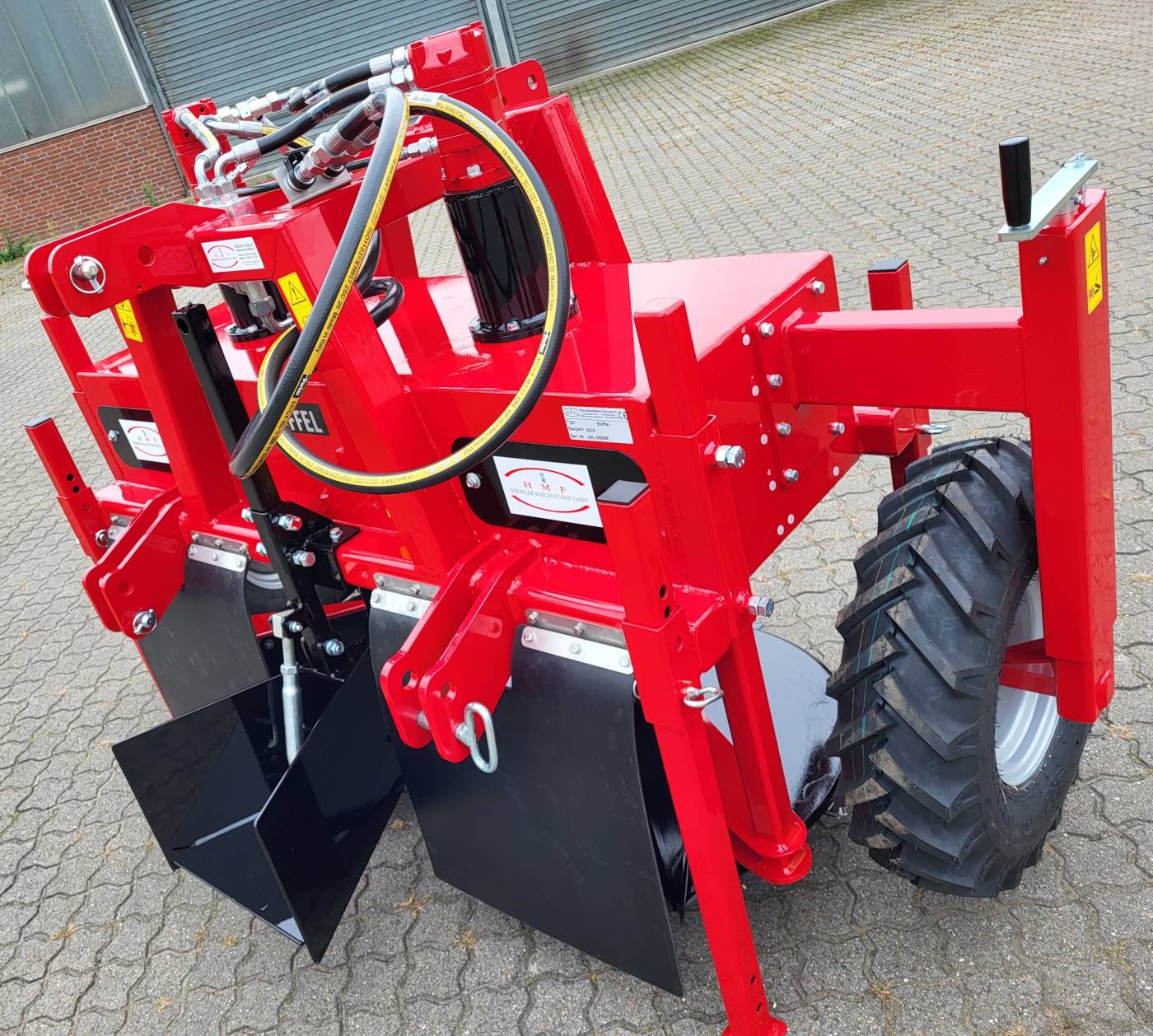

Accessories / Variations:
Dimensions: approx. 1500 x 2285 x 1520 mm
Weight: approx. 630 kg
Distance between blade shafts: approx. 630 mmAttachment frame for mounting three haulm cutters next to each other in the front
= Simultaneous processing of 3 rows of asparagus in one pass possible
