WISENT BÜFFEL BISON Working method Haulm cutting + chopping
above the damHaulm cutting
in the damHaulm cutting in the dam,
subsequent choppingTractor attachment Front attachment Front and rear attachment Front attachment Drive Gear drive Hydraulic system Hydraulic system PTO shaft + + + Cutting device 24 x hammer mallet 2 x blade disc 2 x blade disc + mulching
unit with 40 blades/counter-bladesSupport wheel for depth control 2 2 2 Support wheel height adjustment Hydraulic Manuel via crank or hole pattern Hydraulic Side crop lifter 2 - 2 Camera - - 2 Hydraulic feed to the mulching unit - - + Ploughshare body for cleaning the blade disc - 2 - Dimensions in mm approx. 1350 x 2200 x 1200 1500 x 2285 x 1520 2775 x 2500 x 2250 Max speed in rpm approx. 3000 3000 3000 Power requirement in hp approx. ≥ 70 - 80 ≥ 70 - 80 ≥ 160 Weight in kg approx. 750 630 1800 -
Function / Application:

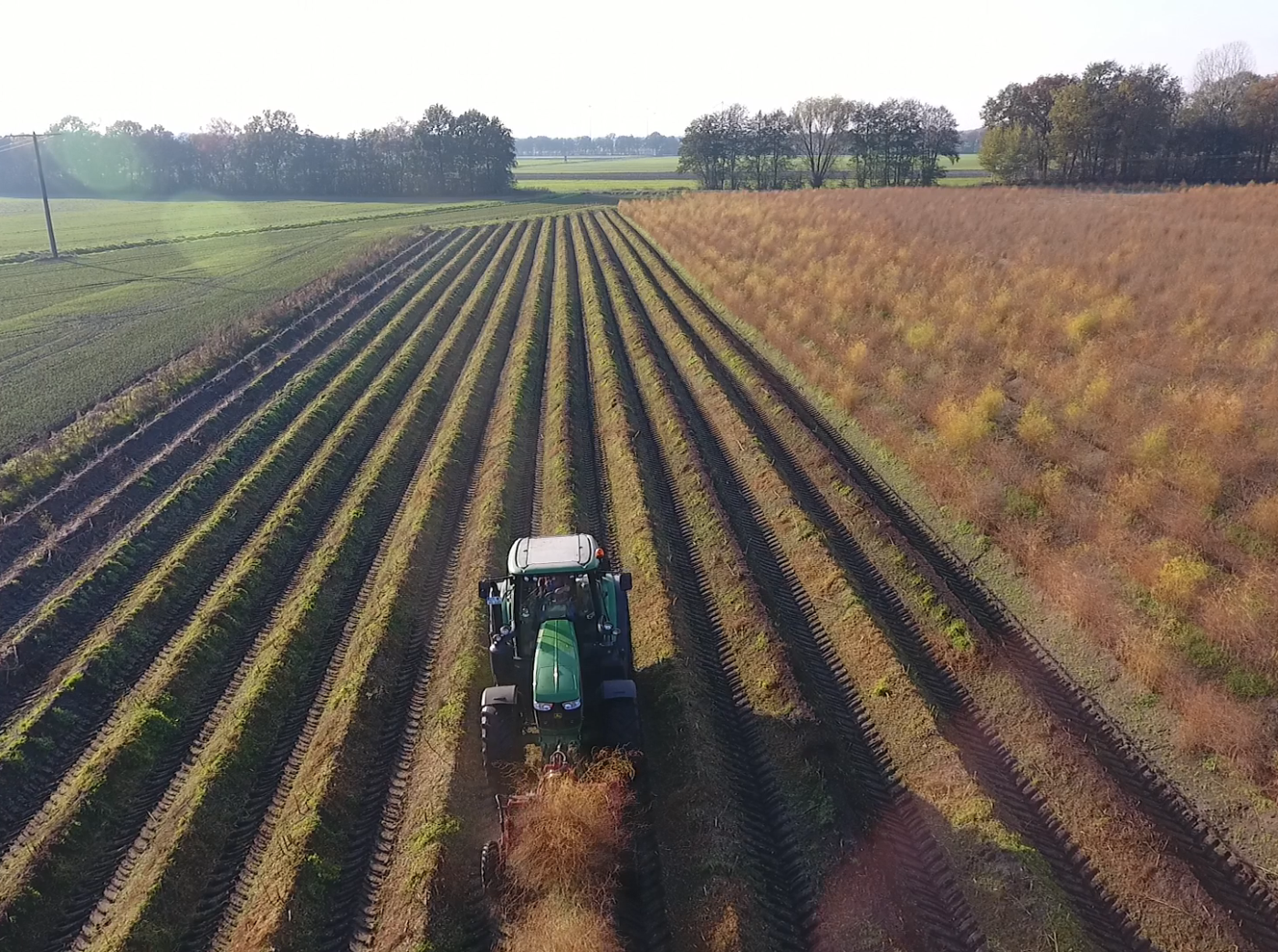

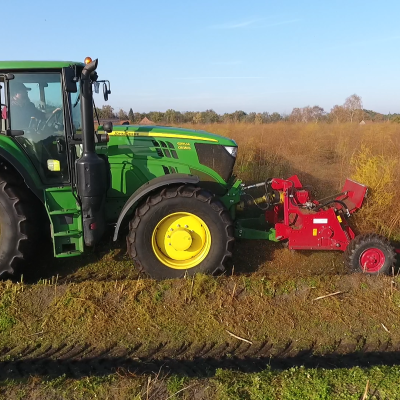

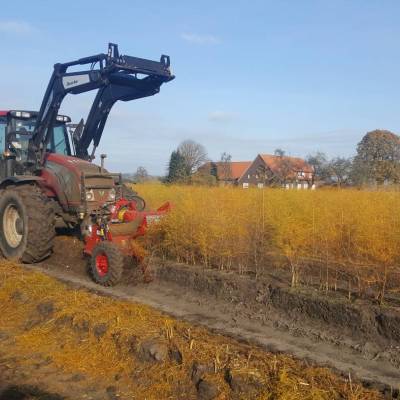

- for cutting and shredding asparagus haulm above the dam before winter
- for the mechanical control of
a) asparagus fly
b) asparagus rust (fungal infestation)

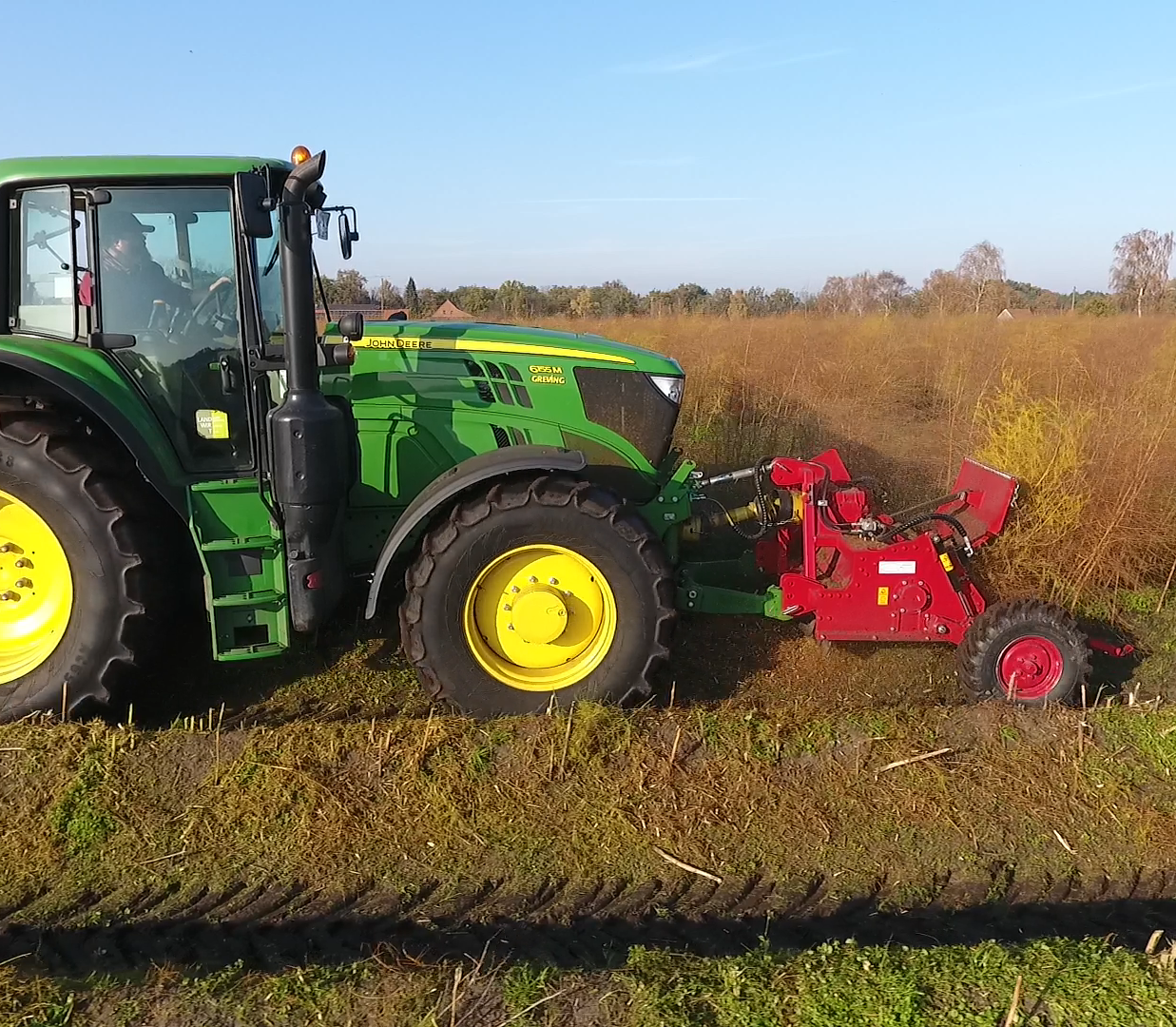

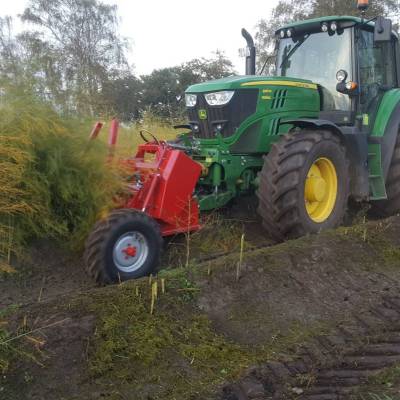

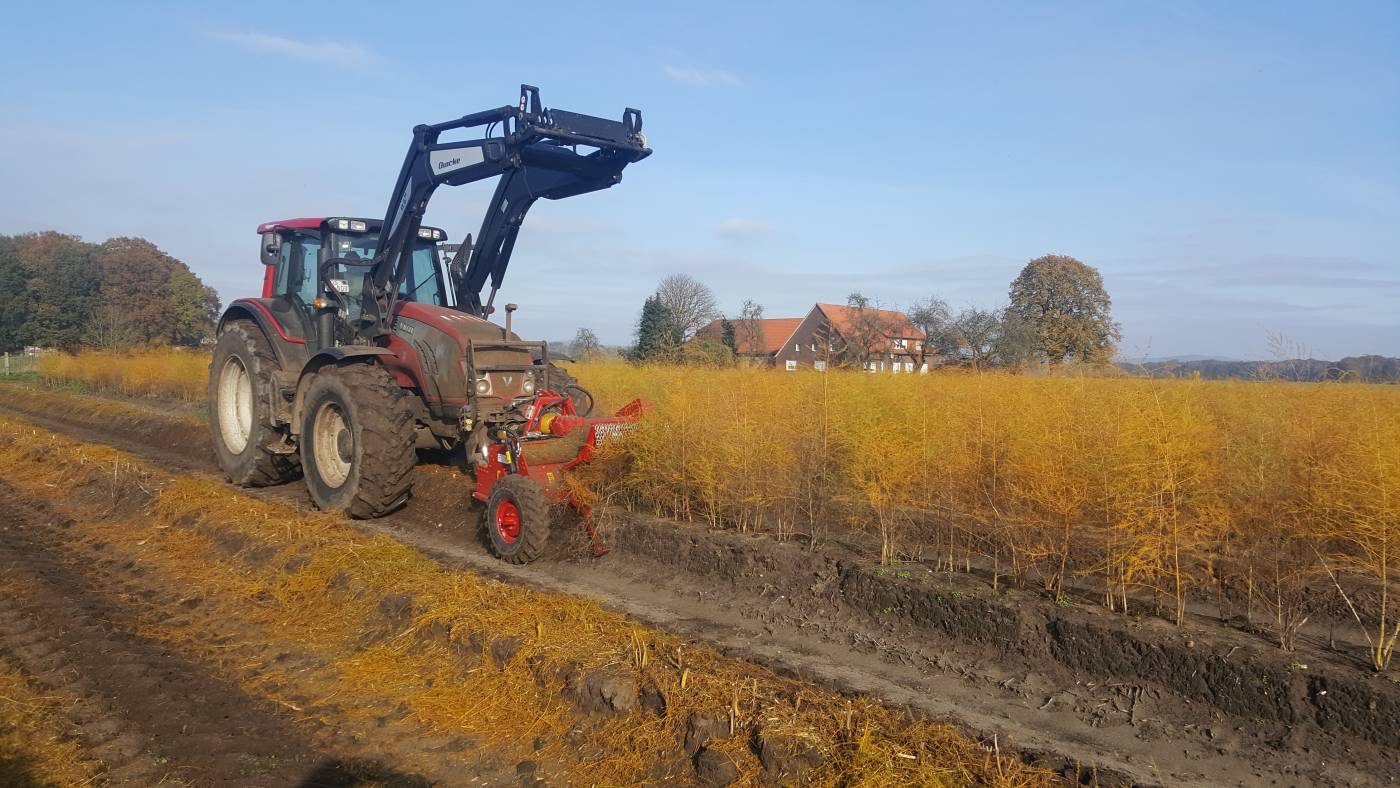

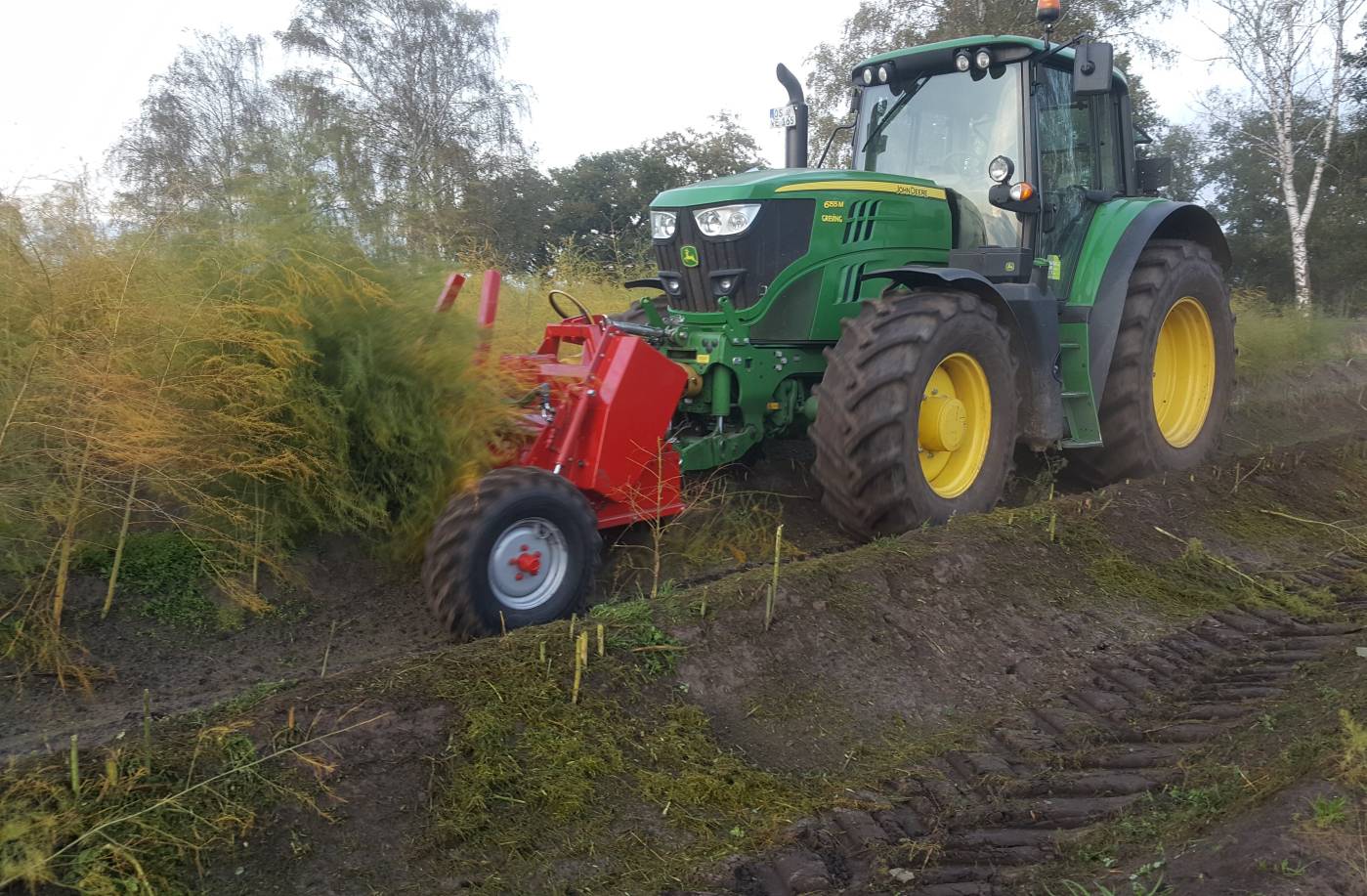

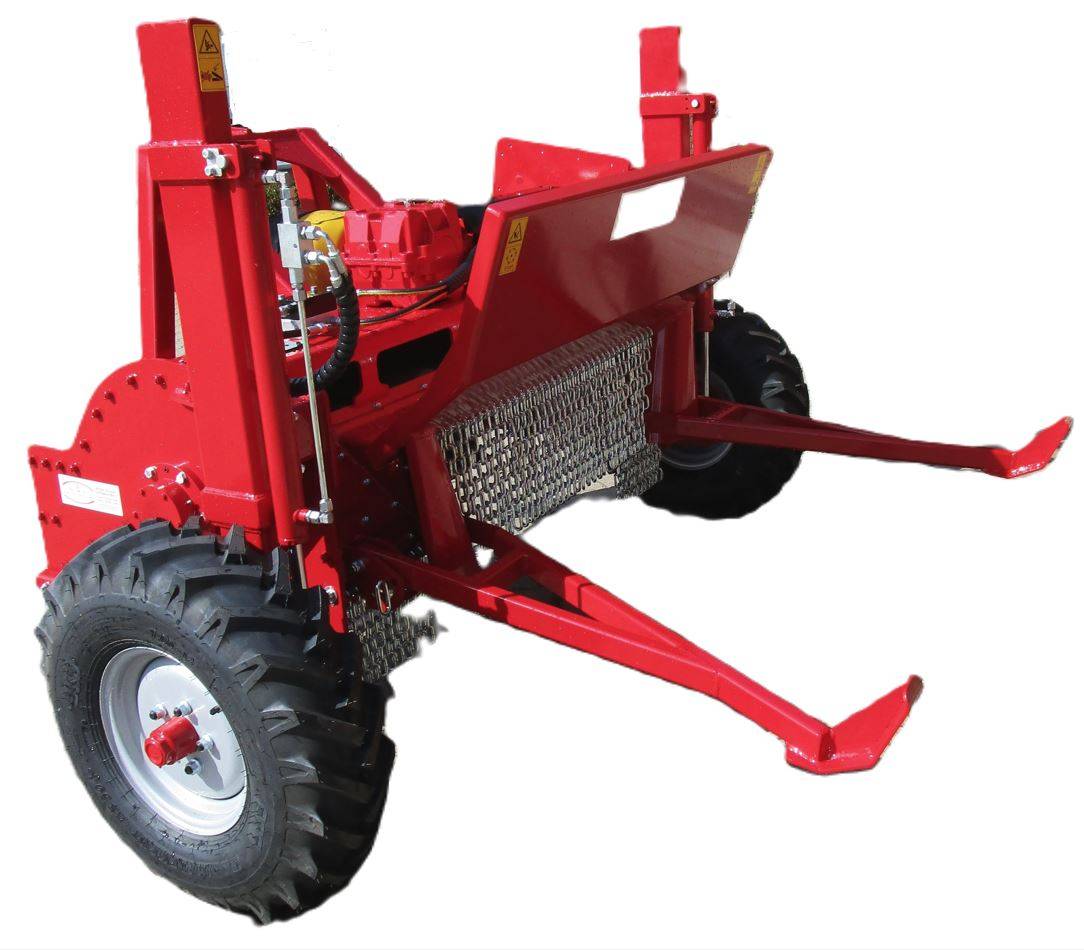

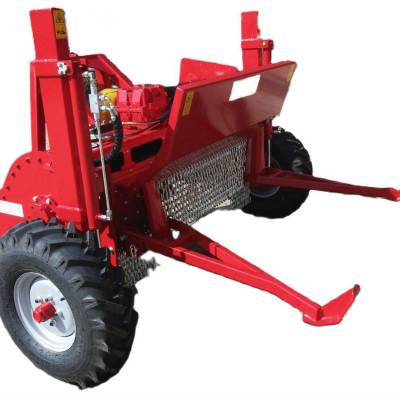

- Front attachment
- 24 x Hammer mallet
- 2 x Hydraulically height-adjustable support wheel
- 2 x Side crop lifter
- Drive of the mulcher shaft via an angular gearbox and a laterally arranged spur gearbox
- PTO shaft with shear bolt protection
- 1 x Support foot

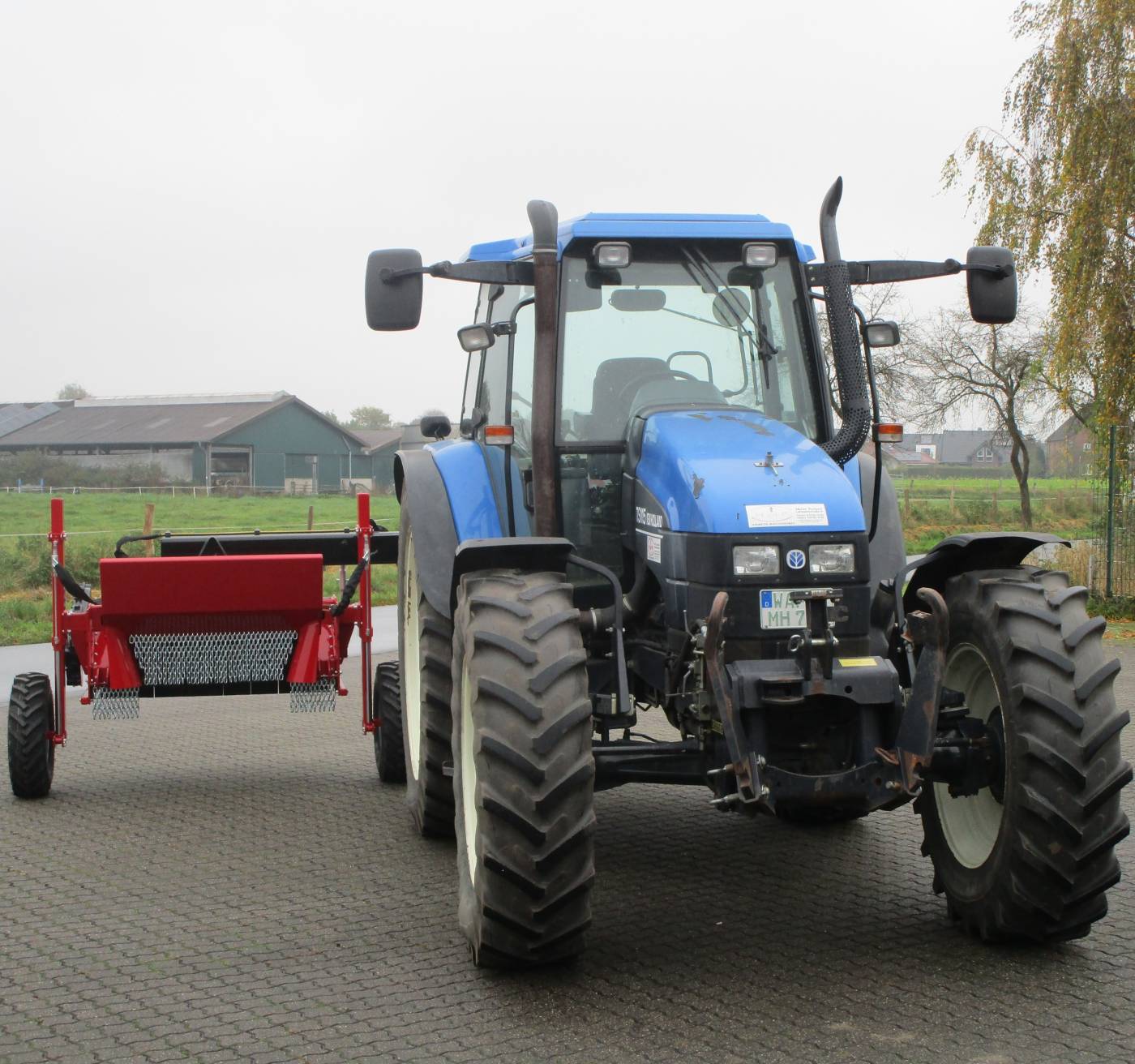

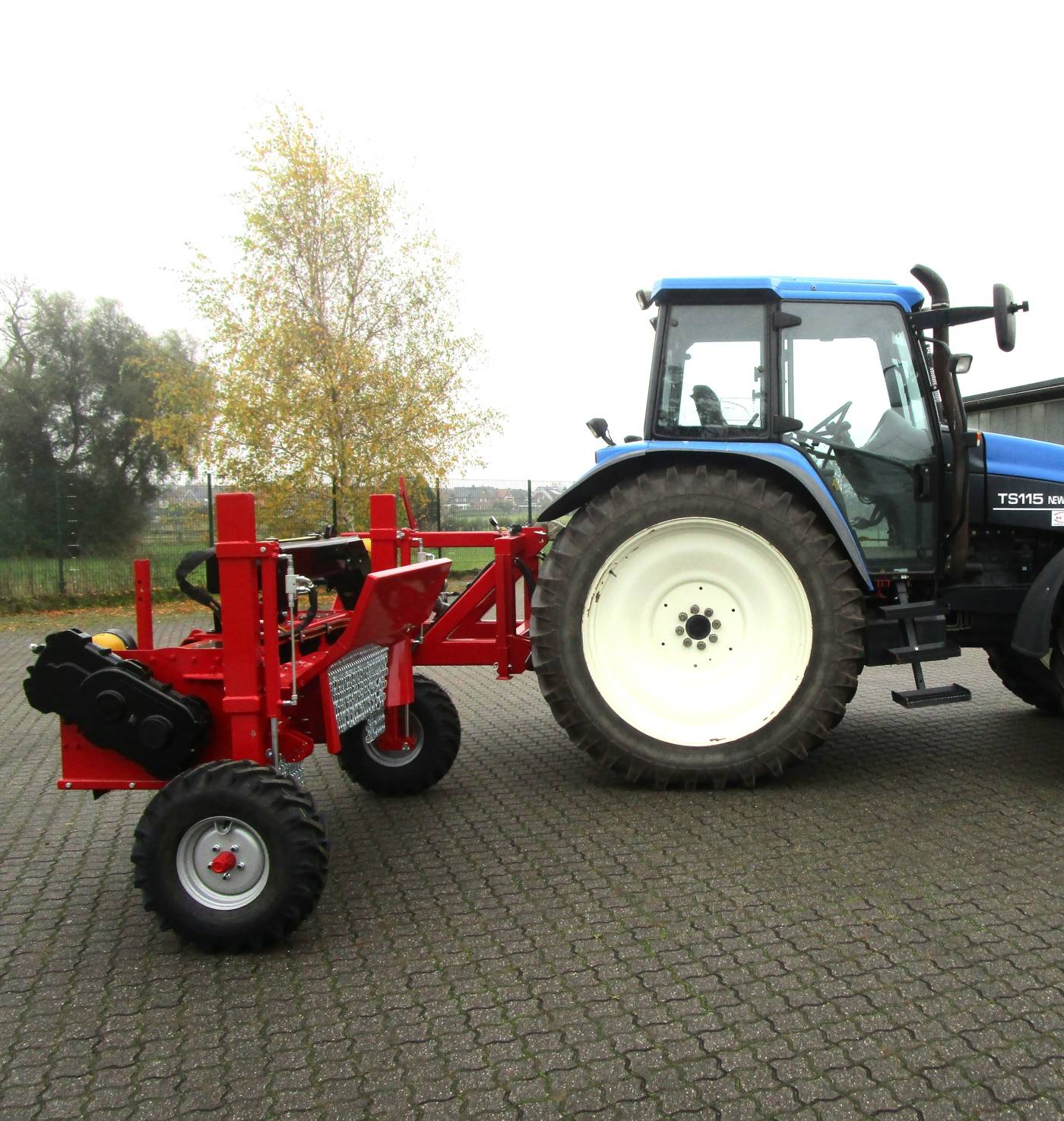

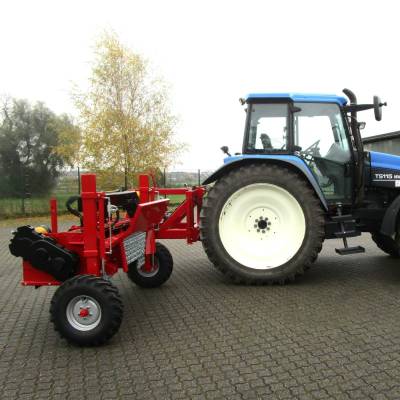

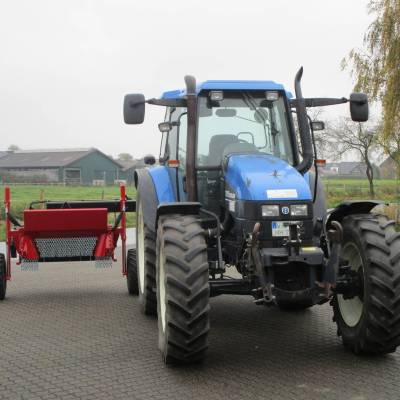

Accessories / Variations:Max. rotation speed: approx.. 3000 rpm Working width: approx. from. 1500 mm Dimensions LxWxH: approx.. 1350 x 2200 x 1200 mm Power requirement: approx. min. 70 - 80 hp Weight: approx. 750 kg - Mulcher as side boom
= simultaneous processing of 2 asparagus rows in one operation - Three-row mulcher as butterfly combination
= simultaneous processing of 3 asparagus rows in one operation
- Funnel-shaped mulcher housing
= optimum intake of the asparagus haulm
= improved crop flow - Asparagus haulm is chopped very small, ready for incorporation into the soil
= very good rotting of the chopped material
Individual modifications regarding equipment, dimensions, etc. are possible on request.
