• Function / Application:
    • for mechanical weed control

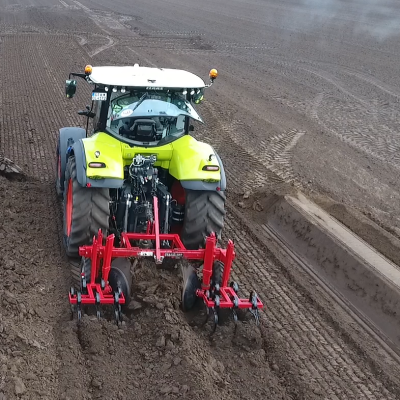

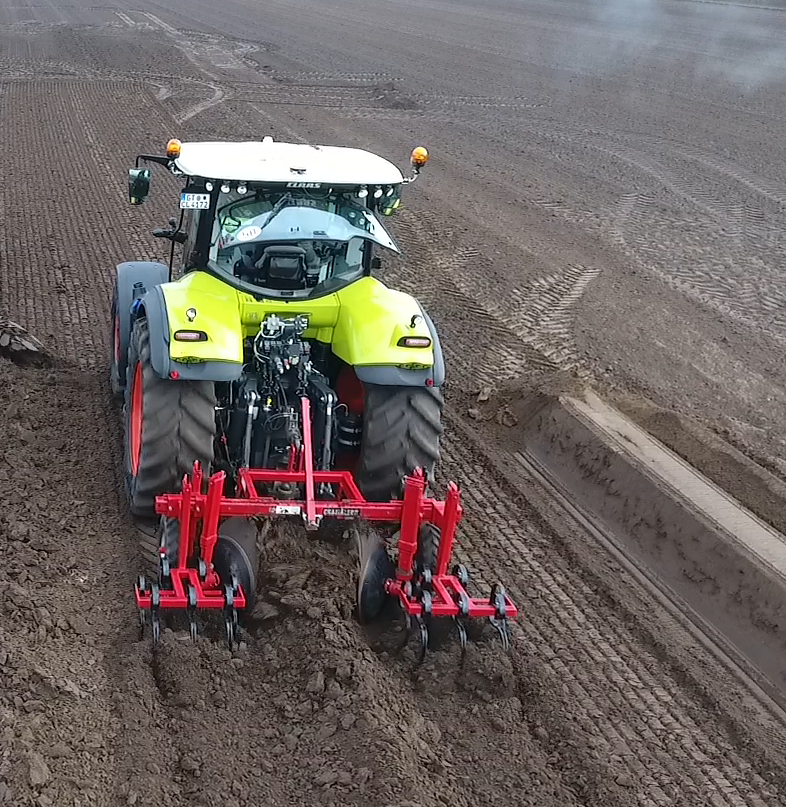

    • for creating winter dams
    • for loosening the soil in the tramlines

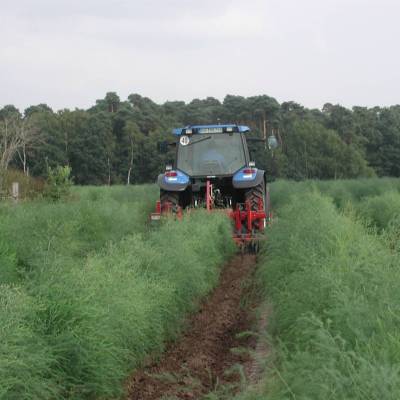

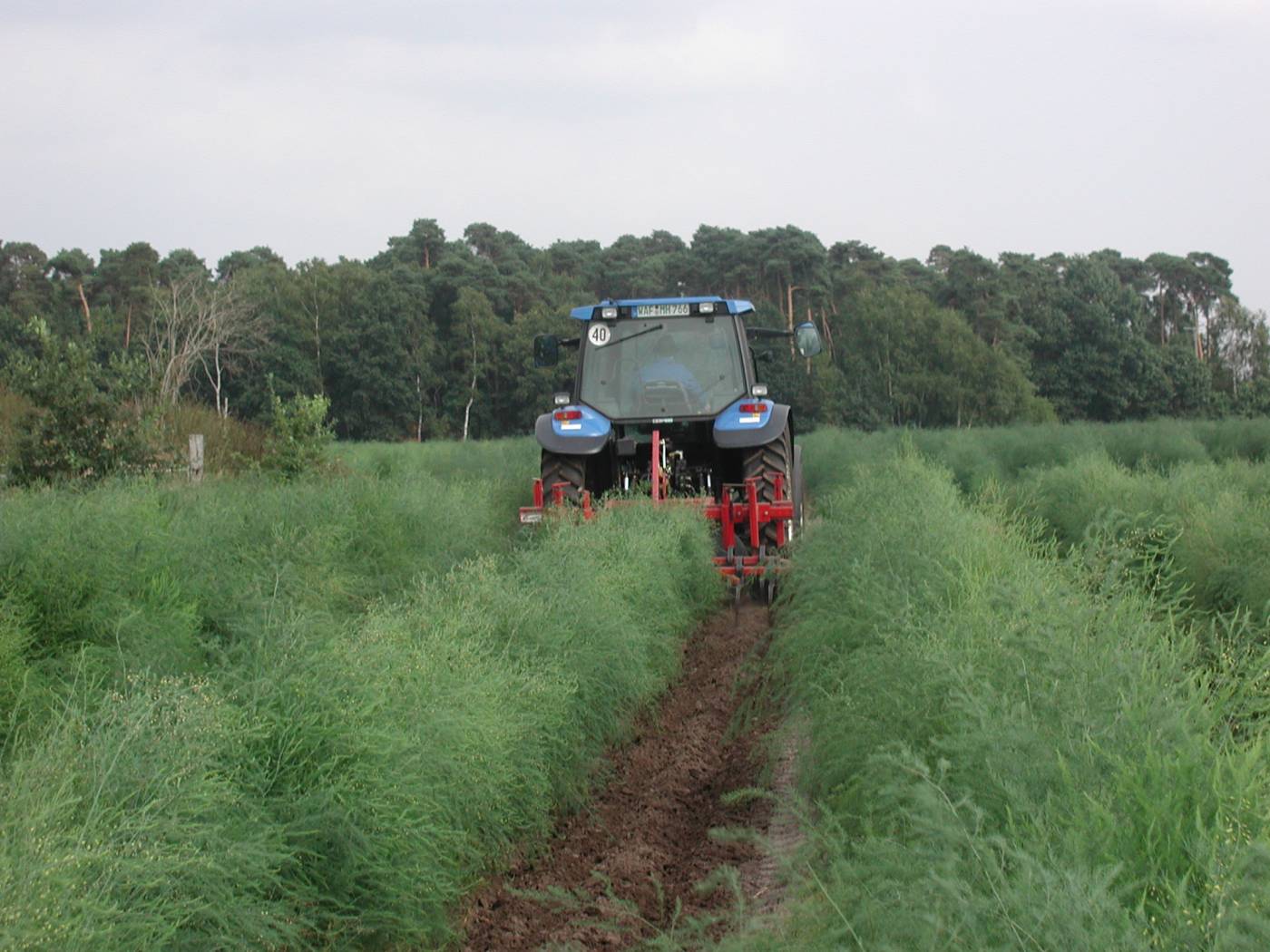

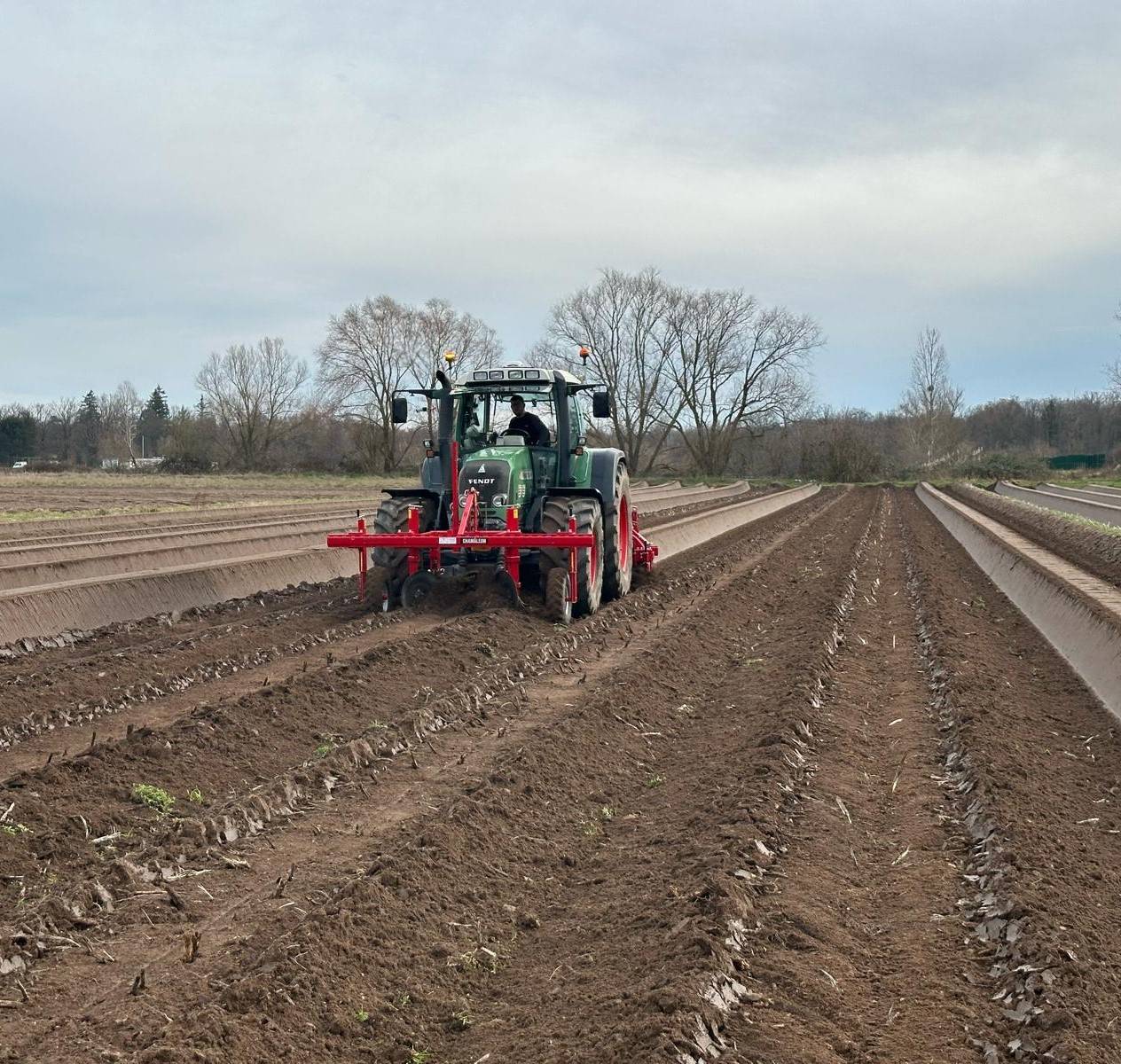

    • for marking the asparagus rows
    • for damming after the harvest

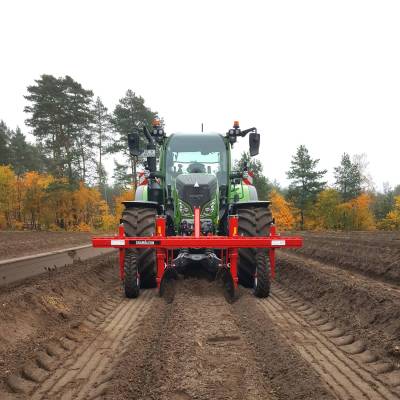

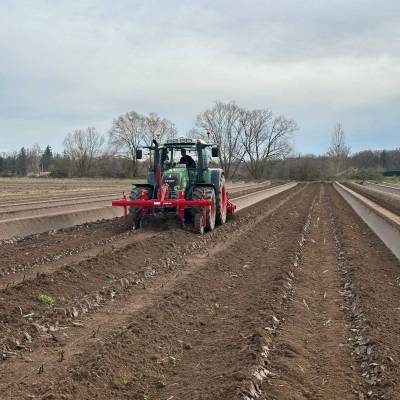

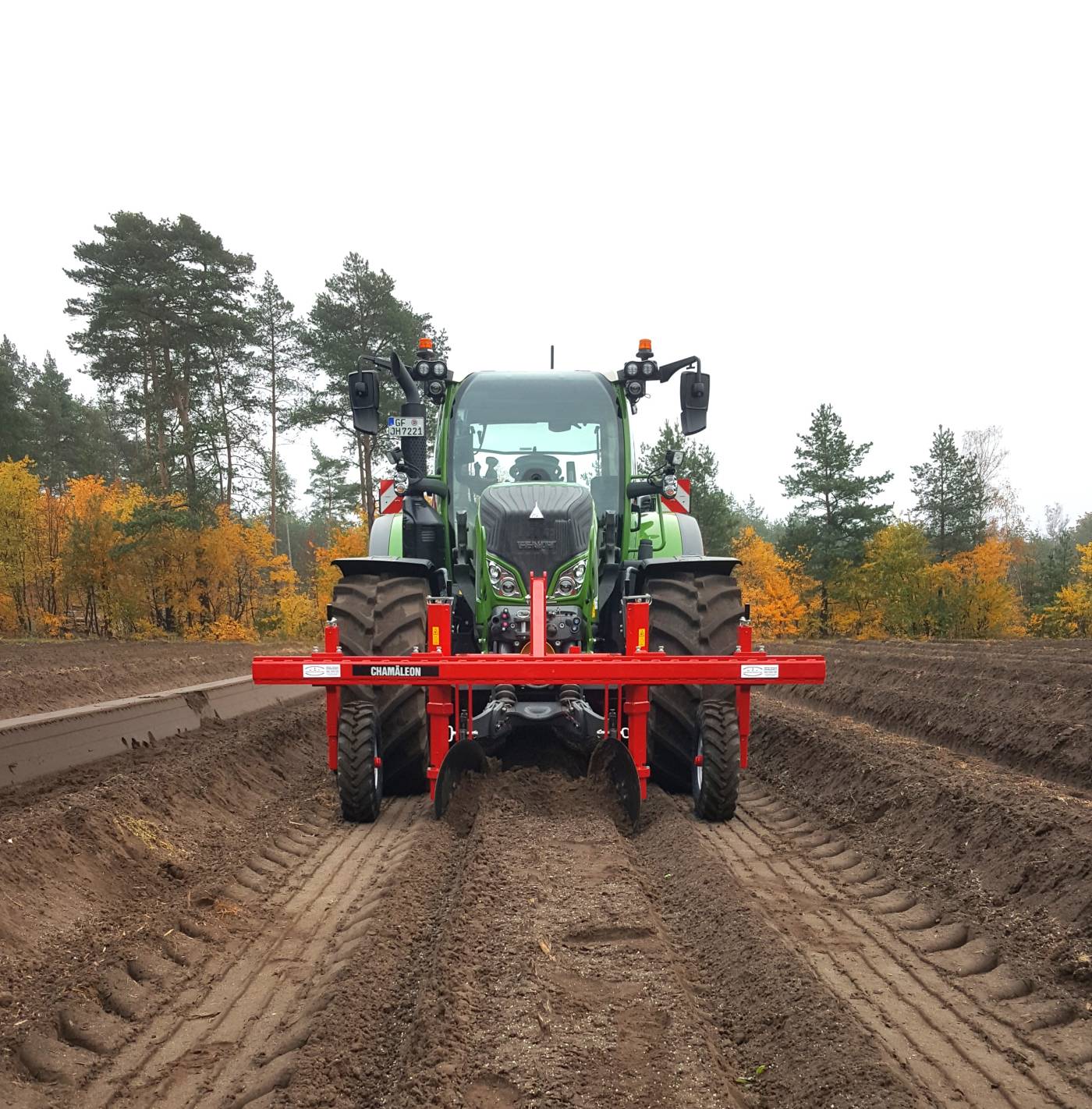

    • used in front cultivation for pre-damming
     Basic equipment:

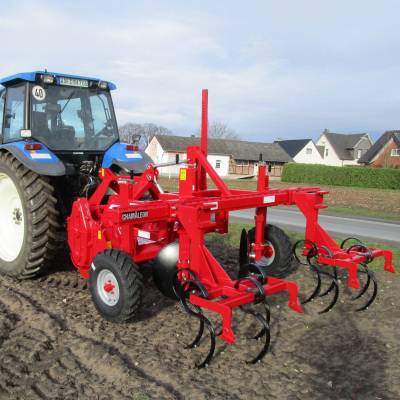

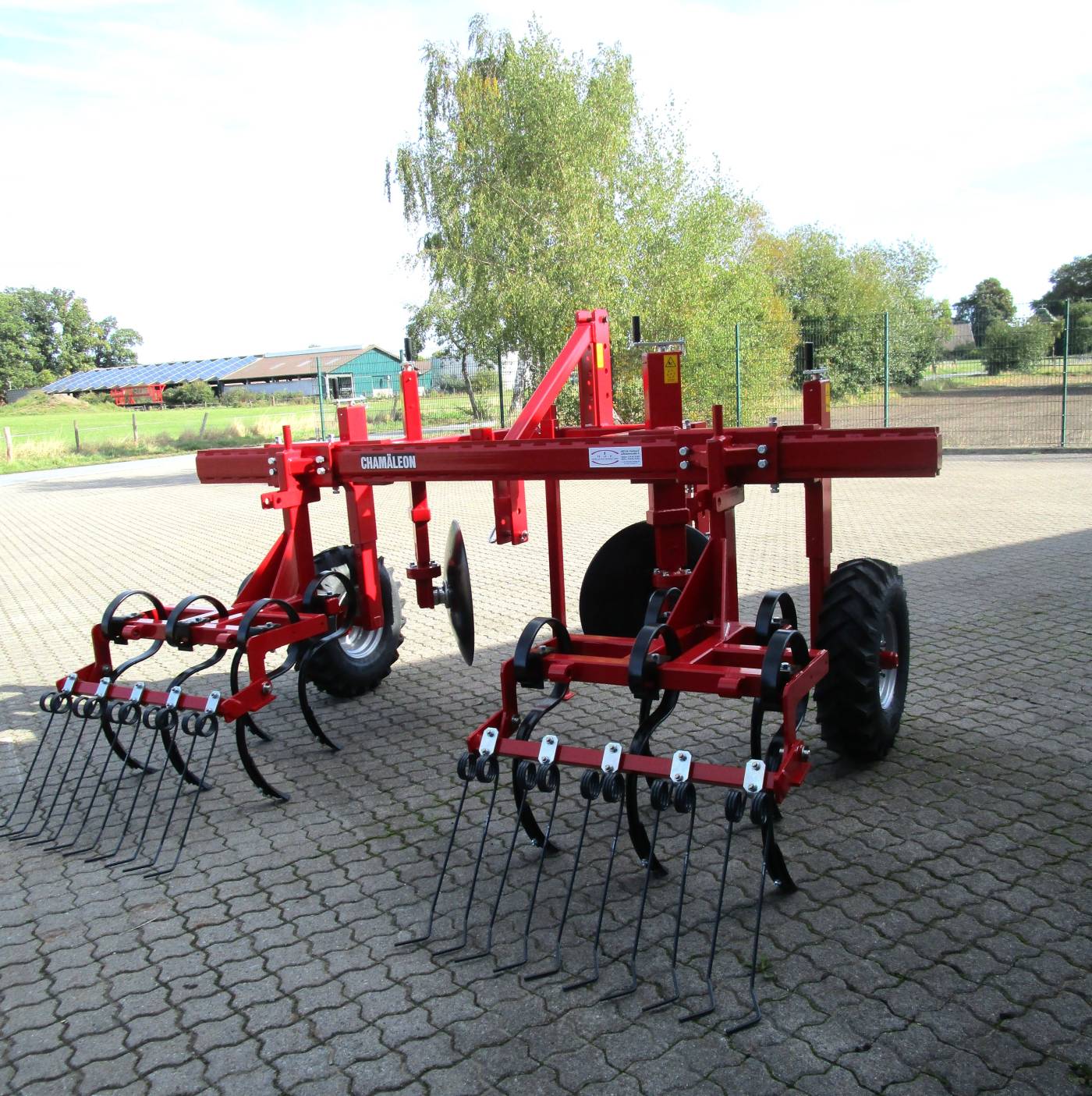

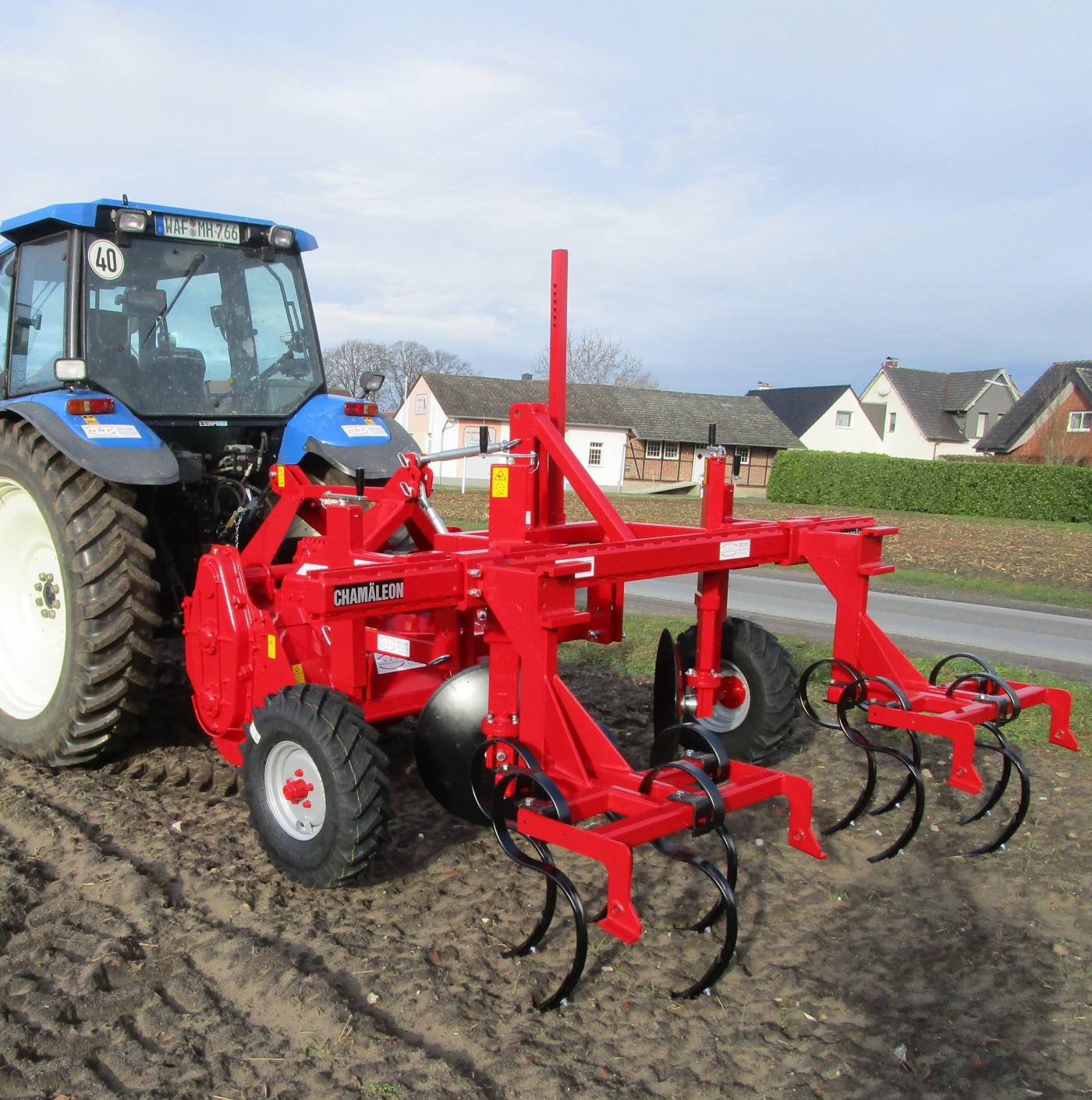

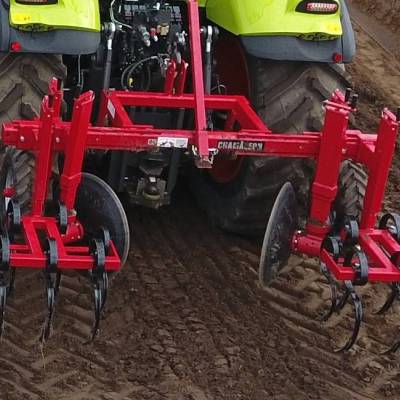

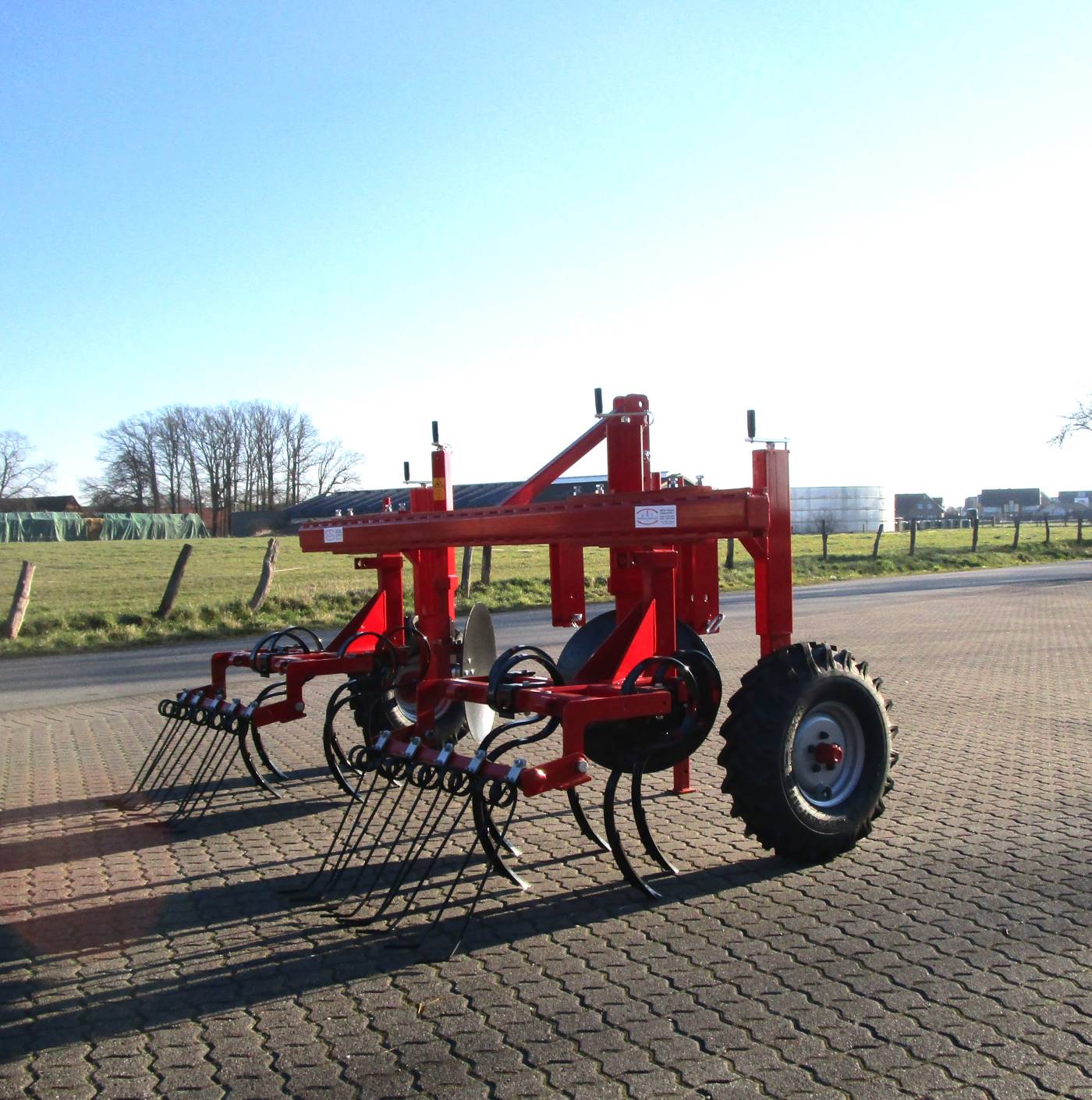

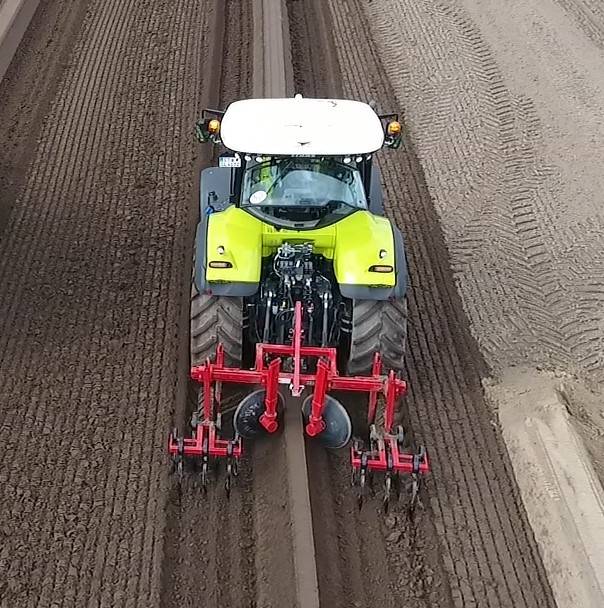

    • Sturdy carrier tube on which the tools are mounted:
      • 2 x Height-adjustable, rotable disc
      • 2 x Support wheel adjustable via spindle
      • 2 x Chopping frame with 5 culture harrow tines each
    • Depth setting of the chopping frame via the support wheels
    • Adjustable working width

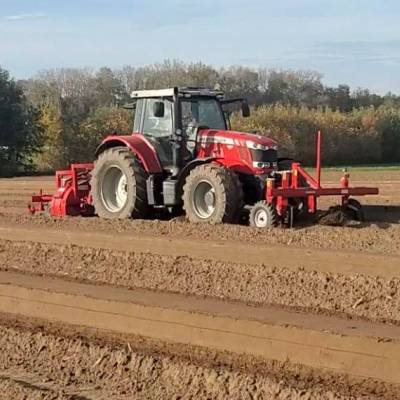

    • Front and rear hydraulics
    • 1 x Support foot
     Technical data:
    Disc diameter: approx. 610 mm
    Working widt: from approx. 1600 bis 2800 mm
    Dimensions LxWxH:  approx. 1570 x 2950 x 1600 mm
    Machine headroom:  approx. 950 mm
    Weight: approx. 590 kg
    Power requirement:  approx ca. 60 hp
    Accessories / Variations:

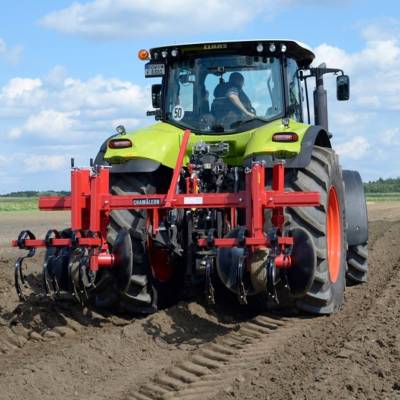

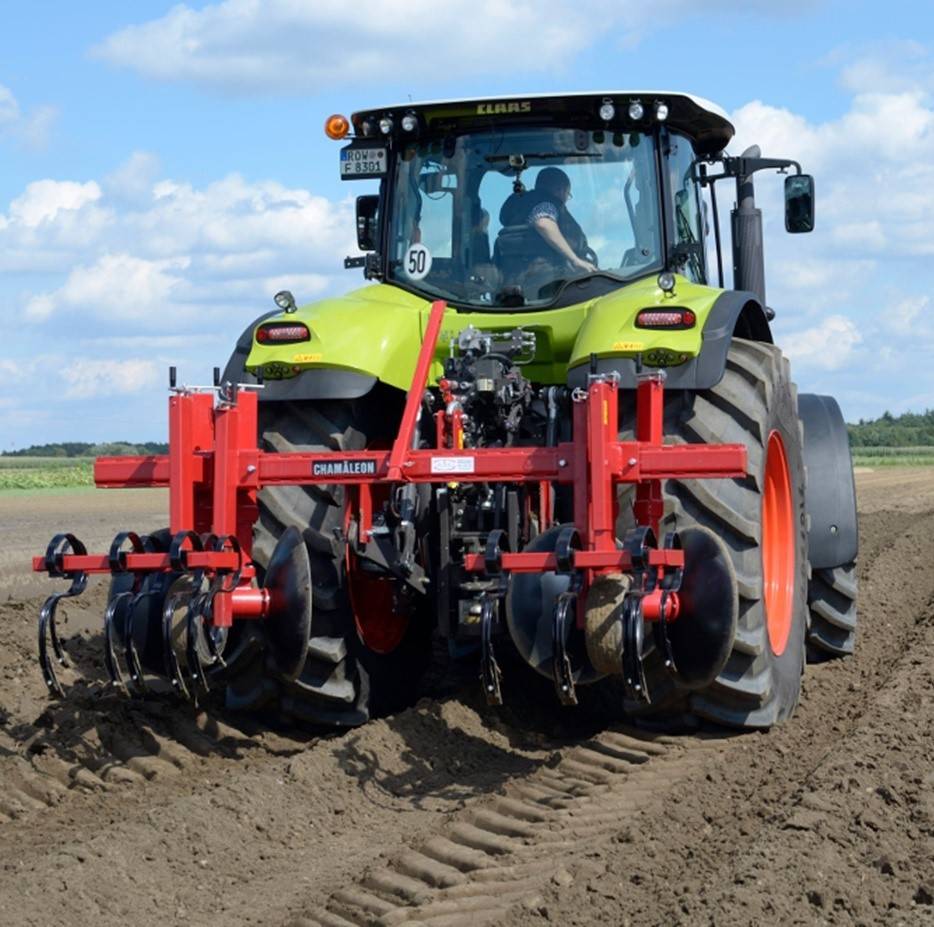

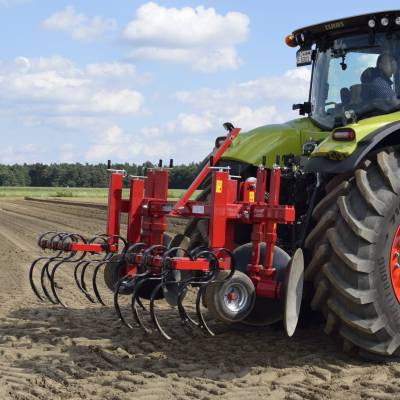

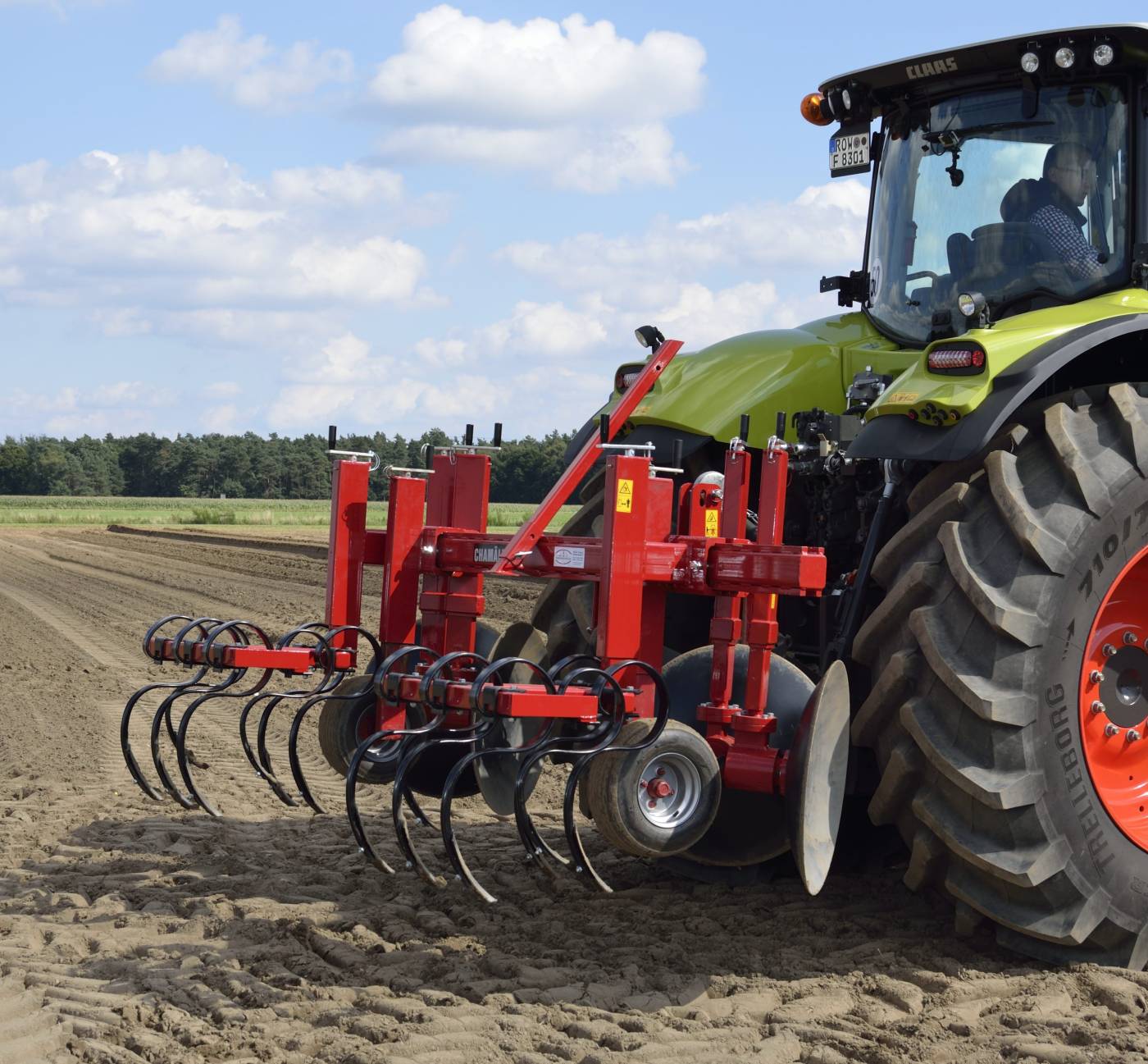

    • Also available with 4 height-adjustable, rotatable discs
    • Different disc diameteres available
    • Harrow tines in the rear
    • Adapter for combination with depth spade MAULWURF
      = for increased loosening the soil of the tramlines
      = minimising waterlogging

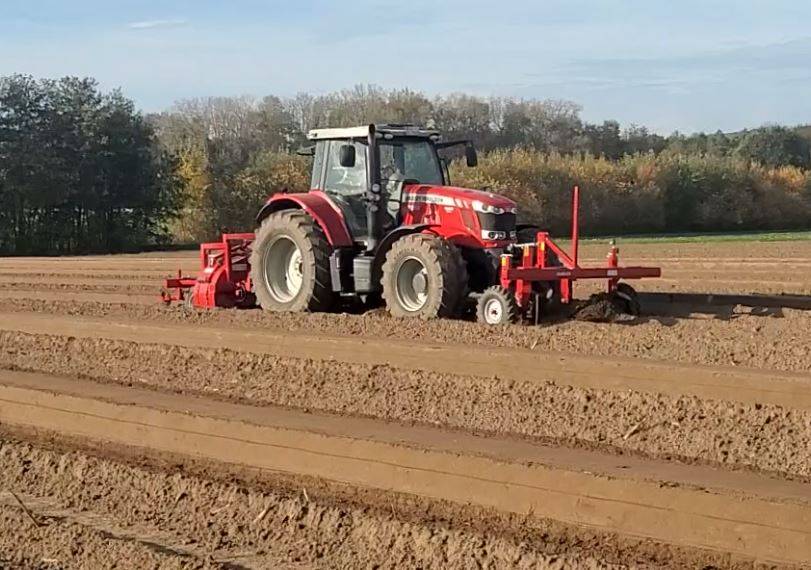

    • Adapter for combination with rotary tiller ARE / ASR
      = for a better distribution of soil for the creation of winter dams

    Individual modifications with regard to equipment, dimensions, etc. are possible on request.
