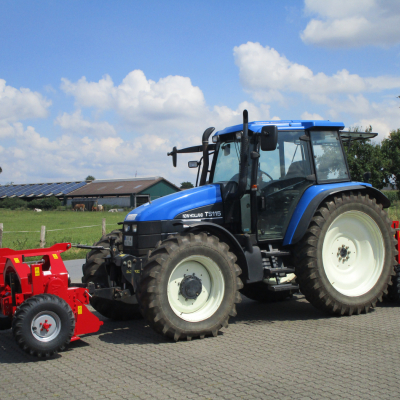

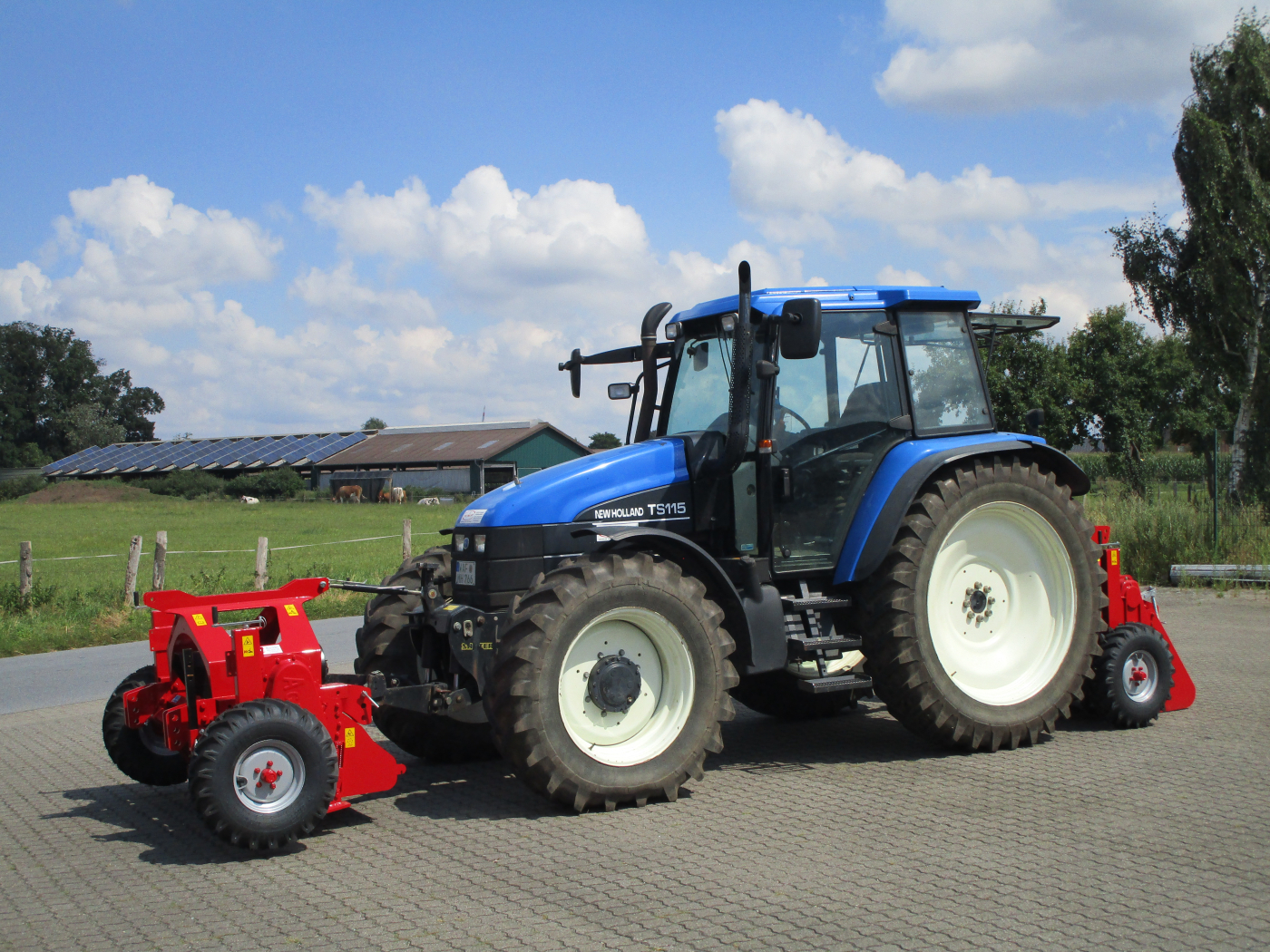

ARE 1300 + ASR 1300

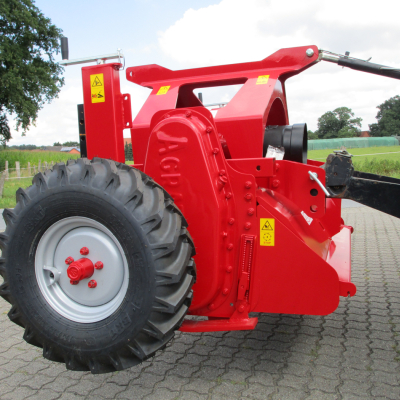

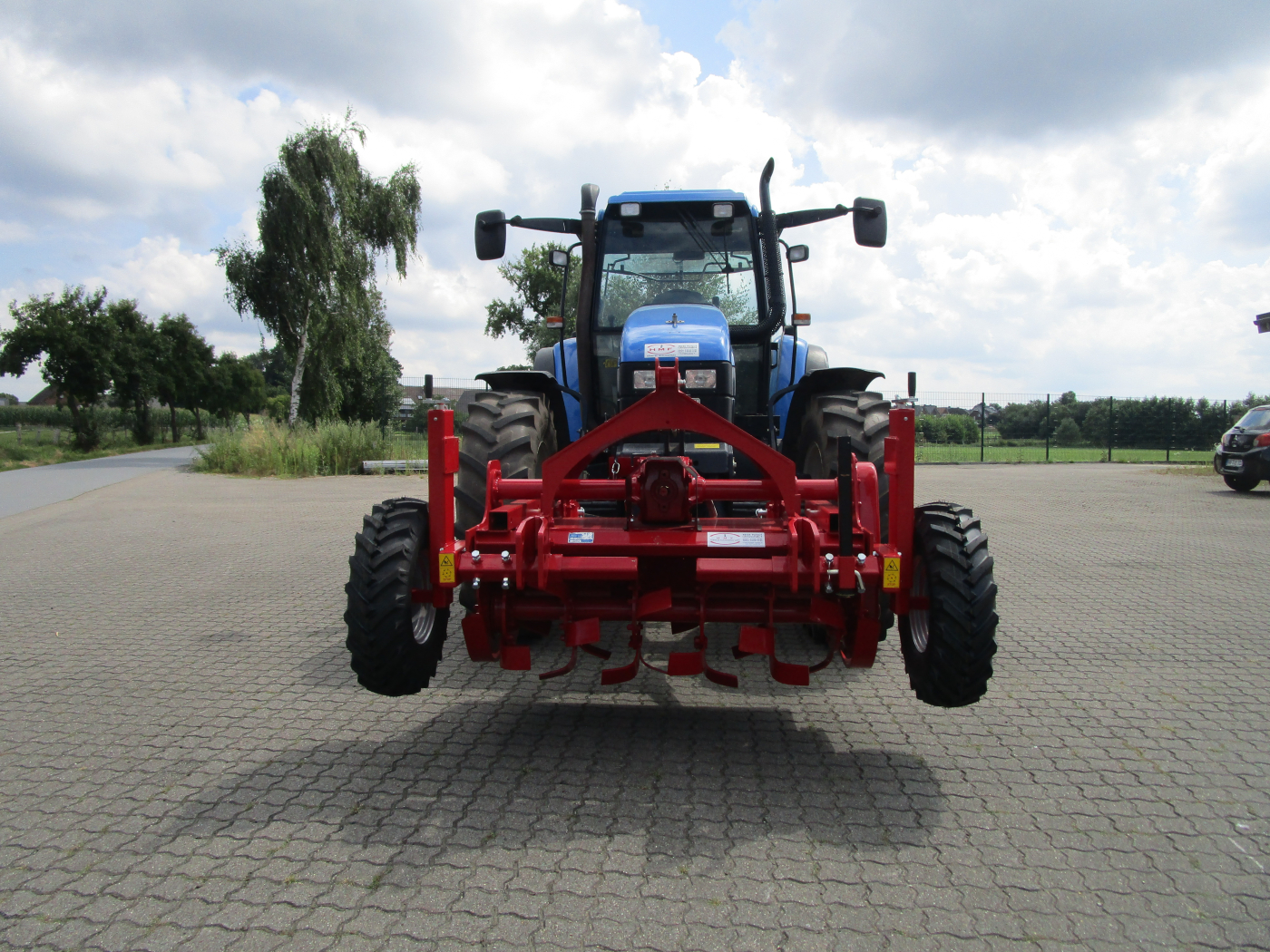

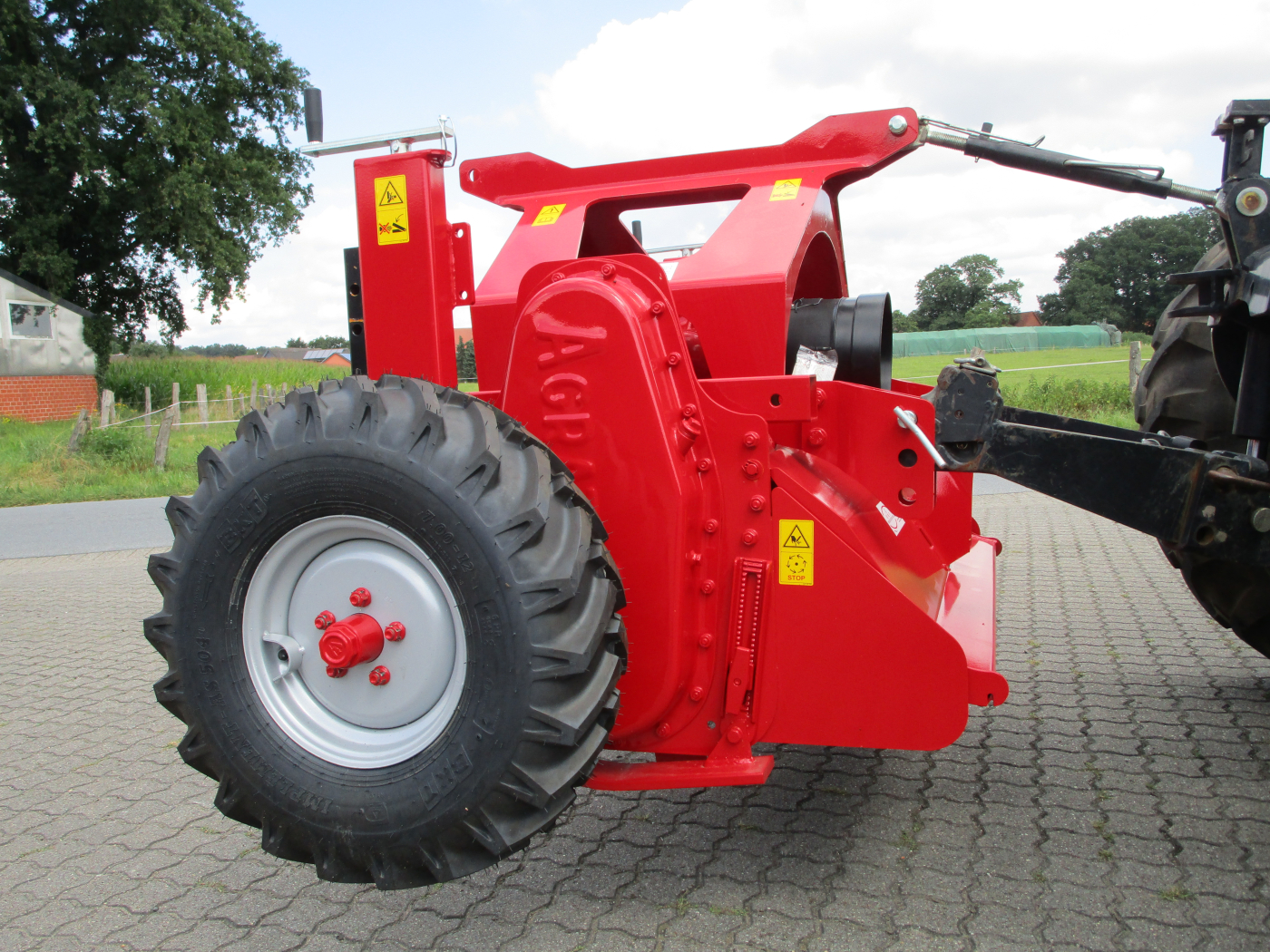

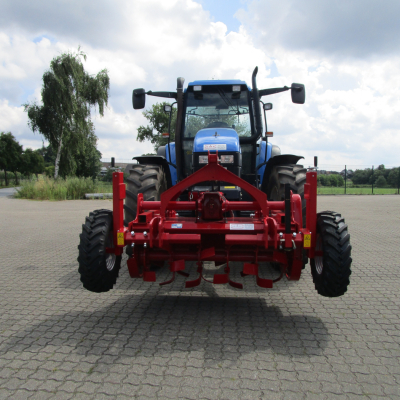

ARE 1300
ARE 1300

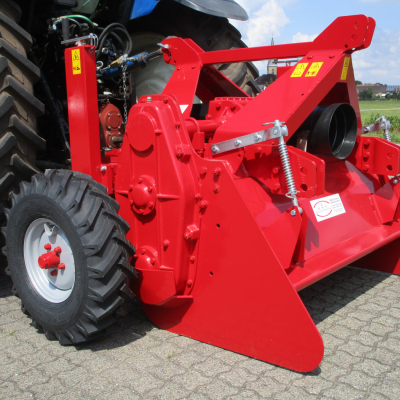

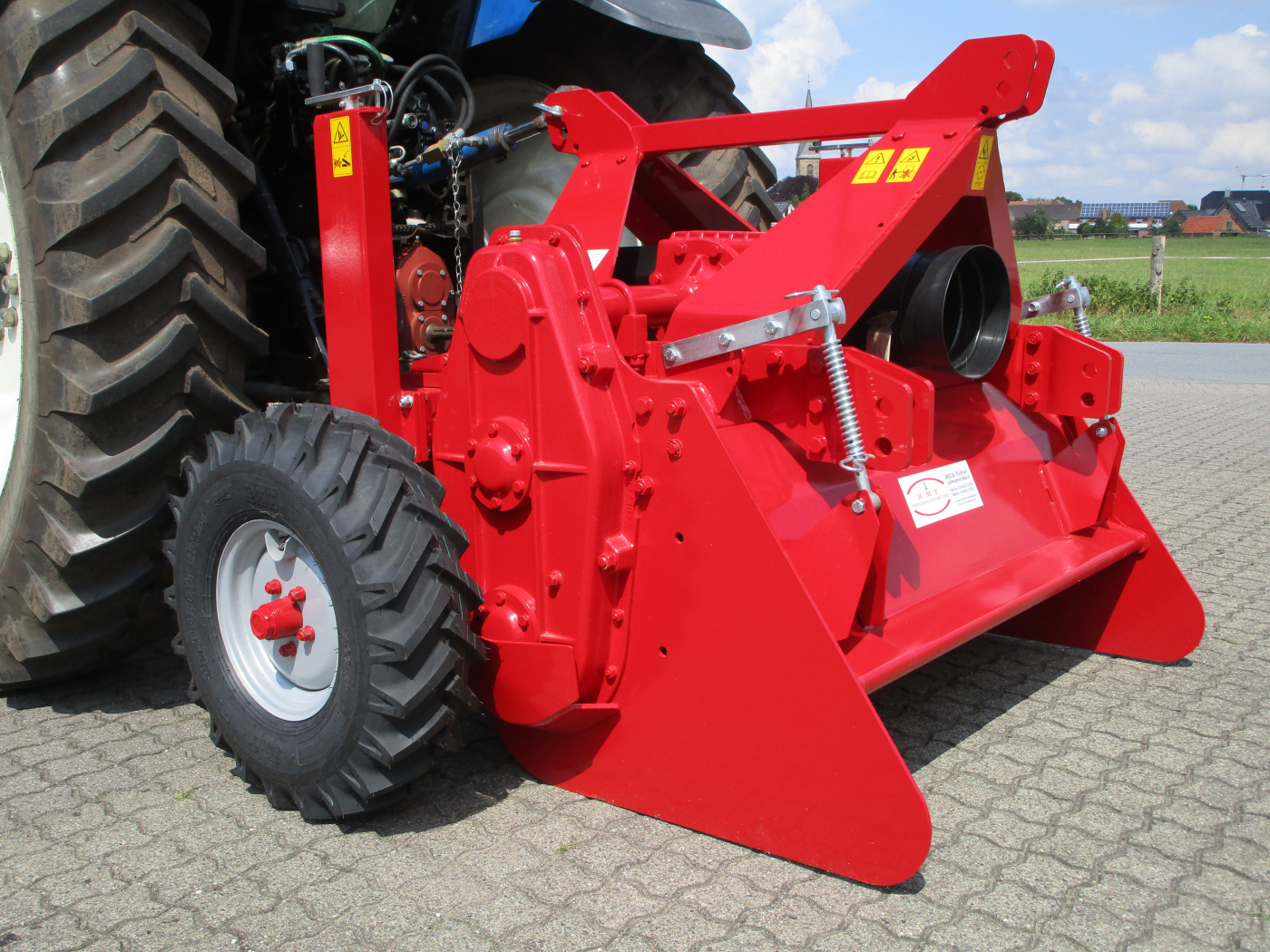

ASR 1300

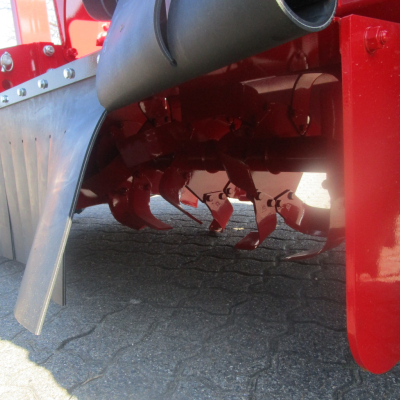

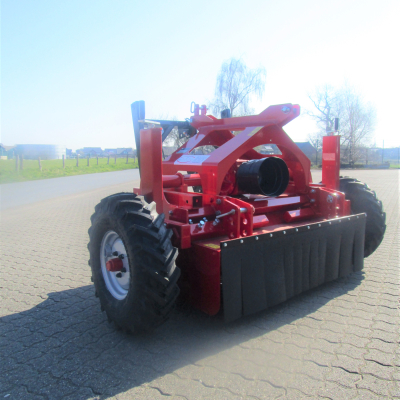

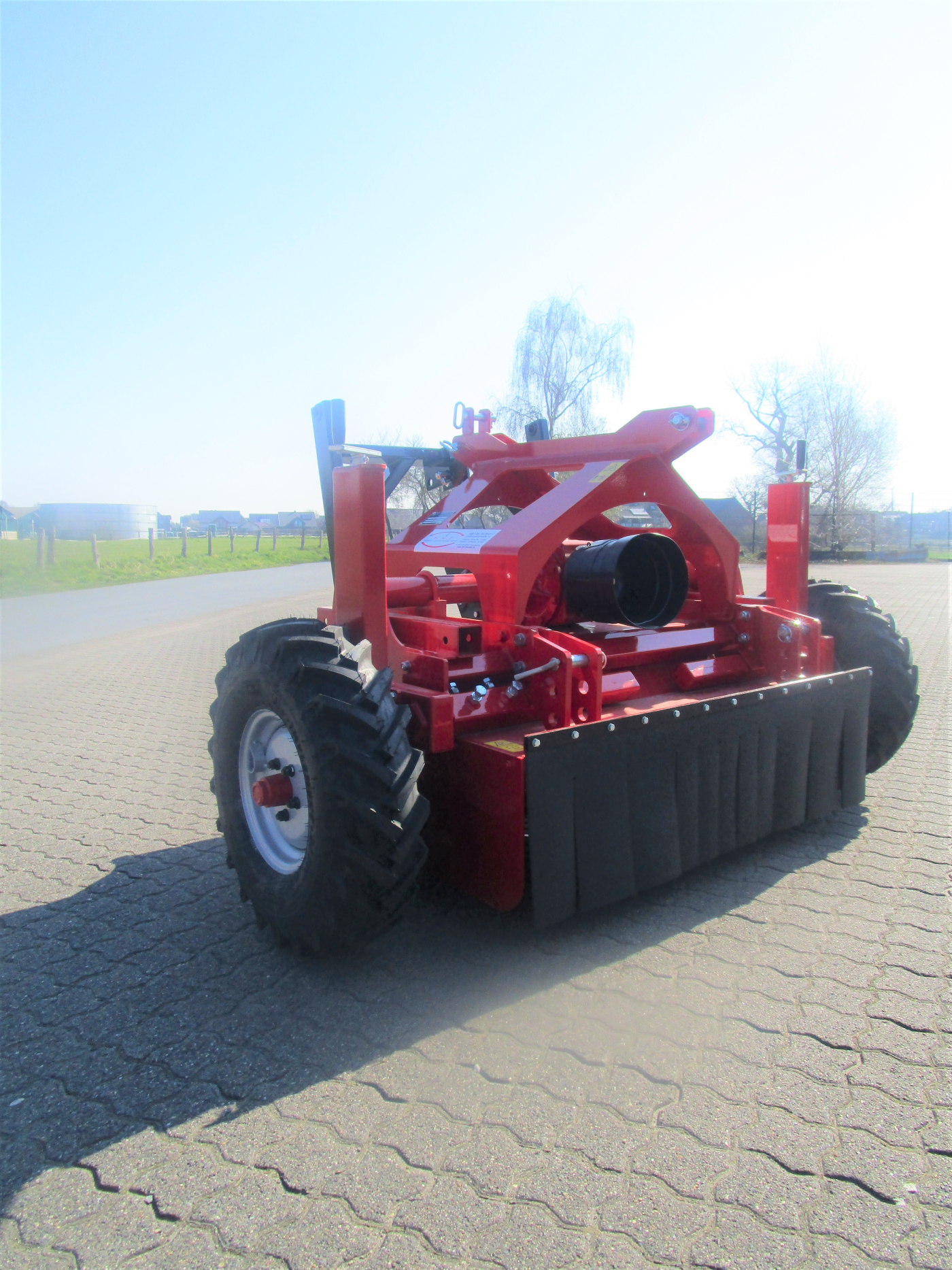

Reverse rotary tiller ARE 1300

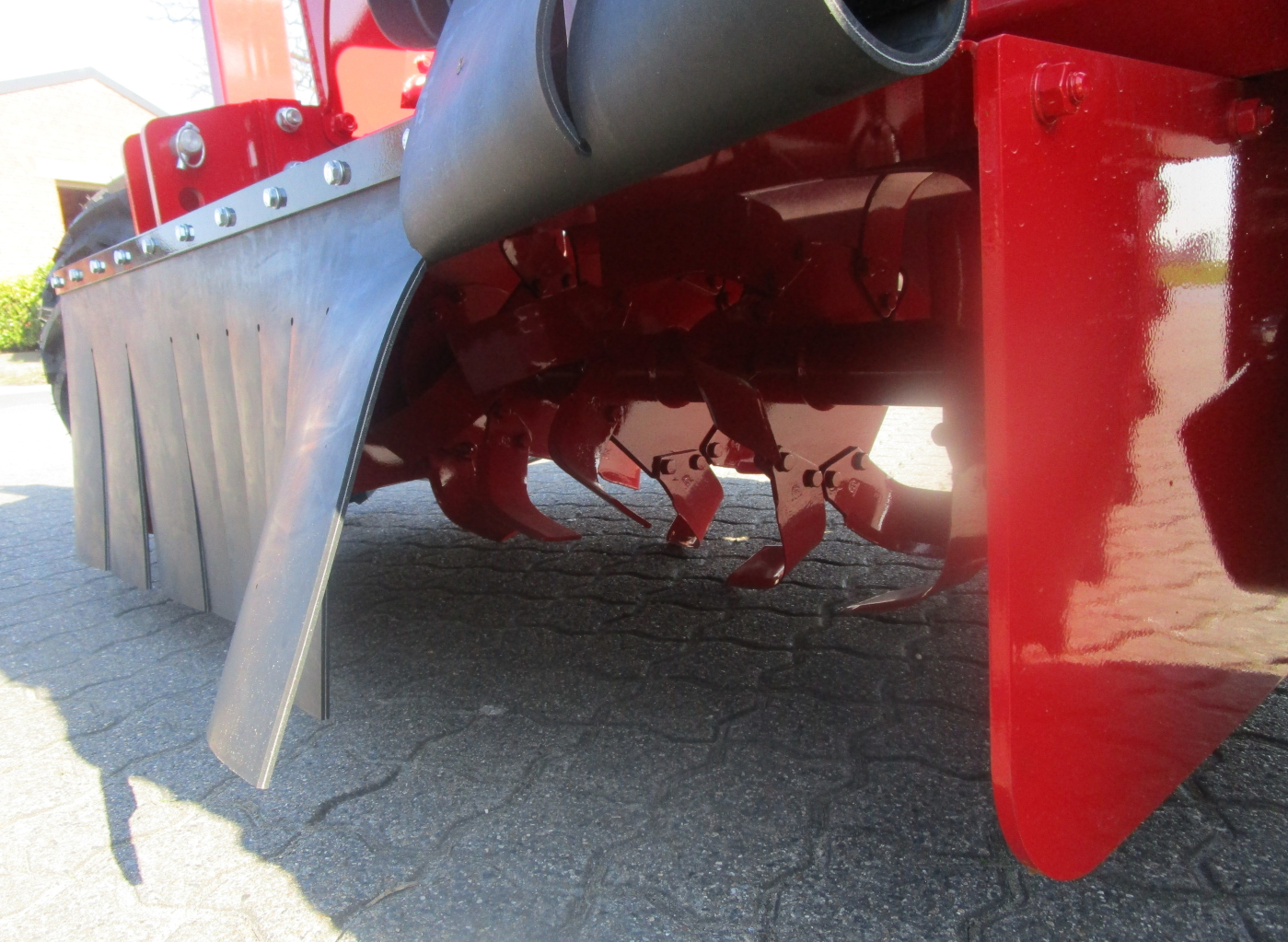

Reverse rotary tiller ARE 1300

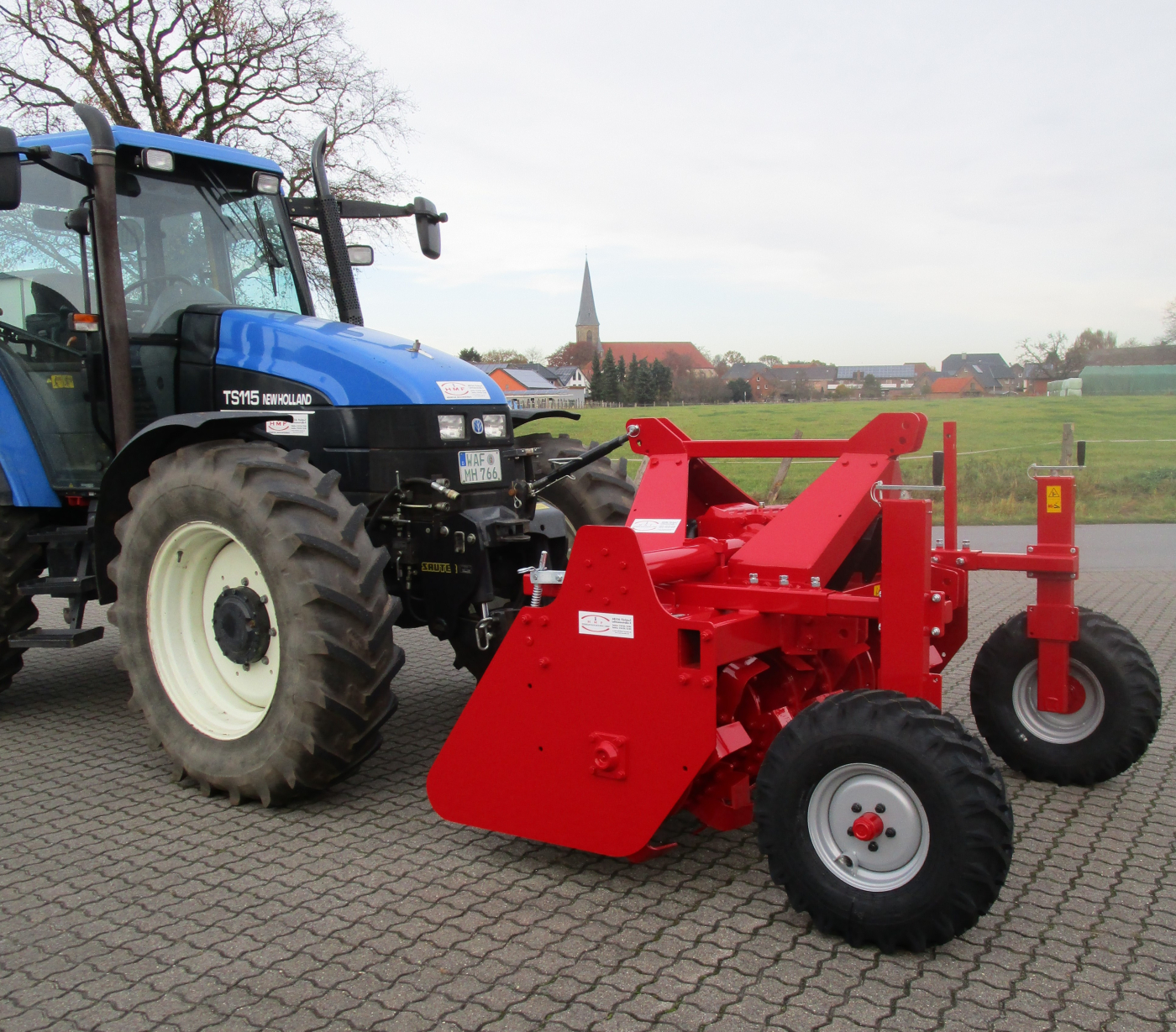

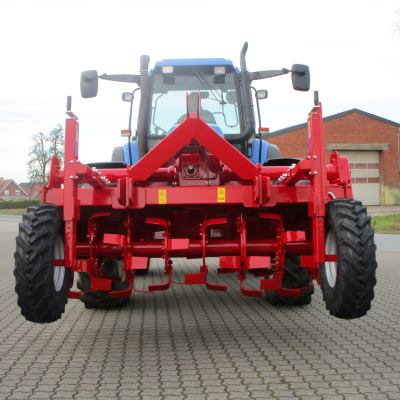

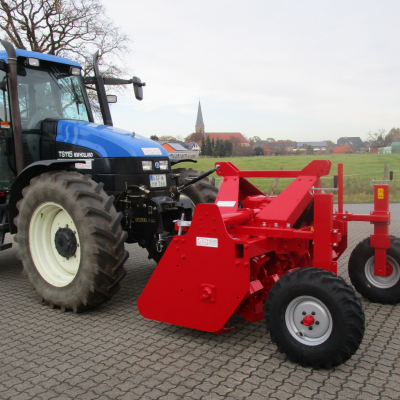

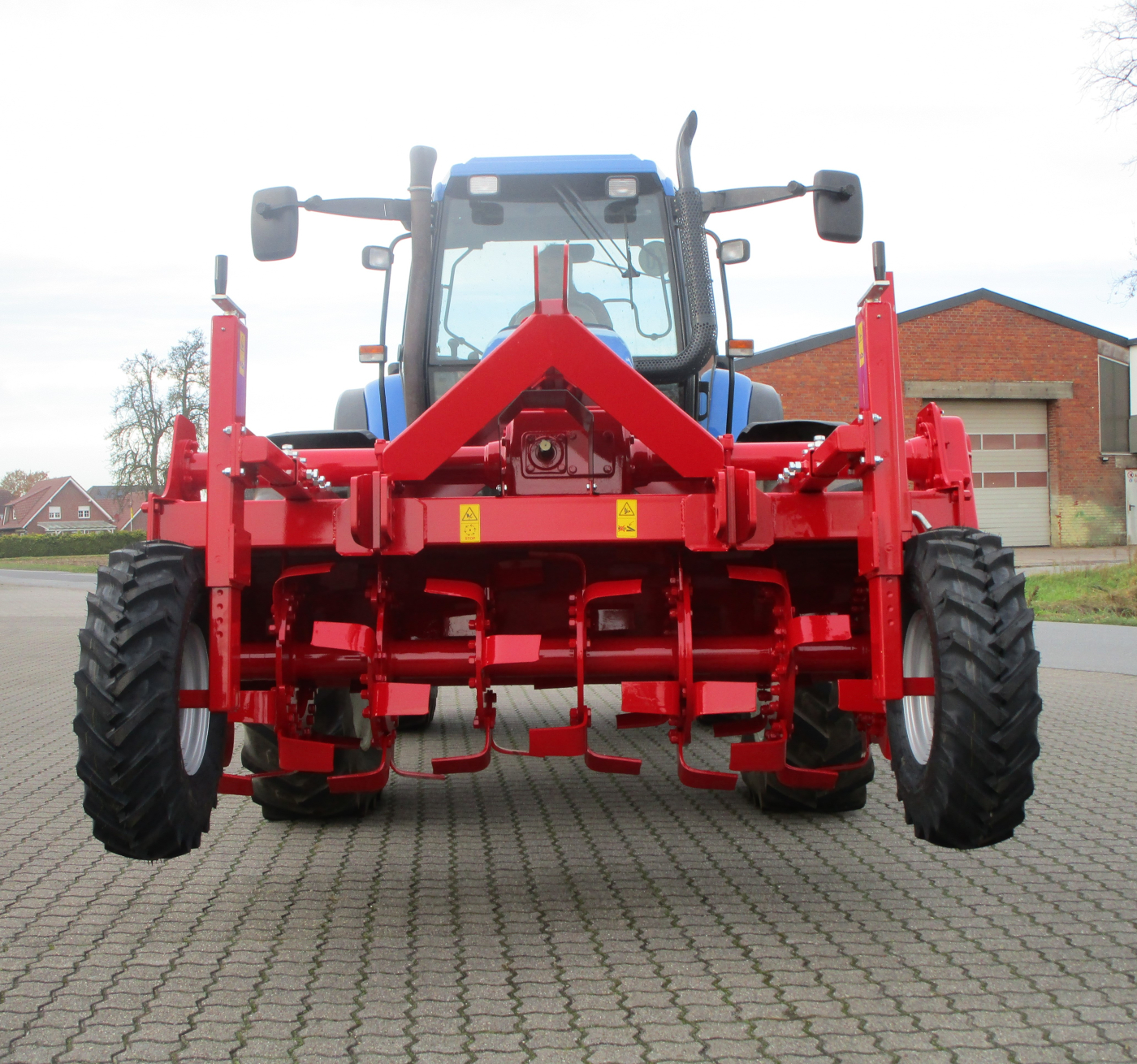

ARE 2000
ARE 2000

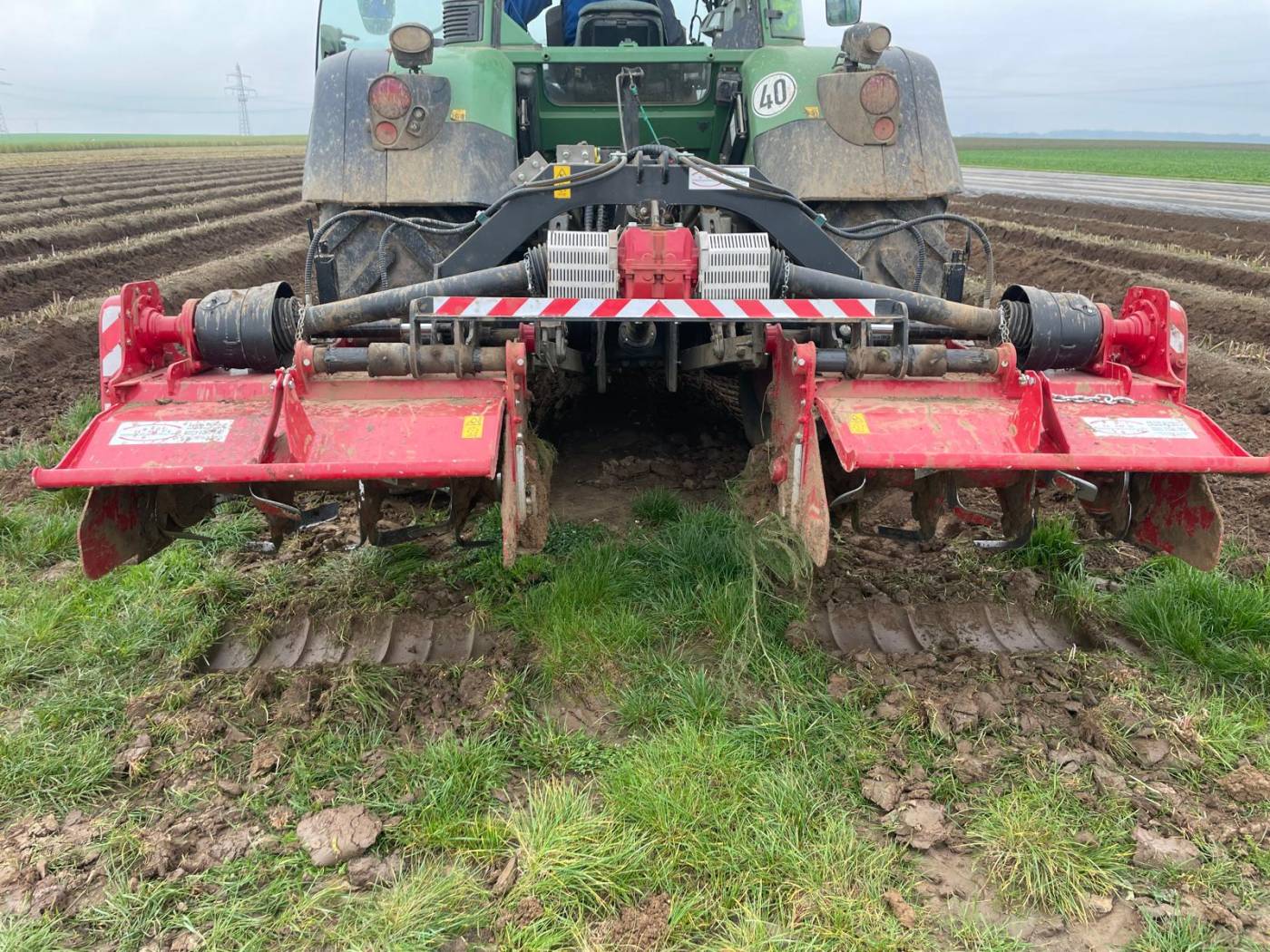

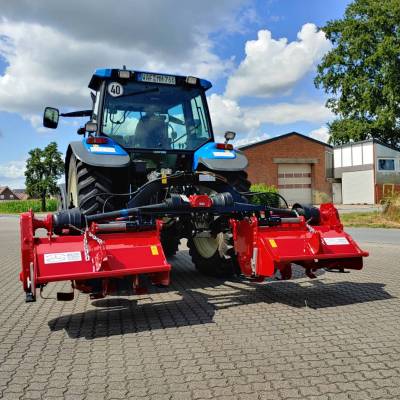

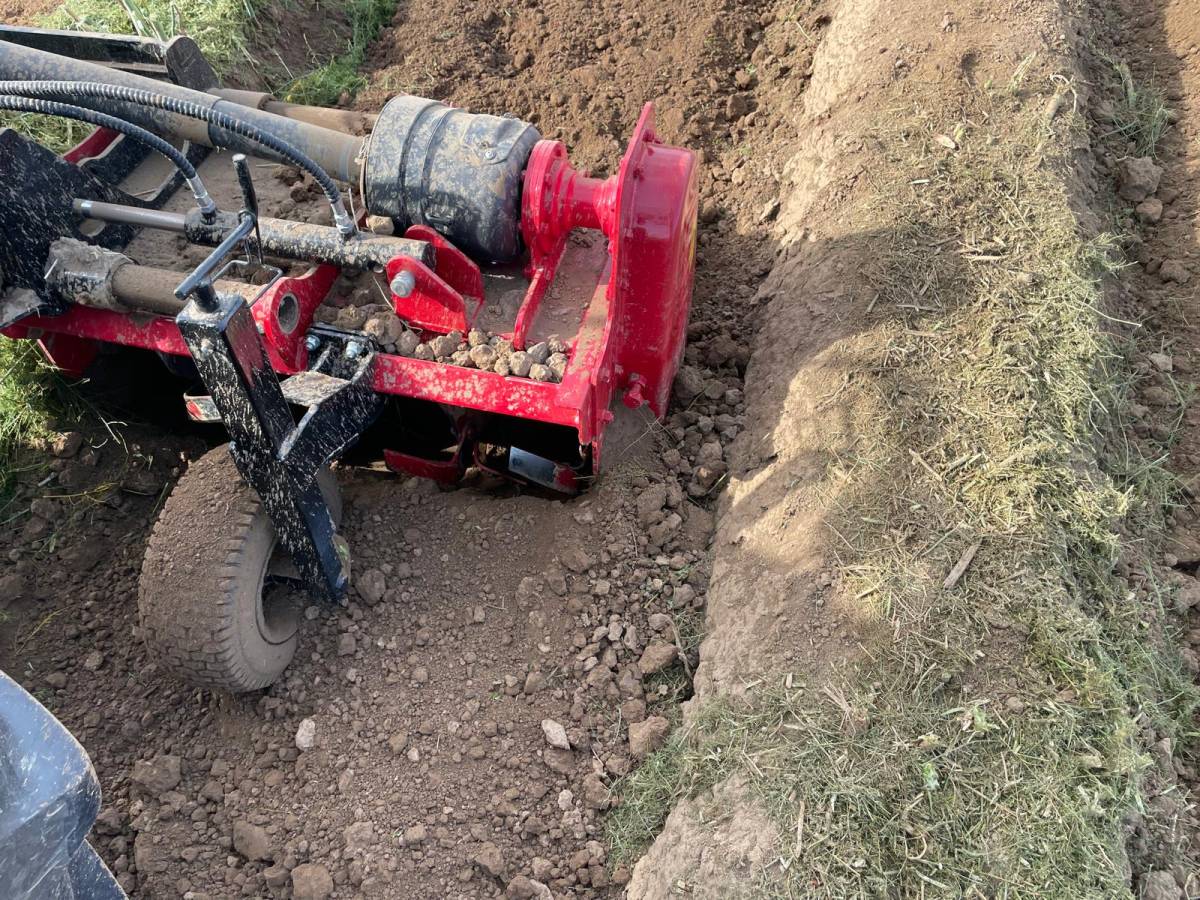

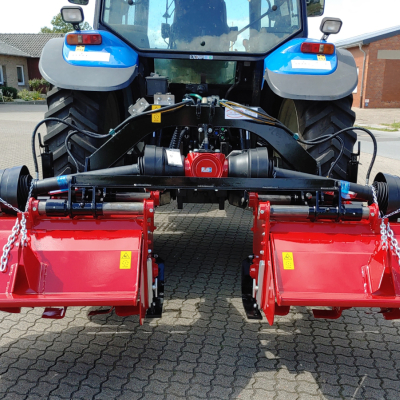

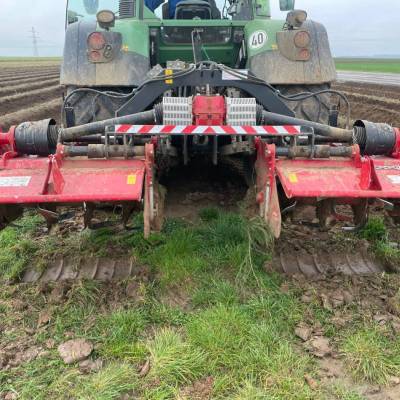

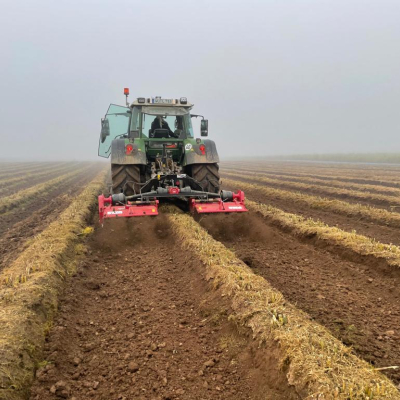

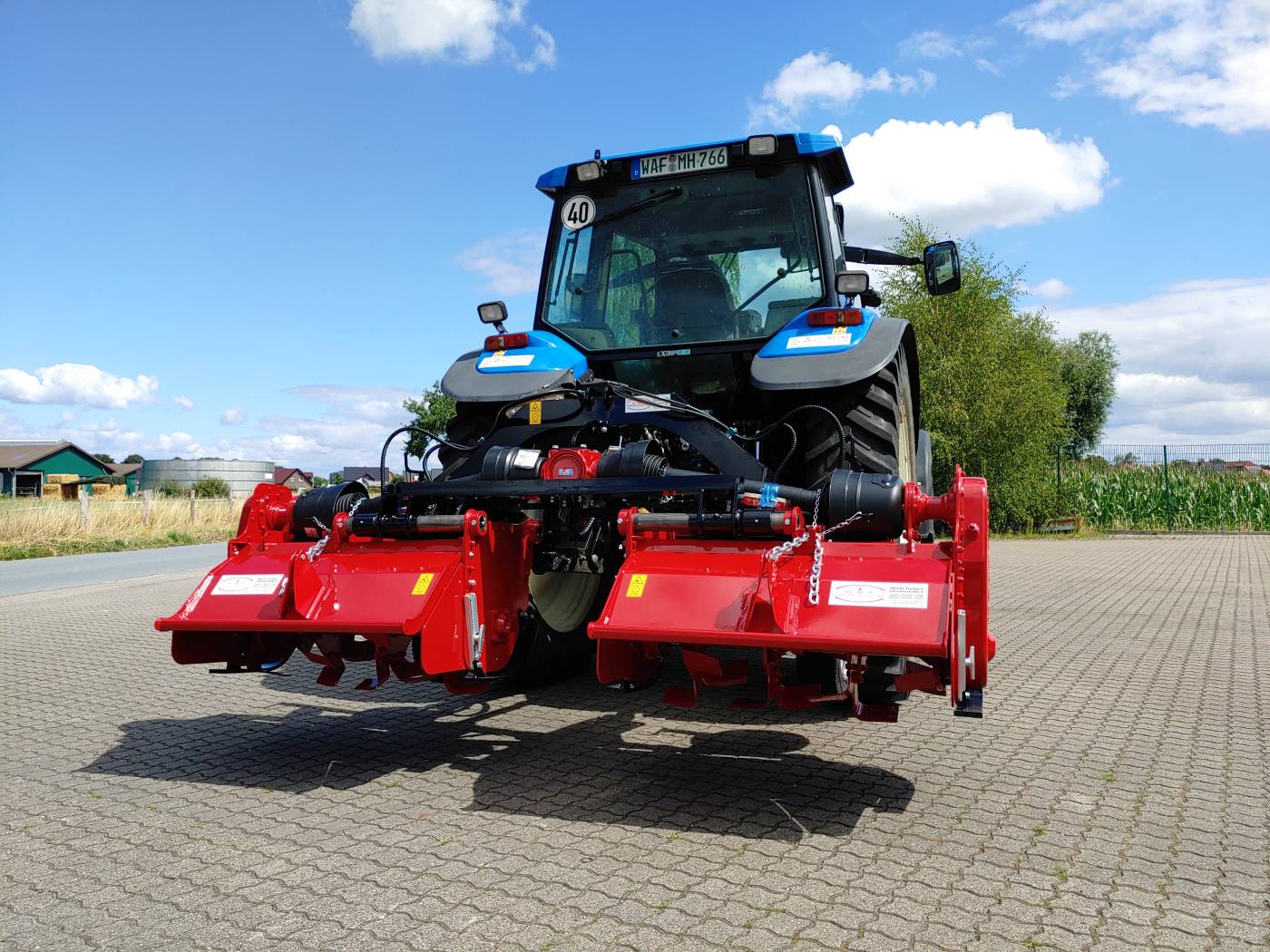

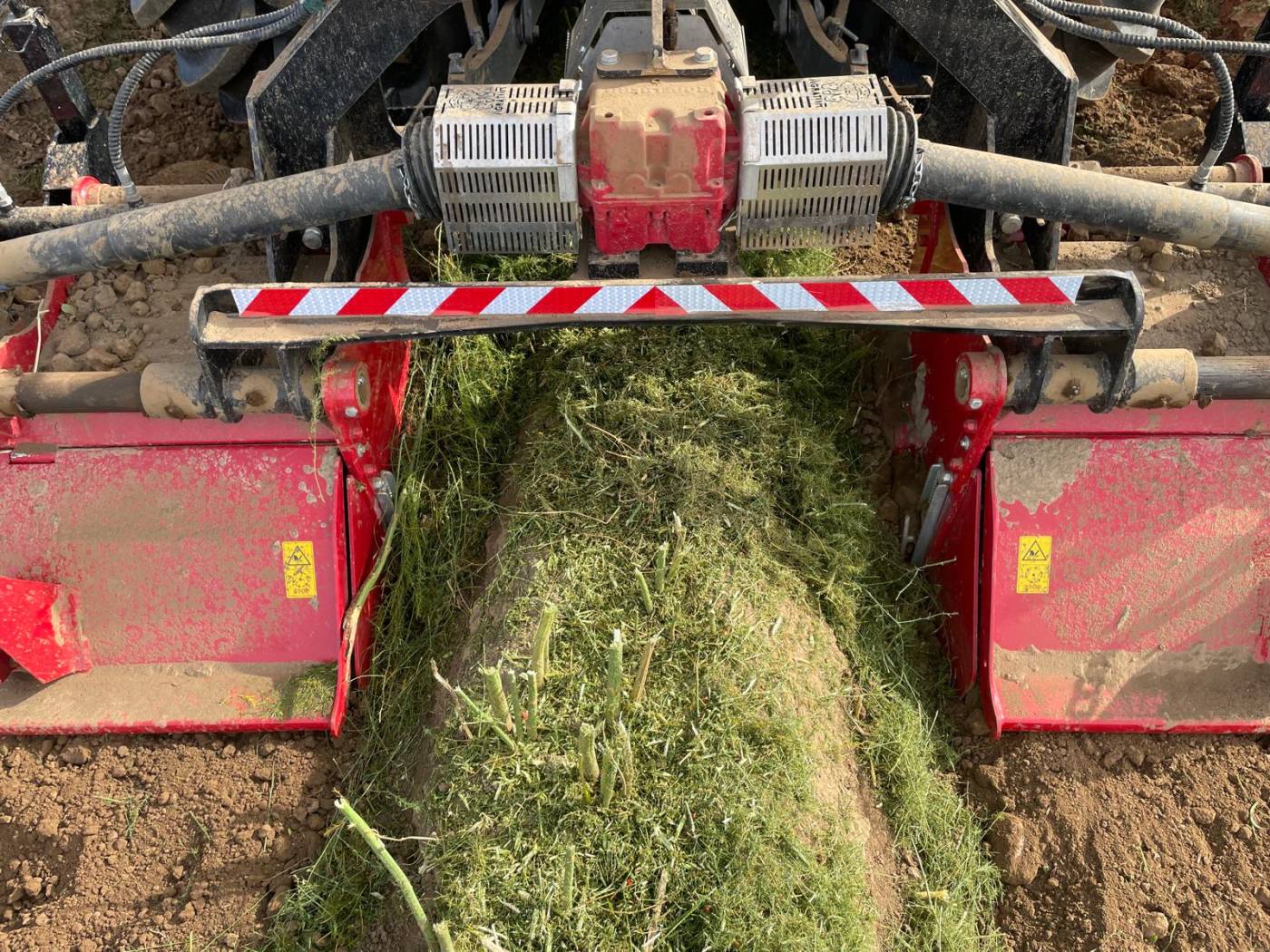

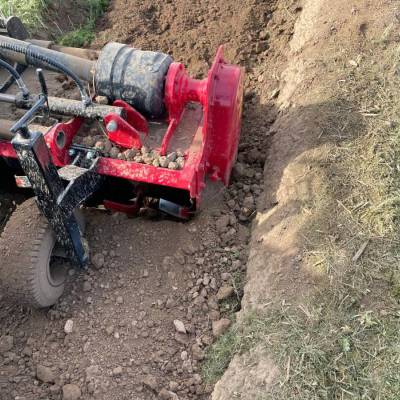

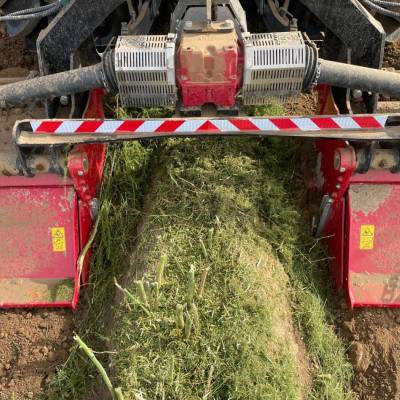

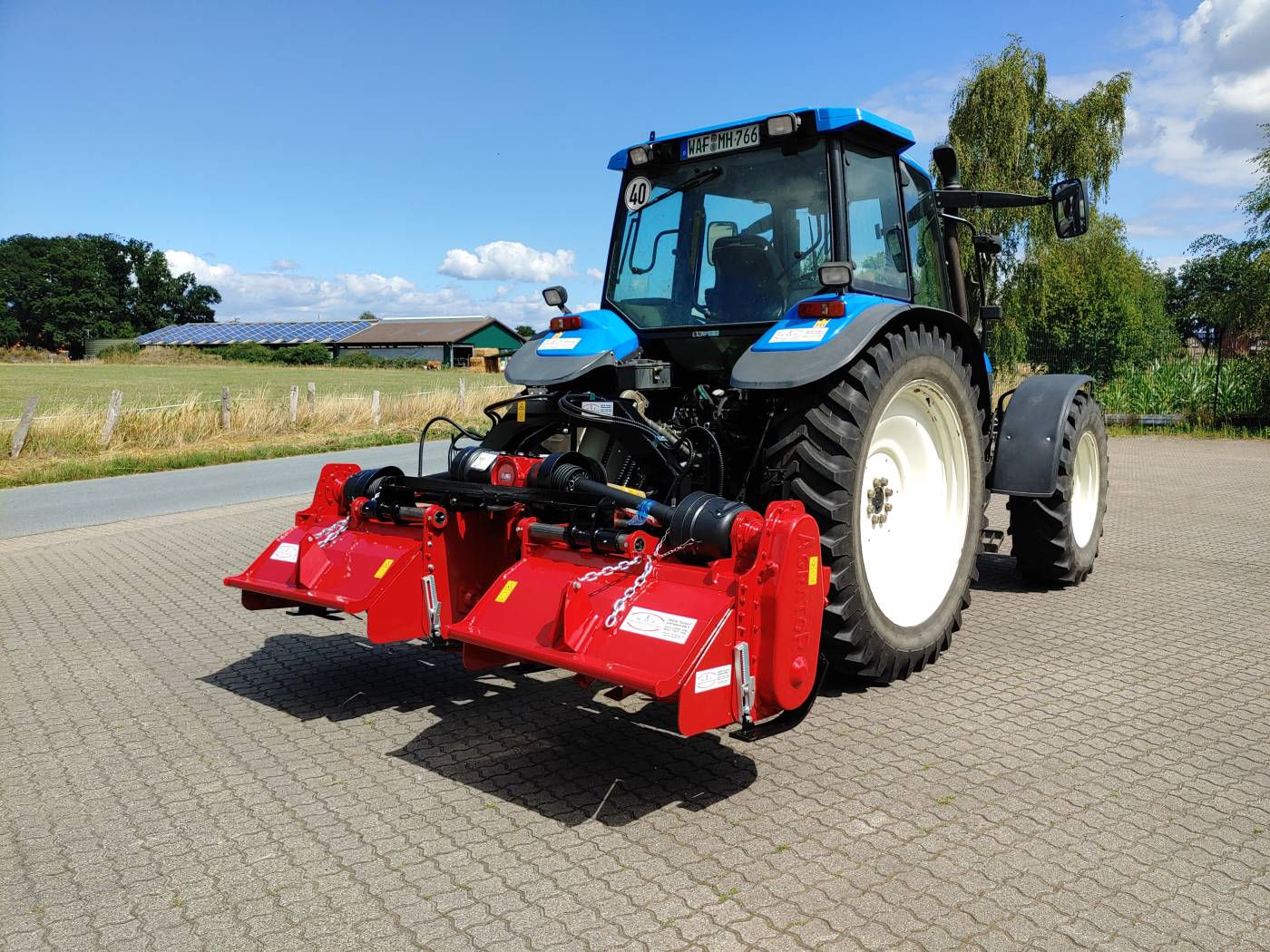

ES-2C-1050
ES-2C-1050
ES-2C-1050
ES-2C-1050
ES-2C-1050
ES-2C-1050
ES-2C-1050
ES-2C-1050
-

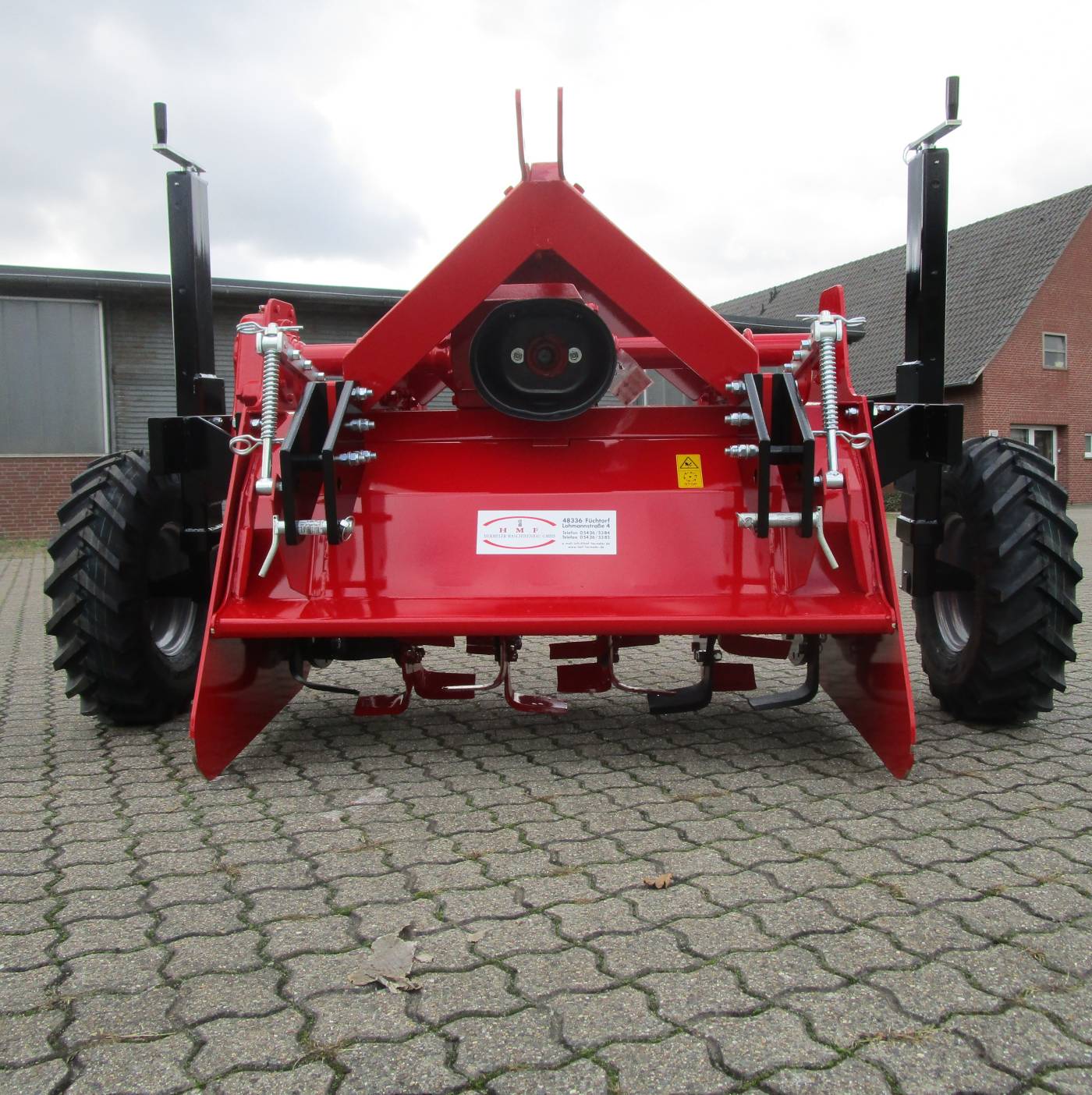

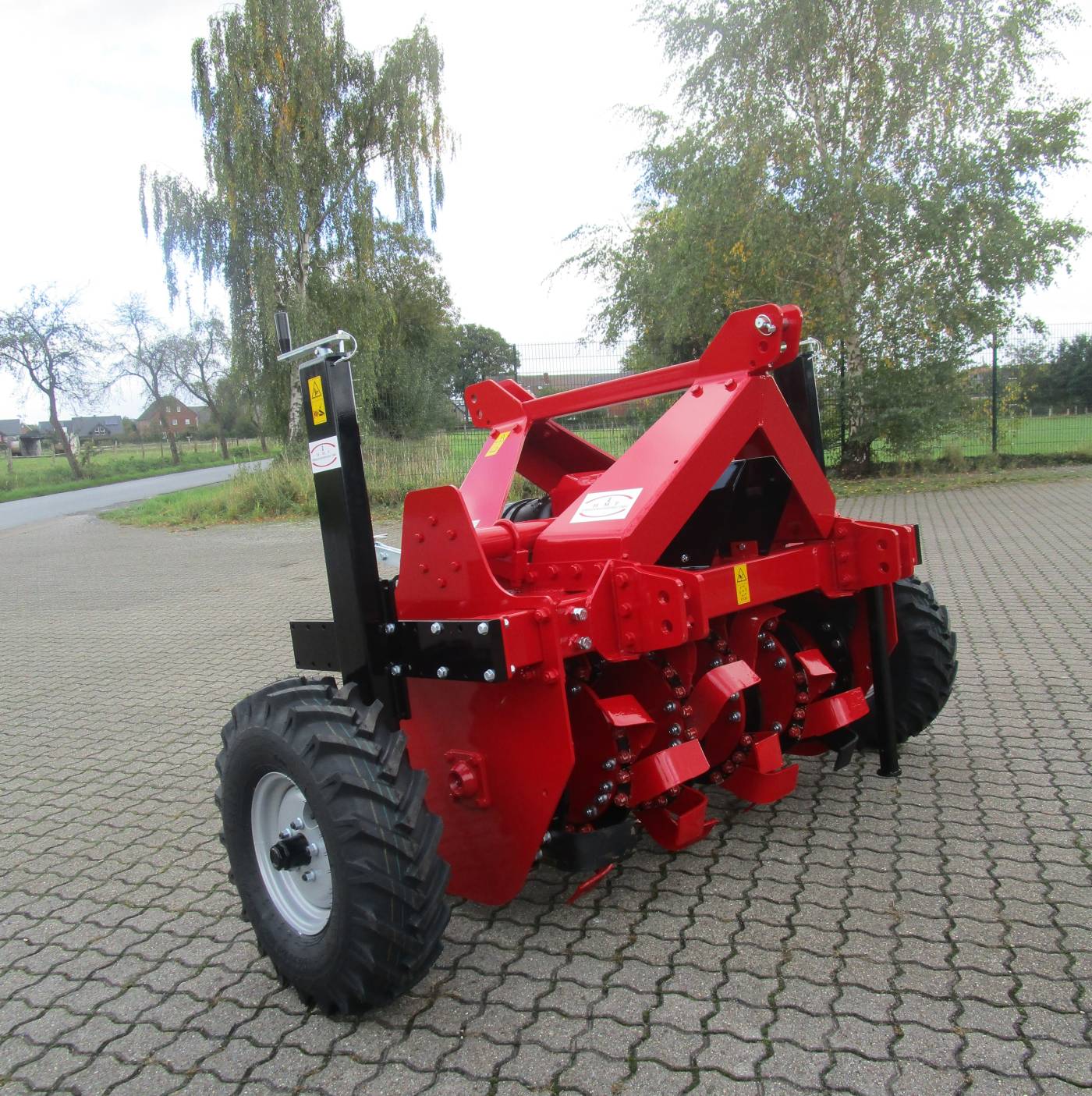

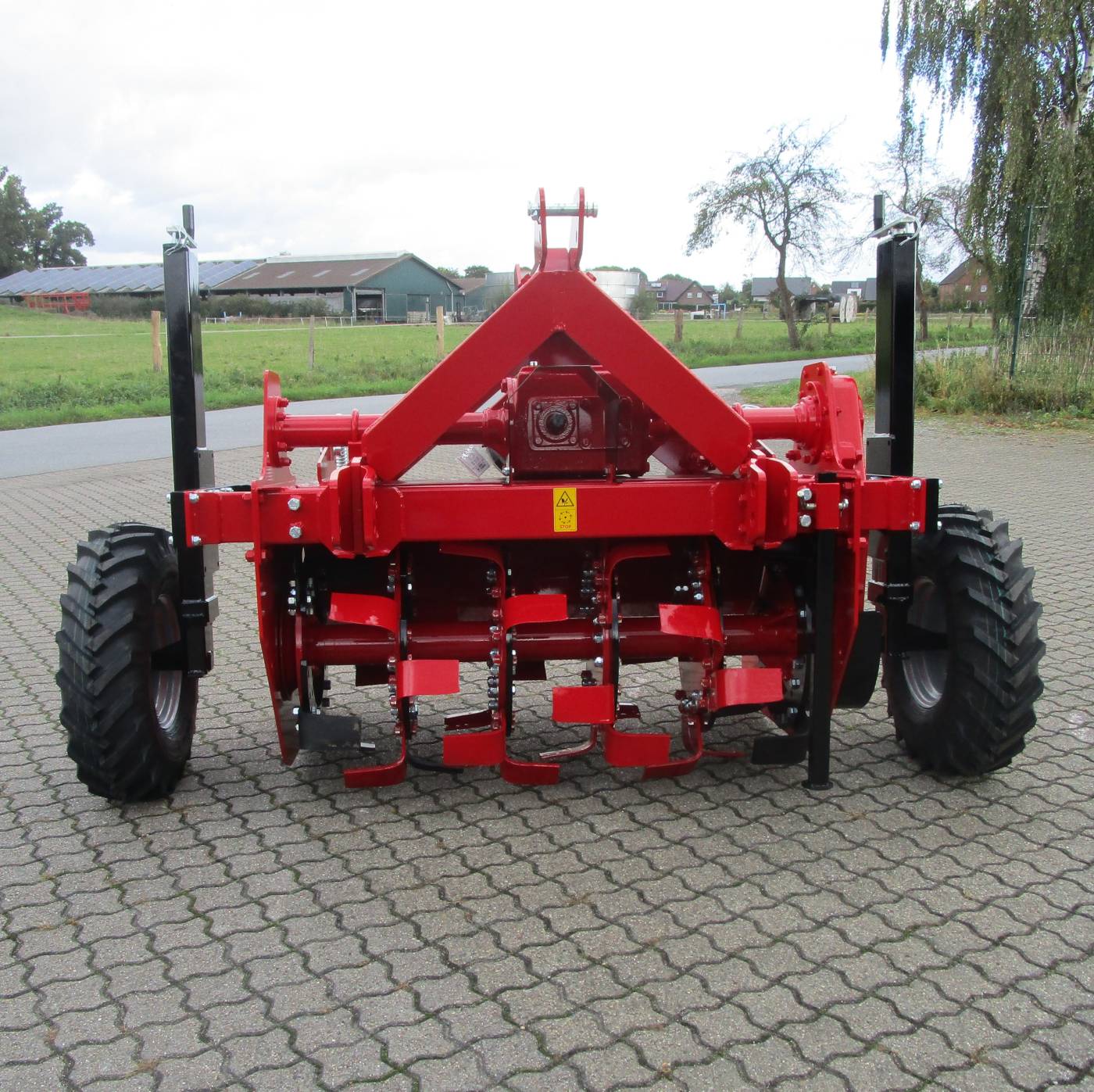

ARE ASR Working width 1 approx. 1300 mm 1300 mm Rotor diameter approx. 540 mm 620 mm Optionally expandable approx. - 720 mm Milling blade quantity 30 30 Milling blade quantity when increasing the rotor diameter - 40 Speed ≙ Rotor speed 2 rpm 540 ≙ 229
1.000 ≙ 370540 ≙ 170 o. 235
1.000 ≙ 315 o. 436Large support wheels for precise depth adjustment + + Height guidance + + PTO shaft with ratchet clutch + + Power requirement approx. 35/40 hp 40/50 hp Also available as a reverse rotary tiller + - Weight approx. 450 kg 790 kg Front and rear attachment + + 1 other working widths possible on request
2 further possibilities of gear pairing on reques
Special Rotary Tillers

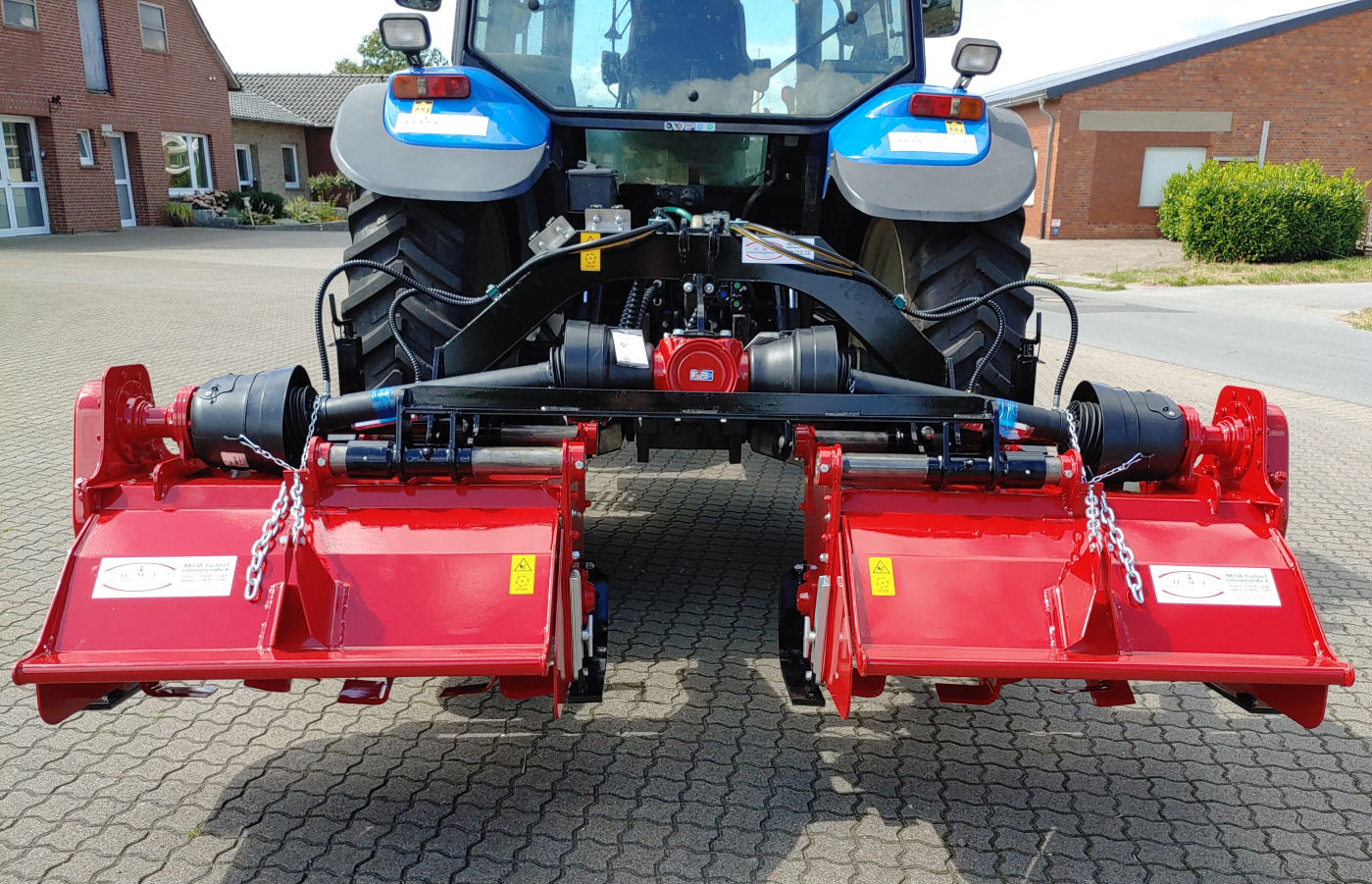

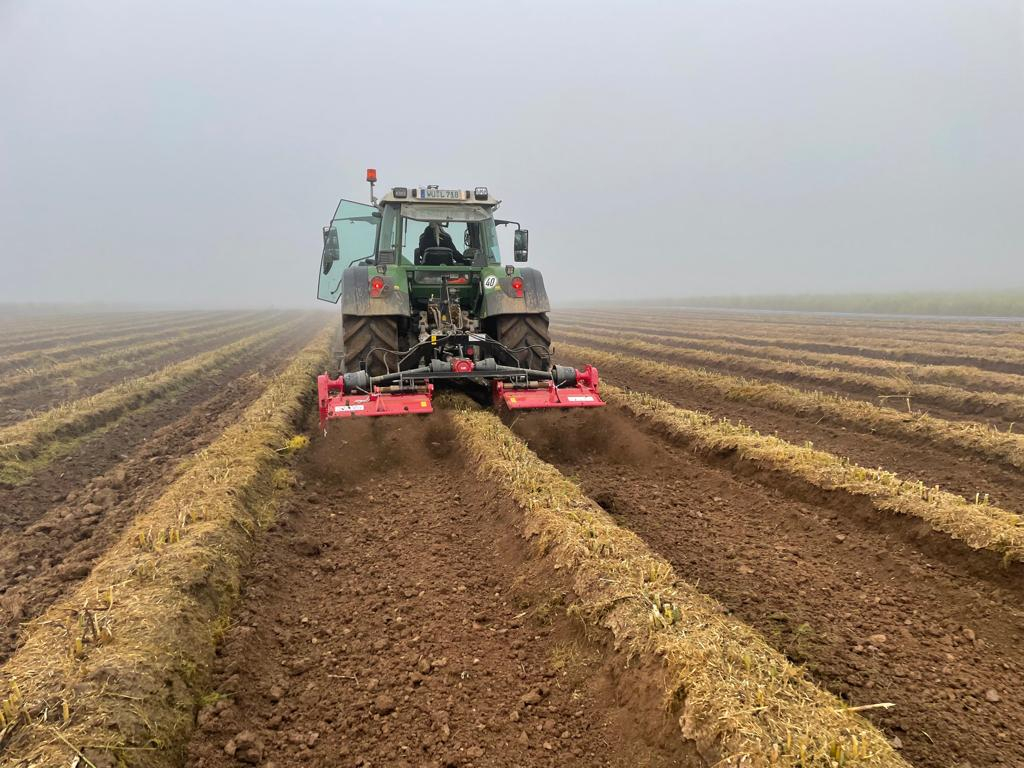

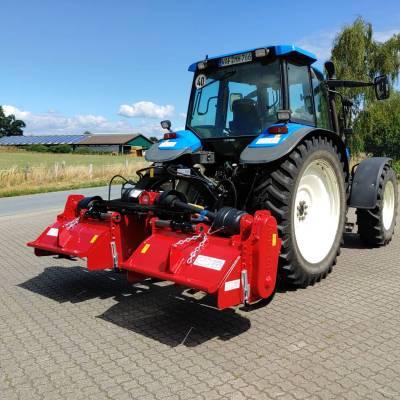

ES-2C-1050 Working width 1 approx. 2 x 1050 mm Rotor diameter approx. 530 mm Milling blade quantity 2 x 21 Speed ≙ Rotor speed rpm 540 ≙ 230 Large support wheels for precise depth control + Height guidance + PTO shaft with ratchet clutch + Power requirement approx. 80 hp Weight approx. 1020 kg Front and rear attchment + -
Function / Application:
- for soil preparation for creating dams in spring or autumn
= fine-grained soil
= no large earth clods
= suitable for all soil conditionset
- Front and rear attachment
- Gear drive
- Speed release 540 rpm and 1000 rpm
- Rotor with milling blade
- 2 x Support wheel for depth adjustment
= more stability - Height guide
= more stability - PTO shaft with ratchet clutch
= overload protection
- Shorter blades in the middle of the rotor
- Adapter rings to increase the rotor diameter (ASR)
- Also available as a reverse rotary tiller (ARE)
- Adapter for combination with multipurpose hoe CHAMÄLEON
= for a better soil preparation for the creation of winter dams - Available in different working widths
Individual modifications with regard to equipment, dimensions, etc. are possible on request.
