EISBÄR I EISBÄR II Tractor attachment Rear attachment Rear attachment Ploughshare quantity 2 2 Ploughshare adjustable 2 4 Height-adjustable support wheel 2 2 Lighting - - Power requirement approx. from 80 hp from 80 hp Manually adjustable working width + + Working width approx. 1600 - 2100 mm 1600 - 2100 mm Dimensions L x W x H approx. 1770 x 2560 x 1680 mm 1770 x 3000 x 1680 mm Weight approx. 650 kg 1045 kg -
Function / Application:
- for the creation of autumn or winter dams
- for clearing the lane

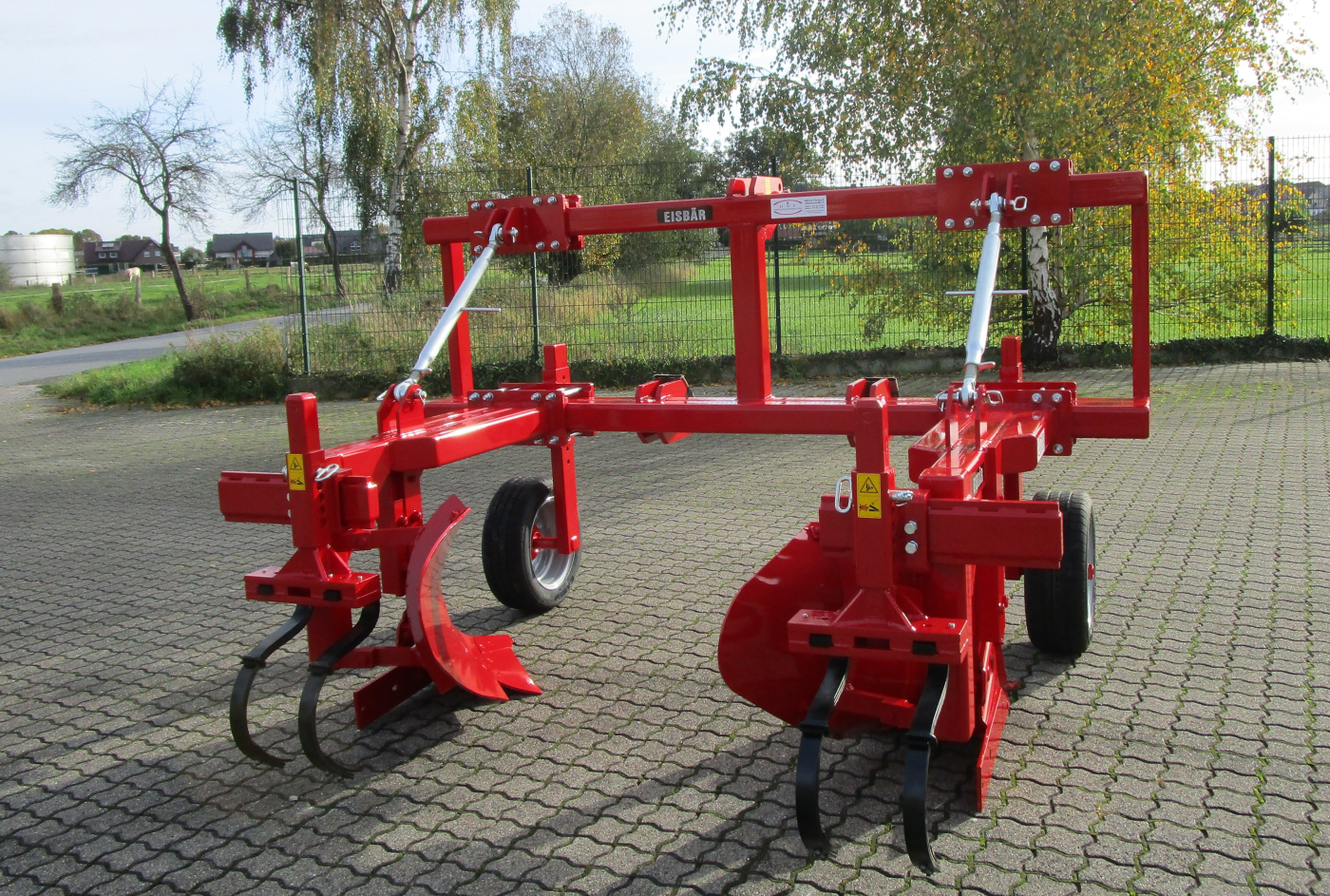

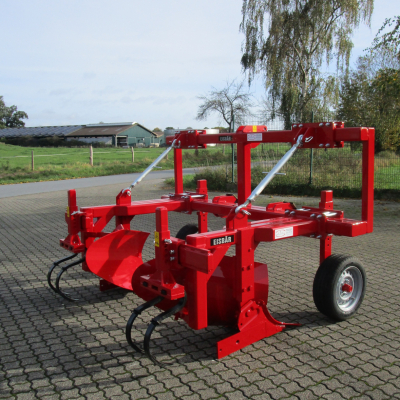

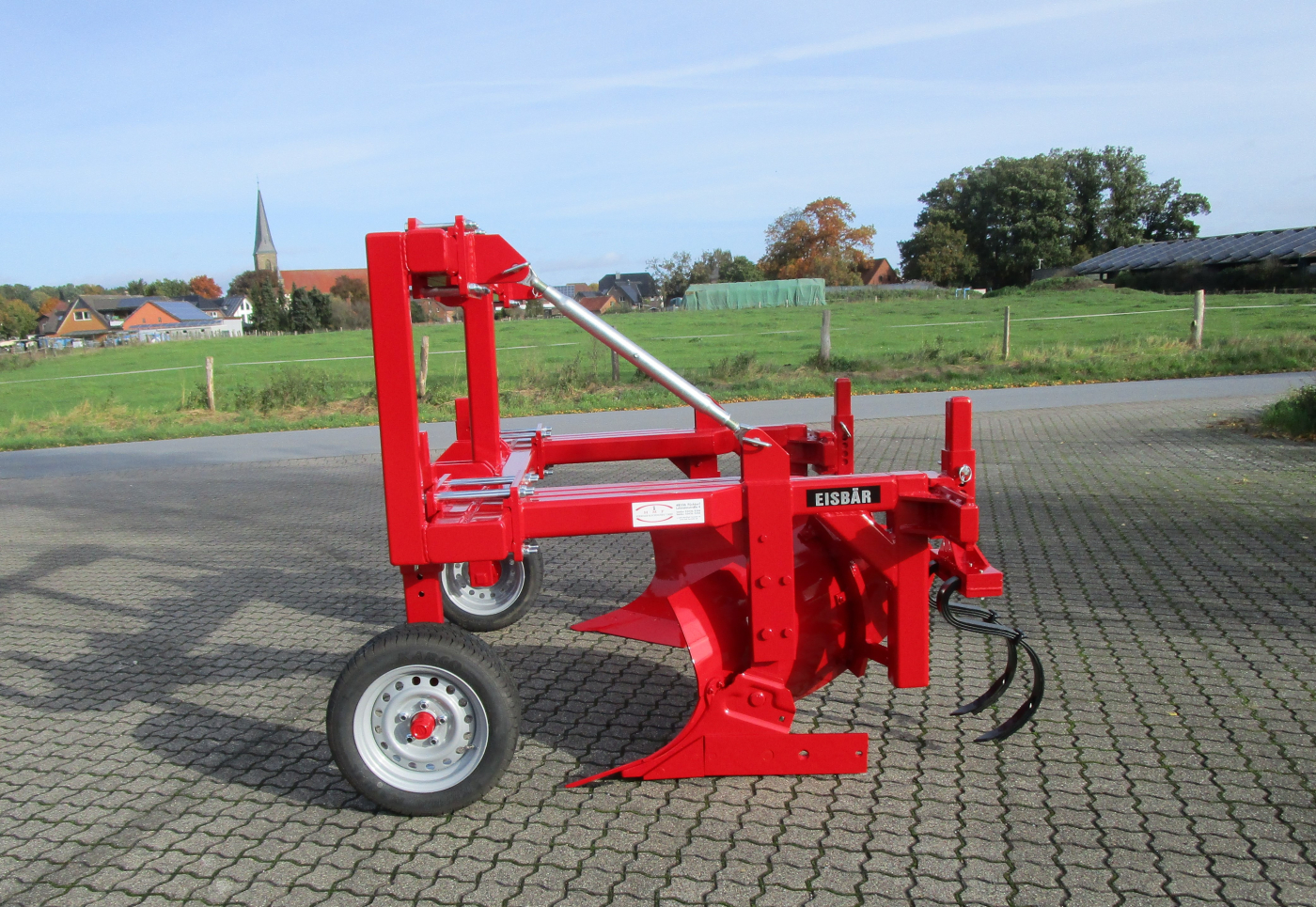

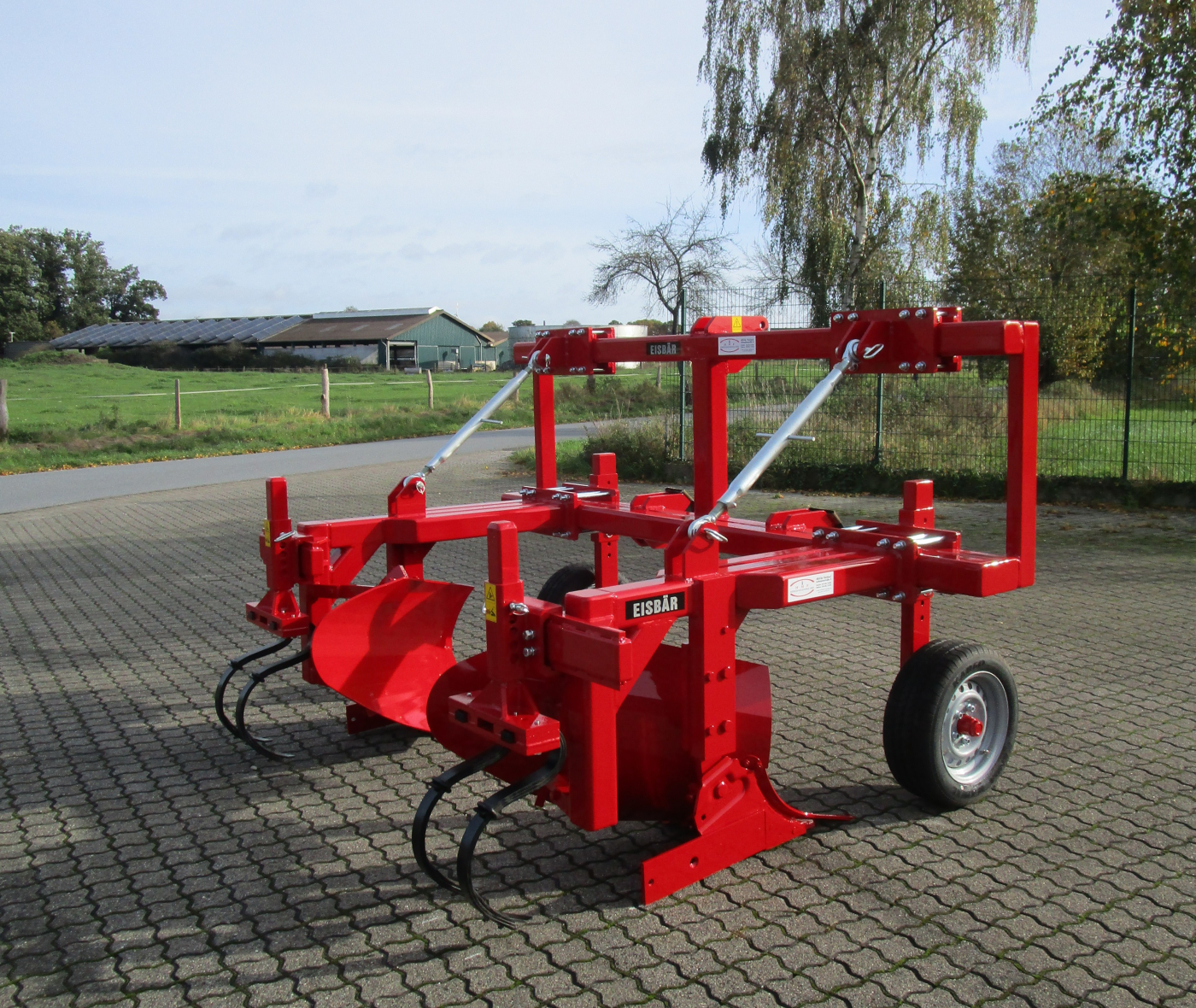

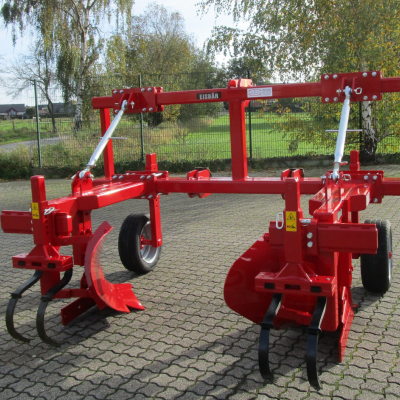

Eisbär I
- Sturdy frame
= suitable for sandy to medium-heavy soils - 2 x Ploughshare body laterally adjustable
- 2 x Support wheel adjustable in height
The lateral track adjustment + height adjustment is done via the support wheels. - Manual adjustable working width
EISBÄR II
- Very sturdy frame
= suitable for sandy to slightly loamy soils - 4 x Ploughshare body laterally adjustable
= ejection of a whole dam and two half dams in one working pass - 2 x Support wheel adjustable in height
The lateral track adjustment + height adjustment is done via the support wheels. - Manual adjustable working width
Accessories / Variations:- Cultivator tines (EISBÄR I + II)
= for ripping up the plough bottom - One coulter hydraulically pivotable (EISBÄR II)
= possibility of one-sided editing (e.g. for last row)
Individual modifications with regard to equipment, dimensions, etc. are possible on request.
