FRIGO 210801 FRIGO 201802 FRIGO 201803 FRIGO 201804 Installation directly in the cold store - + + - Circulation pump quantitiy 2 2 2 2 Sleeve gate valve size 3" 3" 3" 3" Dimensions LxWxH approx. 4080 x 1820 x 2015 mm 4080 x 1820 x 2015 mm 8160 x 1820 x 2015 mm 8160 x 1820 x 2015 mm Sprinkling line length approx. 3000 mm 3000 mm 6000 mm 6000 mm Conveyor belt width approx. 1300 mm 1300 mm 1300 mm 1300 mm Shock capacity from 14°C to 2°C approx. 800 kg/h 800 kg/h 1600 kg/h 1600 kg/h electronic connected power 4 kW (400 V) 4 kW (400 V) 6,5 kW (400 V) 6,5 kW (400 V) -
Function / Application:
- for quickly cooling down asparagus to a storage temperature of 1°C.

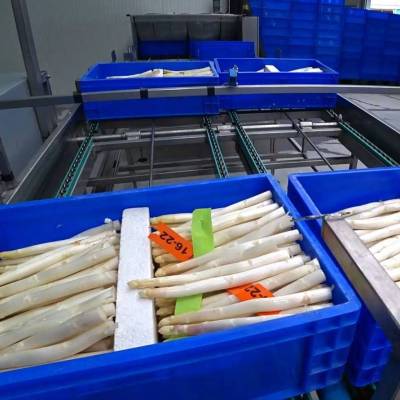

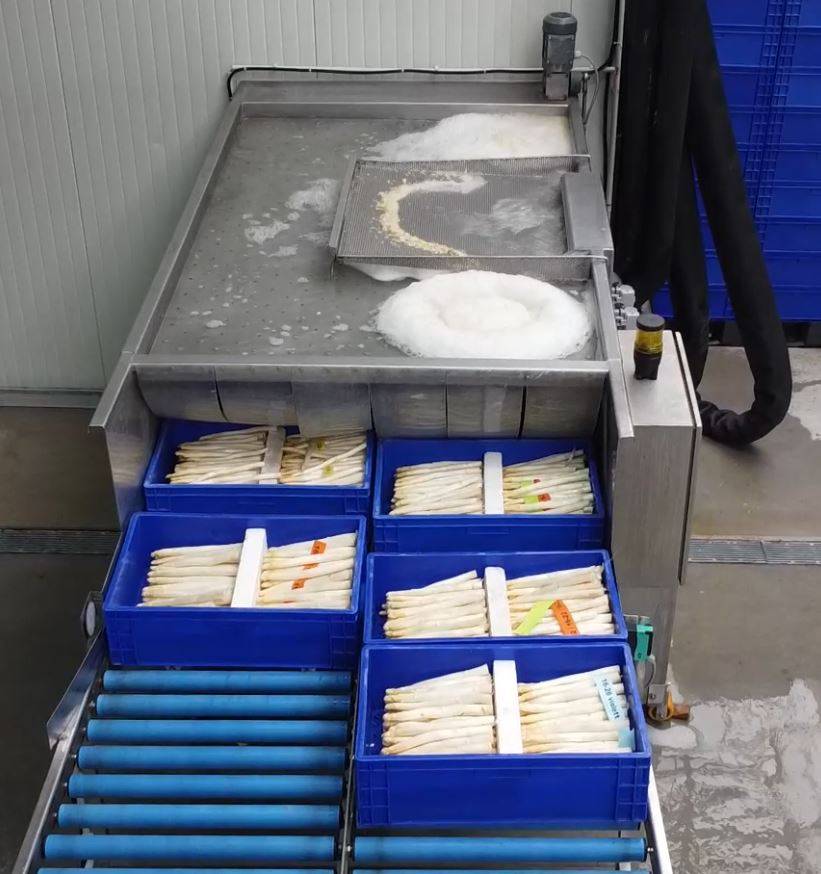

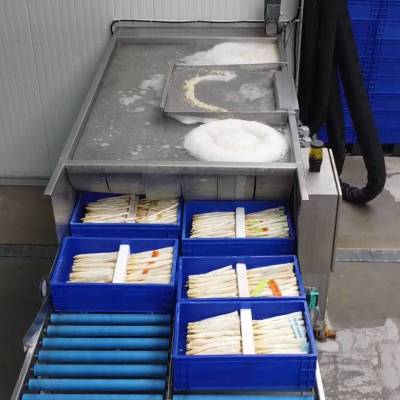

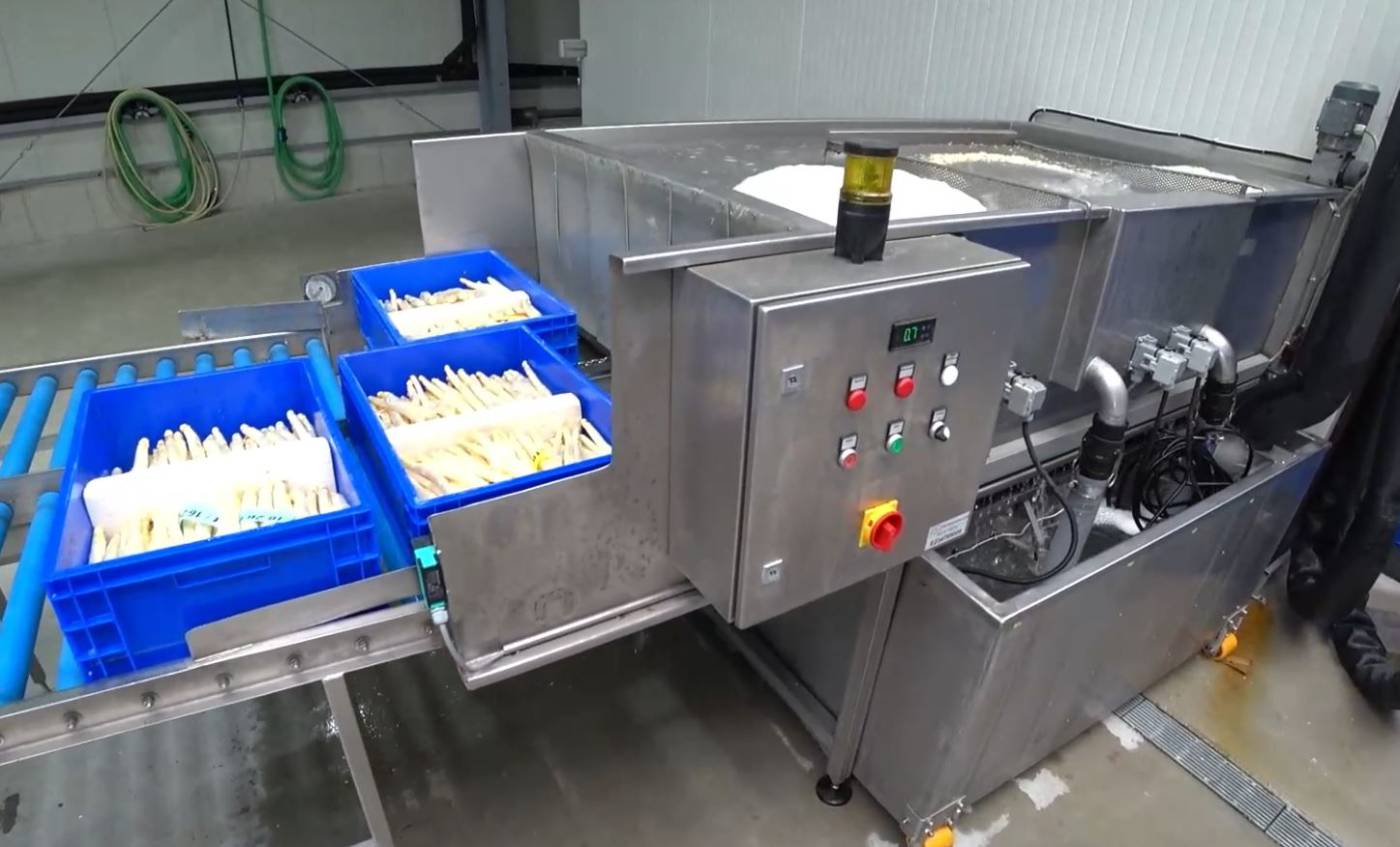

= The Frigopurmat is particularly suitable for use after the sorting process, as preparation of the asparagus for further storage, e.g. in the cold store - Asparagus boxes are transported through the shocker via a conveyor belt.
- gentle sprinkling with ice water from above
- Cooling possible via two different systems:
= The choice of cooling system determines the design/equipment of the flow shocker.
1. Integrated cooling unit
- Connection between the cooling unit and the flow shocker is made through copper pipes.
- Transport of the gaseous refrigerant through the copper coils

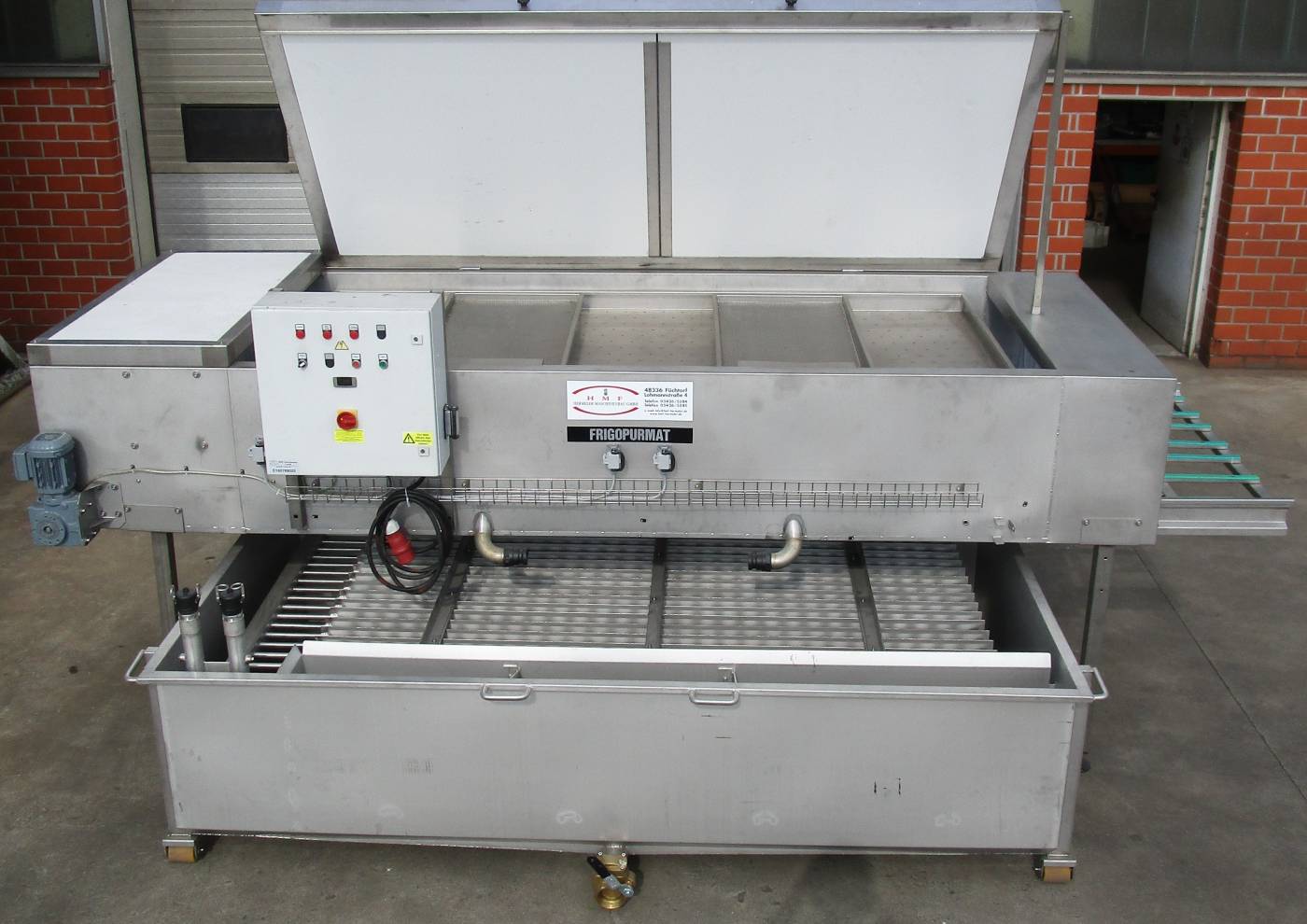

a fixed construction
- stainless steel verson
- Ice water basin
- Heat exchanger made of copper, also functions as an ice storage at the same time

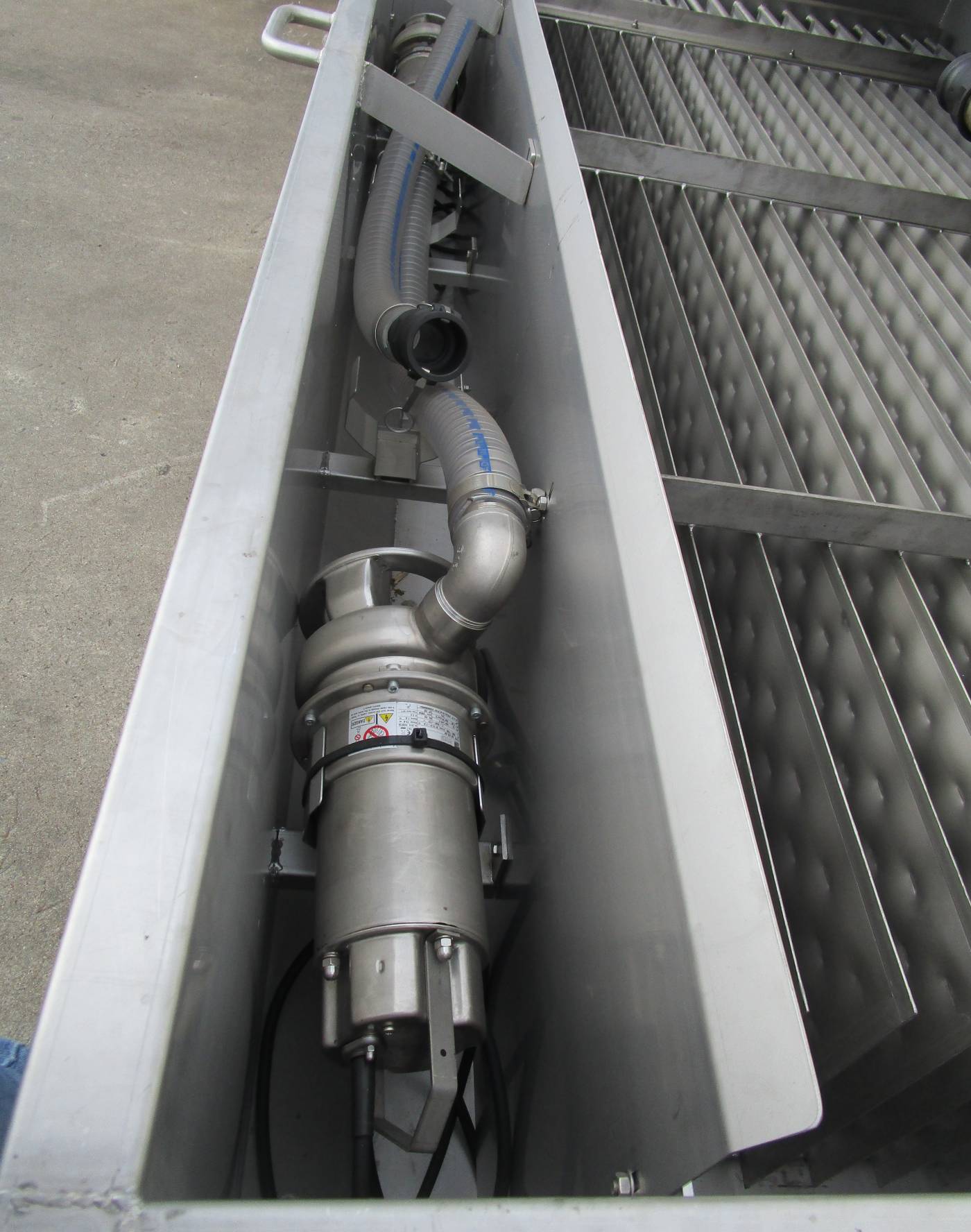

- 2 x stainless steel circulating pump

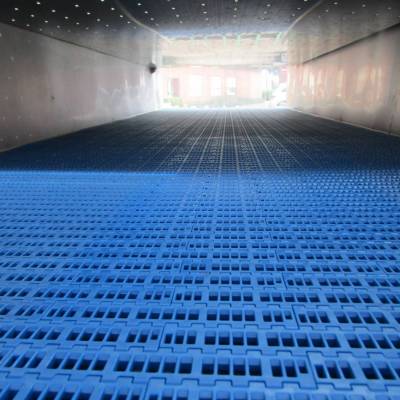

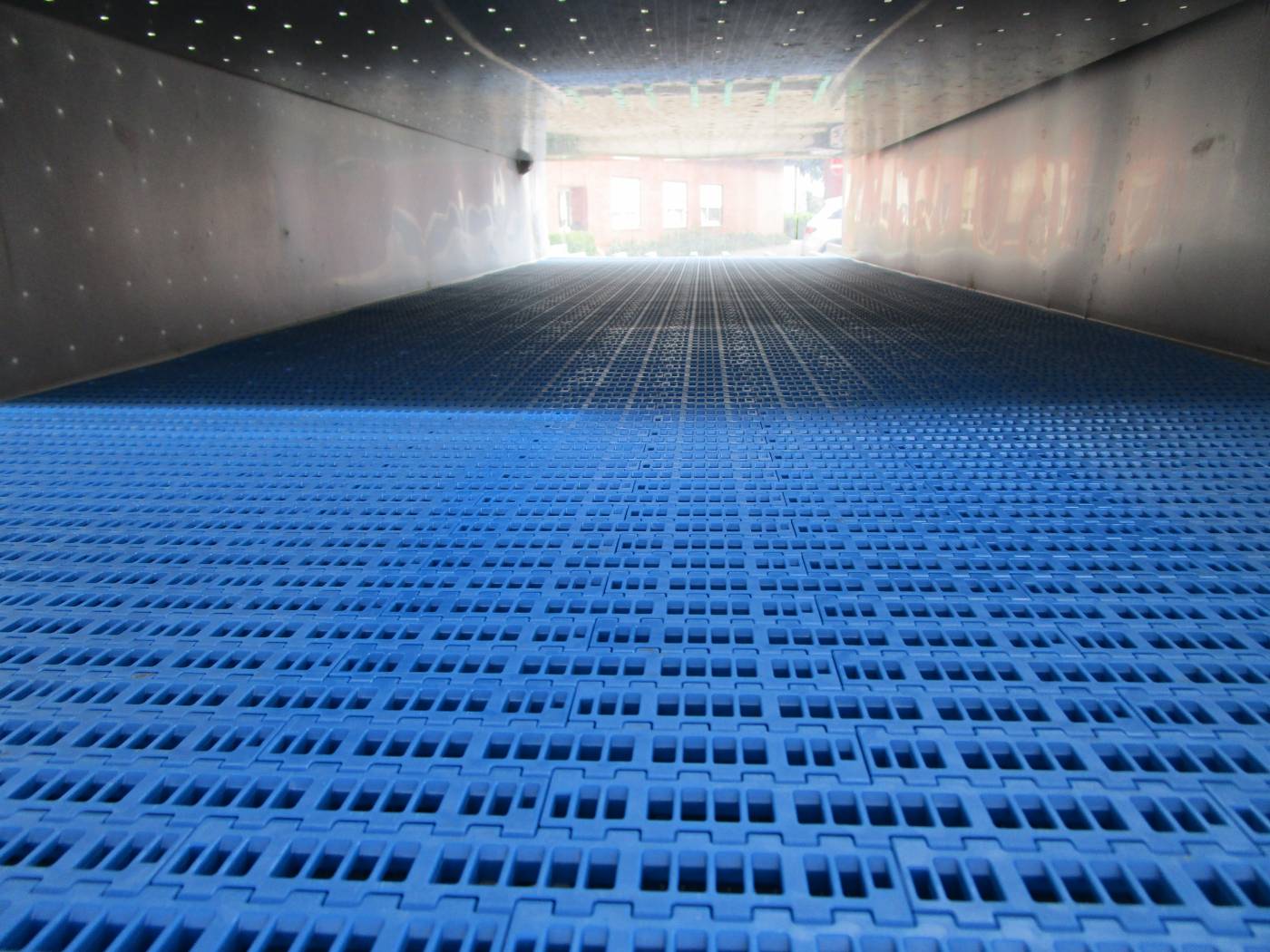

- Conveyor belt made of plastic links, suitable for food use, aligned to desired box size
- Gear motor for driving the conveyor chain with electronic speed adjustment
- Drain via sleeve gate valve 3“

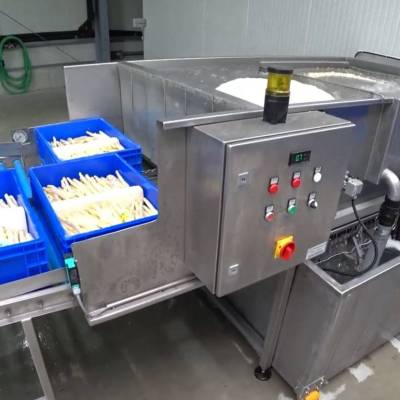

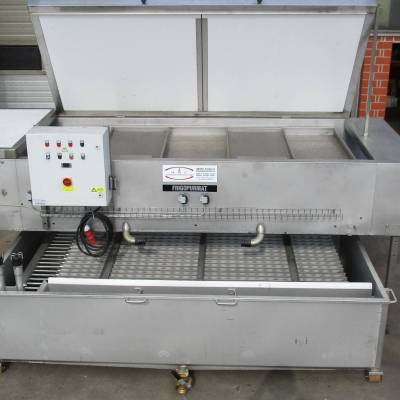

- Control cabinet directly on the flow shocker

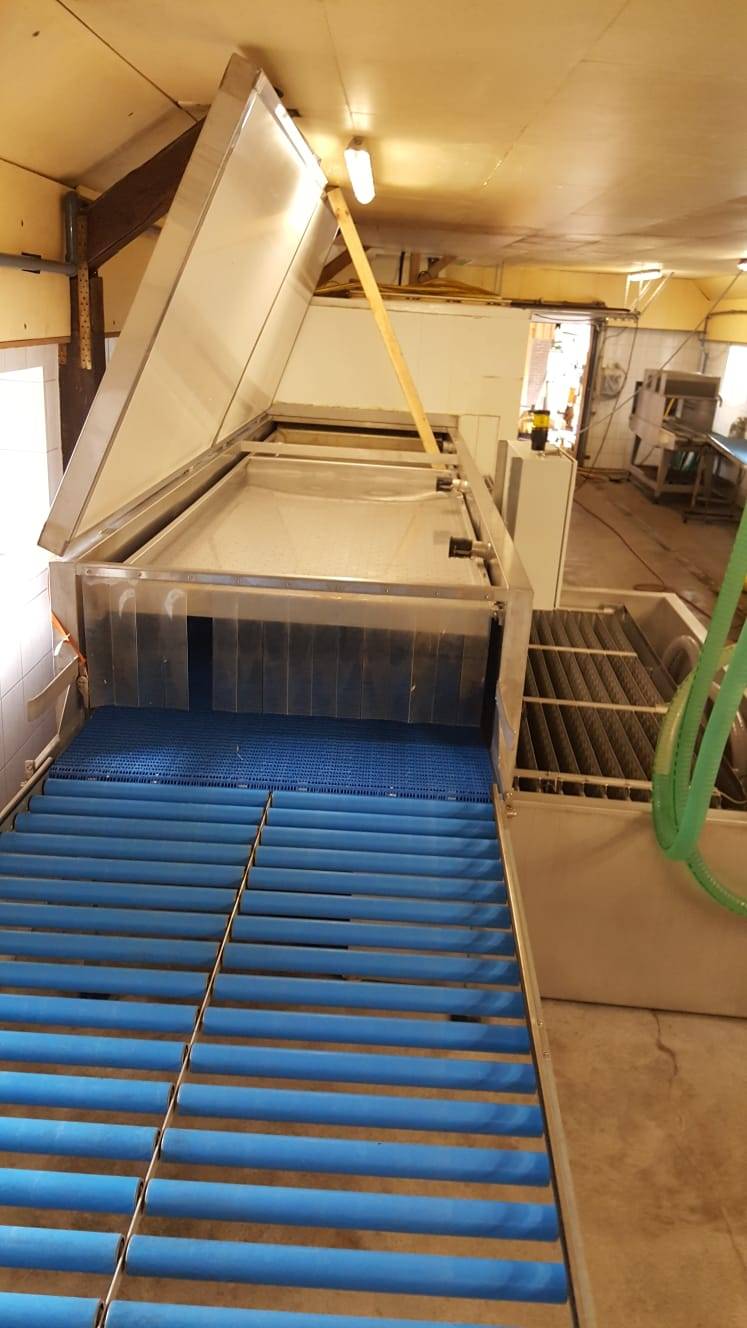

- Sprinkler perforated plate with insulated cover flap
2. External chiller in 2-substance circuit
Connection between chiller and flow shocker is via an insulated hose. A water-glycol mixture runs through stainless steel plates / pipes of the flow shocker, preferably
- in a closed system to reduce temperature loss.
= Waste heat remains outside the building
= Cooling capacity can be adapted to the demand
alternatively: Connection via welded PE piping

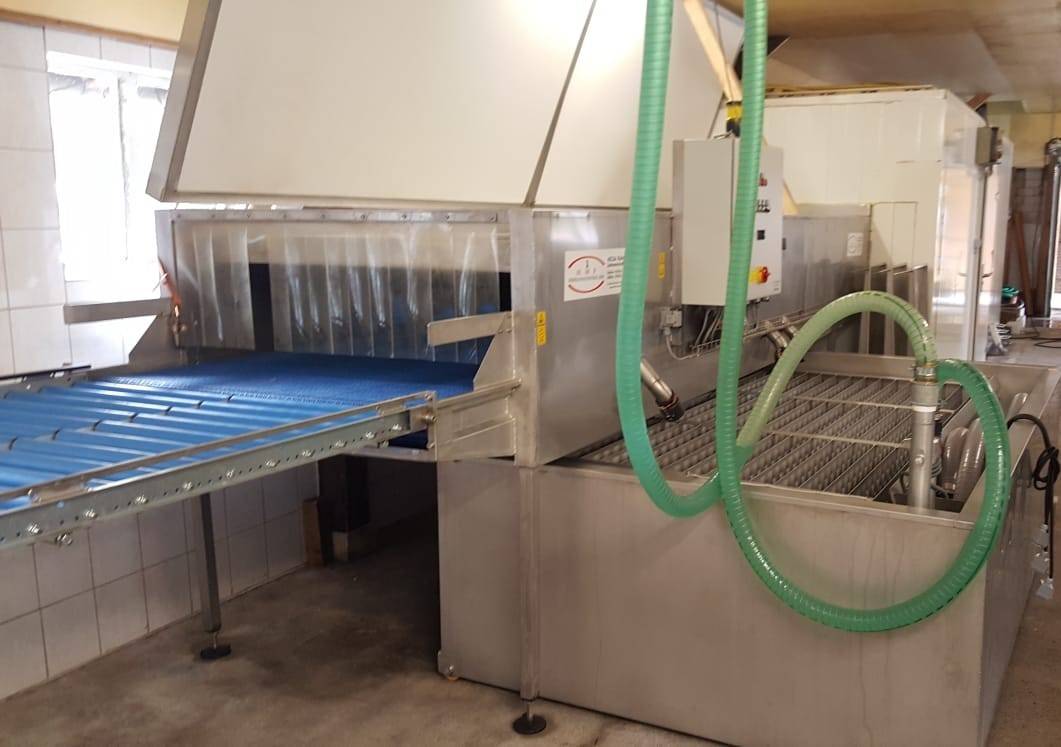

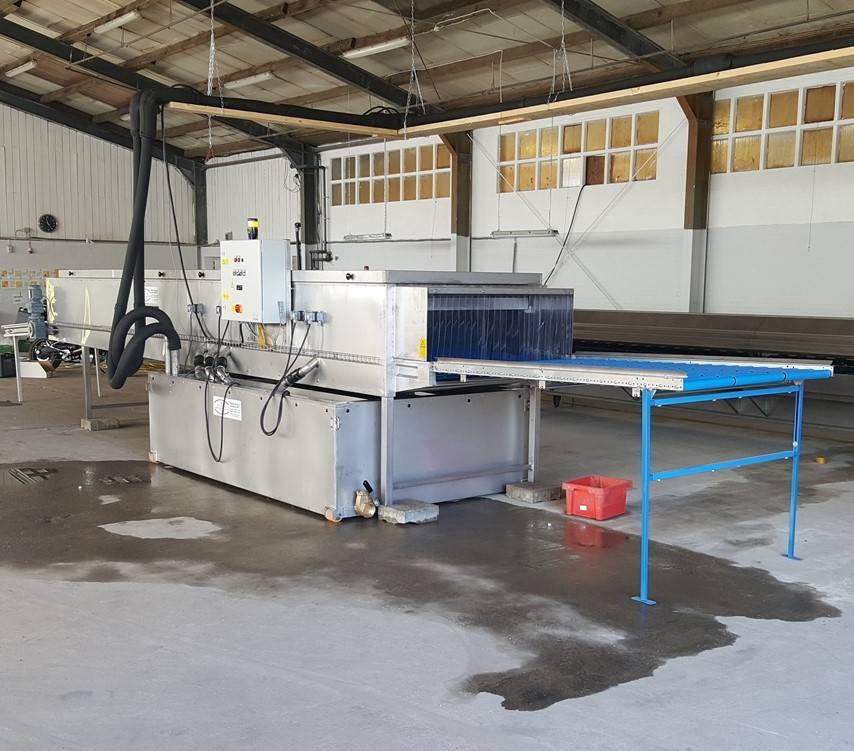

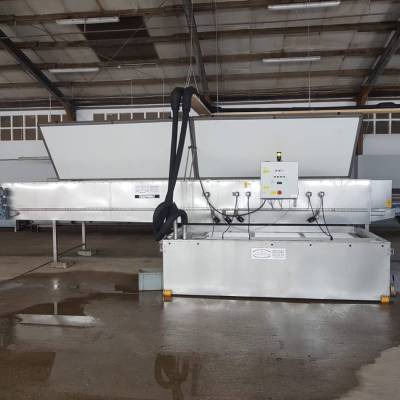

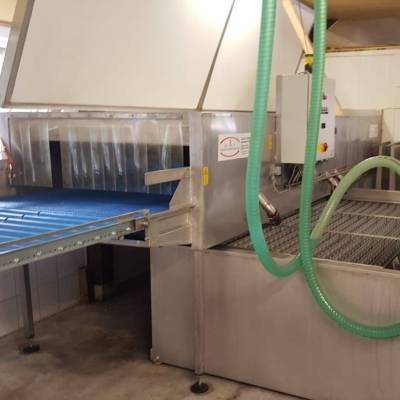

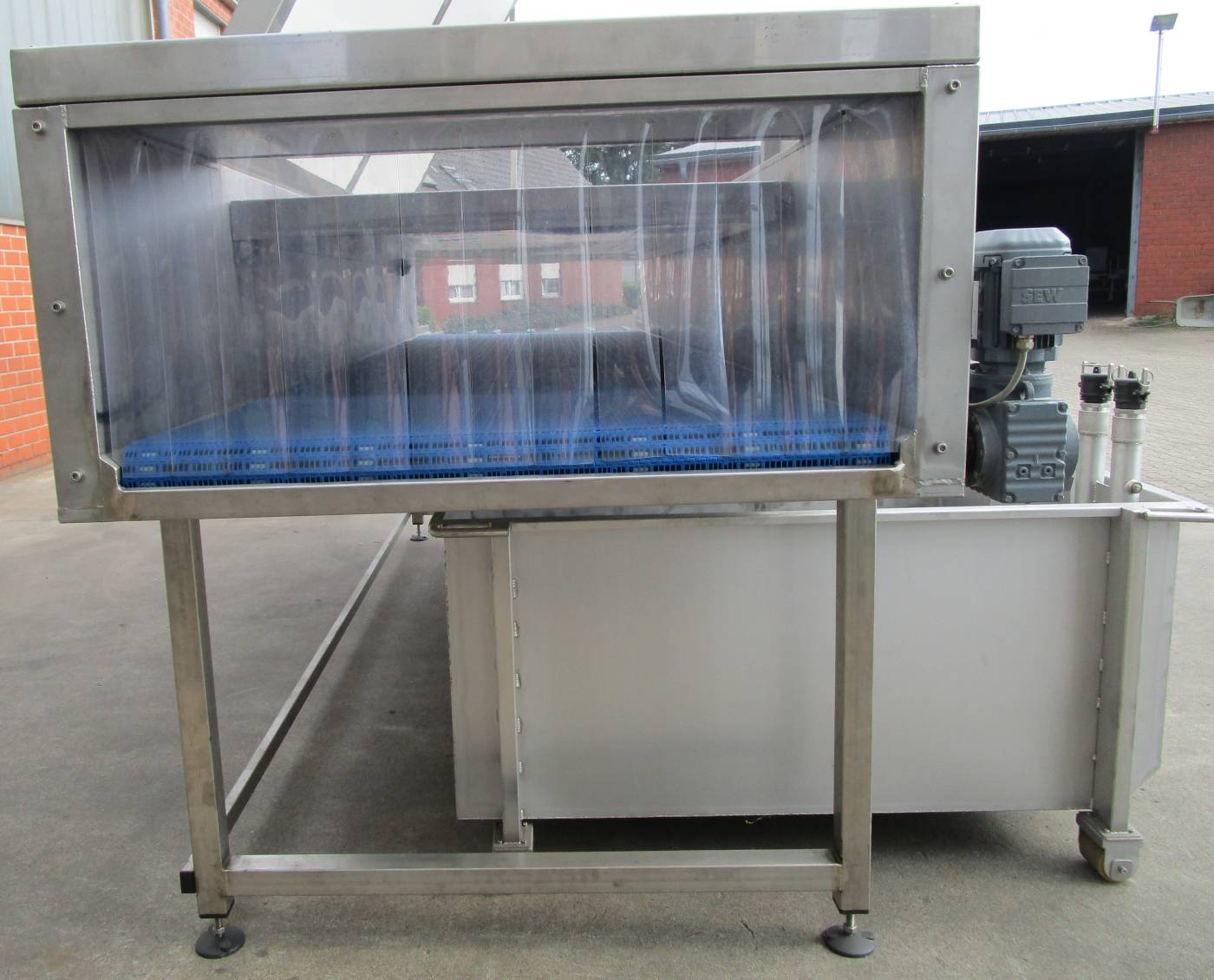

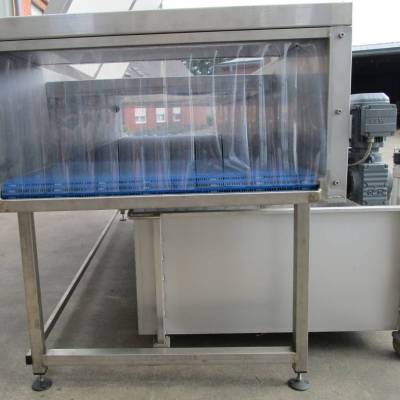

Two-part construction consisting of separate ice water basin and sprinkling line
- stainless steel version
- Ice water basin on rollers; can be moved sideways
= improved cleanability - Heat exchanger made of stainless steel, also functions as an ice storage at the same time

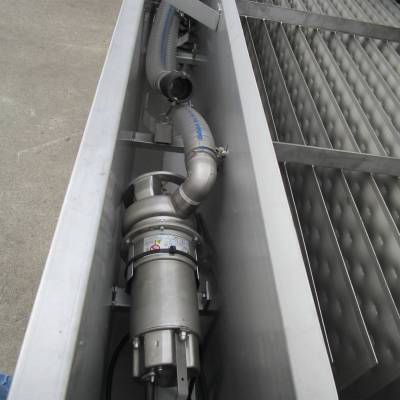

- 2 x stainless steel circulating pump
- Sprinkler perforated plate with insulated cover flap
- Conveyor belt made of plastic links, suitable for food use, aligned to desired box size
- Gear motor for driving the conveyor chain with electronic speed adjustment
- Drain via sleeve gate valve 3“
- Control cabinet directly on the flow shocker
- Insulation (80 mm PU foam sealing) of the walls and the ice water basin.

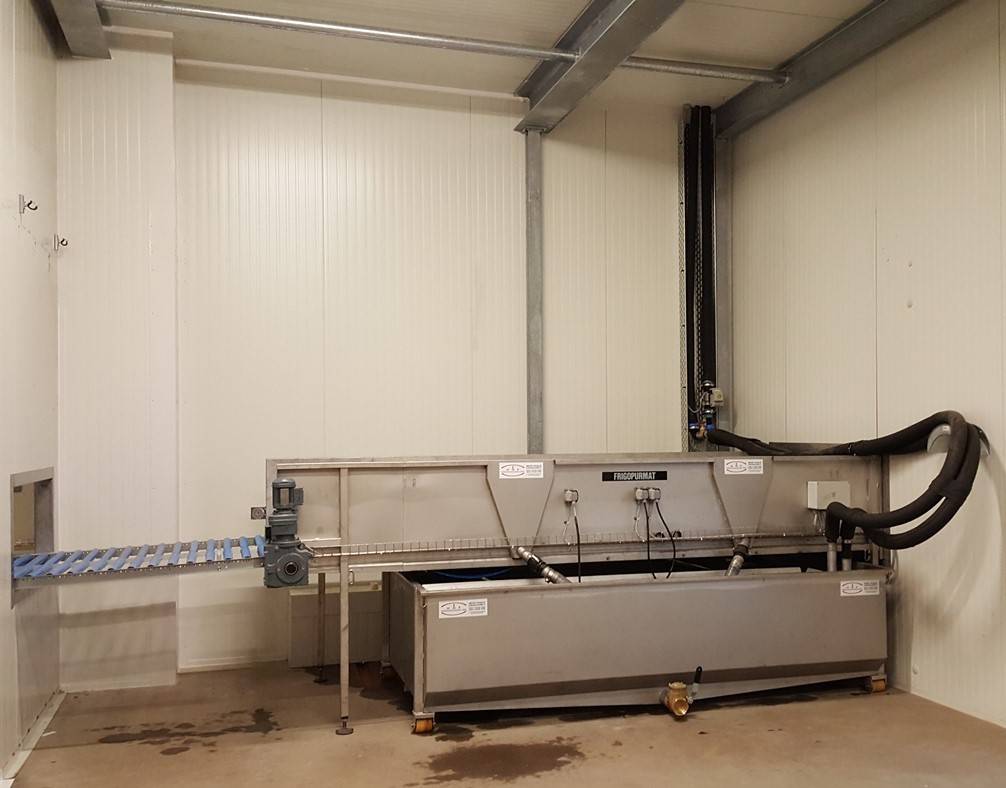

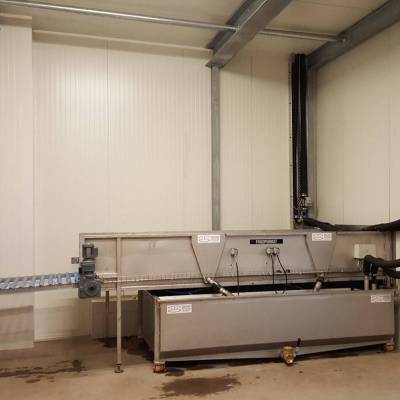

not insulated = Installation directly in the cold store
insulated = Installation outside the cold store - UV lamp for sterilisation

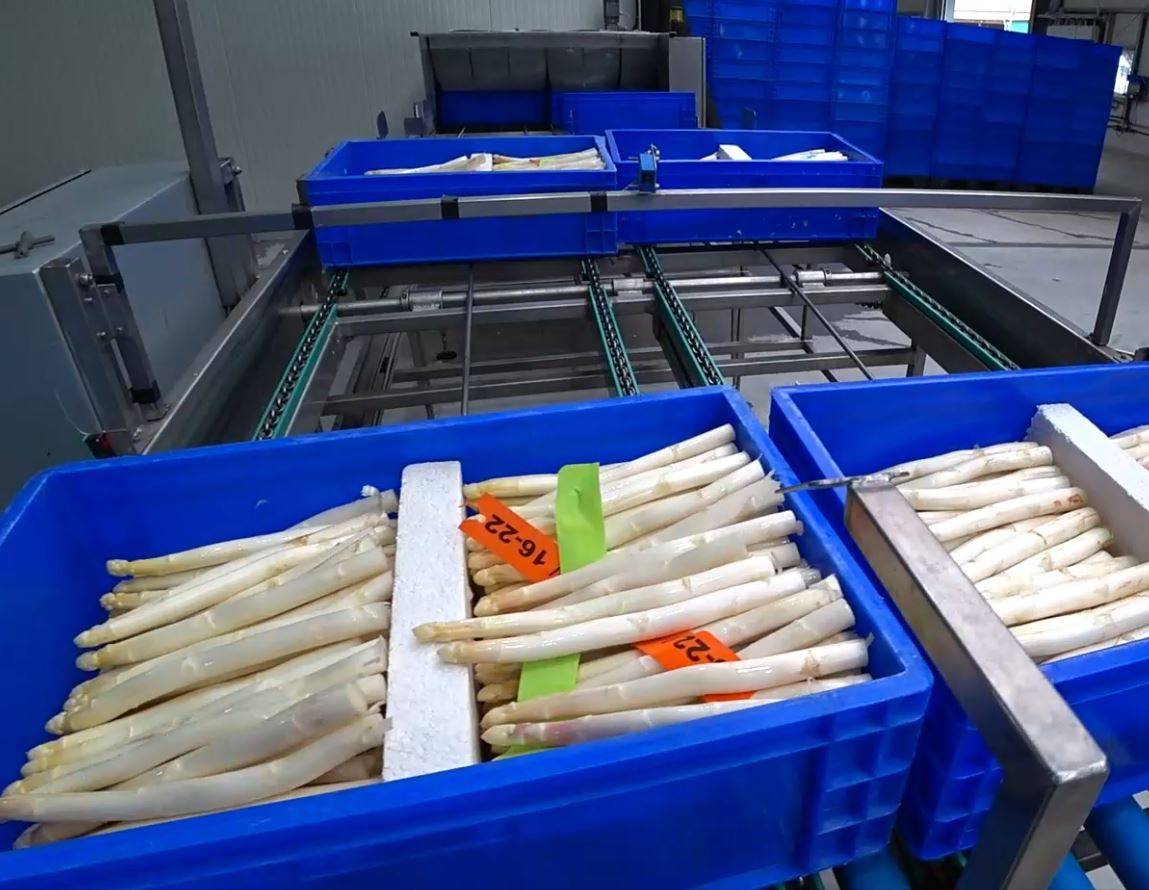

various conveyor belts/roller conveyors/cross slides
= for connection to sorting machine, cold store, etc.
= according to the structural requirements, individually configurable - PLC control for regulation of energy consumption with power supply via photovoltaic system (also as retrofit kit for existing systems)
- Roller conveyor
- Cross slide
The Frigopurmat is built completely according to customer requirements, i.e.
- Sprinkling line
- Shock capacity
- Cooling system
- Box size
- Accessories
are free to choose.
- for quickly cooling down asparagus to a storage temperature of 1°C.
